arxiv: 2604.16505 · v1 · submitted 2026-04-14 · 💻 cs.CV · cs.AI· cs.LG

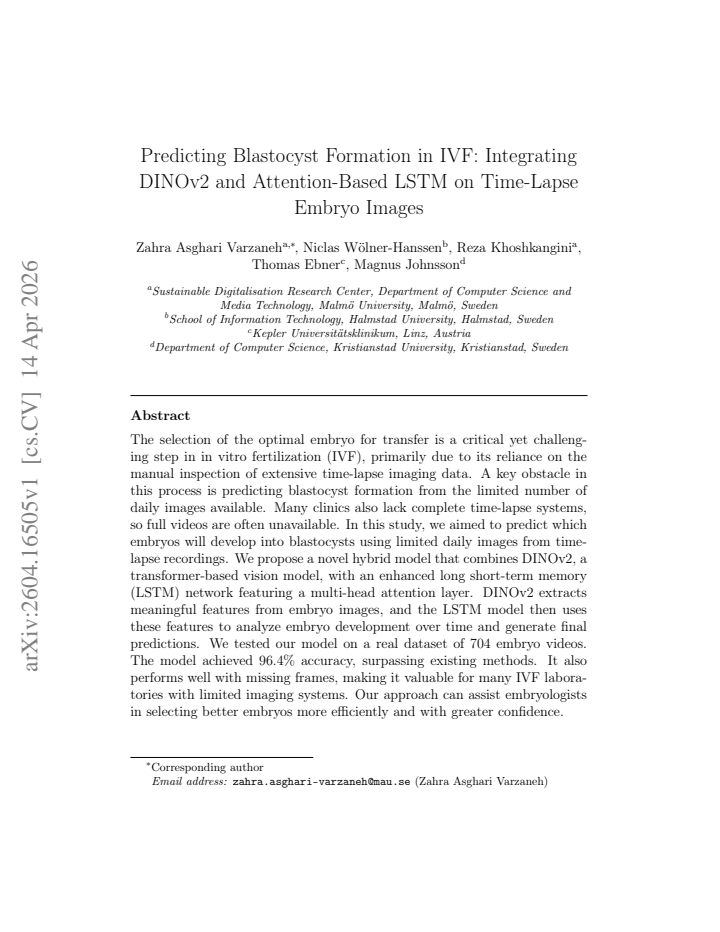

Predicting Blastocyst Formation in IVF: Integrating DINOv2 and Attention-Based LSTM on Time-Lapse Embryo Images

Zahra Asghari Varzaneh , Niclas W\"olner-Hanssen , Reza Khoshkangini , Thomas Ebner , Magnus Johnsson This is my paper

Pith reviewed 2026-05-10 15:58 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.LG
keywords IVFblastocyst predictionembryo selectiontime-lapse imagingDINOv2LSTMattention mechanismhybrid model
0
0 comments X

The pith

A hybrid DINOv2 and attention LSTM model predicts which embryos will form blastocysts from limited daily images at 96.4 percent accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that features extracted by a self-supervised vision model can be sequenced through an attention-augmented LSTM to forecast blastocyst formation even when only a handful of daily images are available instead of complete videos. This addresses a practical bottleneck in IVF clinics that cannot afford full time-lapse systems and still rely on subjective manual review. If the approach holds, embryo selection becomes more consistent and less dependent on continuous imaging hardware. The model was evaluated on 704 real embryo videos and maintained performance when frames were removed.

Core claim

The central claim is that DINOv2 extracts useful spatial features from embryo images and an LSTM equipped with multi-head attention then models their temporal progression to predict blastocyst formation, reaching 96.4 percent accuracy on a dataset of 704 videos while remaining robust to missing frames.

What carries the argument

The hybrid pipeline in which DINOv2 supplies per-image feature vectors that are then processed by a multi-head attention LSTM to capture developmental dynamics over time.

Load-bearing premise

The 704 embryo videos used for training and testing represent the range of imaging conditions and patient demographics encountered in other IVF laboratories.

What would settle it

Accuracy falling below 85 percent when the trained model is applied to embryo images collected at a different clinic with different time-lapse cameras or patient populations.

Figures

Figures reproduced from arXiv: 2604.16505 by Magnus Johnsson, Niclas W\"olner-Hanssen, Reza Khoshkangini, Thomas Ebner, Zahra Asghari Varzaneh.

Figure 1
Figure 1. Figure 1: Time-lapse images of the 16 stages of embryonic development [19]. [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Proportion of blastocyst formation over time. The blue line tracks the proportion of blastocyst-formatted embryos out of the total 704 embryos. The grey-dashed line follows the Active Embryos over time (Notice that some of the embryos are not annotated until +24 h). 5.1. Preprocessing data frames Each data sample is a time-lapse video that shows how the embryo grows during 5 to 6 days. These videos are con… view at source ↗
Figure 3

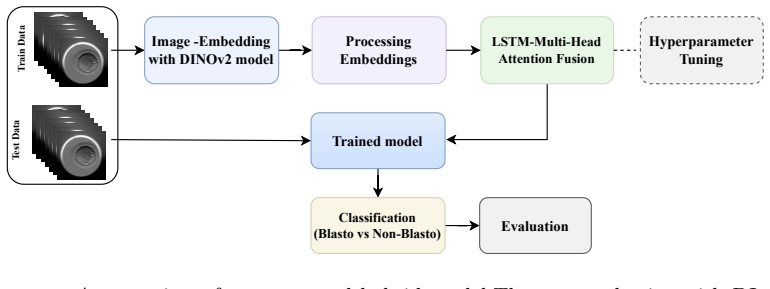

Figure 3. Figure 3: An overview of our proposed hybrid model:The process begins with DI￾NOv2 extracting features from embryo frames, followed by temporal analysis using an LSTM with Multi-Head Attention and hyperparameter tuning. The model then classifies sequences into Blasto or Non-Blasto categories. 5.2. Image embedding with DINOv2 DINOv2 [27] is a self-supervised ViT-based foundation model that learns image representation… view at source ↗
Figure 4
Figure 4. Figure 4: A framework of DINOv2 architecture patch embeddings at those positions, encouraging fine-grained, locality-aware features crucial for dense prediction tasks [27]. By iteratively optimizing these objectives over the vast unlabeled dataset, DINOv2 learns a rich, hierarchical visual representation. Once pre-trained, the ViT backbone provides (i) a global [CLS] token embedding and (ii) a sequence of per-patch … view at source ↗
Figure 5

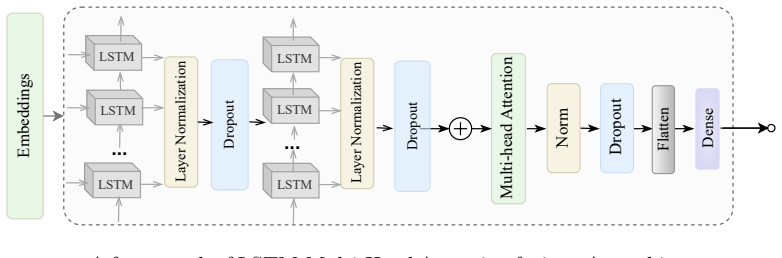

Figure 5. Figure 5: A framework of LSTM-Multi-Head Attention fusion. An architecture com￾bining stacked LSTMs for temporal feature extraction with Multi-Head Attention to capture long-range dependencies, followed by normalization and classification layers. LSTM representation via a residual connection and normalized to stabilize training. Subsequently, the temporally aggregated features are flattened and passed through a clas… view at source ↗
Figure 7
Figure 7. Figure 7: ROC curve of LSTM-Multi-Head Attention Fusion is presented in [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The training history for loss and accuracy metrics. An early stopping patience [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
read the original abstract

The selection of the optimal embryo for transfer is a critical yet challenging step in in vitro fertilization (IVF), primarily due to its reliance on the manual inspection of extensive time-lapse imaging data. A key obstacle in this process is predicting blastocyst formation from the limited number of daily images available. Many clinics also lack complete time-lapse systems, so full videos are often unavailable. In this study, we aimed to predict which embryos will develop into blastocysts using limited daily images from time-lapse recordings. We propose a novel hybrid model that combines DINOv2, a transformer-based vision model, with an enhanced long short-term memory (LSTM) network featuring a multi-head attention layer. DINOv2 extracts meaningful features from embryo images, and the LSTM model then uses these features to analyze embryo development over time and generate final predictions. We tested our model on a real dataset of 704 embryo videos. The model achieved 96.4% accuracy, surpassing existing methods. It also performs well with missing frames, making it valuable for many IVF laboratories with limited imaging systems. Our approach can assist embryologists in selecting better embryos more efficiently and with greater confidence.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a hybrid model that uses DINOv2 to extract features from time-lapse embryo images and feeds them into an attention-augmented LSTM to predict blastocyst formation. It evaluates the approach on a dataset of 704 embryo videos, reports 96.4% accuracy (surpassing prior methods), and claims robustness when frames are missing.

Significance. If the accuracy claim survives proper patient-level cross-validation and external testing, the work would offer a practical aid for embryo selection in IVF clinics that lack complete time-lapse systems. The choice of a pre-trained vision transformer plus temporal attention is a reasonable modern adaptation, and explicit handling of incomplete sequences addresses a genuine clinical constraint.

major comments (2)
  1. [Results] Results section: the headline 96.4% accuracy on 704 videos is presented without any information on train-test split ratios, patient- or embryo-level stratification, k-fold cross-validation, class balance, or statistical testing. In time-series embryo data, failure to isolate images from the same IVF cycle across splits risks leakage and renders the performance claim uninterpretable.
  2. [Methods] Methods section: no description is given of how the 704 videos were acquired (number of patients, embryos per patient, imaging protocol, or exact daily sampling), nor of the baseline methods, their hyper-parameters, or the statistical tests used to assert superiority. These omissions make it impossible to assess whether the reported gains are reproducible or clinically meaningful.
minor comments (1)
  1. [Abstract] The abstract would benefit from a single sentence on validation strategy to allow readers to gauge the 96.4% figure immediately.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback, which highlights important omissions in our description of the experimental protocol. We agree that these details are necessary for assessing the validity of our results and will revise the manuscript accordingly to enhance transparency and reproducibility.

read point-by-point responses

  1. Referee: [Results] Results section: the headline 96.4% accuracy on 704 videos is presented without any information on train-test split ratios, patient- or embryo-level stratification, k-fold cross-validation, class balance, or statistical testing. In time-series embryo data, failure to isolate images from the same IVF cycle across splits risks leakage and renders the performance claim uninterpretable.

    Authors: We agree that the original manuscript omitted these critical details on the evaluation protocol, which is a valid concern given the risk of data leakage in time-series embryo imaging. In the revised version, we will add a dedicated subsection detailing the train-test split ratios, patient-level stratification, k-fold cross-validation procedure, class balance, and the statistical tests used to compare against baselines. This will directly address the potential for leakage and make the 96.4% accuracy claim fully interpretable. revision: yes

  2. Referee: [Methods] Methods section: no description is given of how the 704 videos were acquired (number of patients, embryos per patient, imaging protocol, or exact daily sampling), nor of the baseline methods, their hyper-parameters, or the statistical tests used to assert superiority. These omissions make it impossible to assess whether the reported gains are reproducible or clinically meaningful.

    Authors: We acknowledge that the Methods section was insufficiently detailed regarding dataset acquisition and the implementation of baselines. We will expand this section in the revision to describe the acquisition process (including patient and embryo counts, imaging protocol, and daily sampling), provide full descriptions of the baseline methods along with their hyper-parameters, and specify the statistical tests employed. These additions will support reproducibility and allow readers to better evaluate the clinical relevance of the reported improvements. revision: yes

Circularity Check

0 steps flagged

Standard supervised ML pipeline with no circular derivation

full rationale

The paper describes a conventional supervised learning setup: DINOv2 extracts image features from time-lapse embryo frames, these features are fed into an LSTM with multi-head attention for temporal modeling, the network is trained on labeled videos, and accuracy is measured on held-out test data. No load-bearing step reduces by construction to its own inputs, no fitted parameter is relabeled as a prediction, and no self-citation chain is invoked to justify the architecture or results. The reported 96.4% accuracy is an empirical evaluation metric, not a tautological consequence of the model definition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an applied deep-learning study that relies on a pre-trained DINOv2 backbone and standard LSTM training; the abstract lists no explicit free parameters, axioms, or invented entities beyond the model architecture itself.
