arxiv: 2604.19715 · v1 · submitted 2026-04-21 · cs.CV · cs.SY· eess.SY

A Network-Aware Evaluation of Distributed Energy Resource Control in Smart Distribution Systems

Houchao Gan This is my paper

Reviewed by Pith T0 review T1 audit T2 compute T3 formal T4 kernel 2026-05-10 02:25 UTCgrok-4.3open to challenge →

classification cs.CV cs.SYeess.SY
keywords distributed energy resourcescommunication delaysco-simulationvoltage regulationvirtual power plantprimal-dual dispatchsmart distribution systems
0
0 comments X

The pith

Realistic downlink delays cause a virtual power plant dispatch controller to produce large oscillations in feeder-head power and more frequent voltage limit violations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates how a representative primal-dual dispatch algorithm for coordinating distributed energy resources performs when communication delays are modeled explicitly rather than assumed away. It couples a linearized distribution feeder model to packet-level network emulation so that dual-variable updates arrive with realistic per-DER delays and a hold-last-value fallback. Under ideal communication the controller tracks the power reference closely and keeps voltages inside limits, but the same algorithm becomes unstable once delays are present. This matters because many proposed DER control schemes are assessed only under perfect networks and may therefore behave unexpectedly once deployed on real communication links.

Core claim

The primal-dual VPP dispatch simultaneously targets feeder-head active power tracking and voltage regulation on a modified IEEE 37-node feeder with high photovoltaic penetration. When dual-variable updates travel over an idealized downlink the algorithm achieves close power tracking while voltages remain within prescribed limits at selected buses. When the same updates are subject to per-DER packet delays modeled in ns-3 together with a hold-last-value strategy, feeder-head power exhibits large oscillations and voltage limit violations become more frequent.

What carries the argument

Co-simulation framework that couples a linearized distribution-system model with packet-level downlink emulation in ns-3, applying delays only to the dual-variable updates of a primal-dual VPP dispatch controller.

If this is right

  • Performance guarantees derived under ideal communication do not transfer to networks that introduce packet delays.
  • Distributed DER control schemes must be re-evaluated inside frameworks that explicitly include communication dynamics.
  • A simple hold-last-value fallback is insufficient to preserve stability when downlink delays are present.
  • Voltage regulation objectives become harder to meet once communication delays affect the dual updates.
  • Future controller designs need explicit robustness to realistic network conditions to avoid unintended oscillations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Other primal-dual or consensus-based DER controllers may exhibit comparable degradation once tested under the same network model.
  • Communication infrastructure upgrades or delay-compensating control layers could become necessary prerequisites for high DER penetration.
  • A natural next test is to replace the linearized model with a full nonlinear power-flow solver inside the same ns-3 co-simulation loop.

Load-bearing premise

The hold-last-value strategy together with the chosen ns-3 downlink emulation and the linearized feeder model are representative of actual deployed communication and power-system behavior.

What would settle it

Deploy the identical primal-dual controller on a hardware testbed that uses real communication hardware for dual-variable updates and a nonlinear power-flow model of the feeder, then measure whether feeder-head power oscillations and voltage violations still appear at the same delay magnitudes.

Figures

Figures reproduced from arXiv: 2604.19715 by Houchao Gan.

Figure 2

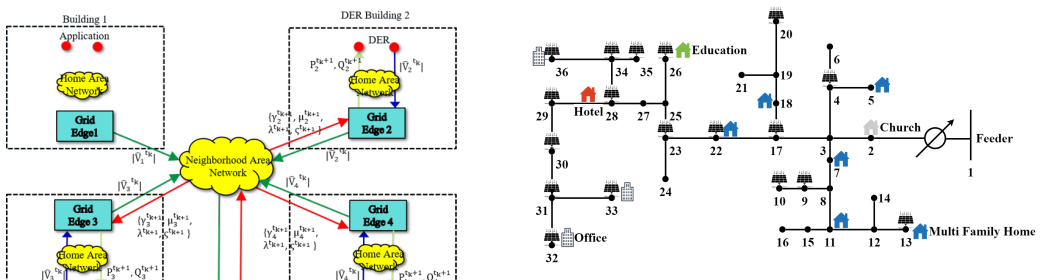

Figure 2. Figure 2: Modified IEEE 37-node test feeder used in this work. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 1
Figure 1. Figure 1: Communication architecture for the distributed VPP [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Representative 1-hour-resolution time-series profiles [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Closed-loop behavior of the distributed VPP dispatch with ideal communication. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

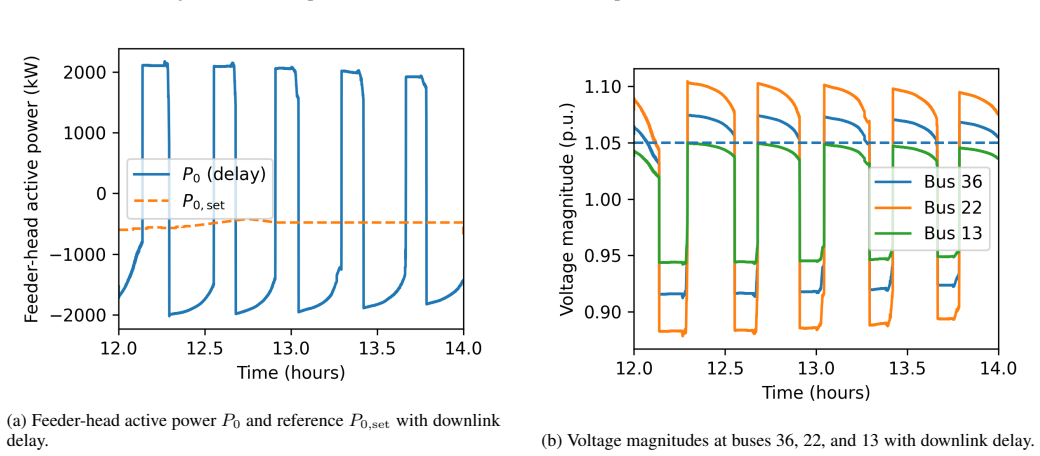

Figure 5. Figure 5: Closed-loop behavior of the distributed VPP dispatch with ns-3 downlink delay and hold-last-value strategy. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

Distribution networks with high penetration of Distributed Energy Resources (DERs) increasingly rely on communication networks to coordinate grid-interactive control. While many distributed control schemes have been proposed, they are often evaluated under idealized communication assumptions, making it difficult to assess their performance under realistic network conditions. This work presents an implementation-driven evaluation of a representative virtual power plant (VPP) dispatch algorithm using a co-simulation framework that couples a linearized distribution-system model with packet-level downlink emulation in ns-3. The study considers a modified IEEE~37-node feeder with high photovoltaic penetration and a primal--dual VPP dispatch that simultaneously targets feeder-head active power tracking and voltage regulation. Communication effects are introduced only on the downlink path carrying dual-variable updates, where per-DER packet delays and a hold-last-value strategy are modeled. Results show that, under ideal communication, the dispatch achieves close tracking of the feeder-head power reference while maintaining voltages within the prescribed limits at selected buses. When realistic downlink delay is introduced, the same controller exhibits large oscillations in feeder-head power and more frequent voltage limit violations. These findings highlight that distributed DER control performance can be strongly influenced by communication behavior and motivate evaluation frameworks that explicitly incorporate network dynamics into the assessment of grid-interactive control schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents a co-simulation study of a primal-dual virtual power plant (VPP) dispatch algorithm for DER coordination in a modified IEEE 37-node feeder with high PV penetration. A linearized distribution-system model is coupled to ns-3 packet-level downlink emulation; the controller targets feeder-head active-power tracking and voltage regulation. Under ideal communication the dispatch achieves close tracking and voltage compliance; under realistic downlink delays (with hold-last-value) the same controller produces large oscillations in feeder-head power and more frequent voltage-limit violations.

Significance. If the central claim holds, the work usefully demonstrates that communication delays can materially degrade distributed DER control performance and motivates network-aware evaluation frameworks. The co-simulation approach itself is a constructive contribution. However, the absence of quantitative metrics and the reliance on a small-signal linearization under large observed excursions limit the strength of the evidence and the immediate engineering impact.

major comments (2)
  1. [Modeling / co-simulation framework] Modeling section (linearized feeder model): the headline result—that realistic downlink delays induce large oscillations and voltage violations—occurs precisely in the regime where the small-signal linearization is expected to lose validity. No analysis is provided of the magnitude of voltage or power excursions relative to the linearization point, nor is a comparison to a nonlinear power-flow model offered. This directly undermines the claim that the observed instability is a property of the true system rather than an artifact of the modeling choice.
  2. [Results] Results / evaluation section: the abstract and reported outcomes are purely qualitative (“close tracking,” “large oscillations,” “more frequent violations”) with no error bars, RMS tracking errors, statistical tests, or sensitivity sweeps on delay statistics or hold-last-value parameters. Without these, it is impossible to judge the robustness or practical significance of the reported degradation.
minor comments (2)
  1. [Communication model] The ns-3 downlink emulation parameters (packet sizes, channel model, delay distribution) are described only at a high level; a table or explicit parameter list would improve reproducibility.
  2. [Controller description] Notation for dual variables and the hold-last-value update rule could be made more explicit with a small equation or pseudocode block.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below, proposing revisions where they strengthen the manuscript without misrepresenting our modeling assumptions or results.

read point-by-point responses

  1. Referee: [Modeling / co-simulation framework] Modeling section (linearized feeder model): the headline result—that realistic downlink delays induce large oscillations and voltage violations—occurs precisely in the regime where the small-signal linearization is expected to lose validity. No analysis is provided of the magnitude of voltage or power excursions relative to the linearization point, nor is a comparison to a nonlinear power-flow model offered. This directly undermines the claim that the observed instability is a property of the true system rather than an artifact of the modeling choice.

    Authors: We agree that the large excursions under delayed communication fall outside the regime where the small-signal linearization remains strictly valid. The manuscript presents results strictly within the linearized model and does not claim equivalence to a full nonlinear power-flow solution. In the revision we will add quantitative analysis of voltage and power deviations from the linearization point together with an explicit limitations paragraph stating the scope of the conclusions. This preserves the core demonstration that communication delays materially affect controller behavior inside the modeling framework employed. revision: partial

  2. Referee: [Results] Results / evaluation section: the abstract and reported outcomes are purely qualitative (“close tracking,” “large oscillations,” “more frequent violations”) with no error bars, RMS tracking errors, statistical tests, or sensitivity sweeps on delay statistics or hold-last-value parameters. Without these, it is impossible to judge the robustness or practical significance of the reported degradation.

    Authors: We accept that the current presentation is primarily qualitative and that quantitative metrics would allow readers to better assess practical significance. We will revise the results section to report RMS tracking error for feeder-head power, the number and duration of voltage-limit violations, and sensitivity sweeps over representative delay distributions and hold-last-value parameters. Where multiple independent runs are performed, error bars will be included. revision: yes

Circularity Check

0 steps flagged

No circularity: direct simulation results with no derivation or fitted predictions

full rationale

The paper presents an implementation-driven co-simulation evaluation coupling a linearized distribution model with ns-3 packet emulation. No first-principles derivations, parameter fittings, or predictions are claimed. All results follow directly from running the described controller under ideal vs. delayed communication scenarios on the modified IEEE 37-node feeder. The linearized model is an explicit modeling choice, not derived from the outputs. No self-citations are load-bearing for any result. This is a standard honest simulation study with no reduction of claims to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The evaluation rests on two standard domain assumptions about model fidelity and communication abstraction; no free parameters or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption The linearized distribution-system model is sufficiently accurate for evaluating the dispatch controller.
    Invoked when coupling the power model with the communication emulator.
  • domain assumption Hold-last-value is an appropriate abstraction for the effect of downlink packet delays on DER set-points.
    Used to model communication effects in the ns-3 emulation.
