Measuring Tianlai's primary beam using sky model

Fengquan Wu, Furen Deng, Jixia Li, Shifan Zuo, Shijie Sun, Xuelei Chen, Yichao Li, Yougang Wang, Yunbo Geng

Authors on Pith no claims yet

Pith reviewed 2026-05-09 23:39 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords Tianlai arrayprimary beam measurementbeam factorizationdrift-scan telescopesolar calibrationsky modelcylinder antennaradio beam calibration
0
0 comments X

The pith

Tianlai's primary beam factors into independent east-west and north-south components via the Sun's motion.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the primary beam of the Tianlai Cylinder Pathfinder Array can be separated into independent east-west and north-south factors by tracking the Sun's daily north-south path. East-west profiles at different elevations come from normalized solar observations, while the north-south profile is fitted by matching sky-map simulations to the measured signals. Readers care because this decomposition provides a practical way to calibrate the response of drift-scan cylinder telescopes without extra equipment, directly affecting the accuracy of radio sky maps and cosmology data.

Core claim

We demonstrate that the primary beam is factorizable into independent East-West and North-South components by exploiting the North-South motion of the Sun. The East-West beam profiles are obtained at various elevations from solar observations with normalization to eliminate solar activity effects. The North-South beam is then derived as the best fit to observed signals simulated using a sky map model. The results are consistent with previous expectations.

What carries the argument

Factorizability of the primary beam into independent E-W and N-S components, shown by the Sun's north-south motion and used to separate the calibration steps.

If this is right

  • East-west beam profiles at multiple elevations are extracted directly from normalized solar transit data.
  • North-south beam profiles are obtained by finding the best match between sky-model simulations and observed signals.
  • The resulting beam measurements agree with prior expectations for the Tianlai array.
  • The factorization reduces the complexity of beam calibration for any pure drift-scan instrument.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same solar-motion technique could be tested on other cylinder arrays to check whether their beams also separate cleanly.
  • Ongoing use of this method might allow routine checks for beam changes caused by weather or aging without dedicated calibration hardware.
  • If the sky model accuracy is the main remaining uncertainty, repeating the fit with alternate sky catalogs would test robustness.

Load-bearing premise

The primary beam decomposes completely into independent east-west and north-south parts based solely on the Sun's motion, while the sky map model plus normalization captures every other contribution to the signals.

What would settle it

An independent beam map from holography or a scanned point source that shows the east-west and north-south profiles cannot be separated or do not match the fitted results.

Figures

Figures reproduced from arXiv: 2604.20262 by Fengquan Wu, Furen Deng, Jixia Li, Shifan Zuo, Shijie Sun, Xuelei Chen, Yichao Li, Yougang Wang, Yunbo Geng.

Figure 1
Figure 1. Figure 1: Schematic layout of the Tianlai Cylinder Pathfinder Array (TCPA). The array consists of three [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Data reduction pipeline for the raw observations. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The sky model generated using PyGDSM at the TCPA center frequency (750 MHz) in Galactic [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of the visibility for four baselines before (solid curve) and after (dashed curve) [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

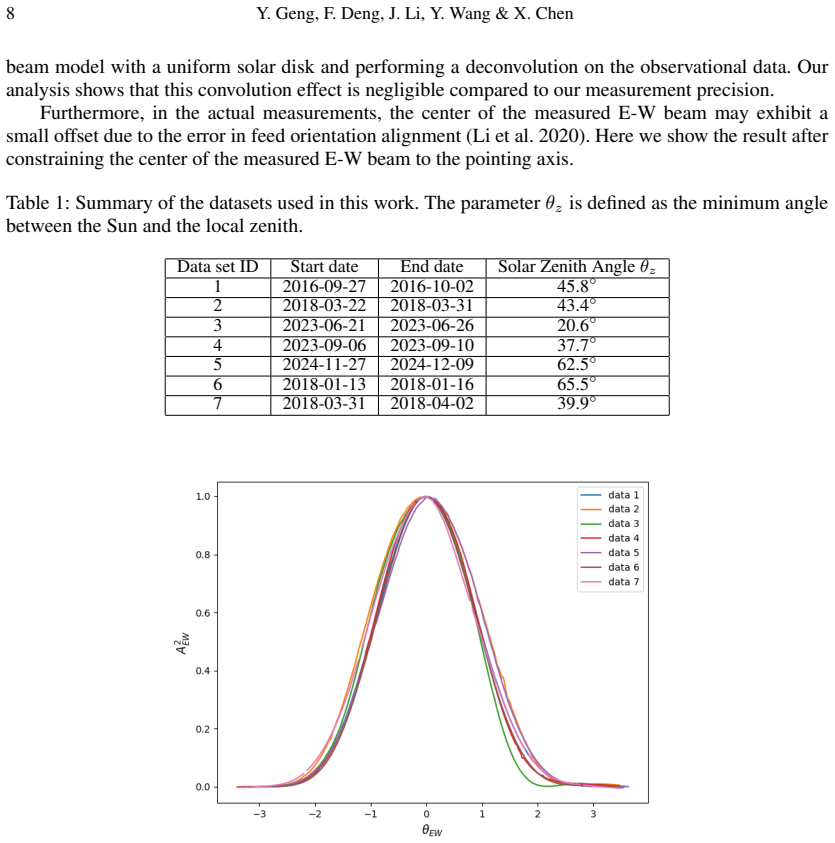

Figure 5. Figure 5: E-W primary beam measurement results derived from different datasets for the center frequency. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The Calculated FWHM values with associated 3 [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The East-West primary beam profiles across different frequencies. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

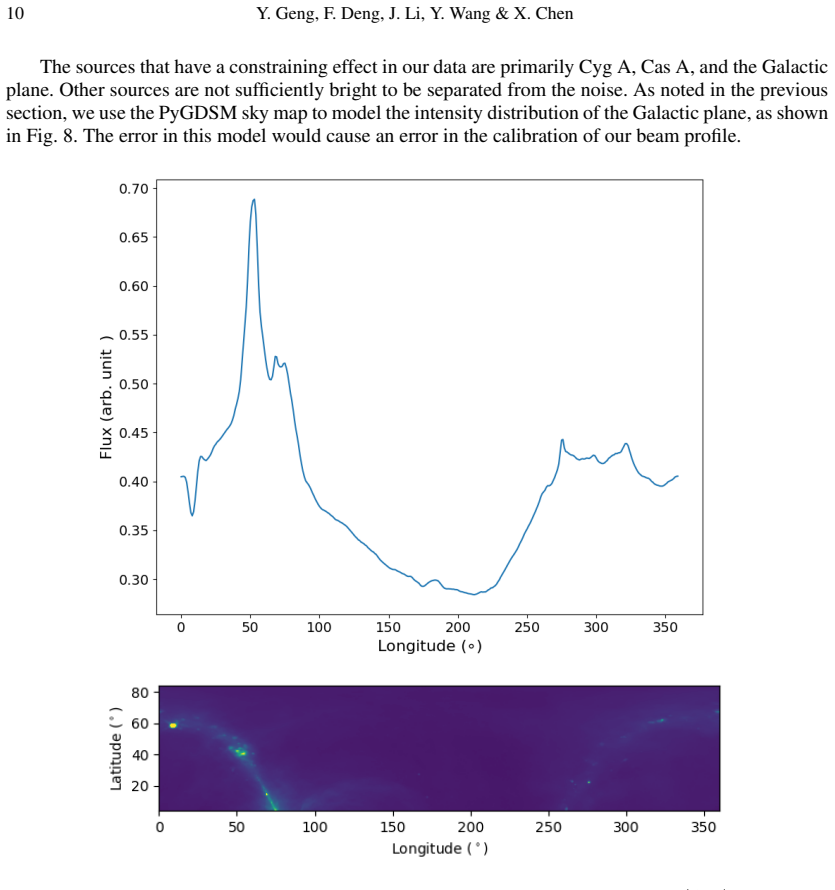

Figure 8. Figure 8: the sky map model and simulated flux from the TCPA perspective when [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Top: The observed data in data set 1 (blue line) and the simulated signal using the best-fit param [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The morphology of the primary beam along the North-South direction across different frequen [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Comparison of the results at the center frequency. Left: Comparison of the primary beam in the [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
Figure 12

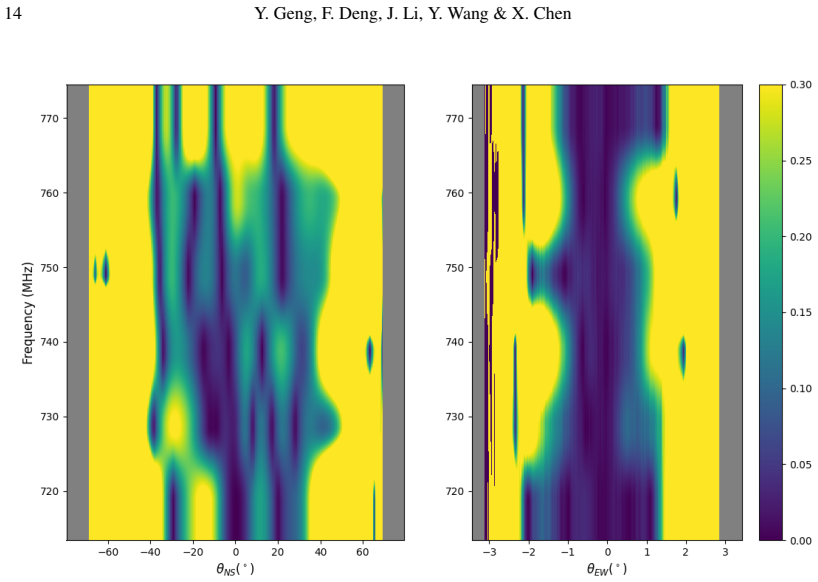

Figure 12. Figure 12: Relative differences between the drone-based measurements and our model results, [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗
Figure 13

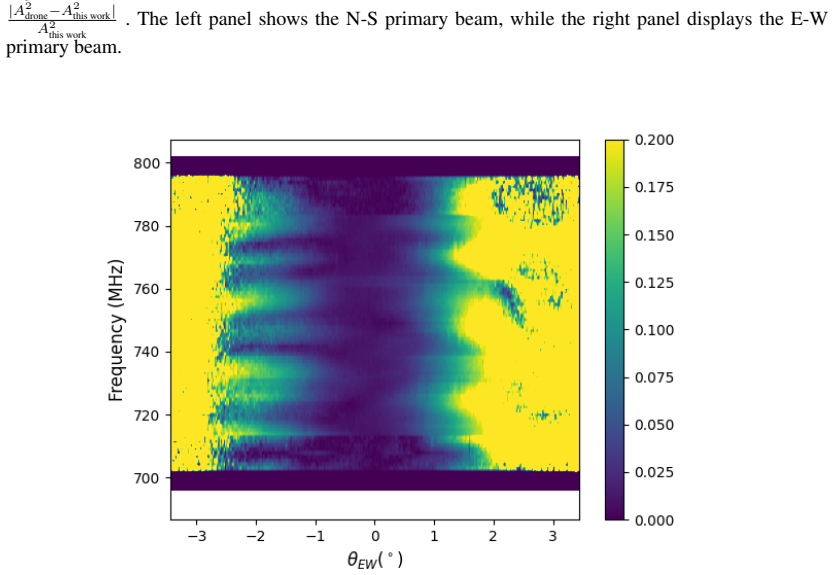

Figure 13. Figure 13: Relative error estimation of the E-W primary beam derived from resampling. [PITH_FULL_IMAGE:figures/full_fig_p014_13.png] view at source ↗
read the original abstract

We present the beam pattern measurement of the Tianlai Cylinder Pathfinder Array. As it is a pure drift-scan instrument, we exploit the North-South motion of the Sun to demonstrate that the primary beam is factorizable. Leveraging this property, we decompose the primary beam into independent East-West (E-W) and North-South (N-S) components. Using the Sun as a calibration source, we obtain the E-W beam profiles at various elevations, applying normalization to eliminate the effects of solar activity. Subsequently, we simulate the observed signals using a sky map model to derive the best-fit N-S beam. The results of this work are consistent with previous expectations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims to measure the primary beam of the Tianlai Cylinder Pathfinder Array, a drift-scan instrument, by exploiting the Sun's north-south motion to demonstrate that the beam is factorizable as B(az,el) = B_EW(az) * B_NS(el). E-W profiles are extracted at multiple elevations from normalized Sun transit data to remove solar variability, after which a sky-map model is used to simulate observations and fit the best N-S profile; the resulting beam is stated to be consistent with prior expectations.

Significance. If the factorization holds with quantified uncertainties and the sky-model fit is validated, the approach offers a practical, low-overhead calibration route for cylinder arrays in 21 cm cosmology, where full 2D beam mapping is otherwise resource-intensive. The use of natural solar motion and existing sky models is a strength that could generalize to other drift-scan instruments.

major comments (3)
  1. Abstract: the central claim that the primary beam 'is factorizable' and that results are 'consistent with previous expectations' is presented without any quantitative metric (e.g., residual rms after factorization, reduced-chi-squared of the N-S fit, or comparison to an independent measurement), making it impossible to assess whether the decomposition is supported at the level required for the science case.
  2. The factorization assumption (implicitly used to separate E-W and N-S components) is load-bearing yet untested against possible non-separable contributions from cylinder geometry, feed illumination patterns, or polarization leakage that vary jointly with azimuth and elevation; no section provides a null test or closure on a known point source to bound such systematics.
  3. The N-S component is obtained by fitting to a sky-map simulation whose accuracy is not independently verified; any residual solar variability after normalization, unmodeled diffuse emission, or pointing errors will be absorbed into the fitted B_NS profile, introducing model dependence that is not quantified.
minor comments (2)
  1. Abstract: add the observing frequency band and a one-sentence description of the Tianlai cylinder geometry to give context for the beam measurement.
  2. The normalization procedure for solar activity is mentioned but not described in sufficient detail (e.g., how many transits are averaged or what functional form is assumed) to allow reproduction.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed report. We have revised the manuscript to incorporate quantitative metrics in the abstract and to expand the discussion of the factorization assumption and model uncertainties. Our point-by-point responses follow.

read point-by-point responses

  1. Referee: Abstract: the central claim that the primary beam 'is factorizable' and that results are 'consistent with previous expectations' is presented without any quantitative metric (e.g., residual rms after factorization, reduced-chi-squared of the N-S fit, or comparison to an independent measurement), making it impossible to assess whether the decomposition is supported at the level required for the science case.

    Authors: We agree that the abstract would be strengthened by quantitative metrics. The revised abstract now states the reduced chi-squared of the N-S fit and the RMS residual after factorization (both of which are computed and shown in Sections 3 and 4 of the main text). revision: yes

  2. Referee: The factorization assumption (implicitly used to separate E-W and N-S components) is load-bearing yet untested against possible non-separable contributions from cylinder geometry, feed illumination patterns, or polarization leakage that vary jointly with azimuth and elevation; no section provides a null test or closure on a known point source to bound such systematics.

    Authors: The manuscript demonstrates factorization by extracting consistent E-W profiles at multiple elevations from normalized solar transits and obtaining a good fit to the sky-model simulation. We acknowledge that an explicit null test for non-separability (e.g., closure on an independent point source) is not presented. We have added a new subsection discussing the expected magnitude of non-separable contributions from the cylinder geometry and feed illumination, based on the array design, and note that a dedicated null test would require pointed observations outside the drift-scan dataset used here. revision: partial

  3. Referee: The N-S component is obtained by fitting to a sky-map simulation whose accuracy is not independently verified; any residual solar variability after normalization, unmodeled diffuse emission, or pointing errors will be absorbed into the fitted B_NS profile, introducing model dependence that is not quantified.

    Authors: We have expanded Section 4 to quantify the residual solar variability after normalization (assessed via repeated transits) and to propagate the known uncertainties of the Haslam-based sky model into the fitted B_NS profile. Pointing errors are bounded by the documented array positioning accuracy. While a fully independent verification of the sky model at the observing frequencies lies outside the scope of this calibration paper, we now report the fit covariance matrix as a measure of the resulting uncertainty on B_NS. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The derivation uses direct Sun transit observations at varying elevations to obtain and normalize E-W beam profiles, then fits the N-S component via forward simulation against an external sky map model. The factorizability is shown from the Sun's north-south motion data rather than asserted by definition. No equation reduces to its own input by construction, no fitted parameter is relabeled as a prediction, and no load-bearing step relies on self-citation or an ansatz imported from prior author work. The method remains self-contained against external data sources and the stated sky model.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on the factorizability assumption and the fidelity of the sky map model after normalization; no independent evidence for these is provided in the abstract.

free parameters (2)
  • normalization factors for solar activity
    Applied to E-W profiles to remove effects of varying solar brightness
  • best-fit parameters for N-S beam
    Obtained by fitting simulated signals to observed data
axioms (1)
  • domain assumption The primary beam is factorizable into independent E-W and N-S components
    Invoked to enable decomposition using the Sun's north-south motion
