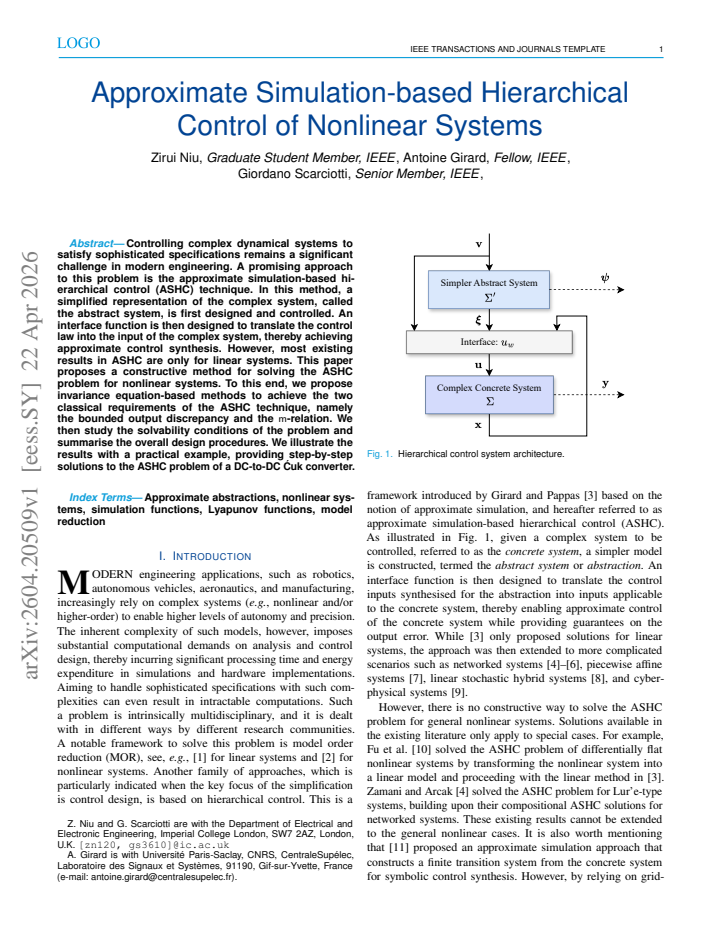

Approximate Simulation-based Hierarchical Control of Nonlinear Systems

Zirui Niu , Antoine Girard , Giordano Scarciotti This is my paper

Pith reviewed 2026-05-09 23:58 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC
keywords approximate simulation-based hierarchical controlnonlinear systemsinvariance equationsbounded output discrepancym-relationabstract systemsDC-DC converter
0
0 comments X

The pith

Nonlinear systems can be approximately controlled through a simpler abstract model by solving invariance equations to ensure output closeness and state relations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a constructive method for the approximate simulation-based hierarchical control problem on nonlinear systems. It uses invariance equations to design an abstract system and an interface that keep outputs within bounds and satisfy the m-relation. Readers would care because this removes the earlier limitation to linear systems and enables the approach for realistic nonlinear plants. The work also derives solvability conditions and gives design procedures, shown step by step on a DC-to-DC Ćuk converter.

Core claim

The authors establish that invariance equation-based methods achieve bounded output discrepancy and the m-relation for nonlinear systems, allowing construction of an abstract system whose control law transfers approximately to the original plant via an interface function, when solutions to the equations exist.

What carries the argument

Invariance equations that enforce bounded output discrepancy and the m-relation between abstract and concrete nonlinear systems.

If this is right

  • If the invariance equations are solvable, a control law designed on the abstract system transfers to the nonlinear system with explicit approximation guarantees.
  • Solvability conditions determine precisely when the ASHC technique succeeds for a given nonlinear system.
  • The summarized design procedures allow step-by-step construction of the abstract model, interface, and controller for concrete plants such as power converters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Numerical methods could be used to find approximate solutions to the invariance equations for systems where closed-form solutions are unavailable.
  • The same abstraction idea might apply to control of systems with disturbances or parameter variations if the equations are modified accordingly.
  • This constructive route suggests hierarchical control could become standard for many nonlinear engineering plants once solution existence is checked.

Load-bearing premise

The nonlinear system must admit solutions to the proposed invariance equations that achieve bounded output discrepancy and the m-relation.

What would settle it

A nonlinear system such as a modified Ćuk converter for which the invariance equations have no solutions, or for which the implemented interface produces output discrepancy larger than the predicted bound, would falsify the method.

Figures

Figures reproduced from arXiv: 2604.20509 by Antoine Girard, Giordano Scarciotti, Zirui Niu.

Figure 1
Figure 1. Figure 1: Hierarchical control system architecture. framework introduced by Girard and Pappas [3] based on the notion of approximate simulation, and hereafter referred to as approximate simulation-based hierarchical control (ASHC). As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

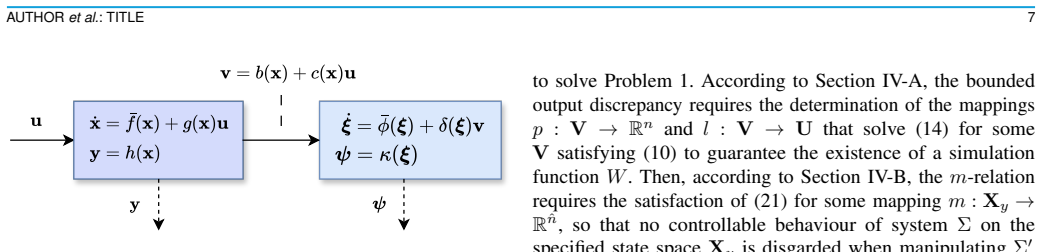

Figure 2
Figure 2. Figure 2: Interconnection to illustrate the design of m-relation. input u. Now we show that the sufficient condition (21) is not difficult to satisfy. Theorem 5: Consider any functions m : Xy → R nˆ and κ such that (21c) holds for all x ∈ Xy. Suppose m is differentiable. Then there exist functions b : Xy → R mˆ and c : Xy → R mˆ ×m such that (21a) and (21b) are satisfied for all x ∈ Xy if δ(x) is of full row rank fo… view at source ↗

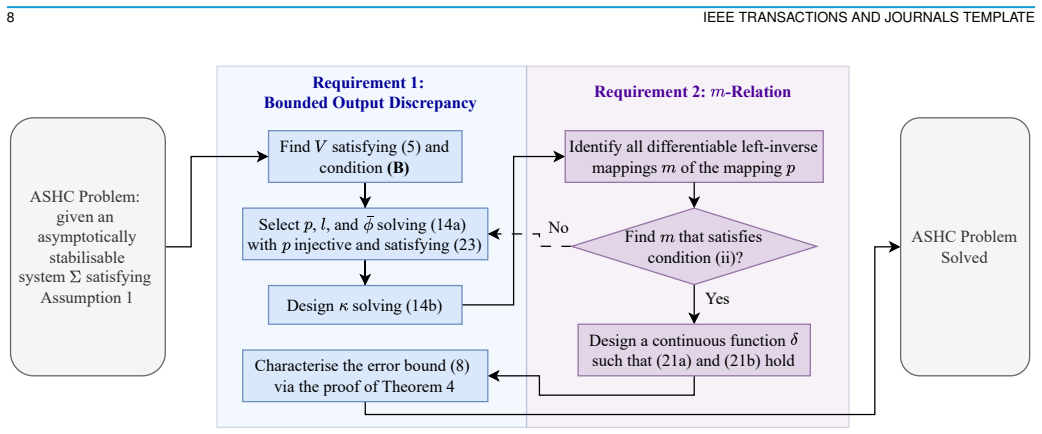

Figure 3
Figure 3. Figure 3: Flow chart of the final design procedure for solving the nonlinear ASHC problem formulated in Problem 1. Now let x¯ = x−x ′ . As h(x) = h(x ′ ) with h a linear function, we obtain h(¯x) = h(x − x ′ ) = h(x) − h(x ′ ) = 0, implying that (24) holds. Remark 7: If systems Σ and Σ ′ are linear, the functions p and m become linear mappings and therefore Im(p) and Ker(h) become vector spaces. Consequently, when X… view at source ↗

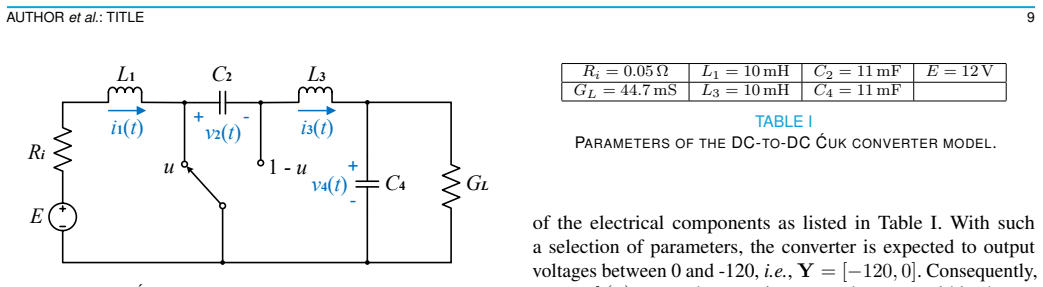

Figure 4
Figure 4. Figure 4: DC-to-DC Cuk Converter. ´ A. System Modelling Consider a DC-to-DC Cuk converter depicted in [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

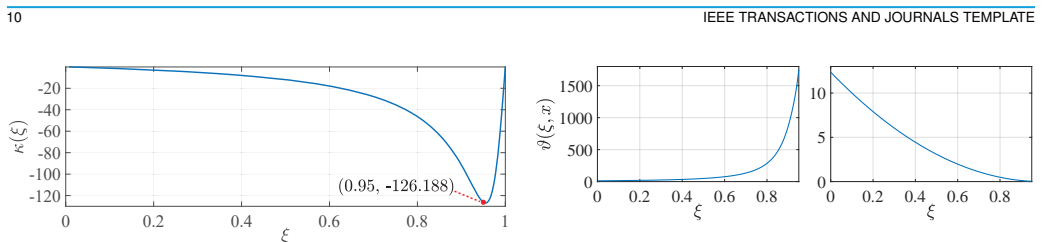

Figure 6
Figure 6. Figure 6: Plots of ∥ϑ(ξ, x)∥ versus ξ ∈ [0, 0.95] when q ≡ 0, with δ = 1 (left) and δ in (39) (right). C. Simulation Function and Error Bound By following [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

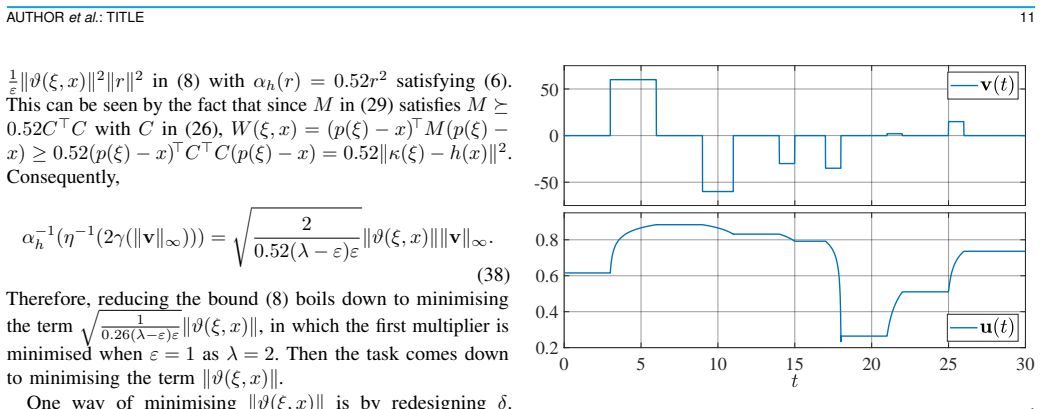

Figure 7
Figure 7. Figure 7: Time histories of inputs v (top) and u (bottom) driving systems Σ′ and Σ, respectively, in the ASHC framework. with q(ξ, x)=( (g ⊤(x)Mg(x))−1 g ⊤(x)M ∂p(ξ) ∂ξ δ(ξ), g(x) ̸= 04×1; 0, g(x) = 04×1. (43) Remark 9: Recall that the input space is U = [0, 1]. There may not be a guarantee on the fact that uω in (42) stays inside U for all times. In such a case, one can instead design uω as uω = sat(ξ + q(ξ, x)v), … view at source ↗
Figure 10
Figure 10. Figure 10: Time histories of outputs y (blue solid) and ψ (red dashed) of systems Σ and Σ′ in the interconnection in [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: Time histories of inputs u (top) and v (bottom) into systems Σ and Σ′ , respectively, in the interconnection in [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
read the original abstract

Controlling complex dynamical systems to satisfy sophisticated specifications remains a significant challenge in modern engineering. A promising approach to this problem is the approximate simulation-based hierarchical control (ASHC) technique. In this method, a simplified representation of the complex system, called the abstract system, is first designed and controlled. An interface function is then designed to translate the control law into the input of the complex system, thereby achieving approximate control synthesis. However, most existing results in ASHC are only for linear systems. This paper proposes a constructive method for solving the ASHC problem for nonlinear systems. To this end, we propose invariance equation-based methods to achieve the two classical requirements of the ASHC technique, namely the bounded output discrepancy and the $m$-relation. We then study the solvability conditions of the problem and summarise the overall design procedures. We illustrate the results with a practical example, providing step-by-step solutions to the ASHC problem of a DC-to-DC \'Cuk converter.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a constructive method for solving the approximate simulation-based hierarchical control (ASHC) problem for nonlinear systems. It introduces invariance equation-based methods to achieve the two classical requirements of bounded output discrepancy and the m-relation, studies the solvability conditions of these equations, summarizes the overall design procedures, and illustrates the results with a step-by-step application to the DC-to-DC Cuk converter.

Significance. If the invariance equations can be solved under the derived conditions to deliver both bounded output discrepancy and the m-relation, the work would meaningfully extend ASHC techniques beyond linear systems to nonlinear dynamics common in applications such as power electronics. The explicit study of solvability conditions and the detailed practical example on the Cuk converter provide both theoretical grounding and applied value.

minor comments (3)
  1. The m-relation is referenced in the abstract and introduction without a concise definition or pointer to its standard formulation in prior ASHC literature; a brief inline clarification would aid readers new to the framework.
  2. In the section presenting the solvability conditions, the manuscript should explicitly link each condition back to the two target properties (bounded discrepancy and m-relation) with a short proof sketch or reference to the relevant invariance equation, rather than leaving the connection implicit.
  3. The Cuk converter example would benefit from a short table or plot quantifying the achieved output discrepancy bound over the simulation horizon, directly confirming the theoretical guarantee in the numerical case.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript on approximate simulation-based hierarchical control for nonlinear systems, including the recognition of the invariance equation methods, solvability conditions, and the DC-DC converter example. The recommendation for minor revision is noted, and we will incorporate any minor improvements in the revised version.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper develops a constructive procedure for ASHC of nonlinear systems by proposing invariance equation-based methods that target the standard requirements of bounded output discrepancy and the m-relation. Solvability conditions are studied separately, design procedures are summarized, and the method is demonstrated on the Cuk converter. No quoted step equates a claimed result to its own inputs by definition, renames a fitted quantity as a prediction, or relies on a self-citation chain whose prior result is itself unverified or tautological. The hinge assumption (existence of suitable invariance solutions) is an external condition on the plant rather than an internal redefinition, so the derivation chain remains independent.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the existence of solutions to invariance equations for the specific nonlinear system and standard assumptions from control theory about system dynamics and relations; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Nonlinear systems admit invariance equation solutions achieving bounded output discrepancy and m-relation
    Invoked as the basis for the constructive method and solvability study.
