GraphLeap: Decoupling Graph Construction and Convolution for Vision GNN Acceleration on FPGA

Anvitha Ramachandran, Dhruv Parikh, Viktor Prasanna

Pith reviewed 2026-05-09 22:23 UTC · model grok-4.3

classification 💻 cs.CV cs.DC
keywords Vision Graph Neural Networksgraph constructionFPGA accelerationkNN searchpipelined designmessage passingVision GNNsdecoupled layers
0
0 comments X

The pith

Vision GNNs can build each layer's graph from the prior layer's features while updating the current layer, removing the sequential bottleneck between construction and convolution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Vision Graph Neural Networks build a fresh k-nearest-neighbor graph from the current patch features at every layer before performing the feature update. This creates a strict sequential dependency and makes graph construction the dominant cost. GraphLeap breaks the dependency by using the graph constructed from the previous layer's features to update the current layer while the current features are used to build the graph for the next layer. The reformulation turns the per-layer work into two overlapping streams that can run concurrently. On FPGA hardware this overlap is realized with a pipelined design that delivers large speedups while accuracy is restored by brief fine-tuning.

Core claim

GraphLeap performs the feature update at layer ℓ using a graph built from the previous layer's features, while simultaneously using the current layer's features to construct the graph for layer ℓ+1. This one-layer-lookahead graph construction enables concurrent graph construction and message passing.

What carries the argument

One-layer-lookahead graph construction that decouples per-layer kNN search from the message-passing feature update.

If this is right

  • A streaming layer-pipelined FPGA accelerator becomes possible because graph construction and feature update can overlap.
  • The design exploits node- and channel-level parallelism and avoids materializing edge features on chip.
  • Up to 95.7 times speedup over CPU and 8.5 times speedup over GPU baselines are observed on isotropic and pyramidal ViG models.
  • Real-time Vision GNN inference on FPGA hardware is shown to be feasible.
  • The same decoupling applies to both isotropic and pyramidal ViG architectures without changing the underlying convolution operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The stability of nearest-neighbor relations across adjacent layers may be a general property of patch-token graphs in vision tasks.
  • Similar lookahead decoupling could be applied to other models that rebuild dynamic graphs at each step, such as point-cloud networks.
  • The FPGA dataflow without explicit edges suggests that memory bandwidth savings would be even larger on memory-constrained edge devices.
  • Combining the lookahead with quantization or pruning would be a direct next step that the current accelerator already supports.

Load-bearing premise

Any accuracy loss from using the prior layer's features to build the current graph can be recovered by a few epochs of fine-tuning.

What would settle it

Training the modified models and measuring whether validation accuracy remains below the original ViG baseline even after ten epochs of fine-tuning.

Figures

Figures reproduced from arXiv: 2604.21290 by Anvitha Ramachandran, Dhruv Parikh, Viktor Prasanna.

Figure 1
Figure 1. Figure 1: Overall architecture of GraphLeap, featuring the Graph Construction [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Dataflow for the Graph Construction Engine and the Feature Update Engine, including the structure of the Graph Convolution Engine. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Pipeline of the FPGA accelerator for end-to-end ViG inference, [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

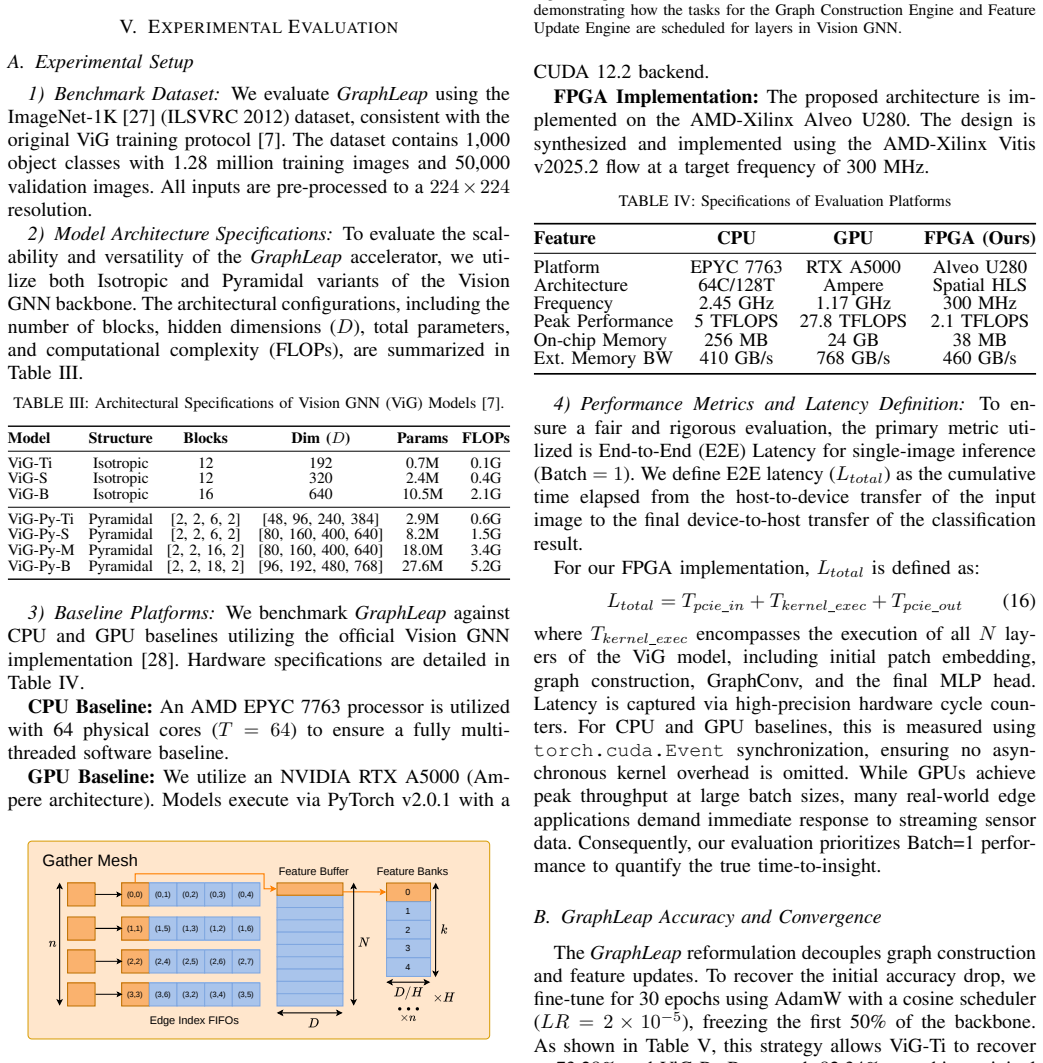

Figure 3
Figure 3. Figure 3: The Gather Module, responsible for obtaining node and co-node [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: End-to-End Inference Latency (ms) for ViG and GraphLeap variants (image resolution [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

Vision Graph Neural Networks (ViGs) represent an image as a graph of patch tokens, enabling adaptive, feature-driven neighborhoods. Unlike CNNs with fixed grid biases or Vision Transformers with global token interactions, ViGs rely on dynamic graph convolution: at each layer, a feature-dependent graph is built via k-nearest-neighbor (kNN) search on current patch features, followed by message passing. This per-layer graph construction is the main bottleneck, consuming 50--95\% of graph convolution time on CPUs and GPUs, scaling as $O(N^2)$ with the number of patches $N$, and creating a sequential dependency between graph construction and feature updates. We introduce GraphLeap, a simple reformulation that removes this dependency by decoupling graph construction from feature update across layers. GraphLeap performs the feature update at layer $\ell$ using a graph built from the previous layer's features, while simultaneously using the current layer's features to construct the graph for layer $\ell+1$. This one-layer-lookahead graph construction enables concurrent graph construction and message passing. Although using prior-layer features can introduce minor accuracy degradation, lightweight fine-tuning for a few epochs is sufficient to recover the original accuracy. Building on GraphLeap, we present the first end-to-end FPGA accelerator for Vision GNNs. Our streaming, layer-pipelined design overlaps a kNN graph construction engine with a feature update engine, exploits node- and channel-level parallelism, and enables efficient on-chip dataflow without explicit edge-feature materialization. Evaluated on isotropic and pyramidal ViG models on an Alveo U280 FPGA, GraphLeap achieves up to $95.7\times$ speedup over CPU and $8.5\times$ speedup over GPU baselines, demonstrating the feasibility of real-time Vision GNN inference.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes GraphLeap, a reformulation of Vision Graph Neural Networks (ViGs) that decouples per-layer kNN graph construction from feature updates via a one-layer lookahead: the graph for layer ℓ is built from layer-(ℓ-1) features while the current features build the graph for ℓ+1. This removes the sequential dependency, enabling concurrent graph construction and message passing. The authors present a streaming, layer-pipelined FPGA accelerator on Alveo U280 that overlaps kNN and feature-update engines, and report up to 95.7× speedup over CPU and 8.5× over GPU baselines for isotropic and pyramidal ViG models, with accuracy recovered after a few epochs of fine-tuning.

Significance. If the accuracy-recovery claim holds, the result is significant because it directly attacks the dominant O(N²) kNN bottleneck that consumes 50–95 % of ViG inference time. The end-to-end FPGA design with node-/channel-level parallelism and on-chip dataflow without explicit edge materialization is a concrete engineering contribution that demonstrates real-time ViG inference is feasible on reconfigurable hardware. The empirical speedups are measured against standard CPU/GPU baselines and therefore constitute a falsifiable, reproducible performance claim.

major comments (2)
  1. [§5] §5 (Experimental Results), Table 3 and associated text: the claim that “lightweight fine-tuning for a few epochs is sufficient to recover the original accuracy” is load-bearing for the reported speedups, yet the manuscript provides neither the magnitude of the pre-fine-tuning accuracy drop for each ViG variant, nor layer-wise statistics on kNN-set divergence when features are lagged by one layer, nor an ablation that trains the lookahead model from scratch. Without these data it is impossible to judge whether the degradation is uniformly minor or dataset-/hyperparameter-dependent.
  2. [§3.2] §3.2 (GraphLeap formulation), Eq. (3)–(5): the reformulation replaces the current-layer feature matrix X^ℓ with X^{ℓ-1} inside the kNN operator for the graph used at layer ℓ. No bound or empirical quantification is given on the resulting change in neighborhood structure or on the perturbation this introduces to the message-passing operator; such an analysis would be required to substantiate that the semantic alteration remains recoverable by short fine-tuning.
minor comments (2)
  1. [Figure 4] Figure 4 (FPGA architecture diagram): the dataflow arrows between the kNN engine and the feature-update engine should be annotated with the exact on-chip buffer sizes and the cycle counts for each overlapped stage to make the claimed concurrency explicit.
  2. [§4.1] §4.1 (Implementation details): the description of the kNN engine states that it avoids explicit edge-feature materialization, but does not specify the bit-widths chosen for distance computation or the sorting network depth; these parameters directly affect both resource utilization and the reported latency numbers.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback and for recognizing the potential significance of GraphLeap for enabling real-time Vision GNN inference on FPGA. We address each major comment below and will revise the manuscript to incorporate additional analysis and data as described.

read point-by-point responses

  1. Referee: [§5] §5 (Experimental Results), Table 3 and associated text: the claim that “lightweight fine-tuning for a few epochs is sufficient to recover the original accuracy” is load-bearing for the reported speedups, yet the manuscript provides neither the magnitude of the pre-fine-tuning accuracy drop for each ViG variant, nor layer-wise statistics on kNN-set divergence when features are lagged by one layer, nor an ablation that trains the lookahead model from scratch. Without these data it is impossible to judge whether the degradation is uniformly minor or dataset-/hyperparameter-dependent.

    Authors: We agree that these supporting data are essential to substantiate the accuracy-recovery claim. In the revised manuscript we will expand Table 3 (or add a companion table) to report the pre-fine-tuning top-1 accuracy for every evaluated ViG variant and dataset, together with the number of fine-tuning epochs required to recover the original accuracy. We will also add a new subsection (or appendix) containing layer-wise empirical statistics on kNN-set divergence, including average Jaccard overlap and set-difference size between neighborhoods computed from current-layer versus previous-layer features. Finally, we will include an ablation experiment that trains the GraphLeap (lookahead) model from scratch and compares its convergence trajectory and final accuracy against the fine-tuned version. These additions will allow readers to assess the magnitude and consistency of any degradation. revision: yes

  2. Referee: [§3.2] §3.2 (GraphLeap formulation), Eq. (3)–(5): the reformulation replaces the current-layer feature matrix X^ℓ with X^{ℓ-1} inside the kNN operator for the graph used at layer ℓ. No bound or empirical quantification is given on the resulting change in neighborhood structure or on the perturbation this introduces to the message-passing operator; such an analysis would be required to substantiate that the semantic alteration remains recoverable by short fine-tuning.

    Authors: We acknowledge that the current manuscript lacks explicit quantification of the neighborhood perturbation. In the revision we will add empirical measurements—specifically, layer-wise Jaccard similarity and average Hamming distance between the kNN graphs constructed from X^ℓ versus X^{ℓ-1}—across the isotropic and pyramidal ViG models and the evaluated datasets. These statistics will directly illustrate the magnitude of the change in neighborhood structure and its effect on the message-passing operator. While we do not provide a theoretical bound (deriving a tight, general bound on kNN perturbation under gradual feature evolution would require substantial additional theoretical development outside the engineering scope of this work), the combination of the new empirical quantification and the fine-tuning recovery results will substantiate that the semantic alteration is limited and recoverable. revision: partial

standing simulated objections not resolved
  • A theoretical bound on the perturbation to neighborhood structure and the message-passing operator induced by the one-layer lookahead formulation (requested in §3.2).

Circularity Check

0 steps flagged

No circularity: algorithmic reformulation and empirical speedups are independent of inputs

full rationale

The paper's core contribution is an explicit algorithmic change—using layer-(ℓ-1) features to build the kNN graph for layer-ℓ message passing while constructing the next graph from current features—followed by measured FPGA throughput on Alveo U280 against CPU/GPU baselines. No equation or result is obtained by fitting a parameter to a subset of the target data and relabeling it a prediction; no uniqueness theorem or ansatz is imported via self-citation; and the accuracy-recovery claim is presented as an empirical observation rather than a derived identity. The reported speedups (95.7× CPU, 8.5× GPU) are direct wall-clock measurements, not quantities forced by the reformulation itself. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard assumptions in graph neural networks and hardware design without introducing new free parameters or entities.

axioms (1)
  • domain assumption k-nearest-neighbor search on patch features defines the graph
    Standard in GNNs for dynamic graphs.
