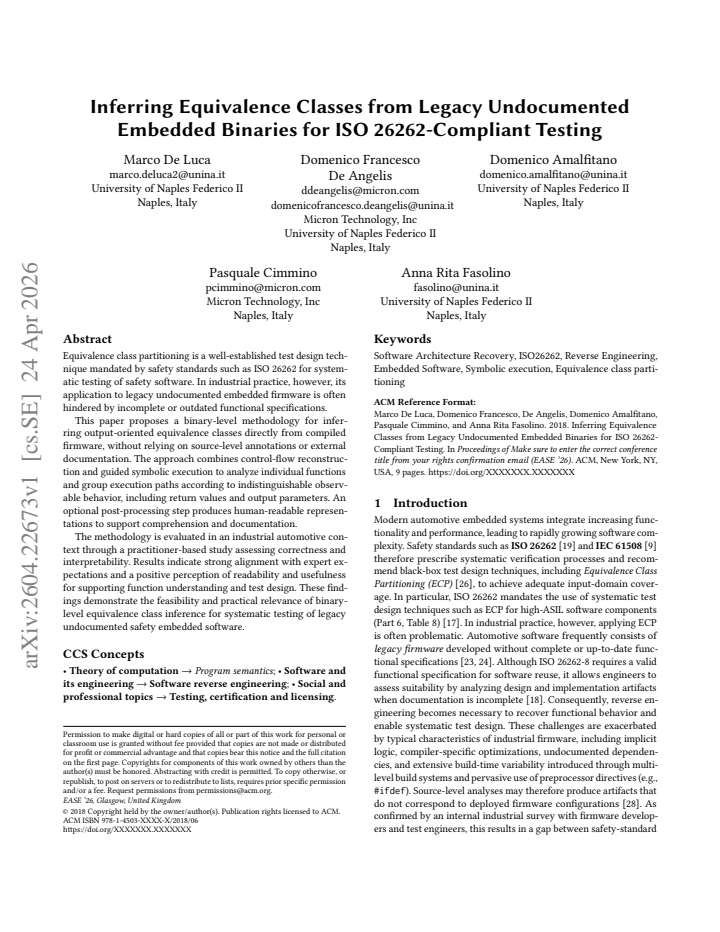

Inferring Equivalence Classes from Legacy Undocumented Embedded Binaries for ISO 26262-Compliant Testing

Marco De Luca , Domenico Francesco De Angelis , Domenico Amalfitano , Pasquale Cimmino , Anna Rita Fasolino

Authors on Pith no claims yet

Pith reviewed 2026-05-08 11:18 UTC · model grok-4.3

classification 💻 cs.SE cs.SC
keywords equivalence class partitioningbinary analysisembedded firmwaresymbolic executionISO 26262legacy software testingcontrol flow reconstructiontest design
0
0 comments X

The pith

Control-flow reconstruction plus guided symbolic execution can infer equivalence classes directly from undocumented embedded binaries.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a binary-level technique to perform equivalence class partitioning on legacy firmware that lacks source code or specifications. It reconstructs control flow for each function and uses guided symbolic execution to identify groups of paths that produce identical observable outputs such as return values and output parameters. The resulting classes support the systematic test design required by safety standards like ISO 26262. An optional step converts the classes into human-readable form, and an industrial automotive study found that the automatically derived classes closely matched what expert engineers expected while also aiding comprehension.

Core claim

The methodology infers output-oriented equivalence classes by analyzing individual functions through control-flow reconstruction and guided symbolic execution, grouping execution paths according to indistinguishable observable behavior including return values and output parameters. An optional post-processing step produces human-readable representations to support comprehension and documentation. Evaluation in an industrial automotive context shows strong alignment with expert expectations and positive perception of readability and usefulness for function understanding and test design.

What carries the argument

The combination of control-flow reconstruction and guided symbolic execution that groups execution paths by identical observable outputs at the binary level.

Load-bearing premise

Observable outputs captured at the binary level (return values and output parameters) are sufficient to define equivalence classes that match human expert judgment of functional behavior.

What would settle it

Independent experts manually partitioning the same set of functions into equivalence classes and finding that the binary-inferred classes agree with expert partitions in fewer than 70 percent of cases.

Figures

Figures reproduced from arXiv: 2604.22673 by Anna Rita Fasolino, Domenico Amalfitano, Domenico Francesco De Angelis, Marco De Luca, Pasquale Cimmino.

Figure 1
Figure 1. Figure 1: map file (textual) ELF enrich by DWARF map file parser call-graph retrieve metrics extract CFG extract debug info Grouping into Clusters metrics Debug Info LEGEND ANGR Framework JSON file Cluster of Function CFGs CFG view at source ↗
Figure 2
Figure 2. Figure 2: Phase 2 overview. Clusters are processed in ascending order of call depth and, in case of ties, by increasing number of accessed global variables. This scheduling reduces symbolic execution overhead, as analyzing shal￾lower functions first enables the construction of reusable method summaries [36, 37], which are subsequently reused when exploring deeper call chains. A method summary captures the interface-… view at source ↗
Figure 3
Figure 3. Figure 3: Code, CFG, and symbolic path conditions of view at source ↗
Figure 4

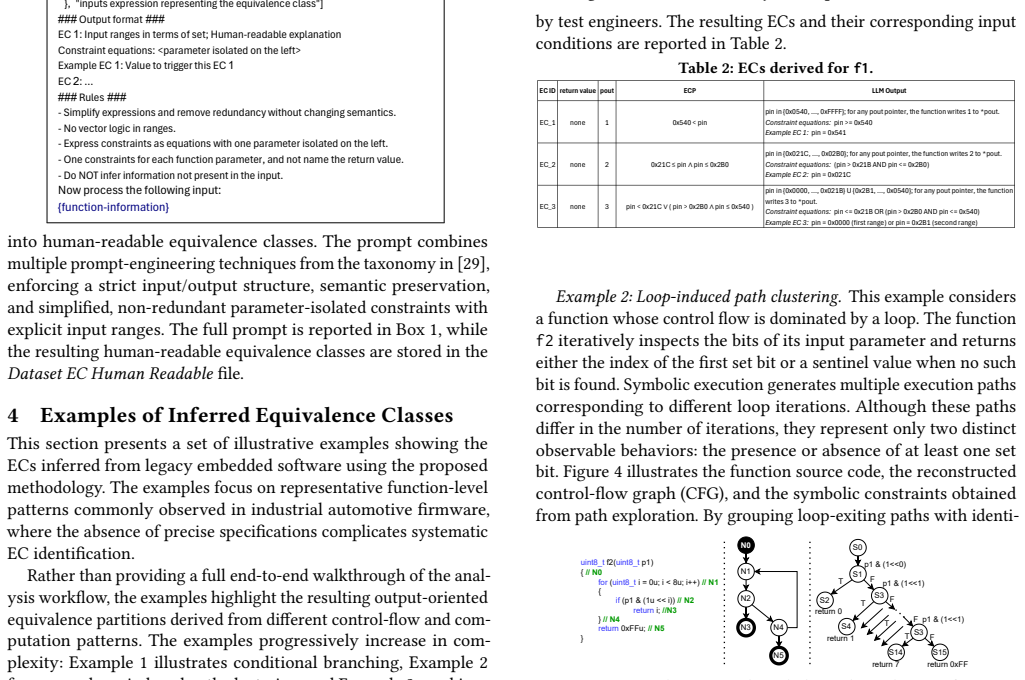

Figure 4. Figure 4: Code, CFG, and symbolic path conditions of view at source ↗
