AnalogRetriever: Learning Cross-Modal Representations for Analog Circuit Retrieval

Yihan Wang , Lei Li , Yao Lai , Jing Wang , Yan Lu
Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:35 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords analog circuit retrievalcross-modal learningcontrastive learningSPICE netlistsschematicsvision-language modelsgraph neural networksretrieval augmented generation
0
0 comments X

The pith

AnalogRetriever aligns schematics, netlists, and descriptions into a shared space for analog circuit retrieval.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to solve the problem of searching for analog circuits when they are represented in incompatible formats such as SPICE netlists, visual schematics, and textual functional specs. It builds a cleaned tri-modal dataset and trains a model with separate encoders for each modality that are pulled into one vector space through progressive contrastive learning. A reader should care because analog IP reuse is central to efficient design, and semantic cross-modal search could replace slow manual or exact-match lookups. When plugged into an AI coding agent, the retriever raises the rate at which generated circuits pass functional tests and solves tasks that were previously out of reach.

Core claim

AnalogRetriever is a tri-modal retrieval system that first repairs a dataset of analog circuits to achieve 100% netlist compile rate, then encodes schematics and descriptions via a vision-language model while using a port-aware relational graph convolutional network for netlists, and finally aligns the three embeddings with curriculum contrastive learning to reach 75.2% average Recall@1 across six retrieval directions; integrating the system into the AnalogCoder framework further boosts functional pass rates on design tasks.

What carries the argument

Curriculum contrastive learning applied to embeddings from a vision-language model for schematics and descriptions and a port-aware relational graph convolutional network for netlists.

If this is right

  • Cross-modal retrieval accuracy improves markedly over existing single-modality or exact-match methods.
  • Retrieval-augmented generation in analog design agents achieves higher functional success rates.
  • Tasks that could not be completed before become solvable through better example retrieval.
  • The framework supports semantic search rather than requiring identical representations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Engineers could query in natural language and receive matching netlists or schematics from a library.
  • The repair pipeline might be adapted to clean other electronic design datasets.
  • Future work could add more modalities such as simulation waveforms to the shared space.
  • Performance on real fabrication data would test whether the learned alignments hold outside the training distribution.

Load-bearing premise

The two-stage repair pipeline yields training examples that represent actual analog circuits without systematic bias, and the curriculum contrastive objective learns alignments that transfer beyond the specific dataset.

What would settle it

Running the trained retriever on a collection of analog circuits obtained independently and not passed through the repair pipeline, then checking whether Recall@1 remains near 75% or drops to baseline levels.

Figures

Figures reproduced from arXiv: 2604.23195 by Jing Wang, Lei Li, Yan Lu, Yao Lai, Yihan Wang.

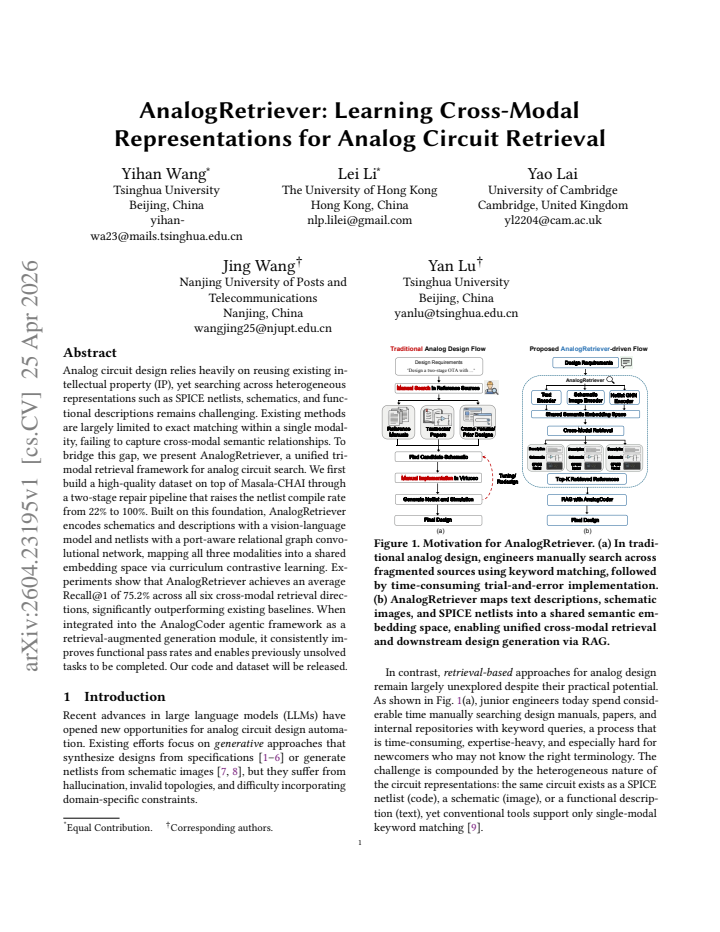

Figure 1
Figure 1. Figure 1: Motivation for AnalogRetriever. (a) In tradi view at source ↗
Figure 2

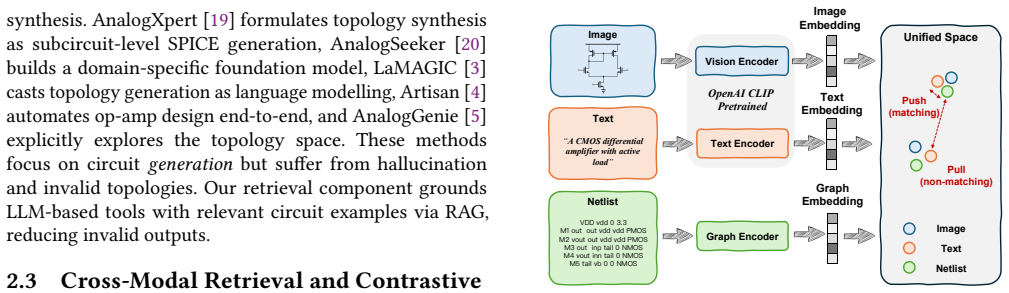

Figure 2. Figure 2: AnalogRetriever framework. Three modality view at source ↗
Figure 4

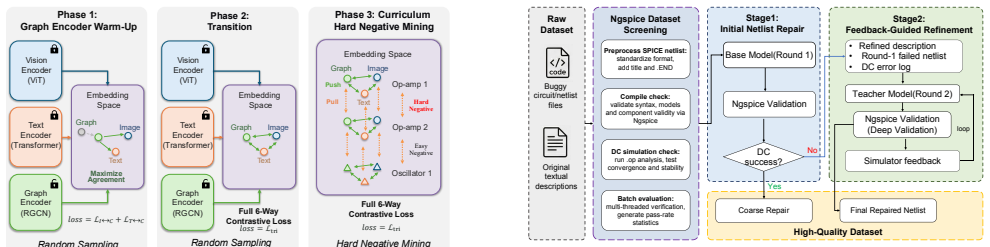

Figure 4. Figure 4: Two-stage LLM-based dataset refinement pipeline. Stage 1 uses a base LLM for initial netlist repair with Ngspice validation. Stage 2 applies iterative feedback-guided refinement: a teacher model repairs failed cases using DC error logs until convergence. Stage 2a: Netlist Repair You are an expert SPICE engineer debugging a netlist that failed Ngspice compilation or DC simulation. Given the schematic image,… view at source ↗
Figure 5

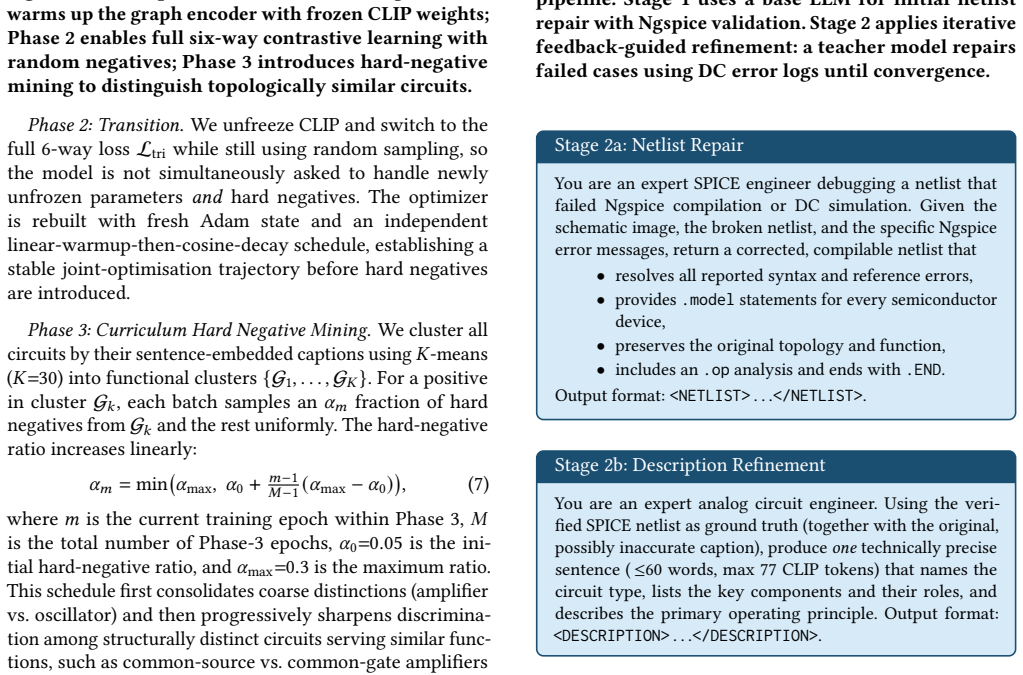

Figure 5. Figure 5: Stage 2 prompts: feedback-guided netlist re view at source ↗
Figure 6
Figure 6. Figure 6: Before/after refinement. Top: SPICE netlist view at source ↗
Figure 7

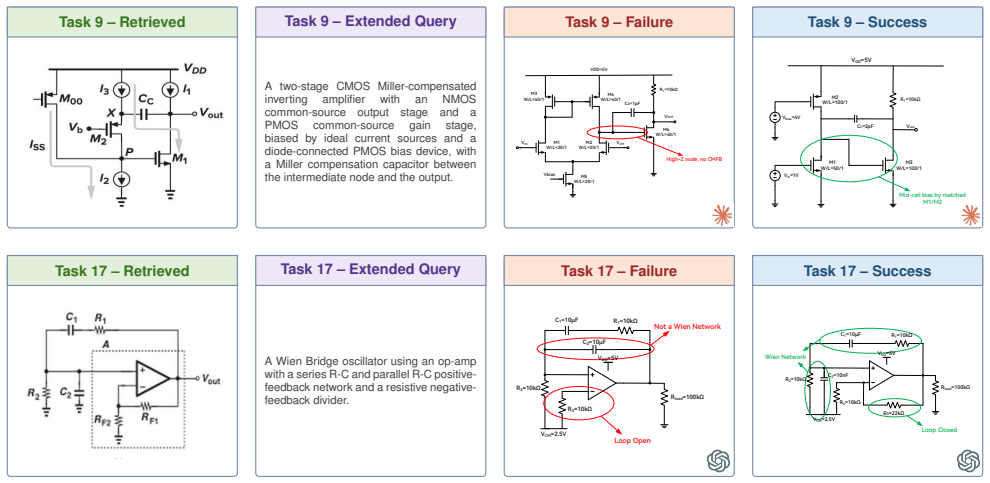

Figure 7. Figure 7: Case studies showing how retrieval improves LLM-based circuit generation. Task 9: Miller amplifier view at source ↗
