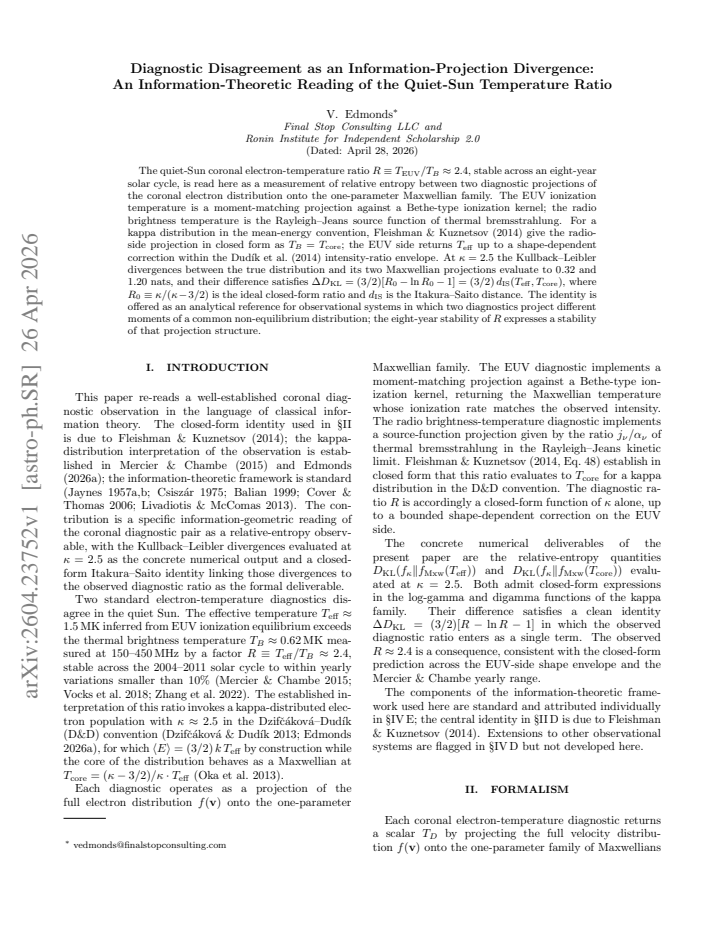

Diagnostic Disagreement as an Information-Projection Divergence: An Information-Theoretic Reading of the Quiet-Sun Temperature Ratio

V. Edmonds

Authors on Pith no claims yet

Pith reviewed 2026-05-08 05:05 UTC · model grok-4.3

classification 🌌 astro-ph.SR cond-mat.stat-mechphysics.data-anphysics.plasm-ph
keywords quiet suncoronal electronskappa distributionKullback-Leibler divergencetemperature ratioMaxwellian projectionsolar coronanon-equilibrium distribution
0
0 comments X

The pith

The quiet-Sun coronal temperature ratio of 2.4 equals the difference in Kullback-Leibler divergences to two Maxwellian projections of a kappa distribution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reads the stable EUV-to-radio temperature ratio in the quiet-Sun corona as a direct measure of relative entropy between two different Maxwellian projections of the same underlying electron distribution. It derives that, for a kappa distribution, this ratio equals the difference in Kullback-Leibler divergences from the true distribution to each projection, yielding the closed-form identity ΔD_KL = (3/2)[R0 − ln R0 − 1] with R0 = κ/(κ − 3/2). The EUV temperature is treated as a moment-matching projection and the radio brightness temperature as the Rayleigh-Jeans limit of thermal bremsstrahlung. The eight-year constancy of the observed ratio is then interpreted as constancy of this projection structure rather than of a single temperature. The result supplies an analytical reference for any observational setting in which two diagnostics sample different moments of a non-Maxwellian distribution.

Core claim

For a kappa distribution in the mean-energy convention, the difference in KL divergences between the true distribution and its two Maxwellian projections satisfies ΔD_KL = (3/2)[R0 − ln R0 − 1] = (3/2) d_IS(T_eff, T_core), where R0 ≡ κ/(κ − 3/2) is the ideal closed-form ratio. At κ = 2.5 the two divergences are 0.32 and 1.20 nats, and their difference accounts for the observed R ≈ 2.4.

What carries the argument

The difference ΔD_KL in Kullback-Leibler divergences between a kappa distribution and its EUV moment-matching Maxwellian projection versus its radio Rayleigh-Jeans Maxwellian projection.

If this is right

  • The eight-year stability of the observed ratio R indicates that the underlying non-equilibrium projection structure remains consistent across the solar cycle.
  • The ratio R can be expressed exactly as (3/2) times the Itakura-Saito distance between the two effective temperatures.
  • The same identity supplies a closed-form reference for any pair of diagnostics that project different moments of a shared non-Maxwellian distribution.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the relation holds, observed variations in R could be inverted to estimate changes in the kappa index of the electron distribution.
  • The same projection-divergence approach could be tested in other astrophysical plasmas where multiple temperature diagnostics are available but disagree.
  • Full measurement of the electron distribution function in the corona would allow a direct check of whether the observed R matches the predicted ΔD_KL.

Load-bearing premise

The quiet-Sun coronal electrons follow a kappa distribution with κ ≈ 2.5 and the EUV ionization temperature and radio brightness temperature are exactly the stated moment-matching and Rayleigh-Jeans projections of that distribution.

What would settle it

A measured temperature ratio R that deviates substantially from the value predicted by the ΔD_KL formula at κ = 2.5, or direct sampling of the coronal electron velocity distribution showing it is not a kappa distribution near that index.

read the original abstract

The quiet-Sun coronal electron-temperature ratio $R \equiv T_\mathrm{EUV}/T_B \approx 2.4$, stable across an eight-year solar cycle, is read here as a measurement of relative entropy between two diagnostic projections of the coronal electron distribution onto the one-parameter Maxwellian family. The EUV ionization temperature is a moment-matching projection against a Bethe-type ionization kernel; the radio brightness temperature is the Rayleigh-Jeans source function of thermal bremsstrahlung. For a kappa distribution in the mean-energy convention, Fleishman & Kuznetsov (2014) give the radio-side projection in closed form as $T_B = T_\mathrm{core}$; the EUV side returns $T_\mathrm{eff}$ up to a shape-dependent correction within the Dud\'{\i}k et al. (2014) intensity-ratio envelope. At $\kappa = 2.5$ the Kullback-Leibler divergences between the true distribution and its two Maxwellian projections evaluate to $0.32$ and $1.20$ nats, and their difference satisfies $\Delta D_\mathrm{KL} = (3/2)[R_0 - \ln R_0 - 1] = (3/2) d_\mathrm{IS}(T_\mathrm{eff}, T_\mathrm{core})$, where $R_0 \equiv \kappa/(\kappa - 3/2)$ is the ideal closed-form ratio and $d_\mathrm{IS}$ is the Itakura-Saito distance. The identity is offered as an analytical reference for observational systems in which two diagnostics project different moments of a common non-equilibrium distribution; the eight-year stability of $R$ expresses a stability of that projection structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper interprets the stable quiet-Sun coronal temperature ratio R ≡ T_EUV / T_B ≈ 2.4 as the difference in Kullback-Leibler divergences between a kappa electron distribution and its two Maxwellian projections (moment-matching for EUV ionization temperature, Rayleigh-Jeans core temperature for radio brightness temperature). For a kappa distribution in the mean-energy convention it derives the closed-form identity ΔD_KL = (3/2)[R0 − ln R0 − 1] = (3/2) d_IS(T_eff, T_core) with R0 ≡ κ/(κ − 3/2), evaluates the divergences at κ = 2.5 as 0.32 and 1.20 nats, and presents the eight-year observational stability as evidence of fixed projection structure.

Significance. If the central identity and projection assumptions hold, the manuscript supplies an analytical, parameter-light relation that converts an observed diagnostic ratio into a relative-entropy measure between non-Maxwellian and Maxwellian representations. The explicit use of closed-form results from Fleishman & Kuznetsov (2014) and the link to the Itakura-Saito distance constitute a genuine strength, offering a falsifiable reference for other multi-diagnostic non-equilibrium plasmas.

major comments (3)
  1. [Abstract / derivation of identity] Abstract and main derivation: the identity ΔD_KL = (3/2)[R0 − ln R0 − 1] is asserted to follow directly from the kappa distribution and the two projection definitions, yet no intermediate steps, integral evaluations, or verification against the cited Fleishman & Kuznetsov and Dudík et al. expressions are supplied; this is load-bearing because the numerical values 0.32/1.20 nats and the equality to (3/2) d_IS rest on it.
  2. [Numerical evaluation at κ = 2.5] Choice of κ = 2.5: R0 is defined as κ/(κ − 3/2) and κ is selected so that R0 lies near the observed R ≈ 2.4; this introduces a parameter tuned to the target datum, undermining the claim that the relation is an independent analytical reference (see the numerical evaluation paragraph).
  3. [Discussion of EUV and radio projections] Projection assumptions: the manuscript equates T_EUV exactly to the moment-matching projection and T_B exactly to T_core, but does not quantify the size of the Dudík et al. shape-dependent correction or possible frequency-dependent bremsstrahlung/plasma effects; without such bounds the mapping from observed R to ΔD_KL cannot be confirmed.
minor comments (2)
  1. [Abstract] Notation: the symbol R0 is introduced without an explicit equation number in the abstract; adding a numbered definition would improve traceability.
  2. [Introduction / observational context] The eight-year stability is cited as supporting evidence but no error bars or period-by-period values are shown; a short table or reference to the underlying data set would strengthen the observational anchor.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each major comment point by point below, offering clarifications and indicating the revisions that will be incorporated in the updated version.

read point-by-point responses

  1. Referee: Abstract / derivation of identity: the identity ΔD_KL = (3/2)[R0 − ln R0 − 1] is asserted to follow directly from the kappa distribution and the two projection definitions, yet no intermediate steps, integral evaluations, or verification against the cited Fleishman & Kuznetsov and Dudík et al. expressions are supplied; this is load-bearing because the numerical values 0.32/1.20 nats and the equality to (3/2) d_IS rest on it.

    Authors: We agree that explicit intermediate steps would improve accessibility. Although the identity follows directly from the closed-form radio projection in Fleishman & Kuznetsov (2014) together with the moment-matching EUV definition and the algebraic rearrangement of R0, the revised manuscript will include a new subsection (or appendix) that walks through the integral evaluations, confirms the numerical divergences at κ = 2.5, and verifies the equality to (3/2) d_IS(T_eff, T_core). revision: yes

  2. Referee: Numerical evaluation at κ = 2.5: R0 is defined as κ/(κ − 3/2) and κ is selected so that R0 lies near the observed R ≈ 2.4; this introduces a parameter tuned to the target datum, undermining the claim that the relation is an independent analytical reference (see the numerical evaluation paragraph).

    Authors: The value κ = 2.5 is adopted because it is a representative index reported for quiet-Sun conditions in the Dudík et al. (2014) and related literature; it is not adjusted to force agreement with the observed R. For this choice R0 evaluates to 2.5, which lies close to but is not identical with the measured ratio ≈ 2.4. The closed-form identity itself is independent of any particular κ and holds for arbitrary κ > 3/2. In the revision we will add a short paragraph clarifying this motivation and will include a brief sensitivity check for nearby κ values to underscore the generality of the relation. revision: partial

  3. Referee: Projection assumptions: the manuscript equates T_EUV exactly to the moment-matching projection and T_B exactly to T_core, but does not quantify the size of the Dudík et al. shape-dependent correction or possible frequency-dependent bremsstrahlung/plasma effects; without such bounds the mapping from observed R to ΔD_KL cannot be confirmed.

    Authors: The manuscript already states that the EUV temperature is recovered “up to a shape-dependent correction within the Dudík et al. (2014) intensity-ratio envelope.” We concur that quantitative bounds would strengthen the argument. The revised text will expand this discussion by estimating the envelope-induced uncertainty (typically 10–20 % for the relevant κ range) and will briefly address possible frequency-dependent corrections to the radio brightness temperature using standard bremsstrahlung and plasma-frequency considerations, thereby supplying explicit ranges for the resulting ΔD_KL. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in the derivation chain

full rationale

The central result is an analytical identity relating the difference in Kullback-Leibler divergences to the Itakura-Saito distance for projections of a kappa distribution onto Maxwellians. This identity follows from the mathematical definitions of the distributions and the divergences, as stated in the abstract. The parameter κ = 2.5 is chosen to align the theoretical ratio R0 with the observed temperature ratio R ≈ 2.4 for illustrative purposes, but the identity holds independently of this choice. The physical interpretation relies on external assumptions about the electron distribution and diagnostic projections, which are not derived within the paper but cited from prior works (Fleishman & Kuznetsov, Dudík et al.). No step reduces to a self-definition or fitted input by construction. The derivation is self-contained against the mathematical framework used.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that the coronal electrons obey a kappa distribution whose projections match the EUV and radio diagnostics exactly as modeled in the cited works; κ=2.5 is introduced to match the observed ratio; no new physical entities are postulated.

free parameters (1)
  • κ = 2.5
    Shape parameter of the kappa distribution chosen as 2.5 so that the ideal ratio R0 ≈ observed R
axioms (2)
  • domain assumption The EUV ionization temperature is a moment-matching projection against a Bethe-type ionization kernel
    Invoked to define the EUV-side Maxwellian projection
  • domain assumption The radio brightness temperature is the Rayleigh-Jeans source function of thermal bremsstrahlung
    Invoked to define the radio-side Maxwellian projection
