Evidence of Micron-Scale Ion Damage in (010), (110), and (011) {β}-Ga₂O₃ Epitaxial Layers
Pith reviewed 2026-05-07 17:39 UTC · model grok-4.3
The pith
Ion damage from sputtering and etching causes up to 11.5 μm deep charge depletion in (010), (110), and (011) β-Ga₂O₃ but not in (001).
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors show through capacitance-voltage measurements and diode characterization that sputtered NiOx heterojunction diodes and ICP-etched Schottky diodes on (010) β-Ga₂O₃ exhibit 85-91% reduction in ND-NA and 7.7-9.4x higher Ron,sp compared to low-damage references, with similar effects in (110) and (011) but minimal impact on (001). Sputtered SiO2 also caused depletion 11.5 μm deep in (010) material. The damage is linked to ions penetrating open channels along [010] and generating point defects.
What carries the argument
Orientation-dependent ion channeling along the [010] direction in the monoclinic β-Ga₂O₃ lattice, which allows energetic ions to create compensating point defects far below the surface.
If this is right
- Processing steps involving ions must be carefully controlled or avoided for (010), (110), and (011) orientations to preserve doping levels.
- The (001) orientation offers greater tolerance to ion damage during fabrication.
- Damage depth can reach over 11 μm, affecting the entire active layer in typical epitaxial films.
- Similar ion-induced compensation may occur in other wide-bandgap semiconductors with channeled crystal structures.
Where Pith is reading between the lines
- Device performance in β-Ga₂O₃ electronics could be improved by selecting (001) substrates or developing damage-free processing techniques for other orientations.
- The defect creation mechanism suggests that ion implantation or plasma processes might be used deliberately for isolation in certain orientations.
- Annealing after etching might be necessary to repair or diffuse the compensating defects.
Load-bearing premise
The reductions in measured charge density result from compensating point defects created by channeled ions rather than surface effects, CV measurement artifacts, or unrelated processing changes.
What would settle it
Demonstrating equivalent charge depletion in all orientations or showing that the depletion does not extend beyond the ion penetration range without diffusion would challenge the channeling-based explanation.
read the original abstract

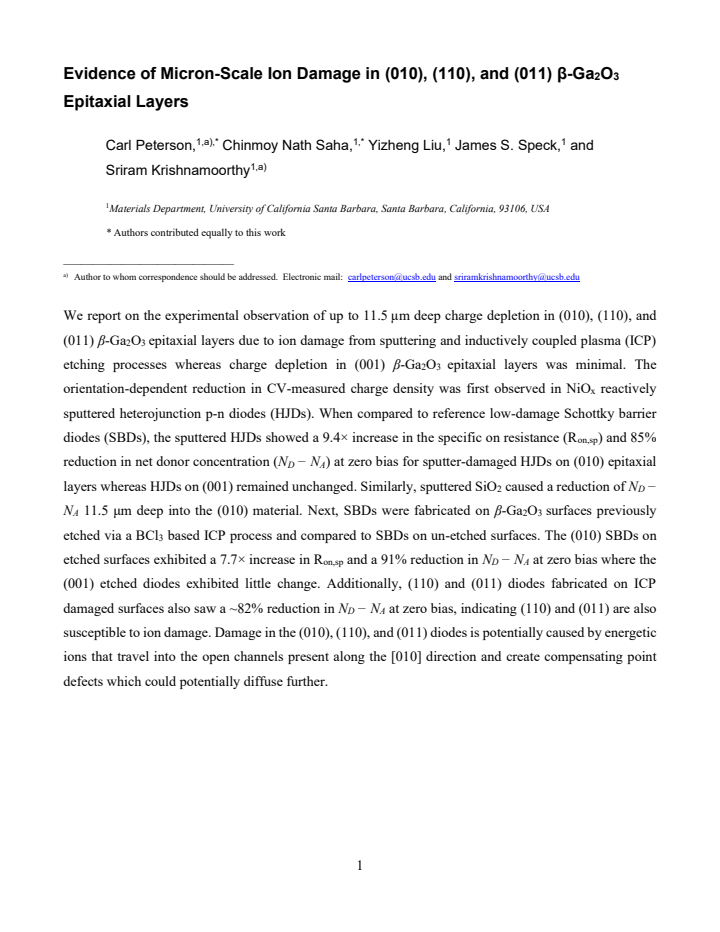

We report on the experimental observation of up to 11.5 ${\mu}m$ deep charge depletion in (010), (110), and (011) ${\beta}-Ga_2O_3$ epitaxial layers due to ion damage from sputtering and inductively coupled plasma (ICP) etching processes whereas charge depletion in (001) ${\beta}-Ga_2O_3$ epitaxial layers was minimal. The orientation-dependent reduction in CV-measured charge density was first observed in $NiO_x$ reactively sputtered heterojunction p-n diodes (HJDs). When compared to reference low-damage Schottky barrier diodes (SBDs), the sputtered HJDs showed a $9.4{\times}$ increase in the specific on resistance $(R_{on,sp})$ and 85% reduction in net donor concentration $(N_D - N_A)$ at zero bias for sputter-damaged HJDs on (010) epitaxial layers whereas HJDs on (001) remained unchanged. Similarly, sputtered SiO2 caused a reduction of $N_D - N_A$ 11.5 ${\mu}m$ deep into the (010) material. Next, SBDs were fabricated on ${\beta}-Ga_2O_3$ surfaces previously etched via a BCl3 based ICP process and compared to SBDs on un-etched surfaces. The (010) SBDs on etched surfaces exhibited a $7.7{\times}$ increase in $R_{on,sp}$ and a 91% reduction in $N_D - N_A$ at zero bias where the (001) etched diodes exhibited little change. Additionally, (110) and (011) diodes fabricated on ICP damaged surfaces also saw a ~82% reduction in $N_D - N_A$ at zero bias, indicating (110) and (011) are also susceptible to ion damage. Damage in the (010), (110), and (011) diodes is potentially caused by energetic ions that travel into the open channels present along the [010] direction and create compensating point defects which could potentially diffuse further.
