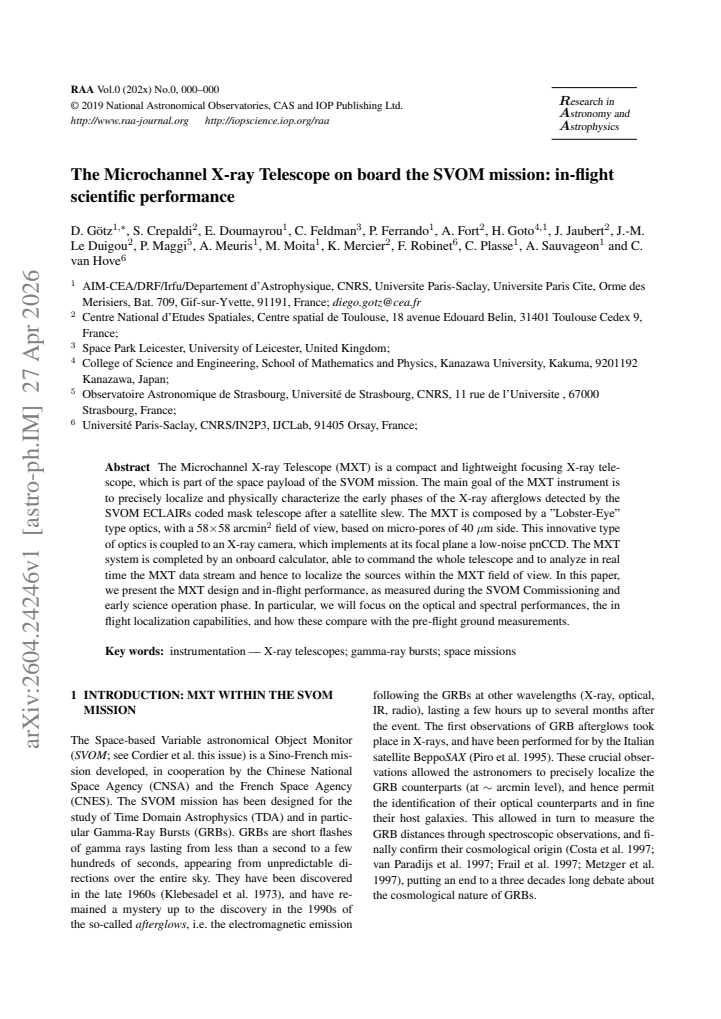

The Microchannel X-ray Telescope on board the SVOM mission: in-flight scientific performance

D. G\"otz , S. Crepaldi , E. Doumayrou , C. Feldman , P. Ferrando , A. Fort , H. Goto , J. Jaubert

show 9 more authors

J.-M. Le Duigou P. Maggi A. Meuris M. Moita K. Mercier F. Robinet C. Plasse A. Sauvageon C. van Hove

Authors on Pith no claims yet

Pith reviewed 2026-05-08 01:24 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.HE

keywords Microchannel X-ray TelescopeSVOM missionLobster-Eye opticsin-flight performanceX-ray afterglow localizationpnCCD detectorgamma-ray burstscommissioning phase

0 comments

The pith

The Microchannel X-ray Telescope on SVOM achieves in-flight optical, spectral, and localization performance matching pre-flight ground measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the Microchannel X-ray Telescope, a compact instrument using Lobster-Eye optics with micro-pores and a pnCCD camera, designed to localize and characterize X-ray afterglows from gamma-ray bursts detected by the SVOM ECLAIRs telescope. It reports the design details and evaluates actual performance using data from the satellite's commissioning and early science phase. A sympathetic reader cares because confirming no significant degradation from ground tests validates the instrument for its core mission of rapid follow-up on transient events. The comparisons focus on point-spread function, energy resolution, and source positioning accuracy.

Core claim

The MXT, with its 58×58 arcmin² field of view Lobster-Eye optics based on 40 μm micro-pores, low-noise pnCCD focal plane, and onboard calculator for real-time data analysis, delivers optical and spectral performance plus localization capabilities in flight that align closely with pre-flight ground measurements, showing no evidence of degradation during the SVOM commissioning and early operations.

What carries the argument

Lobster-Eye optics made of micro-pores coupled to a pnCCD camera and an onboard real-time localization calculator, which processes the data stream to identify sources within the wide field of view.

If this is right

The MXT can provide the intended precise localizations of X-ray afterglows following ECLAIRs detections and satellite slews.
Spectral characterization of the earliest phases of afterglows proceeds as designed without in-flight calibration shifts.
The micro-pore optics technology operates reliably in space, supporting its use for similar wide-field X-ray monitoring.
Real-time onboard processing enables prompt alerts based on MXT data alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This confirmation reduces uncertainty in planning long-term SVOM observing strategies that rely on MXT follow-up.
Performance data may guide design choices for future missions using similar microchannel optics on smaller satellites.
The agreement between ground and flight results supports applying the same calibration pipeline to later mission phases.

Load-bearing premise

The limited sources observed in commissioning and early operations form a sufficient and unbiased sample for assessing the full range of optical, spectral, and localization performance.

What would settle it

A measurement on a bright, isolated X-ray source showing the in-flight point-spread function width or energy resolution differing by more than 10-20 percent from the corresponding ground calibration value.

read the original abstract

The Microchannel X-ray Telescope (MXT) is a compact and lightweight focusing X-ray telescope, which is part of the space payload of the SVOM mission. The main goal of the MXT instrument is to precisely localize and physically characterize the early phases of the X-ray afterglows detected by the SVOM ECLAIRs coded mask telescope after a satellite slew. The MXT is composed by a "Lobster-Eye" type optics, with a 58$\times$58 arcmin$^{2}$ field of view, based on micro-pores of 40 $\mu$m side. This innovative type of optics is coupled to an X-ray camera, which implements at its focal plane a low-noise pnCCD. The MXT system is completed by an onboard calculator, able to command the whole telescope and to analyze in real time the MXT data stream and hence to localize the sources within the MXT field of view. In this paper, we present the MXT design and in-flight performance, as measured during the SVOM Commissioning and early science operation phase. In particular, we will focus on the optical and spectral performances, the in flight localization capabilities, and how these compare with the pre-flight ground measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a standard in-flight calibration report showing the MXT matches its ground performance for the sources seen so far, with no major surprises.

read the letter

This paper mainly confirms that the MXT on SVOM is performing as the ground tests predicted, at least based on the early data from commissioning and initial science operations. It walks through the Lobster-Eye optics and pnCCD setup, then reports measured optical, spectral, and localization numbers along with direct comparisons to pre-flight results. The onboard real-time localization gets some attention too, which fits the mission's GRB follow-up needs. The comparisons are the useful part here, as they give the community concrete evidence that launch and space environment did not cause obvious degradation.

Referee Report

1 major / 1 minor

Summary. The manuscript describes the Microchannel X-ray Telescope (MXT) on the SVOM mission, which employs Lobster-Eye micro-pore optics (58×58 arcmin² FOV) coupled to a pnCCD camera and an onboard real-time localization calculator. It reports the in-flight optical, spectral, and localization performance measured during commissioning and early science operations, with direct comparisons to pre-flight ground tests.

Significance. If the claimed agreement between in-flight and ground measurements holds across the relevant parameter space, the result would be significant for validating the first space deployment of Lobster-Eye optics. This directly supports SVOM's core objective of rapid, precise localization of GRB afterglows and provides a benchmark for future missions using similar lightweight, wide-field X-ray optics.

major comments (1)

[section on in-flight localization capabilities and performance comparison] The central claim that in-flight optical, spectral, and localization performance matches pre-flight expectations rests on the sources observed during commissioning and early science. The manuscript does not specify the number of sources, their flux distribution, background levels, or off-axis angles within the 58×58 arcmin² FOV (see the section on in-flight localization capabilities and any accompanying tables or figures). Without this, it is not possible to confirm that the sample adequately tests the full range needed to rule out degradation in PSF, effective area, or localization accuracy, particularly at faint fluxes or field edges where vignetting and pore alignment effects are most relevant for Lobster-Eye optics.

minor comments (1)

[Abstract] The abstract states the intent to compare in-flight and ground measurements but provides no quantitative metrics (e.g., achieved angular resolution, spectral resolution, or localization accuracy values); adding these would improve immediate readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript describing the in-flight performance of the MXT. The comments have prompted us to enhance the documentation of our source sample, improving the transparency of the performance validation. We address the major comment below.

read point-by-point responses

Referee: The central claim that in-flight optical, spectral, and localization performance matches pre-flight expectations rests on the sources observed during commissioning and early science. The manuscript does not specify the number of sources, their flux distribution, background levels, or off-axis angles within the 58×58 arcmin² FOV (see the section on in-flight localization capabilities and any accompanying tables or figures). Without this, it is not possible to confirm that the sample adequately tests the full range needed to rule out degradation in PSF, effective area, or localization accuracy, particularly at faint fluxes or field edges where vignetting and pore alignment effects are most relevant for Lobster-Eye optics.

Authors: We agree that explicit characterization of the observed sources is necessary to substantiate the performance claims. The commissioning data set includes a modest number of sources detected during the early operations phase. In the revised manuscript we have added a dedicated table (new Table 3) and expanded text in the in-flight localization section that lists the sources, their measured count rates (spanning approximately 0.1–10 counts s⁻¹), estimated background levels, and off-axis angles (ranging from on-axis to ~25 arcmin). We also include a brief discussion of the sampled portion of the 58×58 arcmin² FOV and note that the faintest end and the most extreme field edges are only sparsely covered. These additions allow readers to judge the adequacy of the comparison to ground tests while acknowledging the statistical limitations inherent to the commissioning data set. revision: yes

Circularity Check

0 steps flagged

No circularity: direct empirical reporting of measured performance

full rationale

The paper reports the MXT instrument design and in-flight performance metrics obtained during SVOM commissioning and early science operations, with direct comparisons to independent pre-flight ground measurements. No derivations, equations, predictive models, fitted parameters, or ansatzes are present in the abstract or described content. The central claims consist of observational data presentation (optical, spectral, and localization performance) without any reduction of outputs to inputs by construction, self-citation chains, or renaming of known results. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical instrumentation report with no theoretical derivations, free parameters, axioms, or postulated entities.
