Scenario-based System Testing for Distributed Robotics Applications

Jan Peleska , Felix Br\"uning , Wen-Ling Huang , Anne E. Haxthausen
Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:54 UTC · model grok-4.3

classification 💻 cs.SE
keywords scenario-based testingdistributed roboticsonline testingsystem-level testsdynamic reconfigurationtest compositionmodel-based testingSCSL
0
0 comments X

The pith

SCSL composes elementary scenarios into system tests for distributed robots and executes them online to handle nondeterminism and runtime changes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the SCenario Specification Language to enable automated system-level testing when monolithic models are impractical due to high complexity, nondeterminism, and dynamic configurations in distributed robotic systems. It shows how complex tests can be built by combining simpler scenario descriptions through sequential and parallel composition operators. Online test selection during execution addresses the inability to precompute all behaviors, while a collaboration construct allows the test platform to remove unavailable components, add new ones, and rewire interfaces at runtime. A sympathetic reader would care because this targets real-world collaborative robots, such as those in salvage missions, where traditional testing approaches break down. The work demonstrates these ideas through a prototype tool and an example execution trace.

Core claim

SCSL provides a language for specifying expected behaviors and stimuli in elementary scenarios that compose via sequential and parallel operators into full system tests, paired with an online execution platform that selects steps at runtime and a collaboration construct that supports removing, adding, and rewiring components dynamically during test runs.

What carries the argument

The SCenario Specification Language (SCSL) with its sequential and parallel composition operators plus collaboration construct, which decomposes tests and enables on-the-fly selection and reconfiguration without a single monolithic model.

Load-bearing premise

That breaking tests into elementary scenarios and selecting steps online during execution will cover the necessary behaviors of nondeterministic distributed systems without missing critical failures.

What would settle it

Running the SCSL prototype on a multi-robot salvage mission where a known nondeterministic failure mode occurs only after specific runtime reconfigurations, and checking whether the generated tests detect or exercise that failure.

Figures

Figures reproduced from arXiv: 2604.25772 by Anne E. Haxthausen, Felix Br\"uning, Jan Peleska, Wen-Ling Huang.

Figure 1
Figure 1. Figure 1: System test configuration. The succession of elementary scenarios to be executed by each OEH is coordinated by a coordinator agent CA. The CA receives status information about ongoing elementary scenario executions performed by each OEH and provides further elementary scenarios to be scheduled by the associated OEH. The collaboration between all components of the CPS will result in certain emergent propert… view at source ↗
Figure 2
Figure 2. Figure 2: Rover-type robot. Robots. There are n robots of the rover type (see view at source ↗
Figure 3
Figure 3. Figure 3: Instantiation of Fig. 1 for the ‘software-only’ system test deployment. view at source ↗
Figure 4

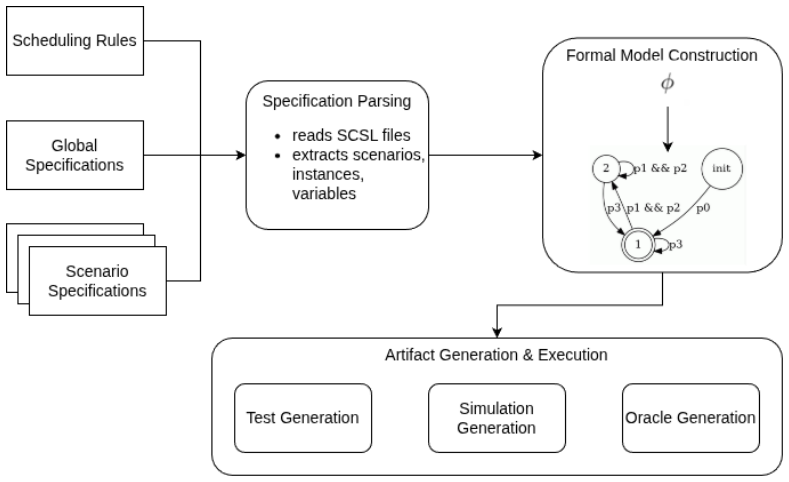

Figure 4. Figure 4: SCSL-Based Test Artifact Generation Workflow view at source ↗
Figure 5

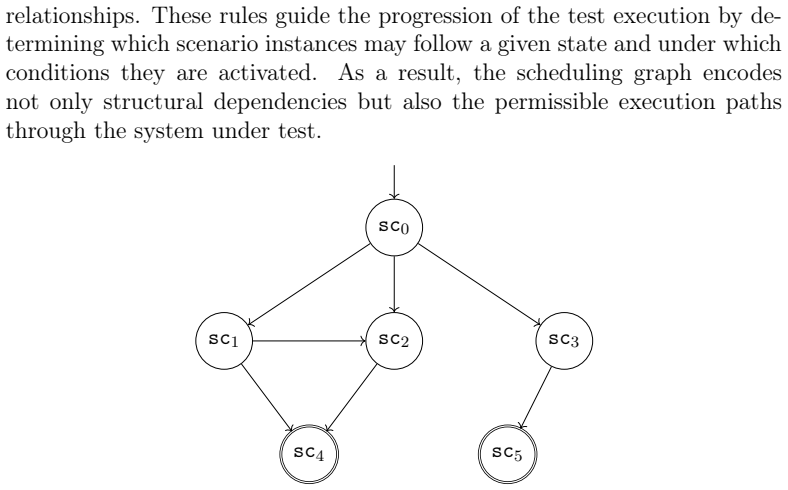

Figure 5. Figure 5: Example Scheduling Graph, sc4 and sc5 are End-Scenarios. The resulting graph defines how and when individual scenario instances are executed at runtime, thereby enabling the controlled and coordinated execution of multiple interacting scenarios. In this way, the scheduling graph serves as the foundation for end-to-end test generation, ensuring that gener￾ated test executions follow well-defined paths from … view at source ↗
Figure 6
Figure 6. Figure 6: Example symbolic Büchi automaton. Step Transition Transition Expression Concrete Valuation 1 s0 → accept z = 1 ∧ x = p0 − 25 ∧ p0 = 42 {z := 1, x := 17, p0 = 42} view at source ↗
Figure 7
Figure 7. Figure 7: The Architecture of the System Test Execution. view at source ↗
Figure 8
Figure 8. Figure 8: Test Suite Schedule. 37 view at source ↗
read the original abstract

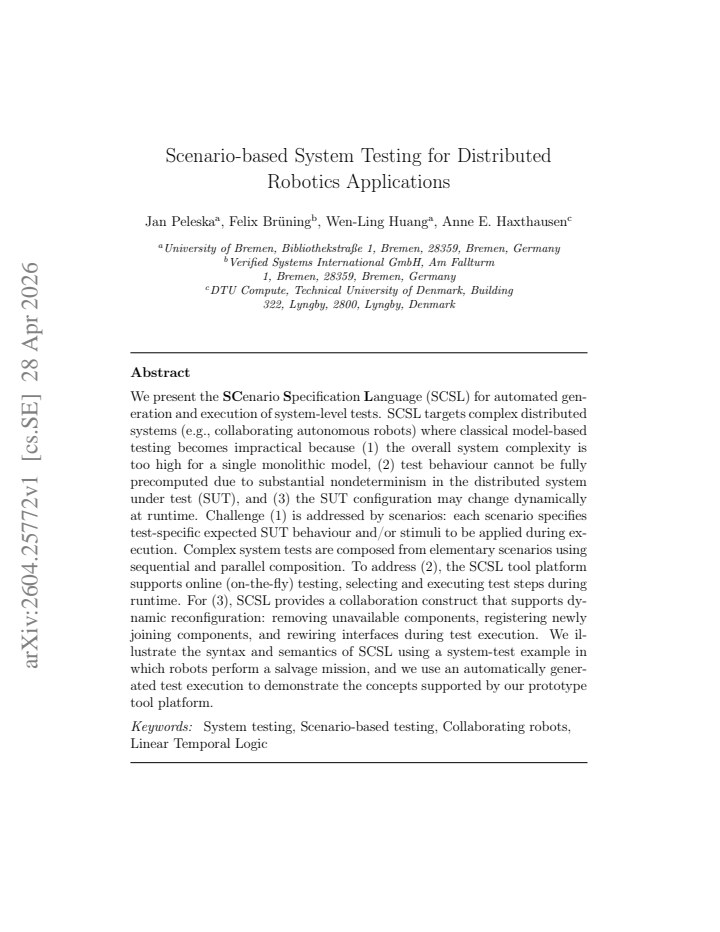

We present the SCenario Specification Language (SCSL) for automated generation and execution of system-level tests. SCSL targets complex distributed systems (e.g., collaborating autonomous robots) where classical model-based testing becomes impractical because (1) the overall system complexity is too high for a single monolithic model, (2) test behaviour cannot be fully precomputed due to substantial nondeterminism in the distributed system under test (SUT), and (3) the SUT configuration may change dynamically at runtime. Challenge (1) is addressed by scenarios: each scenario specifies test-specific expected SUT behaviour and/or stimuli to be applied during execution. Complex system tests are composed from elementary scenarios using sequential and parallel composition. To address (2), the SCSL tool platform supports online (on-the-fly) testing, selecting and executing test steps during runtime. For (3), SCSL provides a collaboration construct that supports dynamic reconfiguration: removing unavailable components, registering newly joining components, and rewiring interfaces during test execution. We illustrate the syntax and semantics of SCSL using a system-test example in which robots perform a salvage mission, and we use an automatically generated test execution to demonstrate the concepts supported by our prototype tool platform.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the SCenario Specification Language (SCSL) for automated generation and execution of system-level tests targeting complex distributed robotics applications. It composes tests from elementary scenarios via sequential and parallel operators, supports online (on-the-fly) selection and execution to handle nondeterminism, and introduces a collaboration construct for dynamic runtime reconfiguration of components and interfaces. The claims are illustrated via a salvage-mission example with collaborating robots and a prototype tool platform.

Significance. If the runtime selection mechanism can be shown to systematically address nondeterminism, SCSL would offer a practical alternative to monolithic model-based testing for distributed systems whose configuration and behavior cannot be fully precomputed. The scenario-composition approach and collaboration construct directly target real engineering challenges in robotics; the prototype and example provide initial feasibility evidence.

major comments (2)
  1. [Abstract] Abstract: the central claim that online testing 'selects and executes test steps during runtime' to address nondeterminism without exhaustive precomputation is load-bearing, yet no decision procedure, coverage metric, or argument is supplied showing that critical interleavings arising from parallel composition and dynamic reconfiguration will be reached rather than missed.
  2. [Salvage mission example] Salvage-mission example: the illustration demonstrates syntax and concepts but supplies no quantitative data (e.g., number of paths explored, failure modes detected, or coverage achieved) that would allow assessment of whether the online mechanism actually mitigates the exponential path space described in the skeptic note.
minor comments (2)
  1. The abstract refers to 'automatically generated test execution' without clarifying the generation algorithm beyond composition; a dedicated section on the generation and selection engine would improve clarity.
  2. Notation for the collaboration construct and its reconfiguration operations should be defined more formally (e.g., via small-step semantics or pseudocode) to avoid ambiguity when components join or leave.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of SCSL's relevance to distributed robotics testing challenges. We respond point-by-point to the major comments below, outlining revisions that will strengthen the presentation of the online selection mechanism and the illustrative example.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that online testing 'selects and executes test steps during runtime' to address nondeterminism without exhaustive precomputation is load-bearing, yet no decision procedure, coverage metric, or argument is supplied showing that critical interleavings arising from parallel composition and dynamic reconfiguration will be reached rather than missed.

    Authors: We agree that the abstract's emphasis on online testing is central and that the manuscript does not supply a formal decision procedure or coverage metric. The online mechanism, detailed in the tool platform description, selects steps at runtime by matching observed SUT states against scenario constraints and available collaboration reconfigurations, thereby avoiding exhaustive precomputation of all interleavings. In the revision we will add a subsection that (i) describes the concrete selection heuristics used by the prototype, (ii) explains how parallel operators and the collaboration construct influence which interleavings are exercised, and (iii) supplies an informal argument that runtime observation of nondeterministic outcomes allows the tester to reach critical paths that would be missed by any static precomputed schedule. The abstract will be revised to reflect this clarification rather than overstating guarantees. revision: yes

  2. Referee: [Salvage mission example] Salvage-mission example: the illustration demonstrates syntax and concepts but supplies no quantitative data (e.g., number of paths explored, failure modes detected, or coverage achieved) that would allow assessment of whether the online mechanism actually mitigates the exponential path space described in the skeptic note.

    Authors: The salvage-mission example is presented to illustrate syntax, composition operators, and the collaboration construct in a realistic setting. We acknowledge that it currently lacks quantitative metrics. In the revised manuscript we will extend the example section with execution statistics obtained from the prototype on the same scenario, including the number of distinct interleavings explored during online execution, the failure modes that were triggered, and a simple coverage count of exercised scenario elements. These data will be accompanied by a brief comparison to the size of the precomputed state space to illustrate the mitigation effect. revision: yes

Circularity Check

0 steps flagged

No circularity in SCSL language and tool presentation

full rationale

The paper introduces SCSL as a novel scenario specification language whose core constructs (elementary scenarios, sequential/parallel composition, and collaboration for dynamic reconfiguration) are defined directly by syntax and semantics, then illustrated on a robot salvage-mission example. No equations, fitted parameters, predictions of test coverage, or uniqueness theorems are claimed; the online (on-the-fly) selection mechanism is presented as an engineering feature of the tool platform rather than a derived result that reduces to its own inputs. No self-citations are invoked as load-bearing premises for the central claims. The contribution is therefore self-contained as a language definition plus prototype demonstration.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 2 invented entities

The central claims rest on domain assumptions about test composition and runtime selection rather than fitted parameters or new physical entities.

axioms (2)
  • domain assumption Elementary scenarios can be composed sequentially and in parallel to specify complex system-level test behavior.
    Invoked when describing how complex tests are built from elementary ones.
  • domain assumption Online (on-the-fly) test step selection can adequately exercise nondeterministic distributed systems without exhaustive precomputation.
    Central to addressing challenge (2) of substantial nondeterminism.
invented entities (2)
  • SCSL language no independent evidence
    purpose: Specification language for scenario-based test generation and execution
    New artifact introduced by the paper.
  • collaboration construct no independent evidence
    purpose: Mechanism for dynamic reconfiguration of test interfaces during execution
    New construct to handle changing SUT configurations.
