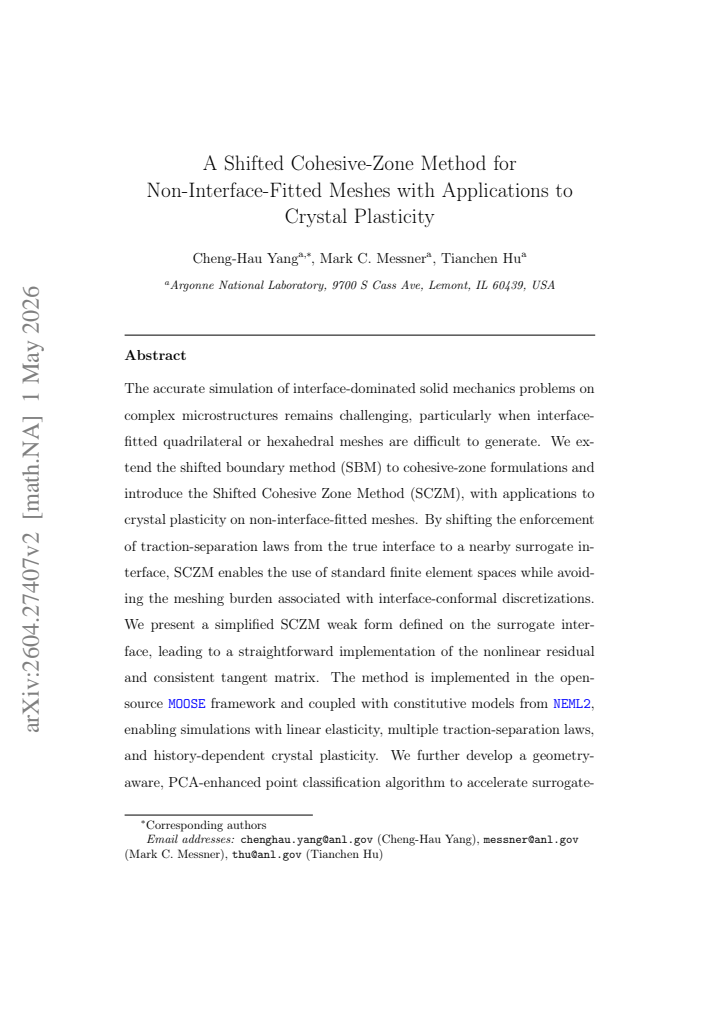

A Shifted Cohesive-Zone Method for Non-Interface-Fitted Meshes with Applications to Crystal Plasticity

Cheng-Hau Yang , Mark C. Messner , Tianchen Hu
Authors on Pith no claims yet

Pith reviewed 2026-05-07 10:28 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.AP
keywords cohesive zone methodshifted boundary methodcrystal plasticitynon-interface-fitted meshesfinite element methodinterface mechanicssurrogate interfacedamage evolution
0
0 comments X

The pith

The shifted cohesive zone method simulates interface mechanics accurately on non-interface-fitted meshes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops the Shifted Cohesive Zone Method to enforce traction-separation laws on a surrogate interface rather than the true material interface. The shift permits standard finite-element spaces on meshes that do not conform to the interfaces, removing the need to generate fitted quadrilateral or hexahedral meshes around complex microstructures. Verification shows first-order convergence together with close agreement to reference solutions for reaction forces, energy release, deformation, stress, and damage evolution under crystal plasticity. The approach matters because interface-conforming meshes remain difficult or impossible to construct for many realistic grain geometries. A geometry-aware classification step accelerates construction of the surrogate domains.

Core claim

By shifting the enforcement of traction-separation laws from the true interface to a nearby surrogate interface, SCZM enables the use of standard finite element spaces while avoiding the meshing burden associated with interface-conformal discretizations, yielding first-order convergence and close quantitative agreement with interface-fitted reference solutions in reaction forces, surface energy release, deformation, stress fields, and damage evolution for both linear elasticity and history-dependent crystal plasticity.

What carries the argument

The surrogate interface to which the traction-separation laws are shifted, which carries the weak-form enforcement and produces the nonlinear residual and consistent tangent.

If this is right

  • Standard finite-element spaces suffice for interface problems once the traction-separation laws are applied on the surrogate surface.
  • First-order convergence is recovered for non-interface-fitted discretizations of cohesive-zone problems.
  • Reaction forces, energy release rates, deformation, stress, and damage histories remain close to those obtained with conforming meshes.
  • The same framework accommodates multiple traction-separation laws together with history-dependent crystal plasticity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The surrogate-interface idea could be combined with local mesh refinement near the true interface to recover higher-order accuracy without global conformity.
  • The same shift technique may apply to other interface conditions, such as frictional contact or thermal resistance, provided the constitutive response is not overly sensitive to small geometric offsets.
  • Automated surrogate construction via point classification suggests a route toward fully automated simulation pipelines for polycrystalline aggregates.

Load-bearing premise

The error introduced by moving the traction-separation laws from the true interface to a nearby surrogate interface remains negligible for nonlinear history-dependent constitutive models such as crystal plasticity.

What would settle it

A benchmark in which SCZM on a non-fitted mesh produces stress or damage fields that deviate substantially from a highly refined interface-fitted reference solution under the same crystal-plasticity loading would falsify the accuracy claim.

read the original abstract

The accurate simulation of interface-dominated solid mechanics problems on complex microstructures remains challenging, particularly when interface-fitted quadrilateral or hexahedral meshes are difficult to generate. We extend the shifted boundary method (SBM) to cohesive-zone formulations and introduce the Shifted Cohesive Zone Method (SCZM), with applications to crystal plasticity on non-interface-fitted meshes. By shifting the enforcement of traction-separation laws from the true interface to a nearby surrogate interface, SCZM enables the use of standard finite element spaces while avoiding the meshing burden associated with interface-conformal discretizations. We present a simplified SCZM weak form defined on the surrogate interface, leading to a straightforward implementation of the nonlinear residual and consistent tangent matrix. The method is implemented in the open-source MOOSE framework and coupled with constitutive models from NEML2, enabling simulations with linear elasticity, multiple traction-separation laws, and history-dependent crystal plasticity. We further develop a geometry-aware, PCA-enhanced point classification algorithm to accelerate surrogate-domain construction. Verification and benchmark studies in two and three dimensions demonstrate that SCZM achieves first-order convergence for non-interface-fitted interface problems and closely matches interface-fitted reference solutions in terms of reaction forces, surface energy release, deformation, stress fields, and damage evolution. These results indicate that SCZM provides an accurate and efficient framework for modeling interface mechanics in complex microstructures without requiring interface-fitted meshes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces the Shifted Cohesive Zone Method (SCZM) as an extension of the shifted boundary method to cohesive-zone formulations. It shifts traction-separation law enforcement to a nearby surrogate interface on non-interface-fitted meshes, presents a simplified weak form, develops a PCA-enhanced point classification algorithm for surrogate-domain construction, implements the method in MOOSE coupled with NEML2 for linear elasticity and history-dependent crystal plasticity, and reports verification studies showing first-order convergence together with close agreement to interface-fitted references in reaction forces, surface energy release, deformation, stress fields, and damage evolution.

Significance. If the numerical results hold, SCZM offers a practical route to interface-mechanics simulations on complex microstructures without the burden of interface-conformal meshing. The open-source implementation, coupling to nonlinear constitutive models, and direct numerical comparison to fitted-mesh references for both linear and crystal-plasticity cases are concrete strengths that could facilitate adoption in solid-mechanics modeling.

major comments (1)
  1. [Verification and benchmark studies] Verification and benchmark studies: the central claim that SCZM achieves first-order convergence for non-interface-fitted problems rests on the reported numerical results; the manuscript should explicitly state the error norms employed (e.g., L2 displacement or traction error) and demonstrate that the observed order remains first-order when the shift distance is comparable to the mesh size h for the history-dependent crystal-plasticity model with evolving damage.
minor comments (2)
  1. [Weak-form derivation] The derivation of the consistent tangent matrix from the simplified weak form on the surrogate interface would benefit from one additional intermediate step showing how the jump operator and traction-separation law are linearized.
  2. [Numerical results] Figure captions comparing SCZM and reference solutions should explicitly note the mesh size and shift distance used so that readers can assess the visual agreement quantitatively.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the constructive comment on the verification studies. We address the point below and will incorporate the requested clarifications in a revised manuscript.

read point-by-point responses

  1. Referee: [Verification and benchmark studies] Verification and benchmark studies: the central claim that SCZM achieves first-order convergence for non-interface-fitted problems rests on the reported numerical results; the manuscript should explicitly state the error norms employed (e.g., L2 displacement or traction error) and demonstrate that the observed order remains first-order when the shift distance is comparable to the mesh size h for the history-dependent crystal-plasticity model with evolving damage.

    Authors: We agree that greater explicitness on the error norms and on the shift-distance regime for the crystal-plasticity cases will strengthen the presentation. In the revised manuscript we will state that all convergence studies employ the L2 norm of the displacement field (integrated over the domain) together with the L2 norm of the traction error evaluated on the surrogate interface. Our existing two- and three-dimensional benchmarks already include crystal-plasticity simulations with evolving damage in which the surrogate-interface shift distance is O(h); the observed rates remain first-order. To make this transparent we will add a short dedicated paragraph and a supplementary convergence plot that isolates the crystal-plasticity data, explicitly reports the shift-to-h ratios employed, and confirms that the first-order behavior is retained. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper derives the SCZM weak form by direct extension of the standard shifted boundary method to cohesive-zone traction-separation laws, placing the enforcement on a surrogate interface constructed via PCA classification. This yields a standard nonlinear residual and tangent without any fitted parameter being relabeled as a prediction, without self-citation chains supporting the core variational statement, and without any uniqueness theorem imported from the authors' prior work. All central claims (first-order convergence, agreement with interface-fitted references) rest on explicit numerical benchmarks rather than on definitional equivalence or ansatz smuggling. The method is therefore independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Ledger constructed from abstract only; full text unavailable for exhaustive audit.

axioms (1)
  • standard math Standard finite element weak forms and discretization remain valid when boundary conditions are shifted to a surrogate interface.
    The method relies on this to define the simplified weak form.
invented entities (1)
  • Shifted Cohesive Zone Method (SCZM) no independent evidence
    purpose: Enables cohesive zone modeling on non-interface-fitted meshes
    Newly proposed method extending SBM.
