arxiv: 2604.28156 · v1 · submitted 2026-04-30 · 💻 cs.RO · cs.AI· cs.LG

Recognition: unknown

FlexiTac: A Low-Cost, Open-Source, Scalable Tactile Sensing Solution for Robotic Systems

Binghao Huang , Yunzhu Li

Authors on Pith no claims yet

Pith reviewed 2026-05-07 06:51 UTC · model grok-4.3

classification 💻 cs.RO cs.AIcs.LG

keywords tactile sensingrobotic grippersflexible sensorspiezoresistive sensingopen-source hardwarevisuo-tactile fusionsensor fabricationrobot learning

0 comments

The pith

A sealed three-layer laminate delivers affordable, repeatable tactile sensing to robotic grippers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents FlexiTac, a low-cost open-source tactile sensing solution for robotic end-effectors that uses thin flexible pads and a compact readout board. It establishes that the FPC-Velostat-FPC three-layer laminate with integrated electrodes substantially improves fabrication throughput and repeatability while keeping the sensors mechanically compliant for use on rigid and soft grippers. The system streams synchronized tactile measurements at 100 Hz and demonstrates utility in modern learning setups such as visuo-tactile fusion for decision making and cross-embodiment skill transfer. A sympathetic reader would care because high costs and fabrication difficulties have limited dense tactile sensing in robotics, and a practical scalable alternative could change that. If the approach works as described, it would allow easier integration of touch sensing into robotic systems for improved control and data collection.

Core claim

FlexiTac consists of flexible tactile sensor pads using a sealed three-layer laminate stack of FPC-Velostat-FPC with electrode patterns integrated into the flexible printed circuits, paired with a compact multi-channel readout board that streams synchronized measurements at 100 Hz via serial communication. This design improves fabrication and repeatability, maintains compliance for deployment on diverse grippers, and supports tactile learning pipelines including 3D visuo-tactile fusion, cross-embodiment skill transfer, and real-to-sim-to-real fine-tuning with GPU-parallel simulation.

What carries the argument

The sealed three-layer laminate stack (FPC-Velostat-FPC) with electrode patterns directly integrated into flexible printed circuits, which enables improved fabrication throughput, repeatability, and mechanical compliance for tactile sensing on robotic systems.

Load-bearing premise

That the three-layer laminate and low-cost readout electronics will deliver dense, synchronized, and repeatable tactile signals across varied mounting configurations and real-world use without requiring extensive per-unit calibration or suffering from mechanical or electrical drift.

What would settle it

Finding that fabricated sensor units show large variations in sensitivity or that signals drift significantly after repeated mounting and flexing on a gripper, or that synchronization cannot be maintained at 100 Hz with multiple connected pads.

Figures

Figures reproduced from arXiv: 2604.28156 by Binghao Huang, Yunzhu Li.

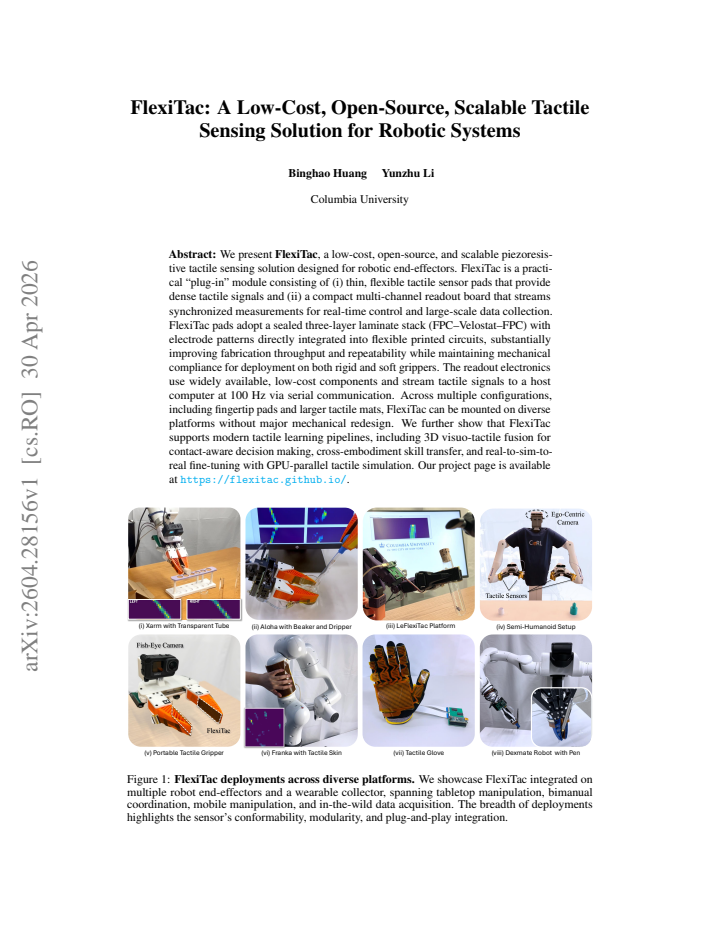

**Figure 1.** Figure 1: FlexiTac deployments across diverse platforms. We showcase FlexiTac integrated on multiple robot end-effectors and a wearable collector, spanning tabletop manipulation, bimanual coordination, mobile manipulation, and in-the-wild data acquisition. The breadth of deployments highlights the sensor’s conformability, modularity, and plug-and-play integration. arXiv:2604.28156v1 [cs.RO] 30 Apr 2026 view at source ↗

**Figure 2.** Figure 2: FlexiTac System Configurations. (a) Example assembly of a 32×12 tactile pad integrated on a soft fin-shaped gripper, connected via a flexible flat cable (FFC) to a multi-channel readout board (with an Arduino Nano). (b) Close-up of the 32×12 pad geometry. (c) A larger 32×32 tactile mat configuration with its corresponding readout board. (d-e) Additional compact pad form factors (8×16 and 16×16) illustratin… view at source ↗

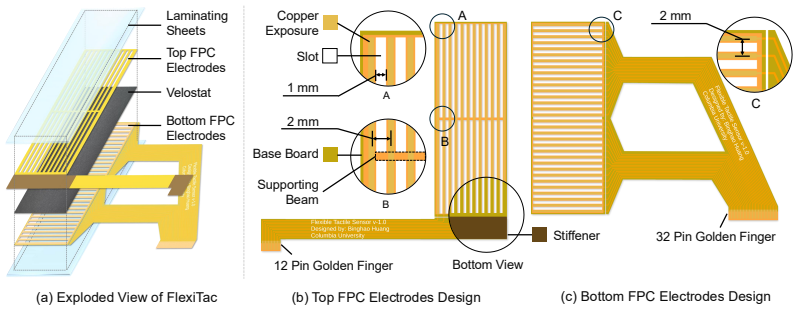

**Figure 3.** Figure 3: FlexiTac construction and electrode layout. (a) Exploded view of the sealed three-layer stack-up: top FPC electrodes, piezoresistive film (Velostat), and bottom FPC electrodes, encapsulated by laminating sheets, with stiffeners or golden fingers for reliable electrical interfacing. (b-c) Top and bottom FPC electrode designs forming an orthogonal sensing matrix; each electrode intersection defines one taxel… view at source ↗

**Figure 4.** Figure 4: Multi-channel readout electronics for scalable tactile acquisition. (a) 32×32 readout board assembly. (b) 32×16 readout board assembly. (c) Layout and key components of the 32×16 board, including shift registers and a multiplexer for efficient addressing of high-dimensional tactile matrices with minimal wiring. The board streams synchronized tactile measurements to a host computer (100 Hz) via serial commu… view at source ↗

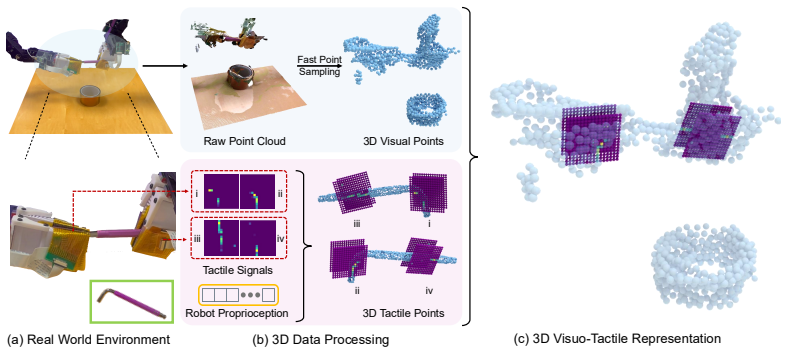

**Figure 5.** Figure 5: 3D visuo-tactile fusion for contact-aware policies (3D-ViTac pipeline). (a) Realworld environment with multimodal observations. (b) Processing pipeline: multi-view RGB-D is reconstructed into a 3D visual point cloud, while tactile signals are transformed into 3D space using robot proprioception, attaching tactile signals as a feature. (c) Unified 3D visuo-tactile point representation by merging visual and… view at source ↗

**Figure 6.** Figure 6: Cross-embodiment tactile sensing with a portable device and robot. (a) In-the-wild data collection using a portable visuo-tactile gripper. (b) Portable device details showing a fisheye camera, FlexiTac pads, and a compact readout board for synchronized logging. (c) Robot deployment on an xArm 850 equipped with FlexiTac. The shared sensing module supports consistent tactile signals across embodiments, enabl… view at source ↗

**Figure 7.** Figure 7: Real-to-sim-to-real learning pipeline with tactile simulation. Overview of a pipeline that combines real-world visuo-tactile demonstrations with GPU-parallel tactile simulation for scalable RL fine-tuning. Tactile signals are simulated at the taxel level to match the real sensor layout, enabling pre-training (e.g., diffusion policy), simulation-based fine-tuning on diverse assembly tasks (e.g., nut-and-bol… view at source ↗

read the original abstract

We present FlexiTac, a low-cost, open-source, and scalable piezoresistive tactile sensing solution designed for robotic end-effectors. FlexiTac is a practical "plug-in" module consisting of (i) thin, flexible tactile sensor pads that provide dense tactile signals and (ii) a compact multi-channel readout board that streams synchronized measurements for real-time control and large-scale data collection. FlexiTac pads adopt a sealed three-layer laminate stack (FPC-Velostat-FPC) with electrode patterns directly integrated into flexible printed circuits, substantially improving fabrication throughput and repeatability while maintaining mechanical compliance for deployment on both rigid and soft grippers. The readout electronics use widely available, low-cost components and stream tactile signals to a host computer at 100 Hz via serial communication. Across multiple configurations, including fingertip pads and larger tactile mats, FlexiTac can be mounted on diverse platforms without major mechanical redesign. We further show that FlexiTac supports modern tactile learning pipelines, including 3D visuo-tactile fusion for contact-aware decision making, cross-embodiment skill transfer, and real-to-sim-to-real fine-tuning with GPU-parallel tactile simulation. Our project page is available at https://flexitac.github.io/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

FlexiTac gives a workable open-source build for cheap piezoresistive tactile pads that could help labs add contact sensing without big budgets, but the stability claims look optimistic without more durability data.

read the letter

FlexiTac is a practical open-source tactile sensor that simplifies fabrication but needs stronger evidence on long-term stability. The paper describes a sealed FPC-Velostat-FPC stack with electrodes built into the flexible circuits, plus a compact low-cost readout board that streams at 100 Hz. This setup mounts on both rigid and soft grippers and comes with examples tying the signals into visuo-tactile fusion, cross-embodiment transfer, and real-to-sim fine-tuning. The open-source release and project page make replication straightforward, which is the real draw here. What the work does well is lower the barrier for collecting tactile data at scale. Traditional Velostat sensors often require custom wiring and suffer from inconsistent fabrication; integrating the electrodes directly into the FPC layers and sealing the laminate should cut down on assembly time and improve unit-to-unit repeatability. The readout electronics use off-the-shelf parts, and the demonstrations across fingertip pads and larger mats show the hardware is flexible enough for different robot platforms. The learning pipeline examples are useful for readers who want to plug tactile signals into existing control or imitation learning setups. The soft spots center on real-world robustness. Velostat films are known for hysteresis, temperature drift, and fatigue under repeated loading, and the paper's claim that the sealed design delivers dense, synchronized, plug-and-play signals rests on that assumption. If the experiments are mostly short lab sessions without extended cycling, temperature sweeps, or multi-unit calibration checks, the scalability for long-running tactile learning tasks remains unproven. Minor issues like missing error bars or direct comparisons to prior open-source sensors would also come up in review. This paper is for robotics groups that need affordable tactile hardware for data collection or contact-aware learning rather than for theorists chasing new sensing principles. Readers already working with piezoresistive materials or visuo-tactile models will find the build details and code most valuable. It deserves a serious referee because the hardware is concrete, the open-source component adds reproducibility, and the integration claims are testable even if some performance numbers need tightening. I would send it to review.

Referee Report

2 major / 2 minor

Summary. The paper presents FlexiTac, a low-cost, open-source tactile sensing system for robotic end-effectors consisting of thin flexible sensor pads based on a sealed three-layer FPC-Velostat-FPC laminate with integrated electrode patterns and a compact multi-channel readout board that streams synchronized tactile signals at 100 Hz via serial communication. The design is claimed to improve fabrication throughput and repeatability while preserving mechanical compliance for mounting on both rigid and soft grippers. The work further asserts compatibility with modern tactile learning pipelines, including 3D visuo-tactile fusion for contact-aware decisions, cross-embodiment skill transfer, and real-to-sim-to-real fine-tuning.

Significance. If the performance and integration claims are substantiated, FlexiTac could lower barriers to tactile sensing in robotics by providing an accessible, scalable hardware platform with open-source components and simulation support. The emphasis on mechanical compliance across gripper types and real-time streaming at 100 Hz addresses practical needs in manipulation research. The open-source release and explicit support for visuo-tactile and sim-to-real pipelines are clear strengths that could accelerate community adoption.

major comments (2)

[§4 (Sensor Design)] §4 (Sensor Design): The central claim that the sealed three-layer FPC-Velostat-FPC laminate 'substantially improving fabrication throughput and repeatability' while mitigating known Velostat issues (hysteresis, temperature sensitivity, fatigue) is not supported by any quantitative characterization data such as multi-cycle resistance-pressure curves, drift measurements over time, or temperature variation tests. This directly bears on the 'plug-and-play' and scalability assertions.
[§6 (Experiments and Integration)] §6 (Experiments and Integration): The demonstrations of support for tactile learning pipelines (visuo-tactile fusion, cross-embodiment transfer, real-to-sim-to-real) are described at a high level with no reported metrics, number of trials, success rates, error bars, or comparisons to baseline sensors. Without such data, it is not possible to evaluate whether the 100 Hz synchronized streaming delivers the dense, repeatable signals required for the claimed applications.

minor comments (2)

The manuscript references a project page but does not include an explicit statement on the availability of CAD files, PCB layouts, bill of materials, or firmware code within the text itself.
Figure captions for the laminate stack and readout board could more explicitly label the three-layer construction and electrode patterns to aid readers in understanding the fabrication improvements.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

Referee: §4 (Sensor Design): The central claim that the sealed three-layer FPC-Velostat-FPC laminate 'substantially improving fabrication throughput and repeatability' while mitigating known Velostat issues (hysteresis, temperature sensitivity, fatigue) is not supported by any quantitative characterization data such as multi-cycle resistance-pressure curves, drift measurements over time, or temperature variation tests. This directly bears on the 'plug-and-play' and scalability assertions.

Authors: We acknowledge that the manuscript lacks quantitative characterization of the sensor's performance metrics such as hysteresis, drift, and temperature sensitivity. While the design choices are intended to address these issues through the sealed laminate structure, we agree that empirical data is necessary to substantiate the claims of improved fabrication throughput, repeatability, and mitigation of Velostat drawbacks. In the revised manuscript, we will include results from multi-cycle resistance-pressure tests, long-term drift measurements, and temperature variation experiments to provide the required quantitative support for the scalability and plug-and-play assertions. revision: yes
Referee: §6 (Experiments and Integration): The demonstrations of support for tactile learning pipelines (visuo-tactile fusion, cross-embodiment transfer, real-to-sim-to-real) are described at a high level with no reported metrics, number of trials, success rates, error bars, or comparisons to baseline sensors. Without such data, it is not possible to evaluate whether the 100 Hz synchronized streaming delivers the dense, repeatable signals required for the claimed applications.

Authors: We recognize that the current description of the integration experiments is high-level and lacks specific quantitative metrics. The manuscript focuses on demonstrating the feasibility of using FlexiTac in various learning pipelines, but to allow proper evaluation of the sensor's performance in these contexts, we will expand this section in the revision. This will include details on the number of trials, success rates, error bars, and where possible, comparisons to other sensors or baselines, along with confirmation that the 100 Hz streaming provides sufficient data density and repeatability for the applications. revision: yes

Circularity Check

0 steps flagged

No circularity: hardware design paper with no derivations or fitted predictions

full rationale

The paper describes a physical tactile sensor (FPC-Velostat-FPC laminate, readout board, 100 Hz streaming) and its fabrication/usage for robotic applications. No equations, parameter fittings, uniqueness theorems, or self-referential derivations appear in the abstract or described content. Performance claims rest on engineering choices and empirical use cases (visuo-tactile fusion, sim-to-real), not on any step that reduces to its own inputs by construction. This matches the reader's 0.0 assessment; the skeptic concerns address empirical robustness rather than logical circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical model, derivations, or new physical entities are introduced; the work is an engineering description of a sensor stack and electronics. No free parameters, axioms, or invented entities appear in the abstract.

pith-pipeline@v0.9.0 · 5532 in / 1256 out tokens · 75844 ms · 2026-05-07T06:51:14.027809+00:00 · methodology
