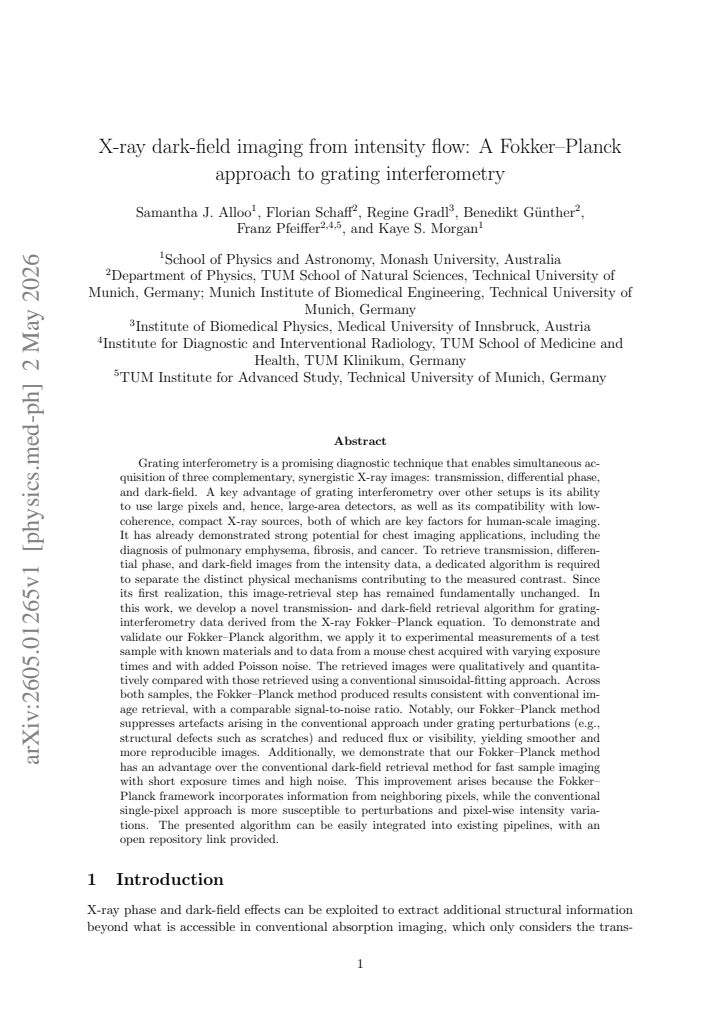

X-ray dark-field imaging from intensity flow: A Fokker-Planck approach to grating interferometry

Benedikt Gunther, Florian Schaff, Franz Pfeiffer, Kaye S. Morgan, Regine Gradl, Samantha J. Alloo

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:54 UTC · model grok-4.3

classification ⚛️ physics.med-ph physics.optics
keywords grating interferometrydark-field imagingFokker-Planck equationX-ray imagingimage retrievaltransmission imagingmedical imaging
0
0 comments X

The pith

A Fokker-Planck equation method retrieves transmission and dark-field X-ray images with fewer artifacts than conventional fitting.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors introduce a retrieval algorithm for grating interferometry that uses the X-ray Fokker-Planck equation to model intensity changes and separate transmission from dark-field signals. They test it on experimental data from a test object and a mouse chest scan under different noise and exposure conditions. The new method gives results matching the standard sinusoidal approach but reduces artifacts from grating defects and performs better with short exposures and high noise. This matters for practical medical applications where equipment imperfections and dose limits are common concerns.

Core claim

By treating the intensity variations across the gratings as governed by the Fokker-Planck equation, the authors derive new formulas to extract transmission and dark-field information. Experimental validation shows the images are consistent with conventional retrieval while being smoother and less affected by grating perturbations or reduced flux, with particular benefits for noisy, fast-acquisition data.

What carries the argument

The X-ray Fokker-Planck equation modeling the propagation of intensity through the interferometer setup to derive signal separation formulas.

Load-bearing premise

Intensity measurements in the grating setup follow the Fokker-Planck equation closely enough that the derived formulas cleanly isolate transmission and dark-field without interference from unmodeled setup-specific effects.

What would settle it

Experimental data from a grating with known scratches where the Fokker-Planck images show no reduction in artifacts compared to the conventional method would indicate the claim does not hold.

Figures

Figures reproduced from arXiv: 2605.01265 by Benedikt Gunther, Florian Schaff, Franz Pfeiffer, Kaye S. Morgan, Regine Gradl, Samantha J. Alloo.

Figure 1
Figure 1. Figure 1: Grating interferometry (GI) imaging setup established at the Technical University of Munich (TUM) for imaging of the test sample. This sample comprised a piece of wood (brown) and scrunched tissue paper (white) placed on a spirit level (black with yellow interior). 2 Methods 2.1 Image Retrieval via the X-ray Fokker–Planck-Equation Step 1: Interlace grating interferometry phase-stepping scans In order to ap… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the interlacing procedure used to convert GI data into a form suitable for X-ray Fokker–Planck image retrieval. Columns from each scan image (7 different G2 positions) are stacked sequentially: the first column from all 7 images side-by-side, then the second column, and so on, forming a single interlaced image. This image is resized to a square by duplicating each row 7 times until its height m… view at source ↗
Figure 3
Figure 3. Figure 3: Retrieved (a) transmission and (b) dark-field images of the test sample using the conventional pixel-wise sinusoidal fitting method. Retrieved (c) transmission and (d) dark-field images using our new XFPE-based approach. (e) and (f ) are a magnified region from both dark￾field images, highlighting how a grating defect–indicated by the yellow arrow in c–is handled by the two methods. The conventional approa… view at source ↗
Figure 4

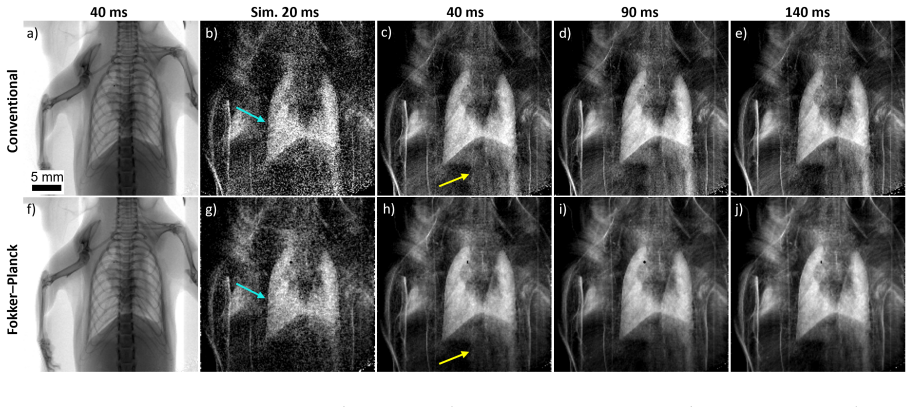

Figure 4. Figure 4: Retrieved transmission (1st column) and dark-field images (2nd–5th columns) of a mouse chest using the conventional pixel-wise sinusoidal fitting method (top row) and our new XFPE approach (bottom row). Results are shown for different exposure times, indicated along the top of the figure. The turquoise arrows in panels b) and g) indicate the lung edge, where the conventional retrieval method amplifies nois… view at source ↗
Figure 5

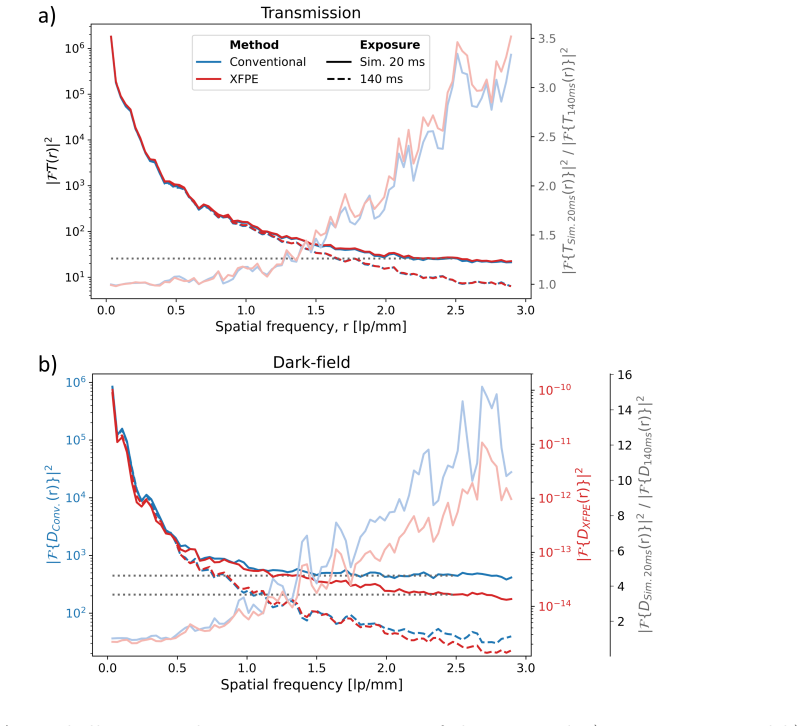

Figure 5. Figure 5: Azimuthally averaged Fourier power spectra of the retrieved a) transmission and b) dark-field images from simulated 20 ms (solid full-color curves) and experimental 140 ms (dashed full-color curves) grating interferometry (GI) data of the mouse chest. The transmission spectra are plotted on the same axis, whereas the dark-field spectra are displayed on separate axes because the approaches retrieve differen… view at source ↗
