Evaluation of the npde performance for the evaluation of joint model with longitudinal and TTE data: an application in metastatic hormono-resistant prostate cancer
Pith reviewed 2026-05-08 19:06 UTC · model grok-4.3
The pith
Normalized prediction discrepancies extend to joint models by imputing censored event times based on model predictions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors establish that prediction discrepancies for unobserved censored event times can be imputed from a uniform distribution conditional on the model-predicted censoring probability, extending the npd and npde framework to joint longitudinal and survival models. They further show that combining the p-values from tests on each data component with a Bonferroni correction yields a test with appropriate type I error and sensitivity to alternatives in simulation studies based on metastatic prostate cancer data.
What carries the argument
The imputation of prediction discrepancies for censored event times from a uniform distribution up to the model-predicted probability of censoring, combined with Bonferroni correction to merge tests on longitudinal and time-to-event components.
If this is right
- The combined test maintains type I error close to 5 percent across a range of misspecifications.
- Power increases with larger differences from the true model and with increasing sample size.
- Graphical displays of the discrepancies highlight larger deviations in survival functions or biomarker paths under misspecified models.
- The method permits routine use of npde-based checks on clinical data sets that include both repeated measures and event times.
Where Pith is reading between the lines
- The same imputation step could be applied to joint models in other disease areas that track biomarkers alongside event risks.
- Software implementations of nonlinear mixed-effects models could incorporate this diagnostic to support model building in drug development.
- Performance under alternative censoring patterns or with several longitudinal markers remains to be quantified.
Load-bearing premise
The imputation of prediction discrepancies for censored event times based on the model-predicted probability of censoring produces values that correctly represent the distribution under the assumed joint model.
What would settle it
Repeated simulations under the true joint model in which the combined test rejects at a rate materially above 5 percent, or a large-sample simulation in which the test fails to flag a known misspecification such as an incorrect link between biomarker trajectory and hazard.

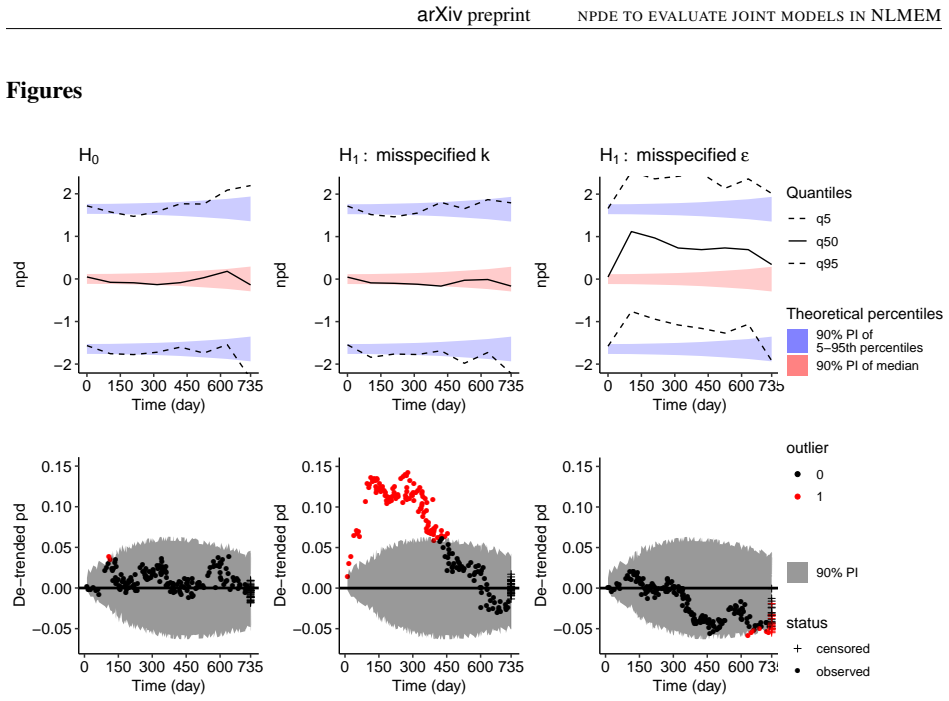

Figures
read the original abstract
Introduction: Joint models are increasingly used in clinical trials. An important part of model building is to properly assess the descriptive and predictive ability of these models. Normalised prediction discrepancies (npd) and normalised prediction distribution errors (npde) have been developed to evaluate graphically and statistically non-linear mixed effect models for continuous responses. In this work, we propose to use a combined test to evaluate joint models. Methods: Prediction discrepancies (pd) are defined as the quantile of the observation within its predictive distribution and obtained by Monte-Carlo simulations. The pd for unobserved (censored) event times are imputed in a uniform distribution based on the model prediction of the probability of censoring, using a similar method as the one developed to handle data under the lower quantification limit (LOQ). We propose to combine the p-values of the tests on longitudinal data and on time-to-event (TTE) data, adjusted with a Bonferroni correction. We performed simulation studies based on a joint model characterising the relationship between prostate specific antigen biomarker (PSA) and survival in prostate cancer patients to evaluate the type I error and power of npd/npde to detect different types of model misspecifications. Results: For all types of misspecifications, the type I error of the combined test was found to be close to the expected 5%. The power of the combined test to detect model misspecifications increased with the difference from the true model and as expected, with sample size. Graphically the power increase can be related to larger differences in the shape of the survival function or PSA evolution. Conclusions: npd can be readily extended for event data by imputing the pd for censored event under the model. The test showed an adequate type I error, and was quite sensitive to alternative models tested.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes extending normalized prediction discrepancies (npd) and normalized prediction distribution errors (npde) to evaluate joint models for longitudinal continuous responses and time-to-event (TTE) data. It defines prediction discrepancies via Monte Carlo simulation from the predictive distribution and imputes pd values for right-censored event times by drawing from a uniform distribution scaled by the model-predicted censoring probability, analogous to the LOQ handling method. A Bonferroni-adjusted combined test of the longitudinal and TTE components is introduced. Simulation studies based on a joint model for PSA biomarker trajectories and survival in metastatic hormone-resistant prostate cancer patients are used to assess type I error (reported near 5%) and power for detecting misspecifications, with results showing increasing power with greater model deviation and larger sample sizes.
Significance. If the imputation procedure and combined test are shown to be valid, the work supplies a practical diagnostic tool for joint models that are widely used in clinical trial analysis to link longitudinal biomarkers with survival. The simulation framework, which generates data from a known true model, provides direct evidence on type I error control and power, addressing a gap in graphical and formal assessment of joint model fit. This could improve model building in oncology applications where joint models are common.
major comments (2)
- [Methods] Methods section: The simulation study design is described at a high level but omits key load-bearing details such as the exact parameter values or functional forms used to create each misspecification scenario, the number of Monte Carlo replicates per dataset for pd computation, the sample sizes tested, the censoring rate and mechanism, and the precise definition of the 'combined test' statistic. These omissions prevent full verification of the reported type I error rates near 5% and the power results in the Results section.
- [Methods] Methods (imputation for censored TTE): The procedure for imputing pd for censored observations is stated to draw from a uniform distribution using the model-predicted probability of censoring. However, no explicit derivation or reference is given showing that the imputed values remain uniformly distributed on [0,1] under the null (i.e., when the joint model is correct), which is required for the subsequent npde tests and the combined p-value procedure to have correct size.
minor comments (2)
- [Abstract] Abstract and title: The title refers to 'npde performance' while the text alternates between npd and npde; ensure consistent terminology and clarify whether the combined test uses npd or the normalized version (npde).
- [Results] Results: The graphical illustrations of power are described qualitatively ('larger differences in the shape of the survival function or PSA evolution'); quantitative summaries (e.g., tables of power by misspecification type and n) would strengthen the presentation.
Simulated Author's Rebuttal
We thank the referee for their thorough review and constructive comments, which highlight important areas for improving the clarity and completeness of our manuscript. We address each major comment below and will revise the manuscript to incorporate the requested details.
read point-by-point responses
-
Referee: [Methods] Methods section: The simulation study design is described at a high level but omits key load-bearing details such as the exact parameter values or functional forms used to create each misspecification scenario, the number of Monte Carlo replicates per dataset for pd computation, the sample sizes tested, the censoring rate and mechanism, and the precise definition of the 'combined test' statistic. These omissions prevent full verification of the reported type I error rates near 5% and the power results in the Results section.
Authors: We agree that the current Methods section provides only a high-level description and lacks the specific details needed for full verification and reproducibility. In the revised manuscript, we will expand this section to explicitly include the exact parameter values and functional forms used to generate each misspecification scenario, the number of Monte Carlo replicates per dataset for computing the pd values, the sample sizes tested in the simulations, the censoring rate and mechanism, and the precise mathematical definition of the combined test statistic (including the Bonferroni adjustment and how the p-values from the longitudinal and TTE components are combined). These additions will enable readers to directly verify the reported type I error rates near 5% and the power results. revision: yes
-
Referee: [Methods] Methods (imputation for censored TTE): The procedure for imputing pd for censored observations is stated to draw from a uniform distribution using the model-predicted probability of censoring. However, no explicit derivation or reference is given showing that the imputed values remain uniformly distributed on [0,1] under the null (i.e., when the joint model is correct), which is required for the subsequent npde tests and the combined p-value procedure to have correct size.
Authors: We acknowledge that the manuscript does not include an explicit derivation or additional reference beyond noting the analogy to the LOQ handling method. The imputation procedure is intended to follow the established approach for handling data below the limit of quantification, which has been shown in prior npde literature to preserve uniformity under the null. In the revised Methods section, we will add a detailed step-by-step derivation demonstrating that the imputed pd values remain uniformly distributed on [0,1] when the joint model is correct, along with a specific reference to the relevant LOQ method. This will confirm the validity of the npde tests and the combined p-value procedure. revision: yes
Circularity Check
Partial circularity in type I error validation due to imputation by construction
specific steps
-
self definitional
[Methods (abstract)]
"The pd for unobserved (censored) event times are imputed in a uniform distribution based on the model prediction of the probability of censoring, using a similar method as the one developed to handle data under the lower quantification limit (LOQ). We propose to combine the p-values of the tests on longitudinal data and on time-to-event (TTE) data, adjusted with a Bonferroni correction."
The imputation draws pd values for censored observations directly from a uniform distribution conditioned on the model's predicted censoring probability. This rule guarantees that the resulting pd are uniformly distributed under the correct joint model by construction. Consequently, the TTE component of the combined test (and its type I error rate) has nominal properties tautologically from the imputation definition, rather than as an independent result of the evaluation.
full rationale
The paper proposes extending npde to joint models by imputing pd for censored TTE data from a uniform distribution scaled by the model-predicted censoring probability (analogous to LOQ handling), then combining tests via Bonferroni. Simulations from a known true model are used to assess type I error and power. The type I error result reduces to a tautology because the imputation rule enforces uniformity of pd under the assumed model by design, so nominal 5% control follows directly rather than providing independent confirmation. However, the power analysis against misspecifications and graphical evaluations remain substantive and non-circular. No load-bearing self-citations or other reductions are evident. This yields a moderate score reflecting one self-definitional aspect amid otherwise independent simulation-based checks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The joint model generates a correct predictive distribution for Monte-Carlo simulation of prediction discrepancies.
- ad hoc to paper Imputation of pd for censored times from a uniform distribution using model-predicted censoring probability is statistically valid.
