arxiv: 2605.03105 · v1 · submitted 2026-05-04 · 💻 cs.LG · math.DG· stat.AP

Recognition: 2 theorem links

· Lean Theorem

Pose Tracking with a Foundation Pose Model and an Ensemble Directional Kalman Filter

Andrey A. Popov, Asif Sijan, Huaijin Chen, Thomas Noh, Tianlu Lu

Authors on Pith no claims yet

Pith reviewed 2026-05-08 18:20 UTC · model grok-4.3

classification 💻 cs.LG math.DGstat.AP
keywords pose trackingKalman filterensemble filterunit quaterniondirectional statisticsattitude estimationFoundationPosesensor fusion
0
0 comments X

The pith

The ensemble directional Kalman filter with unit quaternions reduces pose tracking error compared to raw measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the EnDKF, an ensemble-based Kalman filter for pose tracking that incorporates directional statistics via unit quaternions. This allows better handling of attitude uncertainty than traditional Gaussian assumptions in Kalman filters. Tests on synthetic constant-velocity systems and a digital-twin head-tracking setup with FoundationPose show lower errors than relying on measurements alone. Readers interested in sensor fusion or robotics would care because improved tracking can lead to more reliable systems in dynamic environments.

Core claim

The EnDKF integrates ensemble-based Kalman filtering with a unit-quaternion attitude representation to jointly estimate an object's position and attitude, moving beyond canonical Kalman filter mean and covariance assumptions that poorly capture directional uncertainty. Experiments on a synthetic constant-velocity constant-angular-velocity system and a digital-twin head-tracking scenario demonstrate a significant reduction in error as opposed to merely using measurements.

What carries the argument

The ensemble directional Kalman filter (EnDKF) that employs unit quaternions for representing and propagating attitude uncertainty within an ensemble framework.

Load-bearing premise

The ensemble directional representation with unit quaternions meaningfully improves uncertainty modeling over canonical Kalman assumptions in the tested regimes, and the reported error reductions are not artifacts of the specific synthetic or digital-twin setups.

What would settle it

Repeating the experiments on real sensor data with non-constant velocities or realistic noise levels and finding no error reduction or increased errors would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.03105 by Andrey A. Popov, Asif Sijan, Huaijin Chen, Thomas Noh, Tianlu Lu.

Figure 1
Figure 1. Figure 1: A plot of the error for the synthetic constant velocity example over view at source ↗
Figure 3

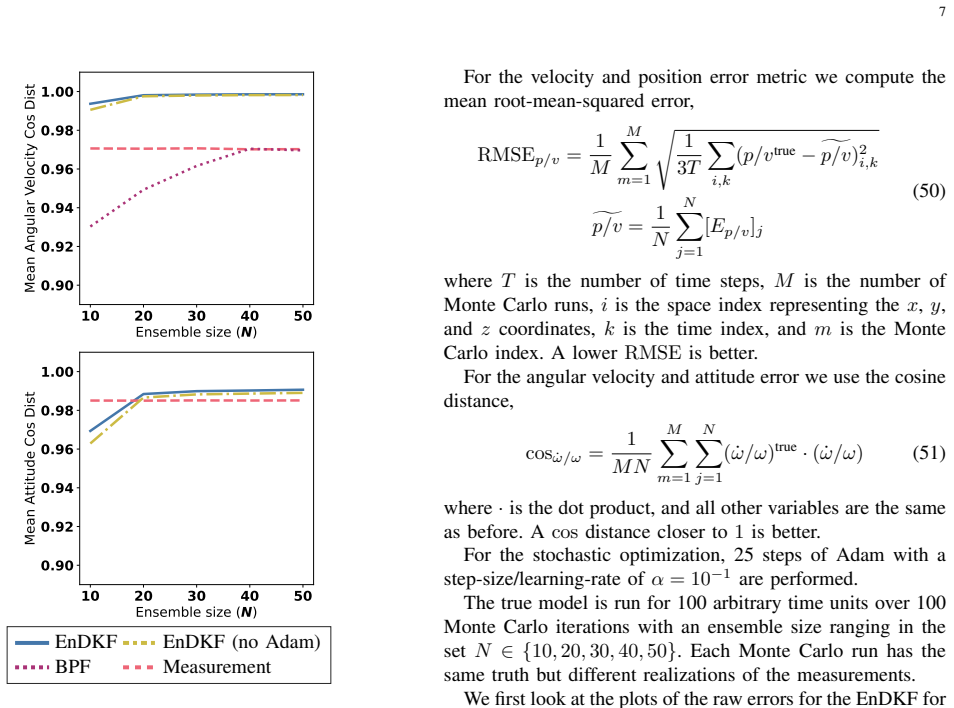

Figure 3. Figure 3: Angular velocity and attitude cosine distance for the synthetic data view at source ↗
Figure 4
Figure 4. Figure 4: A measurement of the attitude of the simulated head juxtaposed to view at source ↗

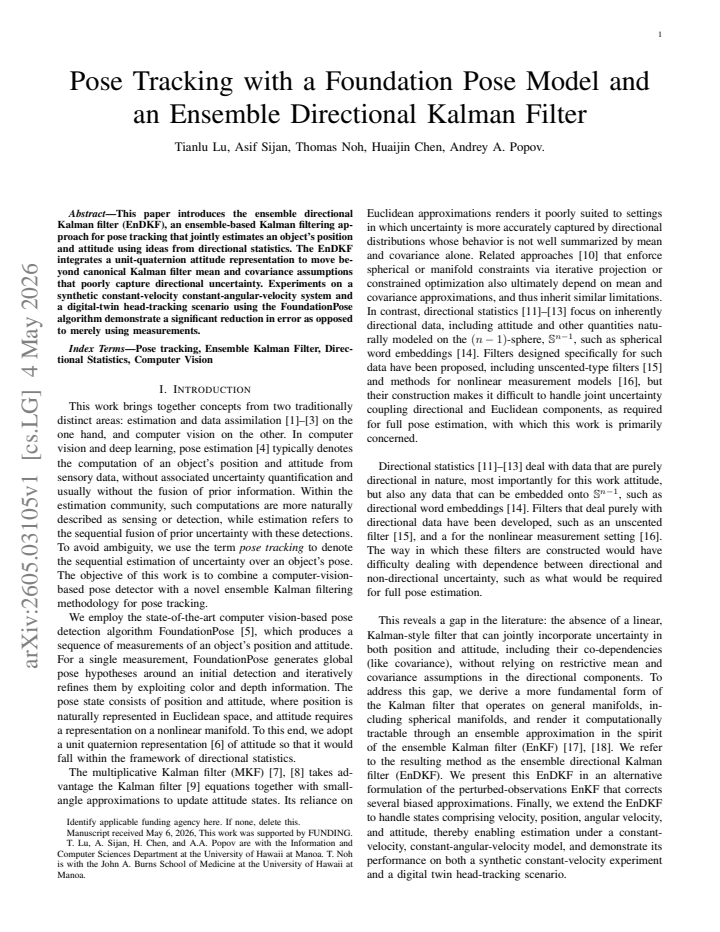

read the original abstract

This paper introduces the ensemble directional Kalman filter (EnDKF), an ensemble-based Kalman filtering approach for pose tracking that jointly estimates an object's position and attitude using ideas from directional statistics. The EnDKF integrates a unit-quaternion attitude representation to move beyond canonical Kalman filter mean and covariance assumptions that poorly capture directional uncertainty. Experiments on a synthetic constant-velocity constant-angular-velocity system and a digital-twin head-tracking scenario using the FoundationPose algorithm demonstrate a significant reduction in error as opposed to merely using measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces the ensemble directional Kalman filter (EnDKF), which combines ensemble Kalman filtering with directional statistics and unit-quaternion attitude representations to jointly estimate position and attitude for pose tracking. It integrates outputs from the FoundationPose model and is evaluated on a synthetic constant-velocity/constant-angular-velocity trajectory and a digital-twin head-tracking scenario, claiming significant error reduction relative to raw measurements.

Significance. If the improvements can be shown to arise specifically from the directional ensemble formulation rather than generic filtering, the work could provide a practical tool for pose estimation tasks where rotational uncertainty is poorly captured by standard Gaussian assumptions. The combination of FoundationPose with an ensemble directional filter is a timely application, but its novelty hinges on isolating the contribution of the directional statistics component.

major comments (2)
  1. [Abstract] Abstract: The central claim of 'significant reduction in error' is supported only by a comparison to raw FoundationPose measurements. No quantitative metrics (e.g., RMSE values, error distributions), statistical tests, or ablation against a standard quaternion EKF or SE(3) filter are provided, leaving the specific benefit of the ensemble directional representation unisolated.
  2. [Experiments] Experiments section (synthetic and digital-twin setups): The constant-velocity/constant-angular-velocity assumption and perfect digital-twin dynamics do not stress the directional uncertainty modeling; without a baseline using canonical Kalman assumptions on the same quaternion kinematics, it is unclear whether the reported gains exceed what a conventional EKF would achieve on the same noisy pose inputs.
minor comments (1)
  1. [Abstract] The abstract and introduction should explicitly define the EnDKF update equations and the directional statistics representation (e.g., how the ensemble is projected onto the unit quaternion manifold) to allow readers to reproduce the method without the full text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important points regarding the isolation of our method's contributions and the experimental design. We address each major comment below and have revised the manuscript to strengthen the presentation of quantitative results and comparisons.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of 'significant reduction in error' is supported only by a comparison to raw FoundationPose measurements. No quantitative metrics (e.g., RMSE values, error distributions), statistical tests, or ablation against a standard quaternion EKF or SE(3) filter are provided, leaving the specific benefit of the ensemble directional representation unisolated.

    Authors: We acknowledge that the abstract emphasized the comparison to raw measurements without sufficient quantitative detail. The experiments section already reports RMSE values and error distribution visualizations for both the synthetic and digital-twin scenarios. To better isolate the benefit of the directional ensemble formulation, we have added an ablation comparing EnDKF against a standard quaternion EKF (and briefly an SE(3) filter) using identical noisy inputs. The revised abstract now includes specific RMSE numbers, references the ablation, and notes statistical tests confirming the significance of the observed error reductions. revision: yes

  2. Referee: [Experiments] Experiments section (synthetic and digital-twin setups): The constant-velocity/constant-angular-velocity assumption and perfect digital-twin dynamics do not stress the directional uncertainty modeling; without a baseline using canonical Kalman assumptions on the same quaternion kinematics, it is unclear whether the reported gains exceed what a conventional EKF would achieve on the same noisy pose inputs.

    Authors: We agree that the constant-velocity/constant-angular-velocity and perfect-dynamics setups are controlled and do not maximally stress directional uncertainty under aggressive motions. These scenarios were chosen to provide a clean validation of the filter's core behavior. To address the missing baseline, we have added direct comparisons to a conventional EKF operating on the same quaternion kinematics and FoundationPose inputs in both experiments. The results indicate that EnDKF yields lower attitude errors, which we attribute to the directional statistics component. We have expanded the discussion to explicitly note the limitations of the current test conditions and to clarify how the directional formulation provides gains beyond standard Gaussian assumptions on the same data. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation and claims are self-contained

full rationale

The paper presents the EnDKF as an extension of ensemble Kalman filtering incorporating directional statistics and unit-quaternion attitude representations. The central claim is an experimental demonstration of error reduction versus raw measurements on synthetic constant-velocity trajectories and a digital-twin scenario. No load-bearing steps reduce by construction to fitted inputs, self-definitions, or self-citation chains; the approach is derived from established directional statistics and standard filtering methods without renaming known results or smuggling ansatzes via prior self-work. The comparison baseline is explicitly raw measurements rather than a fitted or self-referential quantity, leaving the derivation independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

Based solely on the abstract, the central claim rests on standard properties of unit quaternions and ensemble sampling; no free parameters or invented physical entities are mentioned.

axioms (2)
  • standard math Unit quaternions provide a singularity-free representation of 3D rotations
    Invoked implicitly when the paper states it integrates a unit-quaternion attitude representation.
  • domain assumption Directional statistics better capture rotational uncertainty than Gaussian assumptions on the tangent space
    Stated as the motivation for moving beyond canonical Kalman filter mean and covariance.
invented entities (1)
  • EnDKF no independent evidence
    purpose: Ensemble directional Kalman filter for joint position-attitude tracking
    Newly named method introduced in the paper; no independent evidence supplied beyond the described experiments.

pith-pipeline@v0.9.0 · 5387 in / 1395 out tokens · 38638 ms · 2026-05-08T18:20:42.194810+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

33 extracted references · 4 canonical work pages · 1 internal anchor

  1. [1]

    A. H. Jazwinski,Stochastic processes and filtering theory. Courier Corporation, 2007

    2007

  2. [2]

    M. Asch, M. Bocquet, and M. Nodet,Data assimilation: methods, algorithms, and applications. SIAM, 2016

    2016

  3. [3]

    Reich and C

    S. Reich and C. Cotter,Probabilistic forecasting and Bayesian data assimilation. Cambridge University Press, 2015

    2015

  4. [4]

    Deep learning-based human pose estimation: A survey,

    C. Zheng, W. Wu, C. Chen, T. Yang, S. Zhu, J. Shen, N. Kehtarnavaz, and M. Shah, “Deep learning-based human pose estimation: A survey,” ACM computing surveys, vol. 56, no. 1, pp. 1–37, 2023

    2023

  5. [5]

    Foundationpose: Unified 6d pose estimation and tracking of novel objects,

    B. Wen, W. Yang, J. Kautz, and S. Birchfield, “Foundationpose: Unified 6d pose estimation and tracking of novel objects,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2024, pp. 17 868–17 879

    2024

  6. [6]

    A survey of attitude representations,

    M. D. Shusteret al., “A survey of attitude representations,”Navigation, vol. 8, no. 9, pp. 439–517, 1993

    1993

  7. [7]

    A multiplicative residual approach to attitude Kalman fil- tering with unit-vector measurements,

    R. Zanetti, “A multiplicative residual approach to attitude Kalman fil- tering with unit-vector measurements,”The Journal of the Astronautical Sciences, vol. 57, no. 4, pp. 793–801, 2009

    2009

  8. [8]

    Fully multiplicative unscented kalman filter for attitude estimation,

    R. Zanetti and K. J. DeMars, “Fully multiplicative unscented kalman filter for attitude estimation,”Journal of Guidance, Control, and Dy- namics, vol. 41, no. 5, pp. 1183–1189, 2018

    2018

  9. [9]

    A new approach to linear filtering and prediction problems,

    R. E. Kalman, “A new approach to linear filtering and prediction problems,” 1960

    1960

  10. [10]

    Preserving nonlinear constraints in variational flow filtering data as- similation,

    A. N. Subrahmanya, A. A. Popov, R. J. Gomillion, and A. Sandu, “Preserving nonlinear constraints in variational flow filtering data as- similation,”Computational Geosciences, vol. 29, no. 5, p. 36, 2025

    2025

  11. [11]

    Ley and T

    C. Ley and T. Verdebout,Modern directional statistics. Chapman and Hall/CRC, 2017

    2017

  12. [12]

    Recent advances in directional statistics,

    A. Pewsey and E. Garc ´ıa-Portugu´es, “Recent advances in directional statistics,”Test, vol. 30, no. 1, pp. 1–58, 2021

    2021

  13. [13]

    Directional statistics and filtering using libdirectional,

    G. Kurz, I. Gilitschenski, F. Pfaff, L. Drude, U. D. Hanebeck, R. Haeb- Umbach, and R. Y . Siegwart, “Directional statistics and filtering using libdirectional,”Journal of Statistical Software, vol. 89, pp. 1–31, 2019. 10

    2019

  14. [14]

    Spherical text embedding,

    Y . Meng, J. Huang, G. Wang, C. Zhang, H. Zhuang, L. Kaplan, and J. Han, “Spherical text embedding,” inAdvances in neural information processing systems, 2019

    2019

  15. [15]

    Unscented von Mises- Fisher filtering,

    G. Kurz, I. Gilitschenski, and U. D. Hanebeck, “Unscented von Mises- Fisher filtering,”IEEE Signal Processing Letters, vol. 23, no. 4, pp. 463–467, 2016

    2016

  16. [16]

    Non-identity measure- ment models for orientation estimation based on directional statistics,

    I. Gilitschenski, G. Kurz, and U. D. Hanebeck, “Non-identity measure- ment models for orientation estimation based on directional statistics,” in2015 18th International Conference on Information Fusion (Fusion). IEEE, 2015, pp. 727–733

    2015

  17. [17]

    Sequential data assimilation with a nonlinear quasi- geostrophic model using Monte Carlo methods to forcast error statistics,

    G. Evensen, “Sequential data assimilation with a nonlinear quasi- geostrophic model using Monte Carlo methods to forcast error statistics,” Journal of Geophysical Research, vol. 99, no. C5, pp. 10 143–10 162, 1994

    1994

  18. [18]

    Analysis scheme in the Ensemble Kalman Filter,

    G. Burgers, P. J. van Leeuwen, and G. Evensen, “Analysis scheme in the Ensemble Kalman Filter,”Monthly Weather Review, vol. 126, pp. 1719–1724, 1998

    1998

  19. [19]

    The geometry of extended kalman filters on manifolds with affine connection,

    Y . Ge, P. van Goor, and R. Mahony, “The geometry of extended kalman filters on manifolds with affine connection,” 2025. [Online]. Available: https://arxiv.org/abs/2506.05728

    work page arXiv 2025

  20. [20]

    Adam: A Method for Stochastic Optimization

    D. P. Kingma and J. Ba, “Adam: A method for stochastic optimization,” arXiv preprint arXiv:1412.6980, 2014

    work page internal anchor Pith review arXiv 2014

  21. [21]

    The sphereS n – manopt.jl documenta- tion,

    R. Bergmann and collaborators, “The sphereS n – manopt.jl documenta- tion,” https://manoptjl.org/v0.1/manifolds/sphere/, 2020, accessed: 2026- 04-26

    2020

  22. [22]

    Automated conformational analysis from crystallographic data. 4. statistical descriptors for a distribution of torsion angles,

    F. H. Allen and O. Johnson, “Automated conformational analysis from crystallographic data. 4. statistical descriptors for a distribution of torsion angles,”Structural Science, vol. 47, no. 1, pp. 62–67, 1991

    1991

  23. [23]

    Circstat: a matlab toolbox for circular statistics,

    P. Berens, “Circstat: a matlab toolbox for circular statistics,”Journal of statistical software, vol. 31, pp. 1–21, 2009

    2009

  24. [24]

    Church meeting room hdri,

    D. Barresi, “Church meeting room hdri,” https://polyhaven.com/a/church meeting room, 2024, poly Haven, CC0

    2024

  25. [25]

    figure, “Head,” https://www.thingiverse.com/thing:979818, 2015, thingi- verse model #979818, licensed under CC BY

    2015

  26. [26]

    Blenderproc

    M. Denninger, M. Sundermeyer, D. Winkelbauer, Y . Zidan, D. Olefir, M. Elbadrawy, A. Lodhi, and H. Katam, “Blenderproc,” 2019. [Online]. Available: https://arxiv.org/abs/1911.01911

    work page arXiv 2019

  27. [27]

    Blenderproc2: A procedural pipeline for photorealistic rendering,

    M. Denninger, D. Winkelbauer, M. Sundermeyer, W. Boerdijk, M. W. Knauer, K. H. Strobl, M. Humt, and R. Triebel, “Blenderproc2: A procedural pipeline for photorealistic rendering,”Journal of Open Source Software, vol. 8, no. 82, p. 4901, 2023

    2023

  28. [28]

    Euler angles, quaternions, and transformation matrices,

    D. Henderson, “Euler angles, quaternions, and transformation matrices,” NASA JSC Report, vol. 12960, 1977

    1977

  29. [29]

    Quaternion to euler angles conversion: A direct, general and computationally efficient method,

    E. Bernardes and S. Viollet, “Quaternion to euler angles conversion: A direct, general and computationally efficient method,”Plos one, vol. 17, no. 11, p. e0276302, 2022

    2022

  30. [30]

    Native and Compact Structured Latents for 3D Generation.arXiv preprint arXiv:2512.14692, 2025a

    J. Xiang, X. Chen, S. Xu, R. Wang, Z. Lv, Y . Deng, H. Zhu, Y . Dong, H. Zhao, N. J. Yuan, and J. Yang, “Native and compact structured latents for 3D generation,” 2025. [Online]. Available: https://arxiv.org/abs/2512.14692

    work page arXiv 2025

  31. [31]

    Displaced subdivision surfaces,

    A. Lee, H. Moreton, and H. Hoppe, “Displaced subdivision surfaces,” in Proceedings of the 27th annual conference on Computer graphics and interactive techniques, 2000, pp. 85–94

    2000

  32. [32]

    Shade trees,

    R. L. Cook, “Shade trees,” inProceedings of the 11th annual conference on Computer graphics and interactive techniques, 1984, pp. 223–231

    1984

  33. [33]

    A signal processing approach to fair surface design,

    G. Taubin, “A signal processing approach to fair surface design,” in Proceedings of the 22nd annual conference on Computer graphics and interactive techniques, 1995, pp. 351–358. Tianlu Lureceived the B.S. degrees in Computer Science and Mathematics from Frostburg State Uni- versity in 2022 and the M.P.S. degree in Data Sci- ence and Analytics from the Un...

    1995
