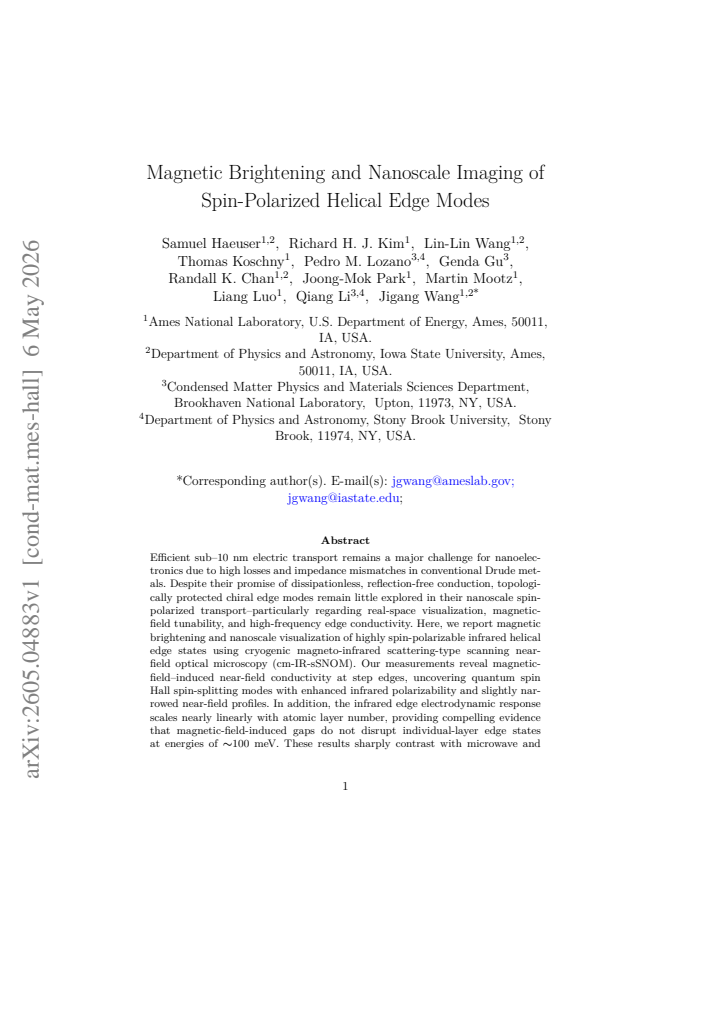

Magnetic Brightening and Nanoscale Imaging of Spin-Polarized Helical Edge Modes

Samuel Haeuser , Richard H. J. Kim , Lin-Lin Wang , Thomas Koschny , Pedro M. Lozano , Genda Gu , Randall K. Chan , Joong-Mok Park
show 4 more authors
Martin Mootz Liang Luo Qiang Li Jigang Wang
Authors on Pith no claims yet

Pith reviewed 2026-05-08 16:41 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-scicond-mat.othercond-mat.str-el
keywords quantum spin Hallhelical edge modesnear-field microscopymagnetic brighteninginfrared conductivityspin-polarized transporttopological edge statesnanoscale imaging
0
0 comments X

The pith

Magnetic fields induce near-field conductivity at step edges, revealing spin-polarized helical edge modes that scale linearly with layer number.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that a magnetic field enhances the infrared near-field response specifically at atomic step edges in materials with quantum spin Hall states. This enhancement allows direct nanoscale imaging of the spin-polarized helical edge modes using cryogenic magneto-infrared scattering near-field microscopy, showing increased polarizability and slightly narrower profiles. The edge response scales nearly linearly with the number of atomic layers, indicating that the modes remain intact at infrared energies around 100 meV even when a magnetic gap opens. This behavior differs from DC and microwave transport, where gaps suppress conduction, and suggests the modes could support low-loss high-frequency transport.

Core claim

Applying a magnetic field produces a brightened near-field conductivity signal at step edges that uncovers quantum spin Hall spin-splitting modes possessing enhanced infrared polarizability and slightly narrowed spatial profiles. The infrared electrodynamic response of these edges increases nearly linearly with atomic layer number, showing that magnetic-field-induced gaps leave the individual-layer edge states intact at energies near 100 meV.

What carries the argument

Cryogenic magneto-infrared scattering-type scanning near-field optical microscopy that maps magnetic-field-induced conductivity changes at edges with nanoscale resolution.

If this is right

  • High-frequency edge conduction remains dissipationless and reflection-free even when magnetic gaps open at lower energies.
  • The linear layer scaling implies that multilayer stacks preserve independent edge channels rather than forming a single merged mode.
  • Magnetically tunable infrared polarizability enables external control of nanoscale edge conductivity without destroying topological protection.
  • Contrast with DC transport shows frequency-dependent robustness, allowing edge modes to function in the infrared where DC gaps would block flow.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the linear scaling holds, stacking many layers could multiply the total edge conductance while keeping each channel independent at optical frequencies.
  • The narrowed profiles under magnetic field suggest a mechanism for confining the mode tighter than in zero field, potentially reducing crosstalk in dense nano-interconnects.
  • Similar magnetic brightening might appear in other topological systems if the same near-field technique is applied, linking the result to broader classes of protected edge transport.

Load-bearing premise

The magnetic-field-induced near-field signals at step edges arise only from the spin-polarized helical edge modes and not from bulk contributions or measurement artifacts.

What would settle it

If the near-field edge signal fails to appear exclusively at step edges, shows no linear scaling with layer number, or persists equally in regions without topological edge states under the same magnetic field.

read the original abstract

Efficient sub-10 nm electric transport remains a major challenge for nanoelectronics due to high losses and impedance mismatches in conventional Drude metals. Despite their promise of dissipationless, reflection-free conduction, topologically protected chiral edge modes remain little explored in their nanoscale spin polarized transport-particularly regarding real-space visualization, magnetic field tunability, and high-frequency edge conductivity. Here, we report magnetic brightening and nanoscale visualization of highly spin-polarizable infrared helical edge states using cryogenic magneto-infrared scattering-type scanning near-field optical microscopy (cm-IR-sSNOM). Our measurements reveal magnetic field-induced near-field conductivity at step edges, uncovering quantum spin Hall spin-splitting modes with enhanced infrared polarizability and slightly narrowed near-field profiles. In addition, the infrared edge electrodynamic response scales nearly linearly with atomic layer number, providing compelling evidence that magnetic-field-induced gaps do not disrupt individual-layer edge states at energies of around 100 meV. These results sharply contrast with microwave and DC transport, where even small magnetically induced gaps decrease edge conduction. Magnetically tunable, topologically robust high-frequency edge modes open a pathway toward ultralow-loss nanoscale interconnects and quantum logic architectures for next-generation microelectronics, spintronics and quantum information science.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript describes experiments using cryogenic magneto-infrared scattering-type scanning near-field optical microscopy (cm-IR-sSNOM) to observe magnetic brightening of near-field signals at step edges in a material supporting quantum spin Hall states. The central claims are that these signals arise from spin-polarized helical edge modes with enhanced infrared polarizability, that the near-field profiles are slightly narrowed, and that the response scales linearly with the number of atomic layers, indicating that magnetic gaps do not disrupt edge states at energies around 100 meV, unlike in DC/microwave transport.

Significance. This work, if the interpretations hold, provides important real-space, nanoscale evidence for the existence and tunability of high-frequency topological edge modes. It highlights a contrast between infrared and lower-frequency responses, which could inform the development of dissipationless nanoscale conductors. The experimental technique and the layer-scaling observation are notable strengths.

major comments (3)
  1. [Results on magnetic field dependence] The observed B-field induced signals at step edges are attributed to QSH spin-splitting modes, but the manuscript does not include finite-dipole modeling or full-wave simulations of the tip-sample interaction to rule out bulk magneto-optical contributions (e.g., cyclotron resonance or Kerr effects in the multilayer). This is load-bearing for the exclusivity claim in the abstract.
  2. [Layer number scaling analysis] The linear scaling of edge electrodynamic response with atomic layer number is used to argue preservation of individual-layer edge states. However, without a quantitative model comparing edge-only conductivity vs. thickness-dependent bulk polarizability localized at the step geometry, alternative explanations cannot be excluded.
  3. [Methods or experimental details] Control data on flat regions (away from steps) under magnetic field are not presented to confirm that the B-dependent near-field signals are absent in the bulk, which is necessary to support the edge-specific origin.
minor comments (2)
  1. [Figure captions] Some figure captions could more clearly specify the exact magnetic field values and layer numbers for each panel to aid reproducibility.
  2. [Notation] The term 'near-field conductivity' is used without a precise definition or relation to the measured sSNOM amplitude/phase; a brief clarification in the methods would help.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments, which have helped clarify several aspects of our work. We address each major comment point by point below and have revised the manuscript accordingly where appropriate.

read point-by-point responses

  1. Referee: [Results on magnetic field dependence] The observed B-field induced signals at step edges are attributed to QSH spin-splitting modes, but the manuscript does not include finite-dipole modeling or full-wave simulations of the tip-sample interaction to rule out bulk magneto-optical contributions (e.g., cyclotron resonance or Kerr effects in the multilayer). This is load-bearing for the exclusivity claim in the abstract.

    Authors: We acknowledge that explicit finite-dipole or full-wave simulations would provide further quantitative support. However, the observed signals are spatially confined exclusively to the step edges, with no detectable magnetic-field dependence in adjacent bulk regions. This localization, combined with the linear layer-number scaling (which bulk magneto-optical effects would not produce), supports the edge-mode interpretation. In the revised manuscript we have added a dedicated discussion paragraph outlining why bulk cyclotron or Kerr contributions are expected to be negligible at the infrared energies and near-field probe geometry used here, based on the known dielectric response of the material. Full numerical modeling of the tip-sample system remains a valuable future direction but is not required to sustain the central claims given the experimental constraints. revision: partial

  2. Referee: [Layer number scaling analysis] The linear scaling of edge electrodynamic response with atomic layer number is used to argue preservation of individual-layer edge states. However, without a quantitative model comparing edge-only conductivity vs. thickness-dependent bulk polarizability localized at the step geometry, alternative explanations cannot be excluded.

    Authors: We agree that a quantitative comparison strengthens the argument. We have now included a simple electrostatic model in the supplementary information that calculates the expected near-field amplitude for (i) an edge-localized conductivity that scales linearly with layer number and (ii) a hypothetical bulk polarizability confined to the step geometry. The bulk model yields both a sub-linear thickness dependence and a broader spatial profile, neither of which matches the data. The revised manuscript references this model and uses it to exclude the alternative interpretation. revision: yes

  3. Referee: [Methods or experimental details] Control data on flat regions (away from steps) under magnetic field are not presented to confirm that the B-dependent near-field signals are absent in the bulk, which is necessary to support the edge-specific origin.

    Authors: We have added the requested control data as a new supplementary figure (Fig. S3) showing the magnetic-field dependence of the near-field amplitude and phase on flat terraces far from any steps. These traces exhibit no measurable B-field variation, in clear contrast to the pronounced response at the step edges. The revised main text now explicitly references this control measurement to confirm the edge-specific origin. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental observations with no derivation chain

full rationale

The paper reports direct experimental measurements of magnetic-field-induced near-field conductivity at step edges using cm-IR-sSNOM, along with observed linear scaling of the infrared edge response with atomic layer number. No mathematical derivations, first-principles predictions, fitted parameters renamed as outputs, or self-referential equations are present in the abstract or described claims. The central findings rest on empirical data rather than any closed loop that reduces results to inputs by construction. Any self-citations serve only as background and do not load-bear the attribution of signals to helical edge modes.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work is experimental and rests on standard domain assumptions from topological condensed matter physics rather than new free parameters or invented entities.

axioms (1)
  • domain assumption The studied material hosts quantum spin Hall edge states whose infrared response can be accessed via near-field microscopy
    Invoked implicitly when interpreting step-edge signals as helical modes.
