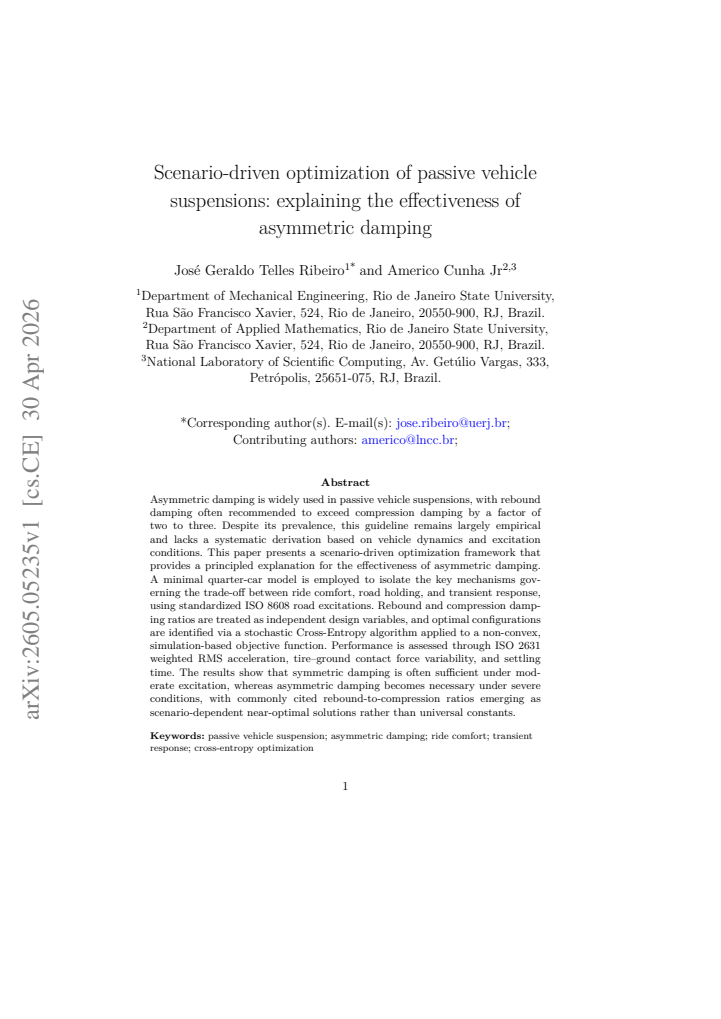

Scenario-driven optimization of passive vehicle suspensions: explaining the effectiveness of asymmetric damping

Jos\'e Geraldo Telles Ribeiro , Americo Cunha Jr
Authors on Pith no claims yet

Pith reviewed 2026-05-09 20:29 UTC · model grok-4.3

classification 💻 cs.CE math.OC
keywords vehicle suspensionasymmetric dampingquarter-car modeloptimizationride comfortroad holdingdamping ratiosISO 8608
0
0 comments X

The pith

Asymmetric damping in suspensions outperforms symmetric damping only under severe road conditions, with standard ratios emerging as scenario-specific rather than universal.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies optimization to a basic quarter-car model to determine when rebound damping should exceed compression damping. It finds that symmetric damping delivers comparable ride comfort and road holding on moderate roads defined by ISO profiles, but asymmetric configurations reduce acceleration and improve tire contact on rougher surfaces. Commonly used rebound-to-compression ratios of two or three appear only as near-optimal for particular excitation levels instead of fixed design rules. This supplies a systematic reason for the widespread use of asymmetry without treating it as always superior.

Core claim

A minimal quarter-car model with independent rebound and compression damping ratios, optimized via the Cross-Entropy algorithm on ISO 8608 road profiles, shows symmetric damping suffices for moderate excitations while asymmetric damping becomes necessary under severe conditions. Performance metrics of ISO 2631 weighted RMS acceleration, tire-ground contact force variability, and settling time indicate that the familiar rebound-to-compression ratios are near-optimal only for specific scenarios.

What carries the argument

Scenario-driven optimization framework that treats rebound and compression damping ratios as separate design variables in a linear quarter-car model and applies stochastic Cross-Entropy search to a non-convex simulation objective.

If this is right

  • Symmetric damping can be adopted for vehicles expected to encounter mainly moderate roads without sacrificing performance.
  • Higher rebound damping improves outcomes when road roughness increases, aligning with observed practice under severe conditions.
  • The optimal rebound-to-compression ratio changes with road class and chosen performance priorities instead of remaining fixed.
  • Designers can select damping based on expected operating scenarios rather than a single universal guideline.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Suspension tuning could incorporate sensors that detect road severity and switch between symmetric and asymmetric settings in real time.
  • The same optimization logic might extend to half-car or full-vehicle models to check whether pitch and roll modes alter the preferred asymmetry.
  • Standards for passive suspensions could move from fixed ratios toward tables indexed by road roughness class.

Load-bearing premise

A simple linear quarter-car model driven by standardized road profiles captures the essential trade-offs between comfort, handling, and response that govern real suspension choices.

What would settle it

Road tests on a physical vehicle comparing symmetric versus optimized asymmetric damping on both moderate and severe surfaces, using the same comfort and contact metrics, would show whether the scenario dependence disappears in hardware.

read the original abstract

Asymmetric damping is widely used in passive vehicle suspensions, with rebound damping often recommended to exceed compression damping by a factor of two to three. Despite its prevalence, this guideline remains largely empirical and lacks a systematic derivation based on vehicle dynamics and excitation conditions. This paper presents a scenario-driven optimization framework that provides a principled explanation for the effectiveness of asymmetric damping. A minimal quarter-car model is employed to isolate the key mechanisms governing the trade-off between ride comfort, road holding, and transient response, using standardized ISO~8608 road excitations. Rebound and compression damping ratios are treated as independent design variables, and optimal configurations are identified via a stochastic Cross-Entropy algorithm applied to a non-convex, simulation-based objective function. Performance is assessed through ISO~2631 weighted RMS acceleration, tire--ground contact force variability, and settling time. The results show that symmetric damping is often sufficient under moderate excitation, whereas asymmetric damping becomes necessary under severe conditions, with commonly cited rebound-to-compression ratios emerging as scenario-dependent near-optimal solutions rather than universal constants.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that a minimal linear quarter-car model with independent rebound and compression damping ratios, optimized via stochastic Cross-Entropy on a non-convex simulation-based objective under standardized ISO 8608 excitations, shows symmetric damping suffices for moderate road inputs while asymmetric damping (with rebound-to-compression ratios near 2-3) becomes necessary for severe excitations; commonly cited empirical ratios thus emerge as scenario-dependent near-optima rather than universal constants, with performance measured by ISO 2631 weighted RMS acceleration, tire-ground contact force variability, and settling time.

Significance. If the central results hold after addressing model limitations, the work supplies a systematic, optimization-driven explanation for the prevalence of asymmetric damping in passive suspensions, replacing purely empirical guidelines with scenario-specific insights tied to excitation severity. This could inform more robust passive designs and highlight when symmetric damping is adequate, strengthening the link between quarter-car dynamics and practical tuning.

major comments (2)
  1. [Model description] Model description (abstract and §2): The linear quarter-car model with viscous damping and no unilateral tire constraint permits negative tire forces (F_t = k_t (z_r - z_u) < 0) under high-amplitude ISO 8608 inputs. This is unphysical and directly affects road-holding and transient metrics precisely in the severe-excitation regime where the paper concludes asymmetric damping is required; the identified trade-offs may not survive once contact loss is modeled.
  2. [Optimization framework] Optimization framework (abstract and §3): The non-convex, simulation-based objective combines ISO 2631 weighted RMS, contact-force variability, and settling time, yet no details are given on weighting coefficients, sensitivity to those weights, or verification that the Cross-Entropy method consistently escapes local minima across the tested scenarios. This is load-bearing for the claim that specific asymmetric ratios are near-optimal.
minor comments (2)
  1. [Abstract] The abstract should explicitly define the ISO 8608 class/amplitude thresholds separating 'moderate' from 'severe' excitations and report the fraction of optimized trajectories that exhibit negative tire forces.
  2. [Notation] Notation for the rebound-to-compression ratio should be introduced early and used consistently when reporting scenario-dependent optima.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and indicate the revisions planned for the manuscript.

read point-by-point responses

  1. Referee: [Model description] Model description (abstract and §2): The linear quarter-car model with viscous damping and no unilateral tire constraint permits negative tire forces (F_t = k_t (z_r - z_u) < 0) under high-amplitude ISO 8608 inputs. This is unphysical and directly affects road-holding and transient metrics precisely in the severe-excitation regime where the paper concludes asymmetric damping is required; the identified trade-offs may not survive once contact loss is modeled.

    Authors: We agree that the linear model without a unilateral tire constraint is a simplification that permits unphysical negative tire forces, and this is most relevant precisely in the severe-excitation regime highlighted in our conclusions. This modeling choice is standard in the quarter-car optimization literature to preserve linearity and computational tractability for the stochastic optimizer. In the revised manuscript we will add an explicit discussion of this assumption in Section 2, report the (low) frequency of negative-force occurrences observed in our existing simulation data, and note that a nonlinear contact model would be a natural extension for future work. We believe the reported scenario dependence of asymmetry remains informative under the stated modeling assumptions. revision: partial

  2. Referee: [Optimization framework] Optimization framework (abstract and §3): The non-convex, simulation-based objective combines ISO 2631 weighted RMS, contact-force variability, and settling time, yet no details are given on weighting coefficients, sensitivity to those weights, or verification that the Cross-Entropy method consistently escapes local minima across the tested scenarios. This is load-bearing for the claim that specific asymmetric ratios are near-optimal.

    Authors: We accept that additional documentation of the optimization procedure is required to substantiate the near-optimality claims. In the revised manuscript we will expand Section 3 to state the precise weighting coefficients employed in the composite objective, include a sensitivity analysis with respect to moderate perturbations of those weights, and report results from multiple independent Cross-Entropy runs (different random seeds) that demonstrate convergence to consistent damping-ratio solutions for each excitation severity class. These additions will be placed in a new subsection on numerical verification. revision: yes

Circularity Check

0 steps flagged

No circularity: optimization outcomes on external ISO excitations are independent of fitted parameters or self-citations

full rationale

The paper's central result is obtained by treating rebound and compression damping ratios as independent design variables in a linear quarter-car model, then applying a stochastic Cross-Entropy optimization algorithm to a simulation-based objective that incorporates external standardized ISO 8608 road profiles together with standard performance metrics (ISO 2631 weighted RMS acceleration, tire-ground contact force variability, and settling time). No load-bearing step reduces by the paper's own equations or citations to a quantity defined in terms of its inputs; the identified scenario-dependent ratios are numerical outputs of the optimization rather than quantities forced by construction or by self-referential definitions. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper rests on standard assumptions of linear vehicle dynamics in the quarter-car model and the representativeness of ISO 8608 road profiles; no new entities are postulated and no parameters are fitted to data beyond the optimization variables themselves.

axioms (2)
  • domain assumption The quarter-car model with independent rebound and compression damping ratios accurately isolates the trade-offs among ride comfort, road holding, and transient response.
    Invoked to justify using the minimal model for the optimization study.
  • domain assumption ISO 8608 standardized road profiles are representative of the excitation conditions that matter for passive suspension design.
    Used to generate the input excitations for the simulation-based objective.
