Pomegranate: A Lightweight Compartmentalization Architecture using Virtualization Extensions

Shriram Raja , Zhiyuan Ruan , Richard West
Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:15 UTC · model grok-4.3

classification 💻 cs.CR cs.OS
keywords compartmentalizationvirtualizationextended page tablesoperating system securitykernel isolationaccess control policynetwork stack protectionsentry functions
0
0 comments X

The pith

Pomegranate uses virtualization hardware to isolate parts of a monolithic OS kernel with almost no source code changes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to divide an existing operating system into compartments that limit what any one component can access, using only hardware features already present in modern CPUs. It defines allowed interactions in an access policy and enforces them through page-table restrictions while catching every transition between compartments with lightweight sentry code. This approach matters because it avoids both the massive rewrite needed for a microkernel and the deep code analysis required by other isolation techniques, offering a way to shrink the damage from a single vulnerability in a large kernel. If the method holds, existing drivers and stacks can be protected without recompiling or heavily modifying the original system.

Core claim

Pomegranate shows that hardware-assisted virtualization can securely compartmentalize an existing system by using Extended Page Tables to strictly enforce an access-control policy between compartments and special sentry functions to validate every cross-compartment transition without trapping into the hypervisor. The approach requires minimal or no modifications to the original source code. Its effectiveness is demonstrated by applying it to a compartmentalized Linux network stack with the igc NIC driver, where overhead remains negligible for MTU-sized packets when compartment boundaries limit inter-compartment communication.

What carries the argument

Special sentry functions placed at compartment boundaries that validate transitions without hypervisor involvement, combined with Extended Page Tables that restrict memory access according to the defined policy.

If this is right

  • Existing Linux network drivers can be isolated from the rest of the kernel while retaining their original source and performance for typical packet sizes.
  • Allowed interactions between compartments are limited exactly to those listed in the policy, reducing the attack surface of any single compromised component.
  • The same hardware mechanisms apply to other kernel subsystems provided their inter-compartment traffic can be kept low.
  • No hypervisor trap is needed on every transition, preserving the efficiency of the original execution path.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sentry-plus-page-table pattern could be applied to file-system or storage stacks if their call patterns allow similarly sparse boundaries.
  • This style of compartmentalization might complement rather than replace microkernel designs by protecting large existing codebases that are unlikely to be rewritten soon.
  • Policy errors remain a single point of failure, so automated tools to check or generate the policy would be a natural next step left open by the work.

Load-bearing premise

An access-control policy can be written correctly and compartment boundaries can be drawn so that communication between compartments stays low enough to keep both security and performance acceptable.

What would settle it

A concrete test in which a disallowed cross-compartment memory access or call succeeds without being blocked by the Extended Page Tables or caught by the sentry functions, or in which overhead rises noticeably above the reported negligible level at MTU packet sizes under the paper's boundary choices.

Figures

Figures reproduced from arXiv: 2605.07008 by Richard West, Shriram Raja, Zhiyuan Ruan.

Figure 1
Figure 1. Figure 1: Extended Page Table Mechanism Virtualization and EPTs: Intel VT-x [9] provides hard￾ware support for virtualization, including Virtual Machine Control Structures (VMCSs) and dedicated VM entry/exit instructions. One key component is Extended Page Tables (EPTs). Extended Page Tables, shown in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Remapping Attack cmpt_id: 2 can_execute: func1, func2 can_read: obj1, obj2, obj3 can_write: obj1 can_call: func3 execution_context: euid = root [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Example Compartment Definition the entire guest physical address space except the monitor itself, is fully accessible (readable, writable, and executable). This EPT defines the default compartment 𝐶0. A new EPT is then created for each additional compartment, with re￾stricted mappings. 4.1 Compartment Initialization The policy file, which is given as input to the Pomegranate framework, defines which functi… view at source ↗
Figure 4
Figure 4. Figure 4: Compartmentalization Architecture cmpt_id: 0 can_execute: foo, bar, … can_read: obj2 can_write: can_call: func1 (cmpt_id=2) execution_context: euid = any [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Example Default Compartment Definition [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Hypervisor-Managed Address Translation in Pomegranate objects obtain their GPA directly from HLAT 3’❦. Accesses to𝐶0 and user-space memory restart from Guest CR3, using guest paging structures to produce the GPA 3❦, 4❦. Since the HLAT paging structures have the same num￾ber of levels as Guest CR3 and each level contains only the GPA of the next lower-level structure, the cost of translat￾ing a GVA to GPA t… view at source ↗
Figure 7
Figure 7. Figure 7: Sentry Call-Return Path The sentry handles compartment transitions. On each transition, it verifies that the access is permitted by the pol￾icy, switches the stack and EPT, and switches control back to the caller when the callee returns. The flow of control is shown in [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8

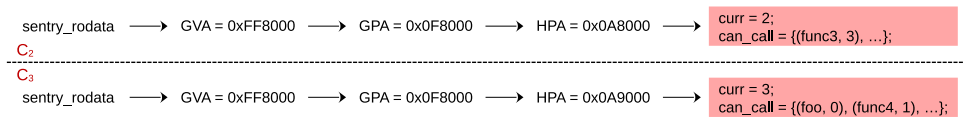

Figure 8. Figure 8: Example Sentry Read-Only Data Layout Procedure 1: Sentry: Call-Return Path Data: #VE stack frame (SS, RSP, RFLAGS, CS, RIP) 1 key = value at #VE stack frame RSP; 2 if key = MAGIC_CALL then // Return Path 3 Pop #VE frame and MAGIC_CALL; 4 Clear #VE mask; 5 Pop caller cmpt_id; 6 Save clean callee stack ptr; 7 vmfunc to caller EPT; 8 Restore caller stack ptr from sentry R/W region; 9 Pop callee-saved register… view at source ↗
Figure 9

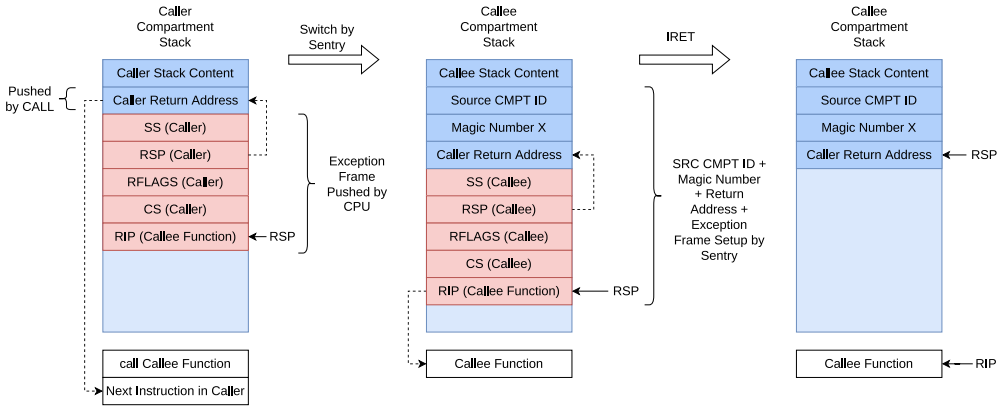

Figure 9. Figure 9: Sentry Stack Manipulation: Call Path [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Sentry Stack Manipulation: Return Path by itself cannot result in an access violation. While we cur￾rently do not include can_return permissions in the com￾partment definition, the design of the sentry lends itself to be easily extended to support that case, with a check per￾formed in the return path as well as the call path. The sentry thus handles all compartment transitions without requiring instrument… view at source ↗
Figure 11
Figure 11. Figure 11: Interrupt Path in Non-Default Compartments 8 [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 12

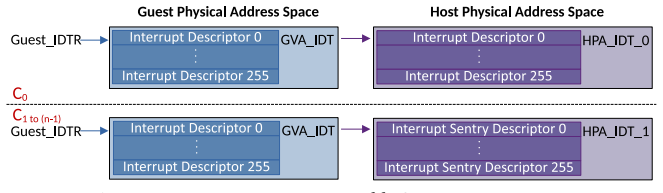

Figure 12. Figure 12: Interrupt Descriptor Table Setup in Pomegranate [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Interrupt Sentry Stack Manipulation [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗
Figure 14

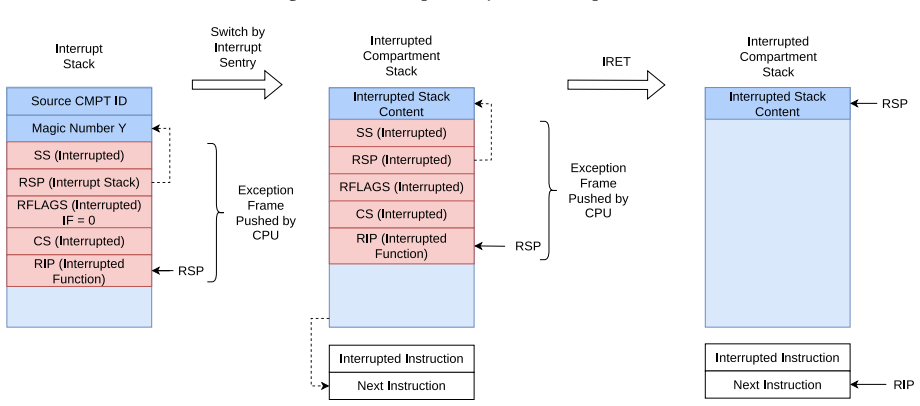

Figure 14. Figure 14: Sentry Stack Manipulation: Interrupt Return Path 10 [PITH_FULL_IMAGE:figures/full_fig_p010_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Single-Flow TX Throughput After boundary refinement and batch amortization, the only remaining per-packet crossing is igc_xmit_frame en￾try/return (2 switches per TX packet); all RX per-packet crossings are fully amortized into per-poll batches. 6.2.3 Experiment 1: Single-Flow Throughput. To understand the compartmentalization overhead on the igc driver data path, we perform the netperf [17] UDP_STREAM te… view at source ↗
read the original abstract

The monolithic nature of widely used commodity operating systems means that vulnerabilities in one software component potentially compromise the entire kernel. Formally verifying these systems, or redesigning them altogether as microkernels, according to the principle of least privilege, requires significant effort. Researchers have therefore considered compartmentalization techniques that minimize or totally avoid changes to existing systems. However, current approaches use techniques such as Memory Protection Keys (MPKs), necessitating extensive code analysis to ensure security, or use virtualization by instrumenting the kernel with calls to the glue code that switches compartments. In this work, we present Pomegranate, a framework that uses hardware-assisted virtualization to securely compartmentalize an existing system with minimal to no modifications to its source code. Allowed interactions between compartments are defined using an access-control policy and strictly enforced using Extended Page Tables. Using special sentry functions, Pomegranate is able to check all cross-compartment transitions without trapping into the hypervisor. We demonstrate the efficacy of Pomegranate on a compartmentalized Linux network stack using the igc NIC driver. Experiments show the overheads of our approach are negligible at MTU-sized packets when compartment boundaries are carefully established to avoid excessive inter-compartment communication.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces Pomegranate, a compartmentalization framework for commodity OSes that uses hardware-assisted virtualization to isolate components with minimal or no source-code changes. Access-control policies between compartments are defined by the user and enforced via Extended Page Tables (EPT); special sentry functions are claimed to validate every cross-compartment control transfer (calls, returns, indirect jumps) without hypervisor traps. The approach is evaluated on a compartmentalized Linux network stack using the igc driver, reporting negligible overhead for MTU-sized packets when compartment boundaries are chosen to limit inter-compartment traffic.

Significance. If the sentry-based interception and EPT enforcement can be shown to work on unmodified code without hidden redirection mechanisms or performance costs, the work would offer a practical middle ground between full microkernel redesigns and heavy instrumentation approaches such as MPK-based compartmentalization. The concrete demonstration on a production network stack is a strength, as is the emphasis on avoiding hypervisor exits for the common case.

major comments (2)
  1. [Abstract, §3] Abstract and §3 (Design): The central claim that 'special sentry functions' can 'check all cross-compartment transitions' in unmodified code is not supported by any described redirection mechanism. EPTs enforce memory permissions between compartments but provide no automatic control-flow redirection for direct calls, returns, or indirect jumps. In the absence of binary rewriting, trampolines, or other instrumentation (which would contradict the 'minimal to no modifications' guarantee), direct intra-guest transfers between what the policy treats as separate compartments would bypass the sentries entirely. This mechanism is load-bearing for both the security argument and the 'no hypervisor trap' performance claim.
  2. [§5] §5 (Evaluation): The reported 'negligible' overhead is conditioned on 'carefully established' compartment boundaries that avoid excessive inter-compartment communication. No quantitative data, sensitivity analysis, or description of how boundaries were selected for the igc driver is provided, nor is there evidence that the same overhead holds under realistic workloads with higher cross-compartment traffic. This weakens the practical significance of the performance results.
minor comments (2)
  1. [Abstract] The abstract states that overhead is 'negligible at MTU-sized packets' but supplies no concrete numbers, tables, or baseline comparisons; these should be added for clarity.
  2. [§3] Notation for sentry functions, policy representation, and EPT configuration is introduced without a dedicated definitions subsection, making it difficult to follow the enforcement invariants.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback, which has helped us identify areas where the manuscript requires greater clarity and supporting evidence. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract, §3] Abstract and §3 (Design): The central claim that 'special sentry functions' can 'check all cross-compartment transitions' in unmodified code is not supported by any described redirection mechanism. EPTs enforce memory permissions between compartments but provide no automatic control-flow redirection for direct calls, returns, or indirect jumps. In the absence of binary rewriting, trampolines, or other instrumentation (which would contradict the 'minimal to no modifications' guarantee), direct intra-guest transfers between what the policy treats as separate compartments would bypass the sentries entirely. This mechanism is load-bearing for both the security argument and the 'no hypervisor trap' performance claim.

    Authors: We acknowledge that the original description of sentry invocation was insufficiently detailed and could lead to the interpretation raised by the referee. In the revised manuscript we have expanded §3 with a new subsection and accompanying figure that explains the redirection approach: compartment boundaries are identified via static analysis of the kernel binary, after which lightweight, policy-driven sentry stubs are inserted at call sites and indirect jump targets that cross boundaries. These stubs perform the validation checks before transferring control; because they execute directly in the guest, no hypervisor trap occurs on the common path. Source-level changes remain limited to a separate policy file that declares allowed transitions; the inserted stubs are generated automatically and do not require manual editing of the original kernel sources. We have also revised the abstract to make this mechanism explicit. revision: yes

  2. Referee: [§5] §5 (Evaluation): The reported 'negligible' overhead is conditioned on 'carefully established' compartment boundaries that avoid excessive inter-compartment communication. No quantitative data, sensitivity analysis, or description of how boundaries were selected for the igc driver is provided, nor is there evidence that the same overhead holds under realistic workloads with higher cross-compartment traffic. This weakens the practical significance of the performance results.

    Authors: We agree that the evaluation section would be strengthened by additional context and data. In the revised §5 we have added: (1) an explicit description of the boundary-selection process for the igc driver, which combined call-graph profiling of the network stack with the goal of minimizing cross-compartment traffic while preserving functional isolation; (2) a sensitivity analysis that reports overhead as a function of cross-compartment call frequency per packet; and (3) supplementary measurements under synthetic workloads that deliberately increase inter-compartment traffic. These additions show that overhead scales with communication volume but remains modest for the traffic patterns typical of the evaluated driver. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on described implementation and evaluation

full rationale

The paper presents a systems architecture for compartmentalization using hardware virtualization features (EPTs and sentry functions) with experimental results on a Linux network stack. No equations, fitted parameters, predictions, or first-principles derivations appear in the provided abstract or description. Central claims about intercepting transitions and minimal source changes are design assertions supported by the implementation narrative and benchmarks, not reductions to self-citations or inputs by construction. No load-bearing self-citation chains or ansatzes are evident.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract introduces no free parameters, no additional axioms beyond standard hardware virtualization features, and no new invented entities.
