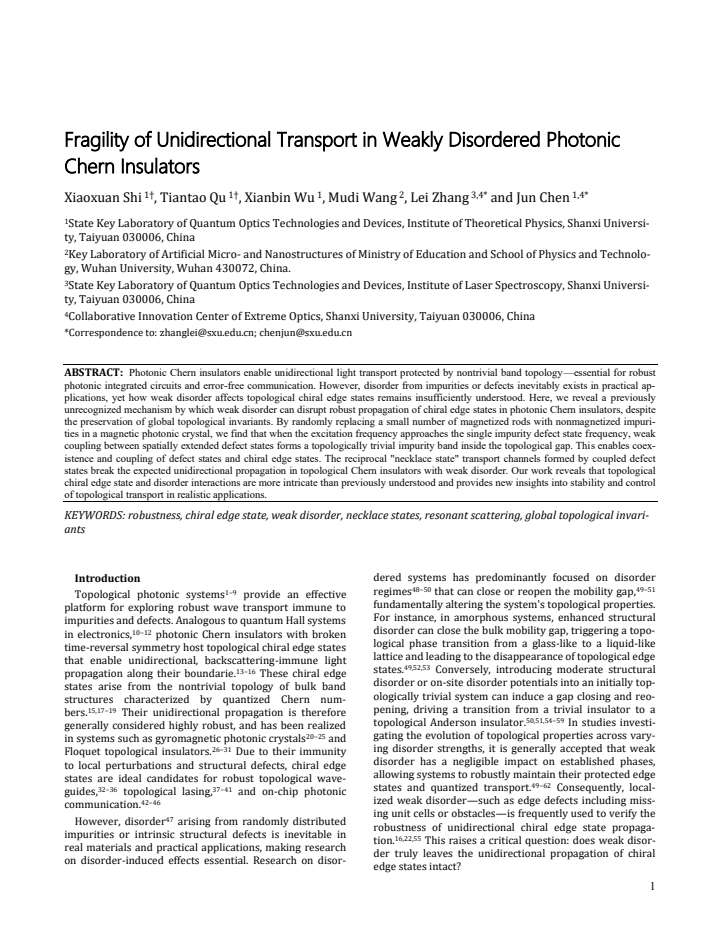

Fragility of Unidirectional Transport in Weakly Disordered Photonic Chern Insulators
Pith reviewed 2026-05-11 01:01 UTC · model grok-4.3
The pith
Weak disorder in photonic Chern insulators forms reciprocal necklace states that break unidirectional chiral edge transport.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In photonic Chern insulators, when the excitation frequency approaches the single-impurity defect state frequency, weak coupling between spatially extended defect states forms a topologically trivial impurity band inside the topological gap. This enables coexistence and coupling of defect states and chiral edge states. The reciprocal necklace state transport channels formed by the coupled defect states break the expected unidirectional propagation, even though global topological invariants remain intact.
What carries the argument
The reciprocal necklace state transport channels formed by weakly coupled, spatially extended defect states that mix with chiral edge states inside the topological gap.
If this is right
- Global topological invariants do not guarantee robust unidirectional transport once weak disorder is present.
- Defect states and chiral edge states can coexist and interact inside the gap, opening bidirectional channels.
- Reciprocal necklace states appear specifically near the frequencies of isolated impurity resonances.
- Stability of topological transport in real photonic devices must account for impurity-induced coupling effects.
Where Pith is reading between the lines
- Engineering the density or spatial arrangement of impurities could be used to deliberately introduce or suppress bidirectional leakage in topological photonic circuits.
- The same coupling mechanism between extended defect states and protected edge modes may appear in electronic, acoustic, or mechanical realizations of Chern insulators.
- Measurements of transmission asymmetry as a function of impurity density near defect frequencies could quantify the crossover from protected to fragile transport.
Load-bearing premise
The specific model of disorder, in which a small number of magnetized rods are randomly replaced by non-magnetized impurities, together with the numerical simulation setup, accurately reproduces real defect-induced coupling without artificial artifacts.
What would settle it
Experimental observation of strictly unidirectional transmission, with no measurable backward propagation through defect-coupled paths, when light is launched near the single-impurity resonance frequency in a magnetic photonic crystal containing dilute non-magnetized rods.
read the original abstract
Photonic Chern insulators enable unidirectional light transport protected by nontrivial band topology -- essential for robust photonic integrated circuits and error-free communication. However, disorder from impurities or defects inevitably exists in practical applications, yet how weak disorder affects topological chiral edge states remains insufficiently understood. Here, we reveal a previously unrecognized mechanism by which weak disorder can disrupt robust propagation of chiral edge states in photonic Chern insulators, despite the preservation of global topological invariants. By randomly replacing a small number of magnetized rods with nonmagnetized impurities in a magnetic photonic crystal, we find that when the excitation frequency approaches the single impurity defect state frequency, weak coupling between spatially extended defect states forms a topologically trivial impurity band inside the topological gap. This enables coexistence and coupling of defect states and chiral edge states. The reciprocal "necklace state" transport channels formed by coupled defect states break the expected unidirectional propagation in topological Chern insulators with weak disorder. Our work reveals that topological chiral edge state and disorder interactions are more intricate than previously understood and provides new insights into stability and control of topological transport in realistic applications.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript numerically investigates weak disorder in photonic Chern insulators realized via a 2D lattice of magnetized rods. By randomly replacing a small fraction of rods with non-magnetized impurities, the authors report that excitation frequencies near the isolated-impurity defect resonance allow spatially extended defect states to couple weakly, forming a topologically trivial impurity band inside the bulk gap. This band hybridizes with the chiral edge states, producing reciprocal 'necklace' transport channels that destroy the expected unidirectional propagation. The central claim is that this fragility occurs while global topological invariants remain nontrivial.
Significance. If the numerical evidence and topology preservation hold, the result identifies a concrete, previously under-appreciated mechanism by which weak, realistic disorder can compromise chiral edge transport without closing the gap or altering bulk topology. This has direct implications for the robustness of photonic topological devices and suggests that defect-edge hybridization must be considered in addition to conventional Anderson localization or gap-closing scenarios. The concrete identification of necklace states supplies a falsifiable picture that could guide both theory and experiment.
major comments (3)
- [§4] §4 (or equivalent results section on topology): the claim that 'global topological invariants are preserved' is asserted but not demonstrated by any explicit calculation (twisted-boundary Chern number, Wilson-loop spectrum, or photonic equivalent) on the disordered Hamiltonian. Without this verification the central distinction between 'topology intact but transport broken' cannot be established and the observed loss of unidirectionality could simply reflect local band-topology alteration.
- [Methods / Figs. 2-4] Methods and Fig. 2-4: the disorder is implemented exclusively as binary, full rod replacement (magnetized to non-magnetized). No comparison is shown to other weak perturbations (small radius or permittivity fluctuations) that would be expected to produce quantitatively different defect frequencies and spatial extents; the reported fragility may therefore be specific to this binary model rather than generic for weak disorder.
- [Results on necklace states] Results on necklace states (near defect resonance): the formation of reciprocal channels is shown for selected impurity realizations and frequencies, but no quantitative measure of defect-edge coupling strength, participation ratio, or statistics over many disorder realizations is provided. This leaves open whether the effect is robust or an artifact of finite-size effects and the narrow frequency window chosen.
minor comments (3)
- [Figure captions] Figure captions should explicitly state the impurity concentration, lattice size, and number of disorder realizations averaged (or shown) for each panel.
- [Introduction] The abstract and introduction cite the expected unidirectional protection but do not reference the most recent numerical or experimental works on disorder in photonic Chern insulators; a short additional paragraph would strengthen context.
- [Results] Notation for the 'necklace state' is introduced without a clear definition or diagram showing the spatial profile of the coupled defect-edge mode; a dedicated schematic would improve readability.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive comments on our manuscript. We have addressed each major point below, making revisions to the manuscript where appropriate to strengthen the presentation and support for our claims.
read point-by-point responses
-
Referee: §4 (or equivalent results section on topology): the claim that 'global topological invariants are preserved' is asserted but not demonstrated by any explicit calculation (twisted-boundary Chern number, Wilson-loop spectrum, or photonic equivalent) on the disordered Hamiltonian. Without this verification the central distinction between 'topology intact but transport broken' cannot be established and the observed loss of unidirectionality could simply reflect local band-topology alteration.
Authors: We agree that explicit verification of the topological invariant for the disordered system is necessary to rigorously support the central claim. In the revised manuscript we have added calculations of the Chern number via the twisted-boundary-condition method applied to representative disordered configurations (new Section 4.2 and Figure 5). These confirm that the bulk invariant remains C = 1, establishing that global topology is preserved while unidirectional transport is disrupted by the impurity-band hybridization. revision: yes
-
Referee: Methods and Fig. 2-4: the disorder is implemented exclusively as binary, full rod replacement (magnetized to non-magnetized). No comparison is shown to other weak perturbations (small radius or permittivity fluctuations) that would be expected to produce quantitatively different defect frequencies and spatial extents; the reported fragility may therefore be specific to this binary model rather than generic for weak disorder.
Authors: The binary replacement model was selected because it produces well-defined, strongly localized defect states that lie inside the gap, allowing clear isolation of the necklace-channel mechanism. We acknowledge that continuous weak perturbations (radius or permittivity fluctuations) would yield quantitatively different defect frequencies and extents. However, the essential physics—formation of a topologically trivial impurity band that hybridizes with chiral edge states—depends only on the existence of in-gap defect resonances and their weak inter-defect coupling, which is expected whenever disorder introduces such resonances. We have expanded the Methods section with a discussion of this generality and a qualitative argument that the fragility should persist for other weak-disorder realizations; we have not added new simulations because the core mechanism is already demonstrated and the binary case provides the cleanest illustration. revision: partial
-
Referee: Results on necklace states (near defect resonance): the formation of reciprocal channels is shown for selected impurity realizations and frequencies, but no quantitative measure of defect-edge coupling strength, participation ratio, or statistics over many disorder realizations is provided. This leaves open whether the effect is robust or an artifact of finite-size effects and the narrow frequency window chosen.
Authors: We thank the referee for highlighting the need for quantitative support. In the revised manuscript we have added (i) the participation ratio of the necklace states, (ii) a direct estimate of defect-edge coupling strength extracted from the hybridization-induced splitting in the transmission spectra, and (iii) ensemble statistics over 100 independent disorder realizations showing the frequency range and probability of reciprocal transport. These results appear in new Figures 6 and 7 and demonstrate that the reciprocal channels are robust, occur systematically near the isolated-defect resonance, and are not limited to the chosen system size or narrow frequency window. revision: yes
Circularity Check
No significant circularity; claims rest on numerical simulation of disorder model
full rationale
The paper derives its central mechanism (impurity-band formation, defect-edge hybridization, and reciprocal necklace channels) from direct numerical modeling of a specific binary disorder realization (random rod replacement). No equations or steps reduce by construction to fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations. The statement that global topological invariants remain preserved is presented as a modeling premise rather than a derived result that loops back to the inputs. The skeptic concern about explicit invariant verification in the disordered case is a question of evidence strength, not circularity per the defined patterns.
Axiom & Free-Parameter Ledger
free parameters (2)
- impurity concentration
- excitation frequency relative to defect resonance
axioms (1)
- domain assumption Global topological invariants remain preserved under the introduced weak disorder.
invented entities (1)
-
necklace state
no independent evidence
Reference graph
Works this paper leans on
-
[1]
M.; Amo, A.; Goldman, N.; Hafezi, M.; Lu, L.; Rechtsman, M
(1) Ozawa, T.; Price, H. M.; Amo, A.; Goldman, N.; Hafezi, M.; Lu, L.; Rechtsman, M. C.; Schuster, D.; Simon, J.; Zilberberg, O.; Caru- sotto, I. Topological Photonics. Rev. Mod. Phys. 2019, 91, 015006. (2) Lu, L.; Joannopoulos, J. D.; Solja čić, M. Topological States in Photonic Systems. Nat. Phys. 2016, 12, 626–629. (3) Kim, M.; Jacob, Z.; Rho, J. Recen...
2019
-
[2]
J.; Mittal, S.; Hafezi, M
(4) Mehrabad, M. J.; Mittal, S.; Hafezi, M. Topological Photonics: Fundamental Concepts, Recent Developments, and Future Direc- tions. Phys. Rev. A 2023, 108, 040101. (5) Khanikaev, A. B.; Alù , A. Topological Photonics: Robustness and Beyond. Nat. Commun. 2024, 15,
2023
-
[3]
(6) Leykam, D.; Xue, H.; Zhang, B.; Chong, Y. D. Limitations and Possibilities of Topological Photonics. Nat. Rev. Phys. 2025, 8, 55–
2025
-
[4]
D.; Chen, Y.-F
(7) Xie, B.-Y.; Wang, H.-F.; Zhu, X.-Y.; Lu, M.-H.; Wang, Z. D.; Chen, Y.-F. Photonics Meets Topology. Opt. Express 2018, 26, 24531. (8) Ota, Y.; Takata, K.; Ozawa, T.; Amo, A.; Jia, Z.; Kante, B.; No- tomi, M.; Arakawa, Y.; Iwamoto, S. Active Topological Photonics. Nanophotonics 2020, 9,
2018
-
[5]
(9) Chan, C. T. Photonic Crystals as a Platform to Explore New Physics. Phys. Rev. Lett. 2025, 135, 080001. (10) von Klitzing, K.; Dorda, G.; Pepper, M. New Method for High-Accuracy Determination of the Fine -Structure Constant Based on Quantized Hall Resistance. Phys. Rev. Lett. 1980, 45,
2025
-
[6]
The Quantized Hall Effect
(11) von Klitzing, K. The Quantized Hall Effect. Rev. Mod. Phys. 1986, 58,
1986
-
[7]
(12) Haldane, F. D. M. Model for a Quantum Hall Effect Without Landau Levels: Condensed -Matter Realization of the Parity Anomaly. Phys. Rev. Lett. 1988, 61,
1988
-
[8]
(13) Haldane, F. D. M.; Raghu, S. Possible Realization of Direc- tional Optical Waveguides in Photonic Crystals With Broken Time-Reversal Symmetry. Phys. Rev. Lett. 2008, 100, 013904. (14) Raghu, S.; Haldane, F. D. M. Analogs of Quantum -Hall- Effect Edge States in Photonic Crystals. Phys. Rev. A 2008, 78, 033834. (15) Wang, Z.; Chong, Y. D.; Joannopoulos...
2008
-
[9]
Superior Robustness of Anomalous Nonreciprocal Topological Edge States
(29) Zhang, Z.; Delplace, P.; Fleury, R. Superior Robustness of Anomalous Nonreciprocal Topological Edge States. Nature 2021, 598, 293–297. (30) Segal, O.; Plotnik, Y.; Lustig, E.; Sharabi, Y.; Cohen, M.; Dikopoltsev, A.; Segev, M. Two -Dimensional Topological Edge States in Periodic Space -Time Interfaces. Phys. Rev. Lett. 2025, 135, 163801. (31) Zhou, L...
2021
-
[10]
Y.; Zhang, L.; Wang, D.; Guo, Q.; Zhang, Z
(32) Wang, M.; Zhang, R. Y.; Zhang, L.; Wang, D.; Guo, Q.; Zhang, Z. Q.; Chan, C. T. Topological One -Way Large -Area Waveguide States in Magnetic Photonic Crystals. Phys. Rev. Lett. 2021, 126, 067401. (33) Qu, T.; Wang, N.; Wang, M. D.; Zhang, L.; Chen, J. Flexible Electromagnetic Manipulation by Topological One -Way Large - Area Waveguide States. Phys. ...
2021
-
[11]
H.; Segev, M.; Rechtsman, M
(54) Stü tzer, S.; Plotnik, Y.; Lumer, Y.; Titum, P.; Lindner, N. H.; Segev, M.; Rechtsman, M. C.; Szameit, A. Photonic Topological Anderson Insulators. Nature (London) 2018, 560, 461–465. (55) Liu, G.-G.; Yang, Y.; Ren, X.; Xue, H.; Lin, X.; Hu, Y. -H.; Sun, H.-X.; Peng, B.; Zhou, P.; Chong, Y.; Zhang, B. Topological Anderson Insulator in Disordered Phot...
2018
-
[12]
H.; Byun, K
(69) Choi, S. H.; Byun, K. M.; Kim, Y. L. Excitation of Multiple Resonances in 1D Anderson Localized Systems for Efficient Light Amplification. Opt. Lett. 2015, 40, 847–850. (70) Sgrignuoli, F.; Mazzamuto, G.; Caselli, N.; Intonti, F.; Catal- iotti, F. S.; Gurioli, M.; Toninelli, C. Necklace State Hallmark in Disordered 2D Photonic Systems. ACS Photonics ...
2015
-
[13]
Neck- lace-State-Mediated Anomalous Enhancement of Transport in Anderson-Localized Non -Hermitian Hybrid Systems
(71) Balasubrahmaniyam, M.; Mondal, S.; Mujumdar, S. Neck- lace-State-Mediated Anomalous Enhancement of Transport in Anderson-Localized Non -Hermitian Hybrid Systems. Phys. Rev. Lett. 2020, 124, 123901. (72) Qu, T.; Wang, M.; Cheng, X.; Cui, X.; Zhang, R. -Y.; Zhang, Z. - Q.; Zhang, L.; Chen, J.; Chan, C. T. Topological Photonic Alloy. Phys. Rev. Lett. 20...
2020
-
[14]
Anyons in an Exactly Solved Model and Beyond
(79) Kitaev, A. Anyons in an Exactly Solved Model and Beyond. Ann. Phys. (Amsterdam) 2006, 321,
2006
-
[15]
P.; Nash, L.M.; Hexner, D.; Turner, A
(80) Mitchell, N. P.; Nash, L.M.; Hexner, D.; Turner, A. M.; Irvine, W. T. M. Amorphous Topological Insulators Constructed from Random Point Sets. Nat. Phys. 2018, 14, 380–385
2018
