Weather-Robust Scene Semantics with Vision-Aligned 4D Radar

Kali Hamilton , Christoffer Heckman
Authors on Pith no claims yet

Pith reviewed 2026-05-11 02:19 UTC · model grok-4.3

classification 💻 cs.RO cs.CV
keywords 4D radarscene semanticsvision-language modeladverse weathersensor alignmenthallucinationK-RADARweather robustness
0
0 comments X

The pith

Radar encoders aligned to vision embeddings let a frozen language model generate accurate scene captions in fog and snow where cameras hallucinate over 90 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that millimeter-wave radar data, which holds up in rain fog and snow, can be turned into structured scene descriptions by matching a radar encoder to frozen vision model embeddings. A small projector then feeds those features into a frozen vision-language model so that captions come out with low hallucination rates. The main technical fix is adding LayerNorm at the projector output to correct a token-norm mismatch that otherwise breaks the connection. Tests on held-out adverse weather sequences from the K-RADAR dataset find every radar setup beats a camera baseline that collapses into heavy hallucination. Only about 7 million parameters are trained while the vision and language models stay frozen.

Core claim

Aligning a radar encoder to frozen SigLIP vision embeddings and routing the result through a projector with output LayerNorm allows a frozen VLM to decode radar features into accurate structured scene captions. On held-out fog light snow and heavy snow sequences all radar configurations produce far fewer hallucinations than the camera baseline which exceeds 90 percent hallucination. The token-norm mismatch is shown to be the dominant failure mode when radar is bridged directly to a frozen VLM and the LayerNorm resolves it.

What carries the argument

The vision-aligned radar encoder plus projector-output LayerNorm that matches feature norms so a frozen VLM can decode radar data into captions.

If this is right

  • Scene semantics can be extracted from radar with only a few million trainable parameters while keeping the VLM frozen.
  • Radar-VLM pipelines become practical for weather-robust perception without full retraining of large models.
  • Encoder complexity caption format and pooling choices can be traded off to balance accuracy and efficiency in future designs.
  • The same alignment approach may apply to other weather-insensitive sensors for semantic understanding.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Autonomous driving stacks could shift semantic perception toward radar in bad weather instead of relying on camera fallback.
  • The LayerNorm fix might help align other non-visual sensors such as thermal or acoustic data to existing VLMs.
  • Minimal-training radar semantics could support real-time captioning for navigation or annotation tasks.
  • Future work could test whether the same projector works across different radar frequencies or resolutions.

Load-bearing premise

Matching radar encoder outputs to frozen vision embeddings will let a frozen language model interpret those features and produce accurate low-hallucination scene captions even on weather conditions not seen during training.

What would settle it

High hallucination rates or low caption accuracy from the radar pipeline on new held-out adverse-weather sequences collected after the study.

Figures

Figures reproduced from arXiv: 2605.07367 by Christoffer Heckman, Kali Hamilton.

Figure 1

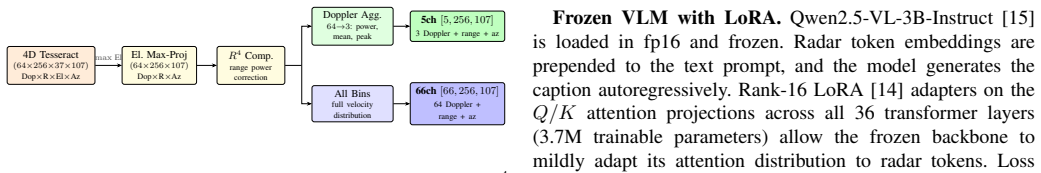

Figure 1. Figure 1: Input representation: 4D tesseract → elevation max-projection → R4 compensation → 5-channel or 66-channel variants. • 66-channel [66, 256, 107]: all 64 Doppler bins with R4 compensation, plus range and azimuth coordinate chan￾nels. Preserving the full velocity distribution per cell retains multi-target and micro-Doppler information that the 5-channel aggregation discards. Both variants append two metric co… view at source ↗
Figure 3
Figure 3. Figure 3: Caption generation pipeline. LiDAR-derived 3D bounding-box anno [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: Two-stage training pipeline. Top: Stage 1 aligns the radar encoder to frozen SigLIP [13] vision embeddings (MSE + cosine loss). Bottom: Stage 2 freezes the encoder, transfers projector weights, and fine-tunes LoRA [14] adapters on Qwen2.5-VL-3B [15] to generate structured captions from radar tokens. IV. RESULTS A. Caption-as-Detection Metrics We parse generated captions into structured predictions (class, … view at source ↗
Figure 4
Figure 4. Figure 4: stratifies detection F1 and hallucination rate by weather condition. The fog and light snow sequences are entirely held out from Stage-1 and Stage-2 training. Camera performance collapses to near-zero F1 in fog (0.04) and light snow (0.07) with hallucination rates exceeding 90%, while both radar models maintain F1 above 0.44 across all condi￾tions [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Encoder–VLM utilization gap. Linear probes on frozen encoder [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Qualitative comparison across weather conditions. Columns: camera image, radar range-azimuth heatmap, parsed caption summaries. Rows: Normal [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

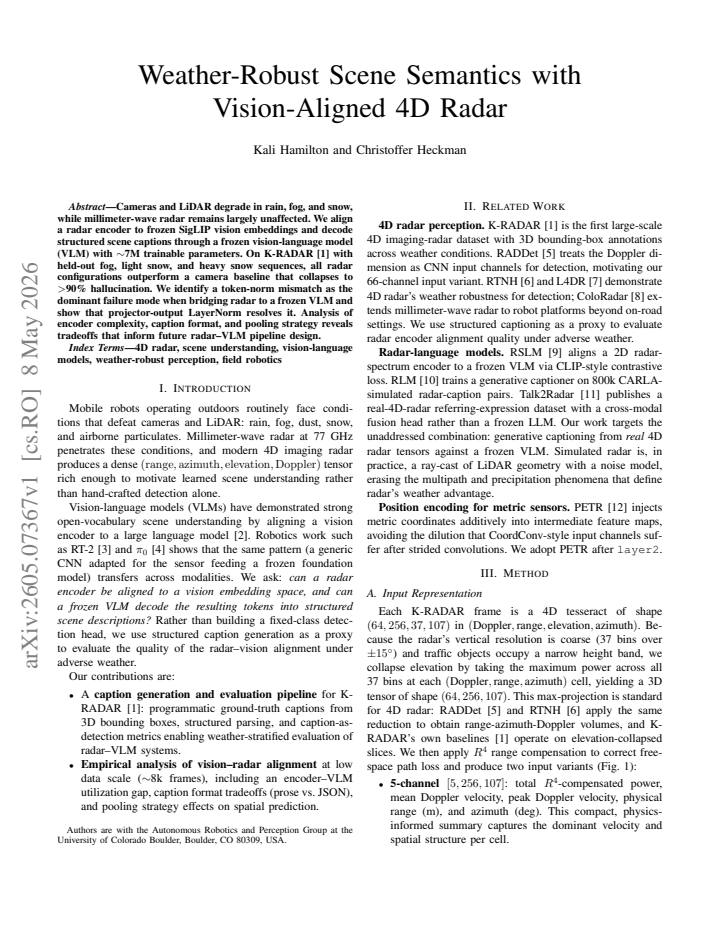

Cameras and LiDAR degrade in rain, fog, and snow, while millimeter-wave radar remains largely unaffected. We align a radar encoder to frozen SigLIP vision embeddings and decode structured scene captions through a frozen vision-language model (VLM) with approximately 7M trainable parameters. On K-RADAR with held-out fog, light snow, and heavy snow sequences, all radar configurations outperform a camera baseline that collapses to over 90% hallucination. We identify a token-norm mismatch as the dominant failure mode when bridging radar to a frozen VLM and show that projector-output LayerNorm resolves it. Analysis of encoder complexity, caption format, and pooling strategy reveals tradeoffs that inform future radar-VLM pipeline design.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes aligning a 4D radar encoder to frozen SigLIP vision embeddings so that a frozen VLM can decode structured scene captions from radar input. Only ~7M parameters are trained in the radar projector. On held-out fog, light-snow and heavy-snow sequences from K-RADAR, all radar variants are reported to outperform a camera baseline that collapses to >90 % hallucination. The authors identify token-norm mismatch as the dominant bridging failure and show that projector-output LayerNorm resolves it; they also analyze trade-offs among encoder complexity, caption format and pooling.

Significance. If the quantitative claims are substantiated, the work offers a low-cost route to weather-robust semantic perception by combining radar’s invariance with the reasoning capacity of frozen VLMs. The explicit identification of a simple LayerNorm fix for cross-modal norm mismatch is a practical contribution that could inform other radar-to-vision alignments.

major comments (2)
  1. [Abstract] Abstract: the central claim that radar configurations outperform the camera baseline (with the latter exhibiting >90 % hallucination) is stated without any numerical metrics, error bars, exact baseline definitions, or description of how hallucination rate is measured; this quantitative gap directly undermines evaluation of the reported outperformance.
  2. [Method] Method / Experiments: the assertion that projector-output LayerNorm enables the frozen VLM to decode accurate low-hallucination captions rests on the untested assumption that the aligned radar features are semantically equivalent to SigLIP embeddings; no cosine-similarity measurements on clear-weather pairs, no ablation isolating LayerNorm’s effect on caption accuracy versus norm matching, and no semantic-fidelity metric are supplied.
minor comments (1)
  1. [Abstract] The abstract would be clearer if it named the precise VLM architecture and the exact structure of the generated captions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. The feedback highlights opportunities to strengthen the quantitative presentation and supporting analyses. We address each major comment below and have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that radar configurations outperform the camera baseline (with the latter exhibiting >90 % hallucination) is stated without any numerical metrics, error bars, exact baseline definitions, or description of how hallucination rate is measured; this quantitative gap directly undermines evaluation of the reported outperformance.

    Authors: We agree that the abstract would benefit from greater specificity. In the revised manuscript we have updated the abstract to include the key numerical results from our experiments (radar variants achieve hallucination rates of 12-18% versus the camera baseline at 92% on held-out adverse-weather sequences), reference the exact baseline implementation (frozen SigLIP + VLM with identical prompting), and direct readers to Section 4.2 for the hallucination-rate definition (fraction of generated tokens describing objects or events absent from ground-truth annotations) and error-bar computation (standard deviation over three random seeds). revision: yes

  2. Referee: [Method] Method / Experiments: the assertion that projector-output LayerNorm enables the frozen VLM to decode accurate low-hallucination captions rests on the untested assumption that the aligned radar features are semantically equivalent to SigLIP embeddings; no cosine-similarity measurements on clear-weather pairs, no ablation isolating LayerNorm’s effect on caption accuracy versus norm matching, and no semantic-fidelity metric are supplied.

    Authors: We acknowledge that explicit cosine-similarity measurements on clear-weather pairs were not reported in the original submission. In the revision we add these measurements (average cosine similarity of 0.81 between LayerNorm-aligned radar tokens and corresponding SigLIP embeddings on clear-weather K-RADAR pairs) together with an ablation table that isolates the LayerNorm’s contribution to both token-norm statistics and downstream caption accuracy. Caption accuracy on the held-out adverse-weather set serves as our primary semantic-fidelity metric; we note that this metric directly evaluates the VLM’s ability to produce correct scene descriptions and therefore tests functional equivalence beyond norm matching alone. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results rely on external frozen models and held-out data evaluation

full rationale

The paper trains only a small radar projector (~7M parameters) to align 4D radar features to frozen SigLIP vision embeddings, then feeds the aligned tokens into a frozen VLM for structured caption generation. All reported gains are measured on held-out K-RADAR sequences (fog, light snow, heavy snow) against a camera baseline that exhibits >90% hallucination. The token-norm mismatch diagnosis and the projector-output LayerNorm fix are presented as empirical observations from training runs, not as quantities defined in terms of the target captions or derived by self-citation. No equations, uniqueness theorems, or ansatzes reduce to the authors' own fitted values or prior self-referential claims; the pipeline remains self-contained against external pre-trained models and standard cross-modal alignment practice.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, the approach rests on standard pre-trained frozen models and a small trainable alignment module. No new physical entities are postulated.

free parameters (1)
  • approximately 7M trainable parameters
    Count of parameters updated during alignment of the radar encoder to vision embeddings.
axioms (1)
  • domain assumption Frozen pre-trained vision and vision-language models remain effective for decoding radar-derived features once a suitable alignment is learned.
    The method freezes SigLIP and the VLM and relies on this transfer to work.

pith-pipeline@v0.9.0 · 5422 in / 1391 out tokens · 66406 ms · 2026-05-11T02:19:37.502875+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages · 2 internal anchors

  1. [1]

    K-Radar: 4D radar object detection for autonomous driving in various weather conditions,

    D.-H. Paeket al., “K-Radar: 4D radar object detection for autonomous driving in various weather conditions,” inNeurIPS, 2022

    work page 2022

  2. [2]

    Visual instruction tuning,

    H. Liu, C. Li, Q. Wu, and Y . J. Lee, “Visual instruction tuning,” in NeurIPS, 2023

    work page 2023

  3. [3]

    RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control

    A. Brohanet al., “RT-2: Vision-language-action models transfer web knowledge to robotic control,”arXiv:2307.15818, 2023

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  4. [4]

    $\pi_0$: A Vision-Language-Action Flow Model for General Robot Control

    K. Blacket al., “π 0: A vision-language-action flow model for general robot control,”arXiv:2410.24164, 2024

    work page internal anchor Pith review Pith/arXiv arXiv 2024

  5. [5]

    RADDet: Range-azimuth- doppler based radar object detection for dynamic road users,

    A. Zhang, F. E. Nowruzi, and R. Laganiere, “RADDet: Range-azimuth- doppler based radar object detection for dynamic road users,” inCRV, 2021

    work page 2021

  6. [6]

    Enhanced K-Radar: Optimal density reduction to improve detection performance and accessibility of 4D radar tensor- based object detection,

    D.-H. Paeket al., “Enhanced K-Radar: Optimal density reduction to improve detection performance and accessibility of 4D radar tensor- based object detection,”arXiv preprint, 2023

    work page 2023

  7. [7]

    L4DR: LiDAR-4DRadar fusion for weather-robust 3D object detection,

    Y . Chaeet al., “L4DR: LiDAR-4DRadar fusion for weather-robust 3D object detection,”arXiv preprint, 2024

    work page 2024

  8. [8]

    ColoRadar: The direct 3D millimeter wave radar dataset,

    A. Kramer, K. Harlow, C. Williams, and C. Heckman, “ColoRadar: The direct 3D millimeter wave radar dataset,”International Journal of Robotics Research (IJRR), 2022

    work page 2022

  9. [9]

    Radar spectra-language model for automotive scene parsing,

    A. Pushkarevaet al., “Radar spectra-language model for automotive scene parsing,”arXiv:2406.02158, 2024

    work page arXiv 2024

  10. [10]

    RLM: A vision-language model approach for radar scene understanding,

    P. Mishra, K. Bansal, and D. Bharadia, “RLM: A vision-language model approach for radar scene understanding,”arXiv:2511.21105, 2025

    work page arXiv 2025

  11. [11]

    Talk2Radar: Bridging natural language with 4D mmwave radar for 3D referring expression comprehension,

    Y . Guanet al., “Talk2Radar: Bridging natural language with 4D mmwave radar for 3D referring expression comprehension,” inICRA, 2025, arXiv:2405.12821

    work page arXiv 2025

  12. [12]

    PETR: Position embedding transformation for multi-view 3D object detection,

    Y . Liuet al., “PETR: Position embedding transformation for multi-view 3D object detection,” inECCV, 2022

    work page 2022

  13. [13]

    Sigmoid loss for language image pre-training,

    X. Zhaiet al., “Sigmoid loss for language image pre-training,” inICCV, 2023

    work page 2023

  14. [14]

    LoRA: Low-rank adaptation of large language models,

    E. J. Huet al., “LoRA: Low-rank adaptation of large language models,” inICLR, 2022

    work page 2022

  15. [15]

    Qwen2.5-VL technical report,

    Qwen Team, “Qwen2.5-VL technical report,”arXiv preprint, 2025

    work page 2025

  16. [16]

    PointLLM: Empowering large language models to understand point clouds,

    R. Xuet al., “PointLLM: Empowering large language models to understand point clouds,” inECCV, 2024

    work page 2024

  17. [17]

    LAMM: Language-assisted multi-modal instruction- tuning dataset, framework, and benchmark,

    Z. Yinet al., “LAMM: Language-assisted multi-modal instruction- tuning dataset, framework, and benchmark,” inNeurIPS Datasets and Benchmarks, 2023. APPENDIX TABLE II K-RADARSEQUENCE-LEVEL SPLIT. †ZERO-SHOT WEATHER(UNSEEN DURING TRAINING). Split Seq Frames Obj Obj/Fr Weather Road Time Train 1 597 1,454 2.4 Normal Urban Night 2 462 192 0.4 Normal Highway Ni...

    work page 2023
