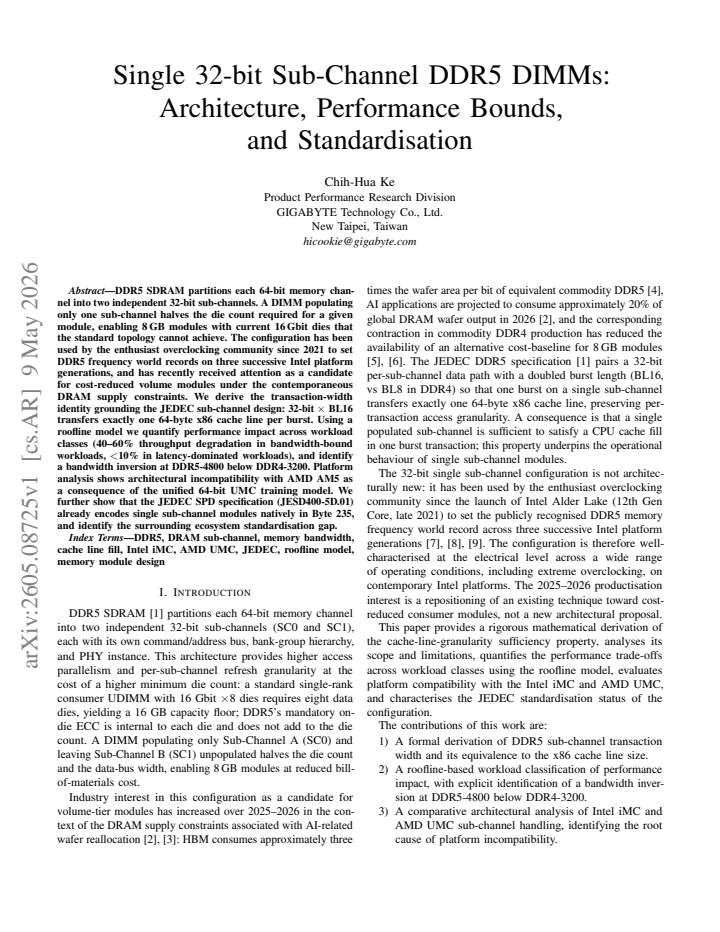

Single 32-bit Sub-Channel DDR5 DIMMs: Architecture, Performance Bounds, and Standardisation

Chih-Hua Ke

Authors on Pith no claims yet

Pith reviewed 2026-05-12 02:39 UTC · model grok-4.3

classification 💻 cs.AR cs.PF

keywords DDR5sub-channel DIMMmemory architectureroofline modelJEDEC standardcache line transferbandwidth performanceAMD incompatibility

0 comments

The pith

A 32-bit sub-channel DDR5 DIMM transfers exactly one 64-byte cache line per burst using the 32-bit x BL16 identity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines single 32-bit sub-channel DDR5 DIMMs that populate only one of the two independent 32-bit sub-channels defined in the standard. This halves the DRAM die count per module, enabling 8 GB capacities with current 16 Gbit dies that full 64-bit topology cannot achieve. The author derives the transaction-width identity that 32 bits wide with burst length 16 moves precisely 64 bytes, matching an x86 cache line and grounding the JEDEC design. Roofline modeling shows 40-60% throughput loss in bandwidth-bound workloads versus under 10% in latency-bound ones, plus a crossover where DDR5-4800 underperforms DDR4-3200. The modules are already encoded in the JEDEC SPD spec but encounter platform-level incompatibility with AMD AM5 processors.

Core claim

The JEDEC sub-channel architecture rests on the transaction-width identity that a 32-bit sub-channel operating at burst length 16 transfers exactly one 64-byte x86 cache line per burst. Single-subchannel DIMMs therefore halve die requirements while the roofline model quantifies class-specific performance penalties, identifies the DDR5-4800 to DDR4-3200 bandwidth inversion, and confirms native encoding in JESD400-5D.01 Byte 235, with remaining standardisation gaps limited to ecosystem support.

What carries the argument

The transaction-width identity (32-bit × BL16 = 64 bytes) that aligns sub-channel bursts with x86 cache-line size and enables the JEDEC sub-channel partition.

If this is right

Single sub-channel DIMMs enable 8 GB modules with current 16 Gbit dies that standard topology cannot support.
Bandwidth-bound workloads experience 40-60% throughput degradation.
Latency-dominated workloads incur less than 10% impact.
A bandwidth inversion point exists at DDR5-4800 below DDR4-3200 performance.
Architectural incompatibility arises with AMD AM5 platforms due to the unified 64-bit UMC training model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The configuration could reduce module cost and die usage under DRAM supply constraints.
Ecosystem support beyond SPD encoding will likely require BIOS, controller, and validation updates.
High-frequency validation by overclockers on successive Intel platforms since 2021 indicates practical feasibility for enthusiast use.
Future memory standards could adopt similar sub-channel splits for capacity scaling.

Load-bearing premise

The roofline model and workload-class assumptions accurately reflect single-sub-channel behavior without unmodeled controller or platform overheads.

What would settle it

Measure sustained bandwidth on a single 32-bit sub-channel DDR5-4800 system using a STREAM-like benchmark and compare the result against the roofline prediction and against DDR4-3200 performance on the same platform.

Figures

Figures reproduced from arXiv: 2605.08725 by Chih-Hua Ke.

**Figure 1.** Figure 1: Intel iMC vs. AMD UMC sub-channel topology, and corresponding standard vs. single sub-channel module physical [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

read the original abstract

DDR5 SDRAM partitions each 64-bit memory channel into two independent 32-bit sub-channels. A DIMM populating only one sub-channel halves the die count required for a given module, enabling 8 GB modules with current 16 Gbit dies that the standard topology cannot achieve. The configuration has been used by the enthusiast overclocking community since 2021 to set DDR5 frequency world records on three successive Intel platform generations, and has recently received attention as a candidate for cost-reduced volume modules under the contemporaneous DRAM supply constraints. We derive the transaction-width identity grounding the JEDEC sub-channel design: 32-bit x BL16 transfers exactly one 64-byte x86 cache line per burst. Using a roofline model we quantify performance impact across workload classes (40-60% throughput degradation in bandwidth-bound workloads, < 10% in latency-dominated workloads), and identify a bandwidth inversion at DDR5-4800 below DDR4-3200. Platform analysis shows architectural incompatibility with AMD AM5 as a consequence of the unified 64-bit UMC training model. We further show that the JEDEC SPD specification (JESD400-5D.01) already encodes single sub-channel modules natively in Byte 235, and identify the surrounding ecosystem standardisation gap.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper cleanly derives the 32-bit sub-channel to cache-line identity from JEDEC parameters and gives roofline bounds plus an SPD encoding note, but the performance numbers rest on unverified scaling assumptions.

read the letter

The main takeaway is that a single 32-bit DDR5 sub-channel with BL16 burst exactly fills one 64-byte x86 cache line, which follows directly from the standard burst length and channel width. The paper then applies a roofline model to estimate 40-60% throughput loss in bandwidth-bound workloads and under 10% in latency-bound ones, flags a crossover where DDR5-4800 single-subchannel falls below DDR4-3200 performance, notes AMD AM5 incompatibility from the unified 64-bit training model, and points out that JEDEC SPD Byte 235 already has a field for this configuration. These are the concrete new pieces: the identity derivation, the specific inversion point, and the standardization observation. The work is grounded in existing JEDEC specs rather than new measurements, which keeps it straightforward and reproducible from the standards documents. The roofline application is a reasonable way to bound the impact across workload classes without needing full system simulation. The SPD encoding point is genuinely useful for anyone considering cost-reduced modules. The soft spots sit in the performance claims. The roofline treats single-subchannel operation as pure bandwidth halving with no extra command overhead, training penalties, or controller scheduling changes, but those factors could easily move the 40-60% numbers on real hardware. The AMD incompatibility diagnosis also hinges on the premise of a strictly unified UMC model, which the abstract does not verify against actual platform behavior. Without the full model parameters or sensitivity analysis, the exact degradation figures and inversion point remain hard to check. This paper is for hardware architects and memory subsystem designers who care about DDR5 cost-reduction options or JEDEC extensions. A reader already working on sub-channel DIMMs or low-cost server modules will find the bounds and SPD note worth the time. It deserves a serious referee because the core identity and standardization observation are solid and checkable, even if the roofline section needs tighter validation against measured data.

Referee Report

2 major / 2 minor

Summary. The paper analyzes single 32-bit sub-channel DDR5 DIMMs, deriving the transaction-width identity that 32-bit width with BL16 burst length transfers exactly one 64-byte x86 cache line. It applies a roofline model to bound performance (40-60% throughput degradation for bandwidth-bound workloads, <10% for latency-dominated), identifies a bandwidth inversion where DDR5-4800 falls below DDR4-3200 effective bandwidth, notes architectural incompatibility with AMD AM5 platforms due to unified 64-bit UMC training, and observes that the JEDEC SPD spec (JESD400-5D.01) already supports such modules via Byte 235 while highlighting an ecosystem standardization gap.

Significance. The parameter-free derivation of the transaction-width identity from JEDEC burst parameters and cache-line size is a solid, falsifiable contribution that stands independently. If the roofline-derived bounds and inversion point hold under realistic controller and platform conditions, the work would usefully inform cost-optimized DDR5 module design and standardization efforts; the identification of the existing SPD encoding is a practical observation that could accelerate adoption.

major comments (2)

[Performance Bounds / Roofline Model] The roofline model (abstract and performance-bounds section) assumes ideal halved-width scaling with unchanged command/address bus timing, DRAM parameters, and memory-controller scheduling efficiency, plus no additional platform overheads from sub-channel training or mapping. This assumption is load-bearing for the specific 40-60% degradation figures and the DDR5-4800 vs. DDR4-3200 inversion claim; without hardware measurements, sensitivity analysis, or explicit discussion of potential deviations, the quantitative performance bounds cannot be confirmed.
[Platform Analysis] The AMD AM5 incompatibility claim (platform-analysis section) rests on the premise of a strictly unified 64-bit UMC training model. The manuscript should provide concrete details on how the training sequence enforces 64-bit operation and why a 32-bit sub-channel configuration cannot be accommodated, as this is load-bearing for the architectural-compatibility conclusion.

minor comments (2)

The workload-class definitions (bandwidth-bound vs. latency-dominated) would benefit from explicit benchmark examples or references to standard suites to make the <10% vs. 40-60% split reproducible.
Notation for burst length (BL16) and sub-channel width should be introduced with a brief reminder of JEDEC conventions on first use for readers outside the memory-architecture community.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the transaction-width identity as a solid, falsifiable contribution. We address each major comment below with clarifications and indicate revisions that will strengthen the manuscript while preserving its analytical focus.

read point-by-point responses

Referee: [Performance Bounds / Roofline Model] The roofline model (abstract and performance-bounds section) assumes ideal halved-width scaling with unchanged command/address bus timing, DRAM parameters, and memory-controller scheduling efficiency, plus no additional platform overheads from sub-channel training or mapping. This assumption is load-bearing for the specific 40-60% degradation figures and the DDR5-4800 vs. DDR4-3200 inversion claim; without hardware measurements, sensitivity analysis, or explicit discussion of potential deviations, the quantitative performance bounds cannot be confirmed.

Authors: The roofline model derives its bounds directly from the transaction-width identity (32-bit width with BL16 exactly matching one 64-byte cache line) combined with standard JEDEC timing parameters, without introducing new empirical constants. The 40-60% degradation and inversion point are analytical consequences of the doubled command overhead relative to data transfer under halved width. We agree that an explicit discussion of assumptions would improve clarity and will revise the performance-bounds section to add a dedicated sensitivity paragraph addressing command/address bus effects, controller scheduling, and possible sub-channel training overheads. This revision will frame the figures as theoretical bounds under the stated ideal scaling rather than platform-specific predictions. Hardware measurements are outside the scope of this work, which focuses on architectural analysis of a non-standard configuration. revision: partial
Referee: [Platform Analysis] The AMD AM5 incompatibility claim (platform-analysis section) rests on the premise of a strictly unified 64-bit UMC training model. The manuscript should provide concrete details on how the training sequence enforces 64-bit operation and why a 32-bit sub-channel configuration cannot be accommodated, as this is load-bearing for the architectural-compatibility conclusion.

Authors: The incompatibility follows from AMD's documented UMC architecture, in which the memory controller and PHY training sequence (as described in public AGESA and platform references) performs joint calibration and DQ mapping across the full 64-bit channel, treating the two sub-channels as a single trained entity. This unified model enforces symmetric 64-bit operation during initialization and does not expose independent 32-bit sub-channel training paths. We will revise the platform-analysis section to include these concrete training-sequence steps and references, making the architectural basis explicit while noting that firmware modifications would be required to support the configuration. revision: yes

Circularity Check

0 steps flagged

Transaction-width identity is direct arithmetic from JEDEC parameters; roofline application introduces no circular reduction

full rationale

The paper derives the central transaction-width identity (32-bit × BL16 transfers exactly one 64-byte cache line) as an arithmetic fact from standard JEDEC burst length and x86 cache-line size, with no dependence on fitted parameters, prior results, or self-citations. The roofline model is then applied to quantify workload-class impacts using standard analytical assumptions without evidence that any predictions reduce to inputs by construction or that parameters were fitted to the target outputs. No self-citation chains, ansatzes smuggled via citation, uniqueness theorems, or renaming of known results appear as load-bearing steps. The derivation chain remains self-contained against external benchmarks (JEDEC specs, roofline methodology) and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The analysis rests on standard roofline modeling assumptions and JEDEC-defined burst parameters without introducing fitted constants or new postulated entities.

axioms (2)

domain assumption 32-bit width with burst length 16 equals one 64-byte cache line
Invoked to ground the JEDEC sub-channel design and cache-line transfer claim.
domain assumption Roofline model bounds apply directly to single-sub-channel workloads
Used to produce the 40-60% and <10% degradation figures.
