arxiv: 2605.09242 · v1 · submitted 2026-05-10 · 📡 eess.IV · cs.CV

Recognition: 2 theorem links

· Lean Theorem

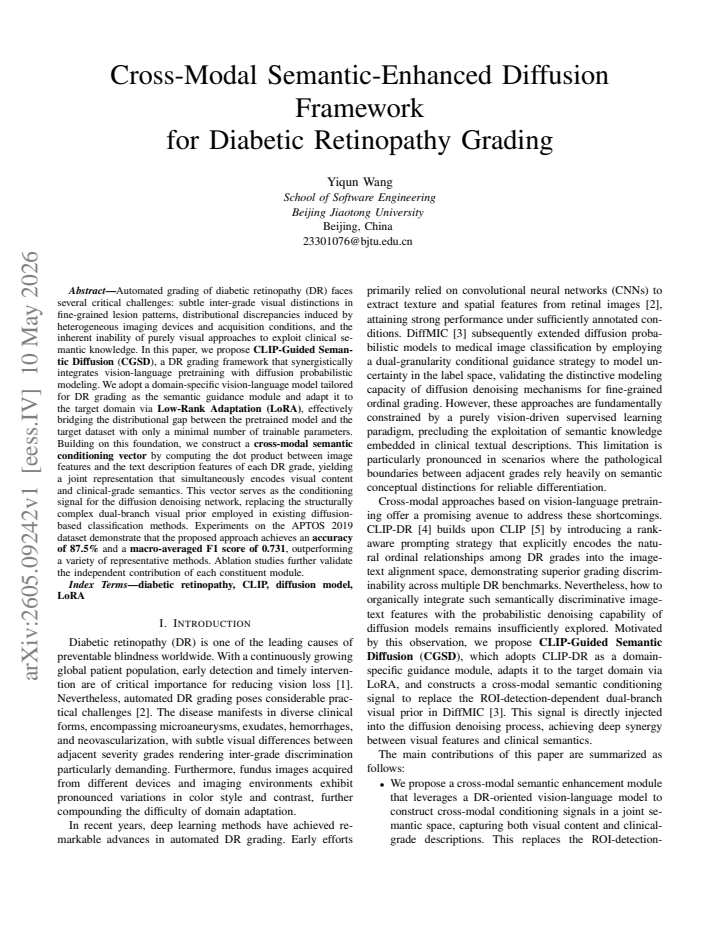

Cross-Modal Semantic-Enhanced Diffusion Framework for Diabetic Retinopathy Grading

Yiqun Wang (Beijing Jiaotong University)

Authors on Pith no claims yet

Pith reviewed 2026-05-12 04:03 UTC · model grok-4.3

classification 📡 eess.IV cs.CV

keywords diabetic retinopathy gradingdiffusion modelsvision-language modelscross-modal conditioningLoRA adaptationretinal image classificationAPTOS 2019 datasetsemantic guidance

0 comments

The pith

A cross-modal dot-product vector from an adapted vision-language model conditions a diffusion network for diabetic retinopathy grading.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces CLIP-Guided Semantic Diffusion to grade diabetic retinopathy by combining a vision-language model with diffusion modeling. It adapts a domain-specific vision-language model using LoRA to bridge dataset shifts with few parameters, then forms a conditioning signal as the dot product of image features and text features describing each retinopathy grade. This signal guides the diffusion denoising process and replaces the dual-branch visual priors common in earlier diffusion classifiers. The approach is tested on the APTOS 2019 dataset, where it reports higher accuracy and F1 scores than several baseline methods while ablation experiments isolate the contribution of the semantic component.

Core claim

The central claim is that a simple cross-modal conditioning vector, obtained by the dot product between LoRA-adapted image features and the text features of each diabetic retinopathy grade, supplies sufficient clinical semantic information to guide a diffusion probabilistic model and thereby improves grading accuracy over methods that rely solely on visual priors or more elaborate conditioning structures.

What carries the argument

The cross-modal semantic conditioning vector formed by the dot product of image features and text description features for each diabetic retinopathy grade.

Load-bearing premise

The dot-product cross-modal vector supplies genuinely richer conditioning than existing visual priors and that this richness, rather than dataset tuning or implementation choices, produces the observed performance gains.

What would settle it

Re-training the identical diffusion network on the same APTOS 2019 split but replacing the semantic dot-product vector with a standard visual prior or random vector and checking whether accuracy falls below 87.5 percent or macro F1 falls below 0.731.

Figures

Figures reproduced from arXiv: 2605.09242 by Yiqun Wang (Beijing Jiaotong University).

**Figure 2.** Figure 2: Class Activation Map (CAM) visualization on representative APTOS 2019 test samples across five DR severity grades. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: t-SNE visualization of label embeddings during the diffusion reverse process on the APTOS 2019 test set. As [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

read the original abstract

Automated grading of diabetic retinopathy (DR) faces several critical challenges: subtle inter-grade visual distinctions in fine-grained lesion patterns, distributional discrepancies induced by heterogeneous imaging devices and acquisition conditions, and the inherent inability of purely visual approaches to exploit clinical semantic knowledge. In this paper, we propose CLIP-Guided Semantic Diffusion (CGSD), a DR grading framework that synergistically integrates vision-language pretraining with diffusion probabilistic modeling. We adopt a domain-specific vision-language model tailored for DR grading as the semantic guidance module and adapt it to the target domain via Low-Rank Adaptation (LoRA), effectively bridging the distributional gap between the pretrained model and the target dataset with only a minimal number of trainable parameters. Building on this foundation, we construct a cross-modal semantic conditioning vector by computing the dot product between image features and the text description features of each DR grade, yielding a joint representation that simultaneously encodes visual content and clinical-grade semantics. This vector serves as the conditioning signal for the diffusion denoising network, replacing the structurally complex dual-branch visual prior employed in existing diffusion-based classification methods. Experiments on the APTOS 2019 dataset demonstrate that the proposed approach achieves an accuracy of 87.5% and a macro-averaged F1 score of 0.731, outperforming a variety of representative methods. Ablation studies further validate the independent contribution of each constituent module.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper puts a LoRA-adapted CLIP dot-product vector into a diffusion denoiser for DR grading and gets 87.5% accuracy on APTOS 2019, but the gains may trace more to the adapted VLM than to the specific conditioning step.

read the letter

The core idea is straightforward: take a domain-tuned vision-language model, compute scalar similarities between the image embedding and each grade's text embedding, and feed that vector as conditioning to a diffusion classifier instead of the usual dual-branch visual setup. On the APTOS 2019 dataset it reaches 87.5% accuracy and 0.731 macro F1 while beating the listed baselines, and the authors include ablations that attribute value to the LoRA step and the semantic vector separately. That combination is new enough in the DR literature and keeps the trainable parameter count low, which is a practical plus for medical imaging work where data and compute are constrained. The approach also shows how to inject clinical-grade text knowledge without building a separate language branch at inference time. The numbers are concrete and the method is easy to re-implement if the code is released. The main uncertainty is whether the dot-product conditioning itself is responsible for the lift or whether most of the improvement comes from having a better-adapted VLM in the first place. The abstract and stress-test note do not describe an ablation that holds the LoRA-tuned model fixed and only swaps the injection method (dot-product versus direct features or cross-attention). Without that isolation, the headline claim that the cross-modal vector is the key innovation rests on weaker ground. There are also no error bars or significance tests mentioned, which makes the outperformance harder to judge on first reading. This is useful reading for anyone already working on diffusion classifiers or VLM guidance for medical images. It is not a theoretical advance, but the recipe is clear and the task is important enough that a referee could usefully check the missing ablation and the statistical details. I would send it to review rather than desk-reject.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes CLIP-Guided Semantic Diffusion (CGSD) for diabetic retinopathy (DR) grading. It adapts a vision-language model via LoRA to the target domain, computes a cross-modal conditioning vector as the dot product between image features and per-grade text embeddings, and injects this vector into a diffusion denoising network in place of dual-branch visual priors. On the APTOS 2019 dataset the method reports 87.5% accuracy and 0.731 macro-averaged F1, outperforming representative baselines; ablation studies are claimed to confirm the contribution of each module.

Significance. If the reported gains are shown to arise specifically from the dot-product cross-modal conditioning rather than from the domain-adapted VLM alone, the work would provide a concrete demonstration that lightweight semantic priors can improve diffusion-based medical image classification for fine-grained tasks with domain shift. The minimal-parameter LoRA adaptation and the replacement of complex visual priors are positive design choices that could be reusable.

major comments (2)

[§4 and §4.3] §4 (Experiments) and §4.3 (Ablations): the headline claim that the dot-product cross-modal vector supplies richer conditioning than existing visual priors is not isolated. No ablation holds the LoRA-adapted VLM fixed and compares the dot-product vector against direct concatenation, cross-attention, or raw image features as conditioning input to the same diffusion denoiser. Without this control the performance numbers cannot be attributed to the proposed conditioning mechanism rather than to the VLM adaptation itself.
[§4] §4 (Results tables): the reported 87.5% accuracy and 0.731 macro F1 are given as point estimates with no error bars, no statistical significance tests against the strongest baselines, and no details on the exact implementation of those baselines (e.g., whether they also received LoRA-adapted VLM features). This makes it impossible to judge whether the claimed outperformance is robust or reproducible.

minor comments (2)

[§3.2] Notation for the conditioning vector (dot-product of image and text features) should be defined with an explicit equation in §3.2 rather than described only in prose.
[Abstract and §4.1] The abstract and §4.1 should state the number of runs or random seeds used for the reported metrics.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of experimental rigor that we will address in the revision to better isolate the contribution of our proposed cross-modal conditioning and to strengthen the statistical robustness of the results.

read point-by-point responses

Referee: [§4 and §4.3] §4 (Experiments) and §4.3 (Ablations): the headline claim that the dot-product cross-modal vector supplies richer conditioning than existing visual priors is not isolated. No ablation holds the LoRA-adapted VLM fixed and compares the dot-product vector against direct concatenation, cross-attention, or raw image features as conditioning input to the same diffusion denoiser. Without this control the performance numbers cannot be attributed to the proposed conditioning mechanism rather than to the VLM adaptation itself.

Authors: We agree that a more targeted ablation is needed to isolate the effect of the dot-product cross-modal vector. Our existing ablation studies demonstrate the contributions of the semantic guidance module and LoRA adaptation in aggregate, but they do not hold the adapted VLM fixed while varying only the conditioning mechanism. In the revised manuscript we will add experiments that fix the LoRA-adapted VLM and directly compare the dot-product vector against direct concatenation, cross-attention, and raw image features as conditioning inputs to the identical diffusion denoiser. These results will be reported in an expanded §4.3. revision: yes
Referee: [§4] §4 (Results tables): the reported 87.5% accuracy and 0.731 macro F1 are given as point estimates with no error bars, no statistical significance tests against the strongest baselines, and no details on the exact implementation of those baselines (e.g., whether they also received LoRA-adapted VLM features). This makes it impossible to judge whether the claimed outperformance is robust or reproducible.

Authors: We acknowledge that the current presentation of results as single point estimates limits assessment of robustness. In the revised manuscript we will report mean and standard deviation over multiple random seeds (minimum five runs), include statistical significance tests (e.g., paired t-tests) against the strongest baselines, and provide explicit implementation details for each baseline, including whether they received features from the domain-adapted VLM. These additions will appear in §4 and the associated tables. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper proposes an empirical framework (LoRA-adapted VLM + dot-product cross-modal conditioning vector fed to a diffusion denoiser) and reports measured performance (87.5% accuracy, 0.731 macro F1 on APTOS 2019) plus ablations. No equations, derivations, or first-principles results are described that reduce the outcome to the inputs by construction. The conditioning vector is computed from features rather than defined to guarantee the reported metrics. The central claims rest on experimental evaluation against external benchmarks rather than self-referential definitions, fitted parameters renamed as predictions, or load-bearing self-citations. This is a standard empirical contribution with no circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The framework rests on standard pretrained vision-language models and diffusion architectures; the only added elements are LoRA adaptation and the cross-modal conditioning vector, both of which are described at a high level without new axioms or free parameters listed.

pith-pipeline@v0.9.0 · 5543 in / 1136 out tokens · 27067 ms · 2026-05-12T04:03:13.339130+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

construct a cross-modal semantic conditioning vector by computing the dot product between image features and the text description features of each DR grade
IndisputableMonolith/Foundation/ArithmeticFromLogic.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

replacing the structurally complex dual-branch visual prior employed in existing diffusion-based classification methods

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages · 1 internal anchor

[1]

Global prevalence of diabetic retinopathy and projection of burden through 2045,

Z. L. Teo, Y .-C. Tham, M. Yu, M. L. Chee, T. H. Rim, N. Cheung, M. W. Bikbov, Y . X. Wang, Y . Tang, Y . Lu, I. Y . Wong, D. S. Ting, G. S. Tan, J. B. Jonas, C.-Y . Cheng, and T. Y . Wong, “Global prevalence of diabetic retinopathy and projection of burden through 2045,”Ophthalmology, vol. 128, no. 11, pp. 1580–1591, 2021

work page 2045
[2]

Development and validation of a deep learning algorithm for detection of diabetic retinopathy in retinal fundus photographs,

V . Gulshan, L. Peng, M. Coram, M. C. Stumpe, D. Wu, A. Narayanaswamy, S. Venugopalan, K. Widner, T. Madams, J. Cuadros, R. Kim, R. Raman, P. C. Nelson, J. L. Mega, and D. R. Webster, “Development and validation of a deep learning algorithm for detection of diabetic retinopathy in retinal fundus photographs,”JAMA, vol. 316, no. 22, pp. 2402–2410, 2016

work page 2016
[3]

DiffMIC: Dual-guidance diffusion network for medical image classification,

Y . Yang, H. Fu, A. I. Aviles-Rivero, C. Sch¨onlieb, and L. Zhu, “DiffMIC: Dual-guidance diffusion network for medical image classification,” in Proc. Int. Conf. Med. Image Comput. Comput.-Assist. Interv. (MICCAI), Lecture Notes in Computer Science, vol. 14225, 2023, pp. 95–105

work page 2023
[4]

CLIP-DR: Textual knowledge-guided diabetic retinopathy grading with ranking-aware prompting,

Q. Yu, J. Xie, A. Nguyen, H. Zhao, J. Zhang, H. Fu, Y . Zhao, Y . Zheng, and Y . Meng, “CLIP-DR: Textual knowledge-guided diabetic retinopathy grading with ranking-aware prompting,” inProc. Int. Conf. Med. Image Comput. Comput.-Assist. Interv. (MICCAI), Lecture Notes in Computer Science, vol. 15009, 2024, pp. 662–671

work page 2024
[5]

Learning transferable visual models from natural language supervision,

A. Radford, J. W. Kim, C. Hallacy, A. Ramesh, G. Goh, S. Agar- wal, G. Sastry, A. Askell, P. Mishkin, J. Clark, G. Krueger, and I. Sutskever, “Learning transferable visual models from natural language supervision,” inProc. Int. Conf. Mach. Learn. (ICML), vol. 139, 2021, pp. 8748–8763

work page 2021
[6]

GLoRIA: A multimodal global-local representation learning framework for label- efficient medical image recognition,

S.-C. Huang, L. Shen, M. P. Lungren, and S. Yeung, “GLoRIA: A multimodal global-local representation learning framework for label- efficient medical image recognition,” inProc. IEEE/CVF Int. Conf. Comput. Vis. (ICCV), 2021, pp. 3942–3951

work page 2021
[7]

MedCLIP: Contrastive learning from unpaired medical images and text,

Z. Wang, Z. Wu, D. Agarwal, and J. Sun, “MedCLIP: Contrastive learning from unpaired medical images and text,” inProc. Conf. Empir. Methods Nat. Lang. Process. (EMNLP), 2022, pp. 3876–3887

work page 2022
[8]

BiomedCLIP: a multimodal biomedical foundation model pretrained from fifteen million scientific image-text pairs

S. Zhang, Z. Xu, N. Usuyama, J. Bagga, R. Tinn, S. Preston, R. Rao, M. Wei, N. Valluri, C. Wong, M. Lungren, T. Naumann, and H. Poon, “BiomedCLIP: A multimodal biomedical foundation model pretrained from fifteen million scientific image-text pairs,”arXiv preprint arXiv:2303.00915, 2023

work page internal anchor Pith review arXiv 2023
[9]

Ret-clip: A retinal im- age foundation model pre-trained with clinical diagnostic re- ports.arXiv preprint arXiv:2405.14137, 2024

J. Du, J. Guo, Z. Ye, and M. Cheng, “RET-CLIP: A retinal image foundation model pre-trained with clinical diagnostic reports,”arXiv preprint arXiv:2405.14137, 2024

work page arXiv 2024
[10]

LoRA: Low-rank adaptation of large language models,

E. J. Hu, Y . Shen, P. Wallis, Z. Allen-Zhu, Y . Li, S. Wang, L. Wang, and W. Chen, “LoRA: Low-rank adaptation of large language models,” inProc. Int. Conf. Learn. Represent. (ICLR), 2022

work page 2022
[11]

Learning imbalanced datasets with label-distribution-aware margin loss,

K. Cao, C. Wei, A. Gaidon, N. Arechiga, and T. Ma, “Learning imbalanced datasets with label-distribution-aware margin loss,” inProc. Adv. Neural Inf. Process. Syst. (NeurIPS), vol. 32, 2019

work page 2019
[12]

Training region-based object detectors with online hard example mining,

A. Shrivastava, A. Gupta, and R. Girshick, “Training region-based object detectors with online hard example mining,” inProc. IEEE Conf. Comput. Vis. Pattern Recognit. (CVPR), 2016, pp. 761–769

work page 2016
[13]

A deep multi-task learning approach to skin lesion classification,

H. Liao and J. Luo, “A deep multi-task learning approach to skin lesion classification,”arXiv preprint arXiv:1812.03527, 2018

work page arXiv 2018
[14]

Distractor-aware neuron intrinsic learning for generic 2D medical image classifications,

L. Gong, K. Ma, and Y . Zheng, “Distractor-aware neuron intrinsic learning for generic 2D medical image classifications,” inProc. Int. Conf. Med. Image Comput. Comput.-Assist. Interv. (MICCAI), Lecture Notes in Computer Science, vol. 12261, 2020, pp. 591–601

work page 2020
[15]

Fighting class imbalance with contrastive learning,

Y . Marrakchi, O. Makansi, and T. Brox, “Fighting class imbalance with contrastive learning,” inProc. Int. Conf. Med. Image Comput. Comput.-Assist. Interv. (MICCAI), Lecture Notes in Computer Science, vol. 12903, 2021, pp. 466–476

work page 2021
[16]

ProCo: Prototype-aware contrastive learning for long-tailed med- ical image classification,

Z. Yang, J. Pan, Y . Yang, X. Shi, H.-Y . Zhou, Z. Zhang, and C. Bian, “ProCo: Prototype-aware contrastive learning for long-tailed med- ical image classification,” inProc. Int. Conf. Med. Image Comput. Comput.-Assist. Interv. (MICCAI), Lecture Notes in Computer Science, vol. 13438, 2022, pp. 173–182

work page 2022
[17]

APTOS 2019 blindness detection,

S. D. Karthik and Maggie, “APTOS 2019 blindness detection,” Kaggle, 2019. [Online]. Available: https://kaggle.com/competitions/ aptos2019-blindness-detection

work page 2019
