Neuromorphic Reinforcement Learning for Quadruped Locomotion Control on Uneven Terrain
Pith reviewed 2026-05-12 04:18 UTC · model grok-4.3
The pith
Equilibrium propagation trains a reinforcement learning controller for quadruped locomotion on uneven terrain that matches backpropagation performance while using far less memory.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper introduces an equilibrium-propagation-based proximal policy optimization algorithm for training continuous-control policies in a neuromorphic-compatible way. It combines this with a CPG-based policy for basic locomotion and a residual policy for terrain adaptation, deriving a nudging signal and clipping rule to stabilize the updates. On a 12-DoF A1 quadruped in a two-stage uneven terrain task, the resulting controller matches a backpropagation-trained PPO baseline in success rate, velocity tracking, power use, and stability, while cutting memory requirements by 4.3 times relative to BPTT.
What carries the argument
The EP-compatible PPO output-nudging signal combined with a two-sided ratio clipping mechanism that stabilizes policy updates during the relaxation phase of equilibrium propagation.
If this is right
- The controller achieves stable policy convergence in a two-stage uneven terrain locomotion task.
- Locomotion performance matches a backpropagation-trained PPO baseline in success rate, velocity tracking, actuator power, and body stability.
- GPU memory efficiency improves by 4.3 times compared with backpropagation through time.
- Local equilibrium-based learning can support high-dimensional embodied locomotion and provide an algorithmic foundation for low-power on-robot adaptation.
Where Pith is reading between the lines
- This approach could allow robots to adapt their locomotion policies on the fly to changes like payload shifts or actuator wear without needing to return to a full simulation environment.
- Integration with actual neuromorphic chips might further reduce power consumption for continuous learning on physical hardware.
- Similar local-learning techniques might extend to other embodied control problems such as manipulation or navigation where backpropagation is costly.
Load-bearing premise
The assumption that the derived EP-compatible signals and clipping mechanism will transfer stably from simulation to real hardware despite sensor noise, actuator delays, and unmodeled dynamics.
What would settle it
A physical experiment on the A1 quadruped robot showing either unstable policy updates, significant performance degradation, or memory efficiency not translating when sensor noise and delays are present.
Figures

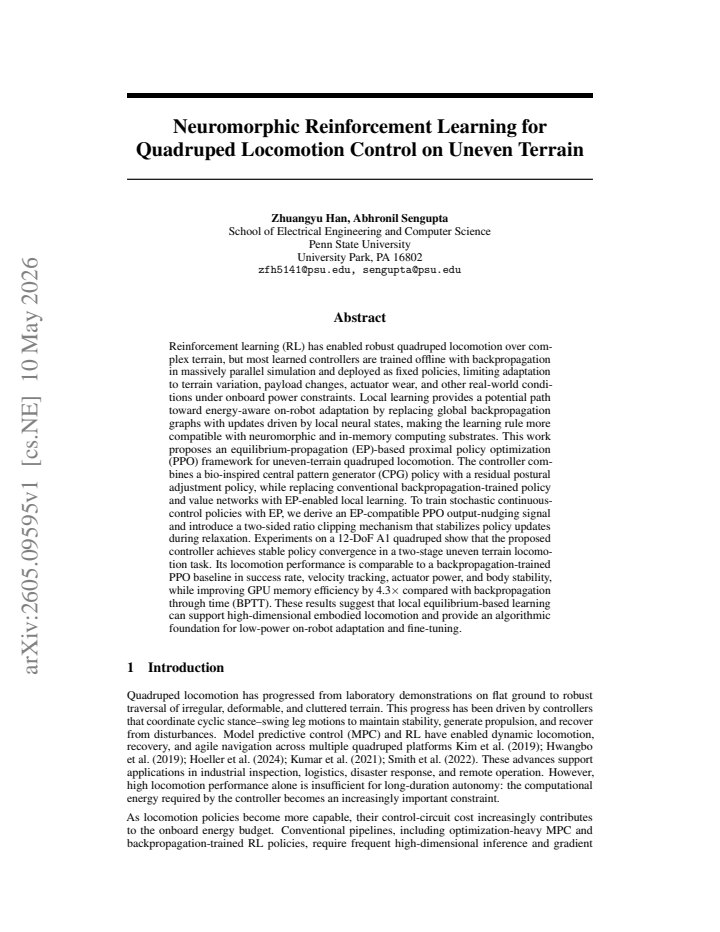

read the original abstract
Reinforcement learning (RL) has enabled robust quadruped locomotion over complex terrain, but most learned controllers are trained offline with backpropagation in massively parallel simulation and deployed as fixed policies, limiting adaptation to terrain variation, payload changes, actuator wear, and other real-world conditions under onboard power constraints. Local learning provides a potential path toward energy-aware on-robot adaptation by replacing global backpropagation graphs with updates driven by local neural states, making the learning rule more compatible with neuromorphic and in-memory computing substrates. This work proposes an equilibrium-propagation (EP)-based proximal policy optimization (PPO) framework for uneven-terrain quadruped locomotion. The controller combines a bio-inspired central pattern generator (CPG) policy with a residual postural adjustment policy, while replacing conventional backpropagation-trained policy and value networks with EP-enabled local learning. To train stochastic continuous-control policies with EP, we derive an EP-compatible PPO output-nudging signal and introduce a two-sided ratio clipping mechanism that stabilizes policy updates during relaxation. Experiments on a 12-DoF A1 quadruped show that the proposed controller achieves stable policy convergence in a two-stage uneven terrain locomotion task. Its locomotion performance is comparable to a backpropagation-trained PPO baseline in success rate, velocity tracking, actuator power, and body stability, while improving GPU memory efficiency by 4.3\(\times\) compared with backpropagation through time (BPTT). These results suggest that local equilibrium-based learning can support high-dimensional embodied locomotion and provide an algorithmic foundation for low-power on-robot adaptation and fine-tuning.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes an equilibrium-propagation (EP)-based proximal policy optimization (PPO) framework for quadruped locomotion control. It combines a bio-inspired central pattern generator (CPG) policy with a residual postural adjustment policy, derives an EP-compatible output-nudging signal and two-sided ratio clipping mechanism to enable local learning for continuous-control policies, and reports simulation results on a 12-DoF A1 quadruped showing stable convergence on a two-stage uneven-terrain task with performance metrics comparable to a backpropagation-trained PPO baseline and 4.3× lower GPU memory usage than BPTT.
Significance. If the local EP updates remain stable, the work could support energy-efficient on-device adaptation for robotic systems by making RL compatible with neuromorphic substrates. Credit is due for the first-principles derivation of the nudging signal and clipping rule that allows EP to handle stochastic policies, as well as the concrete memory-efficiency demonstration in a high-dimensional locomotion task.
major comments (2)
- [Abstract and Experiments] Abstract and Experiments section: the claim of 'comparable' performance in success rate, velocity tracking, actuator power, and body stability is presented without error bars, standard deviations across random seeds, or any statistical tests. This leaves the quantitative support for equivalence to the BPTT baseline moderate at best and weakens the central empirical claim.
- [Introduction and Conclusion] Introduction and Conclusion: the manuscript states that the results 'provide an algorithmic foundation for low-power on-robot adaptation and fine-tuning.' However, all validation occurs in clean simulation; no analysis or experiments examine whether the derived EP-compatible PPO nudging signal and two-sided clipping remain stable under sensor noise, actuator delays, or unmodeled dynamics. This gap is load-bearing for the neuromorphic and on-robot positioning.
minor comments (1)
- [Methods] The two-sided ratio clipping mechanism is described in the methods but would benefit from an explicit equation or pseudocode block to improve reproducibility and clarity of the stabilization rule.
Simulated Author's Rebuttal
We thank the referee for the constructive and insightful comments. We appreciate the positive assessment of the work's significance and the credit given for the derivation of the EP-compatible nudging signal and clipping mechanism. We address each major comment below and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract and Experiments] Abstract and Experiments section: the claim of 'comparable' performance in success rate, velocity tracking, actuator power, and body stability is presented without error bars, standard deviations across random seeds, or any statistical tests. This leaves the quantitative support for equivalence to the BPTT baseline moderate at best and weakens the central empirical claim.
Authors: We agree that the absence of error bars, standard deviations, and statistical tests weakens the support for the comparability claims. In the revised manuscript, we will conduct additional runs with multiple random seeds (at least 5 per condition), report all metrics as mean ± standard deviation, and include statistical comparisons (e.g., paired t-tests or Mann-Whitney U tests with p-values) between the EP-PPO and BPTT-PPO results to quantify the degree of equivalence. revision: yes
-
Referee: [Introduction and Conclusion] Introduction and Conclusion: the manuscript states that the results 'provide an algorithmic foundation for low-power on-robot adaptation and fine-tuning.' However, all validation occurs in clean simulation; no analysis or experiments examine whether the derived EP-compatible PPO nudging signal and two-sided clipping remain stable under sensor noise, actuator delays, or unmodeled dynamics. This gap is load-bearing for the neuromorphic and on-robot positioning.
Authors: We acknowledge that the experiments are confined to idealized simulation without explicit modeling of sensor noise, actuator delays, or unmodeled dynamics. The manuscript's core contribution is the first-principles derivation of EP-compatible mechanisms for stochastic continuous-control policies and their empirical validation in a 12-DoF locomotion task. While we maintain that these mechanisms provide an algorithmic foundation, we agree the on-robot and neuromorphic positioning would be strengthened by robustness analysis. In revision we will (i) add a Limitations section that explicitly states the simulation-only scope and (ii) moderate the language in the Introduction and Conclusion to frame the results as a necessary first step toward on-robot adaptation rather than a direct enabler. Full noise-robustness studies remain future work. revision: partial
Circularity Check
No circularity: EP-PPO nudging signal and clipping derived independently
full rationale
The paper derives an EP-compatible PPO output-nudging signal and two-sided ratio clipping mechanism as first-principles constructions to adapt PPO for equilibrium propagation in continuous control. No equations or steps reduce the claimed results to fitted parameters, self-citations, or input data by construction. Performance equivalence to BPTT-PPO is shown via simulation experiments on the A1 quadruped, not by re-deriving the same quantities. The sim-to-real robustness concern is a generalization issue, not a circularity in the derivation chain.
