Bistability, Absolute Concentration Robustness, and Hysteresis in Dual-Site Futile Cycles with Bifunctional Enzymes

Badal Joshi, Matthew D. Johnston, Tung D. Nguyen

Pith reviewed 2026-05-13 01:49 UTC · model grok-4.3

classification 🧮 math.DS q-bio.MN

keywords futile cyclesbifunctional enzymesabsolute concentration robustnessbistabilityhysteresistranscritical bifurcationsteady statesdual-site modification

0 comments

The pith

In one dual-site futile cycle with bifunctional enzymes, the system exhibits bistability and absolute concentration robustness in the final product.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper analyzes all four dual-site futile cycle networks in which bifunctional enzymes carry out the reverse modification steps via enzyme-substrate compounds. It classifies the existence, number, and stability of steady states and the bifurcation structure as total substrate varies under mass-action kinetics. Two networks display transcritical bifurcations linking boundary and positive steady states, with one producing a backward bifurcation and hysteresis. The central result is that a single network combines bistability with absolute concentration robustness for the final modification state, so that two stable steady states share the same final product concentration despite different intermediate levels.

Core claim

All four networks admit boundary steady states. The networks differ in the number and stability of boundary steady states, in the maximum number of positive steady states (ranging from two to four), and in whether bistability is present. In two networks, a transcritical bifurcation connects the boundary and positive steady state branches; in one case this is a backward bifurcation, producing hysteresis. One network simultaneously exhibits bistability and ACR in the final modification state, where the system can settle into either of two stable steady states with different intermediate concentrations yet identical final product concentration.

What carries the argument

Bifunctional enzyme-substrate compounds that perform the reverse modification steps, which shape the steady-state branches and enable both multiple stable states and absolute concentration robustness in the final product.

Load-bearing premise

The networks follow mass-action kinetics on the specific topologies where reverse steps occur through bifunctional enzyme-substrate compounds.

What would settle it

In a biological system matching one of these topologies, record the final product concentration at two different total substrate amounts that produce distinct stable intermediate levels; if the final concentrations differ, the simultaneous bistability and ACR claim is false.

Figures

Figures reproduced from arXiv: 2605.11389 by Badal Joshi, Matthew D. Johnston, Tung D. Nguyen.

**Figure 1.** Figure 1: Dual-site futile cycle with bifunctional enzymes E1 and E2. We consider all cases where Ei ∈ {C1, C2} for i = 1, 2. The forward steps are catalyzed by a common enzyme E and the reverse steps by one or both of the intermediate compounds C1 and C2. We denote the reaction network above with the notation (E, E, E1, E2). standard futile cycle, separate enzymes catalyze phosphorylation and dephosphorylation. In … view at source ↗

**Figure 2.** Figure 2: Single-site futile cycle with bifunctional enzyme C1 and its detailed model under the Henri-Michaelis-Menten mechanism [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: Bifurcation diagram for the single-site (E, C1) network showing s0 and s1 as functions of the total substrate Ts. The boundary steady state (red) is stable for Ts < k1/k∗ 2 and loses stability at a transcritical bifurcation where the unique stable positive steady state (blue) emerges. ACR in S1 is reflected in the flat positive steady state branch in the s1 panel. Parameter values: k + 1 = 2, k − 1 = 1, k1… view at source ↗

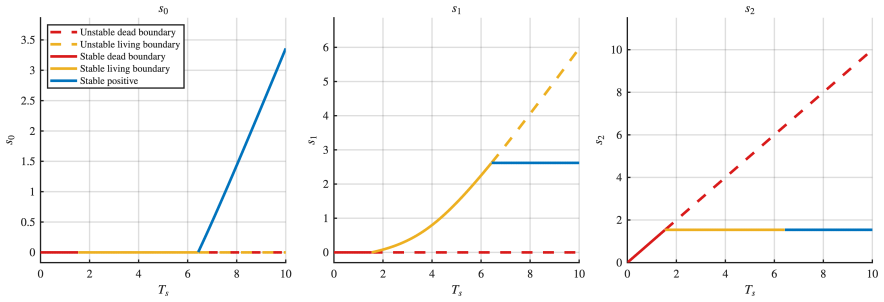

**Figure 4.** Figure 4: Bifurcation diagram for the (E, E, C2, C1) network showing s0, s1, s2 in the case of one positive steady state. The dead boundary steady state (red, stable for Ts < k2/k∗ 3 , unstable for Ts > k2/k∗ 3 ), the living boundary steady state (orange, emerging at Ts = k2/k∗ 3 via a transcritical bifurcation, stable for k2/k∗ 3 < Ts < T2,1 s , unstable for Ts > T2,1 s ), and the positive steady state (blue, emerg… view at source ↗

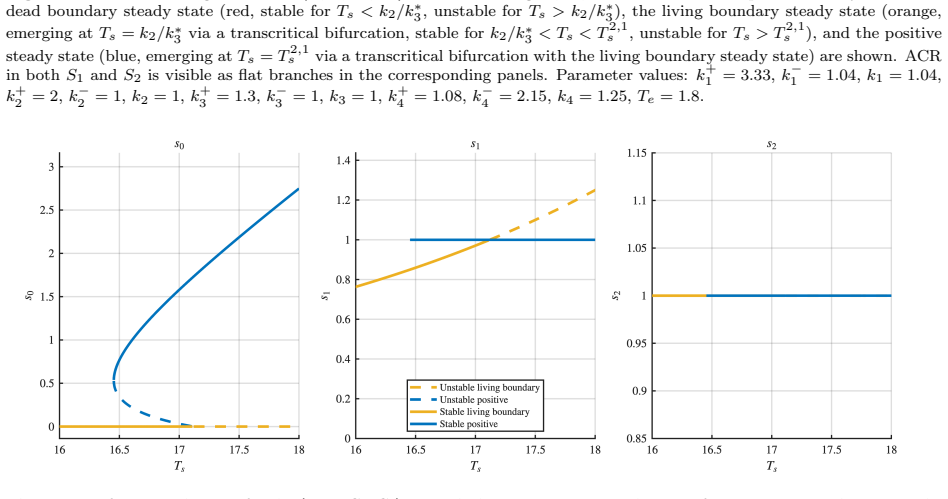

**Figure 5.** Figure 5: Bifurcation diagram for the (E, E, C2, C1) network showing s0, s1, s2 in the case of two positive steady states. The dead boundary steady state branch is omitted (see [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

**Figure 6.** Figure 6: Bifurcation diagram for the (E, E, C1, C1) network showing s0, s1, s2 and multistationarity with ACR in species S1. The dead boundary steady state, which is stable for all values of Ts, is omitted. A stable and an unstable positive steady state (blue) are born simultaneously in a saddle-node bifurcation. ACR in S1 is visible as a flat branch in the s1 panel. Parameter values: k + 1 = 1370, k − 1 = 2.7, k1 … view at source ↗

**Figure 7.** Figure 7: Bifurcation diagram for the (E, E, C1, C2) network showing s0, s1, s2 and multistability (two simultaneously stable positive steady states) out of a maximum of four. The dead boundary steady state, which is stable for all values of Ts, is omitted. A pair of positive steady states (one stable, one unstable) emerges at each of two saddle-node bifurcations, giving four positive steady states over an interval … view at source ↗

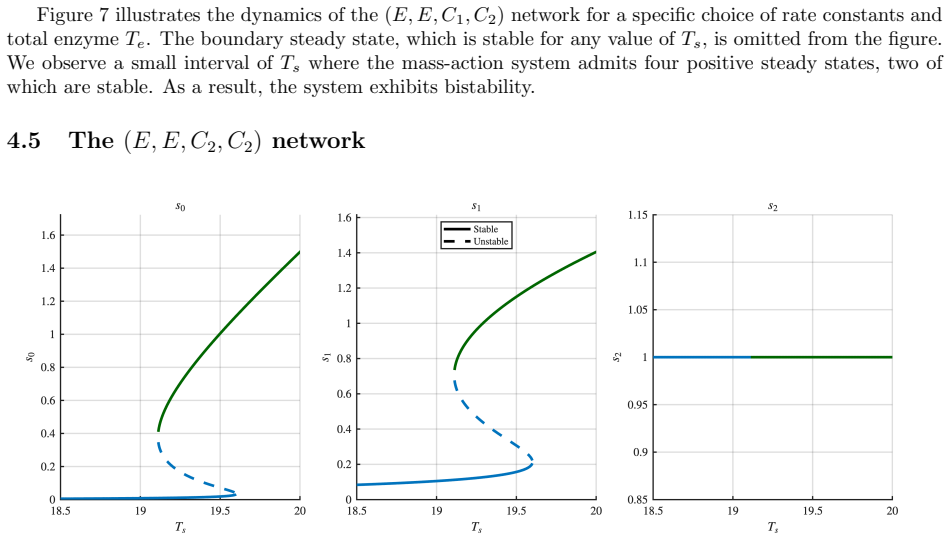

**Figure 8.** Figure 8: Bifurcation diagram for the (E, E, C2, C2) network showing s0, s1, s2 and multistability (two simultaneously stable positive steady states) together with ACR in species S2. The dead boundary steady state branch is omitted; it is stable for Ts < k2/k∗ 3 and loses stability at the transcritical bifurcation where the first positive steady state emerges. A stable and an unstable positive steady state are subse… view at source ↗

read the original abstract

Bifunctional enzymes, which catalyze both the forward and reverse steps of a substrate modification reaction, arise naturally in bacterial two-component signaling systems and metabolic regulation. Beyond their well-known role in conferring absolute concentration robustness (ACR) on substrate species, bifunctional enzymes profoundly shape the dynamical landscape of the networks in which they appear. We study a class of dual-site futile cycles in which the reverse modification steps are carried out by bifunctional enzyme-substrate compounds, and provide a complete mathematical analysis of all four such networks, characterizing the existence, number, and stability of steady states, as well as the bifurcation structure as total substrate is varied. All four networks admit boundary steady states, in contrast to the non-bifunctional case. The networks differ in the number and stability of boundary steady states, in the maximum number of positive steady states (ranging from two to four), and in whether bistability is present. In two networks, a transcritical bifurcation connects the boundary and positive steady state branches; in one case this is a backward bifurcation, producing hysteresis. Perhaps the most striking phenomenon occurs in one of the four networks, which simultaneously exhibits bistability and ACR in the final modification state, where the system can settle into either of two stable steady states with different intermediate concentrations yet identical final product concentration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

One of the four topologies combines bistability with ACR in the final product through a backward transcritical bifurcation, and the paper classifies all four networks by their steady-state counts and stability.

read the letter

The main thing to take away is that the authors locate one specific network topology where two stable positive steady states exist but the terminal modified species sits at the same concentration in both, while intermediates differ. This pairs multistability with absolute concentration robustness in a way that prior futile-cycle models did not emphasize for bifunctional cases. They also map the full set of four topologies and show they differ in boundary steady-state counts, maximum positive steady states (two to four), and whether bistability appears at all. One topology produces hysteresis via a backward transcritical bifurcation as total substrate varies, and all four admit boundary steady states unlike the classic non-bifunctional version. The analysis stays with mass-action ODEs and tracks existence, number, stability, and bifurcations directly as the total substrate parameter changes. The derivations appear parameter-free in structure and avoid obvious circularity or fitted constants. The algebra that isolates the terminal species concentration as invariant across the two positive roots is the load-bearing step for the bistability-plus-ACR claim; if the paper reduces the steady-state equations cleanly without hidden rate restrictions, the result holds for generic parameters. No other major gaps stand out in the classification. This work is aimed at people who model bacterial two-component signaling or metabolic futile cycles and want concrete examples of how bifunctional enzyme topology shapes both robustness and multistability. A reader already working on ACR or on dual-site modification networks will get direct value from the four-way comparison and the explicit bifurcation diagrams. It deserves a serious referee because the claims are mathematically specific, the new combination of features is falsifiable from the equations, and the classification is complete enough to be checked in detail.

Referee Report

1 major / 1 minor

Summary. The paper examines four dual-site futile cycle networks with bifunctional enzymes catalyzing reverse steps using mass-action ODEs. It delivers a full analysis of steady-state existence, multiplicity, stability, and bifurcations parameterized by total substrate. Boundary steady states exist in all cases, positive steady states range from 2 to 4, bistability occurs in some, and one network combines bistability (from backward transcritical bifurcation) with ACR in the terminal species, permitting two stable states with the same final product level but different intermediates.

Significance. This result is significant because it reveals how bifunctional enzymes can generate both robustness (ACR) and multistability in the same system, a combination not commonly analyzed in futile cycle models. The exhaustive treatment of all four topologies and the explicit bifurcation diagrams provide a solid foundation for understanding these motifs in two-component signaling systems. The mathematical rigor, including boundary state analysis contrasting with non-bifunctional cases, adds value to the field of mathematical systems biology.

major comments (1)

[§4 (analysis of the network exhibiting bistability and ACR)] The central claim of simultaneous bistability and ACR in the final modification state depends on the two stable positive steady states having identical concentrations for the terminal species. The manuscript should explicitly derive or highlight the algebraic identity in the steady-state equations that makes the terminal species concentration independent of total substrate and the same for both equilibria. Without this explicit reduction, it is unclear if the invariance holds for generic parameter values or requires additional assumptions on the bifunctional complex equilibria.

minor comments (1)

Clarify the labeling of the four networks throughout the text and figures to facilitate comparison of their differing behaviors.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review, positive evaluation of the work's significance, and constructive suggestion. We address the major comment below and have incorporated the requested clarification into the revised manuscript.

read point-by-point responses

Referee: [§4 (analysis of the network exhibiting bistability and ACR)] The central claim of simultaneous bistability and ACR in the final modification state depends on the two stable positive steady states having identical concentrations for the terminal species. The manuscript should explicitly derive or highlight the algebraic identity in the steady-state equations that makes the terminal species concentration independent of total substrate and the same for both equilibria. Without this explicit reduction, it is unclear if the invariance holds for generic parameter values or requires additional assumptions on the bifunctional complex equilibria.

Authors: We agree that an explicit algebraic derivation strengthens the presentation. In the revised Section 4, we now derive the identity directly from the steady-state mass-action equations for the network in question. Setting the time derivatives to zero and using the conservation relations for the bifunctional enzyme-substrate complexes yields a cancellation in the equation for the terminal species, resulting in an algebraic relation that depends only on the rate constants and is independent of total substrate. This common value is attained by both positive steady states (including the two stable ones connected by the backward transcritical bifurcation), confirming ACR without requiring special assumptions on the complex equilibria beyond the standard mass-action framework and generic positivity of parameters. We have added a dedicated paragraph and a short appendix entry highlighting this reduction. revision: yes

Circularity Check

0 steps flagged

No circularity: direct algebraic analysis of mass-action steady states and bifurcations

full rationale

The paper derives the existence, multiplicity, and stability of steady states for the four dual-site futile cycle networks by solving the mass-action ODE steady-state equations directly and applying standard bifurcation techniques (transcritical, backward bifurcation) as total substrate varies. The simultaneous bistability-plus-ACR claim for one network follows from showing that the terminal species concentration satisfies an invariant algebraic relation independent of the two positive roots and of total substrate. No parameters are fitted, no predictions are renamed fits, and no load-bearing step reduces to a self-citation or ansatz imported from prior work by the same authors. The derivation is self-contained against the explicit polynomial systems.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Only the abstract is available, so the ledger is necessarily incomplete; the analysis rests on standard mass-action ODE modeling of the four network topologies.

axioms (2)

domain assumption The reaction networks obey mass-action kinetics.
Standard assumption for deterministic chemical reaction network models; invoked implicitly by the steady-state and bifurcation analysis.
domain assumption The four dual-site futile cycle topologies with bifunctional enzyme-substrate compounds are correctly specified.
The complete classification of steady states and bifurcations depends on these exact network structures.
