Invariant Stochastic Filtering on SE(3) for Inertial-Encoder State Estimation of Serial Rigid Manipulators

S. Yaqubi , J. Mattila This is my paper

Pith reviewed 2026-07-02 21:46 UTC · model grok-4.3

classification 💻 cs.RO
keywords invariant extended Kalman filterSE(3)state estimationserial manipulatorsinertial sensorsgroup-affine systemsLie group filtering
0
0 comments X

The pith

An invariant extended Kalman filter on SE(3) gives serial manipulators autonomous error dynamics and modular mean-square stability.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an invariant extended Kalman filter formulated directly on the Lie group SE(3) for estimating the state of serial rigid manipulators with any number of links. Because the kinematic equations are group-affine, the linearised error dynamics do not depend on the current state, so the Riccati equation tracks the true error covariance rather than an approximation. A separated noise model handles gyroscope and accelerometer data independently, and the filter is built as a chain of per-link estimators whose covariances are linked only through the Adjoint operator. Exponential ultimate boundedness in mean square is shown using a Lie-algebra Lyapunov function whose bounds chain across links via the Adjoint norm, yielding a stability result that scales with chain length.

Core claim

The group-affine property of the manipulator kinematics on SE(3) renders the linearised error dynamics autonomous, allowing the Riccati equation to govern the true covariance; the resulting modular IEKF chain admits an exponential mean-square stability certificate obtained by chaining per-link Lyapunov bounds through the Adjoint operator norm.

What carries the argument

The group-affine property of the kinematic equations on SE(3), which makes the error dynamics state-independent and permits exact covariance propagation via the Riccati equation.

If this is right

  • The computational cost grows linearly with the number of links.
  • The stability certificate remains valid for manipulators of arbitrary length.
  • The accelerometer measurement covariance scales exactly with the sample interval in the same manner as the discretised process noise.
  • The gyroscope noise contribution to the dynamics vanishes at rest and increases with twist magnitude.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same group-affine structure could be exploited for other rigid-body systems whose kinematics live on SE(3).
  • If the group-affine property holds only approximately, the autonomy of the error dynamics would degrade gracefully rather than collapse.
  • Real-time implementation on embedded hardware becomes feasible for long chains because each link's update depends on its predecessor only through a fixed matrix transformation.

Load-bearing premise

The kinematic equations of the serial rigid manipulator are group-affine when expressed on SE(3).

What would settle it

A numerical experiment in which the empirical error covariance of the filter diverges from the Riccati-predicted covariance for a long manipulator chain would falsify the autonomy claim.

Figures

Figures reproduced from arXiv: 2607.00026 by J. Mattila, S. Yaqubi.

Figure 1
Figure 1. Figure 1: Body-frame twists — true (black) and IEKF (blue dashed) with 2 [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗
Figure 2

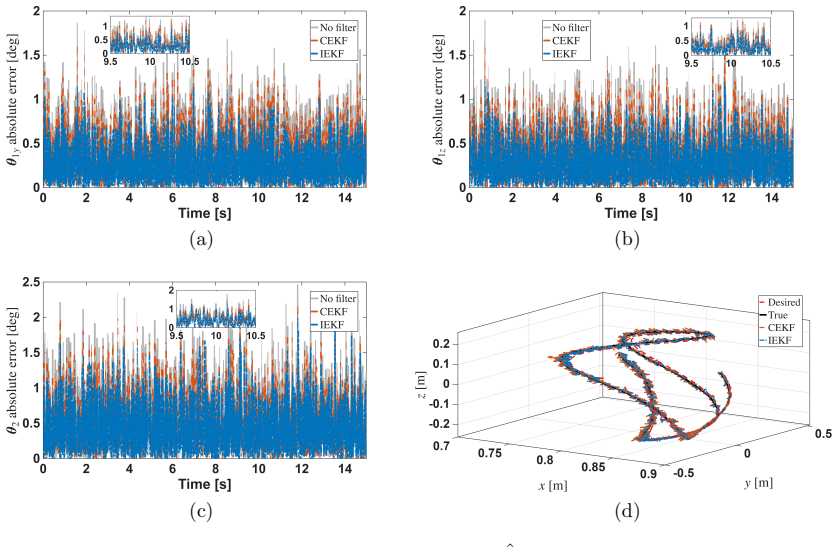

Figure 2. Figure 2: Absolute joint-angle estimation error | ˆθi − θi | [deg], scenario S1 — no filter (grey), CEKF (orange dashed), IEKF (blue dash-dotted): (a) θ1y, (b) θ1z, (c) θ2. The IEKF achieves the lowest error on all channels; the advantage is largest on θ2 where upstream Adjoint covariance propagation and IMU fusion contribute information unavailable to the encoder-only CEKF. (d) End-effector trajectory in steady sta… view at source ↗
Figure 3

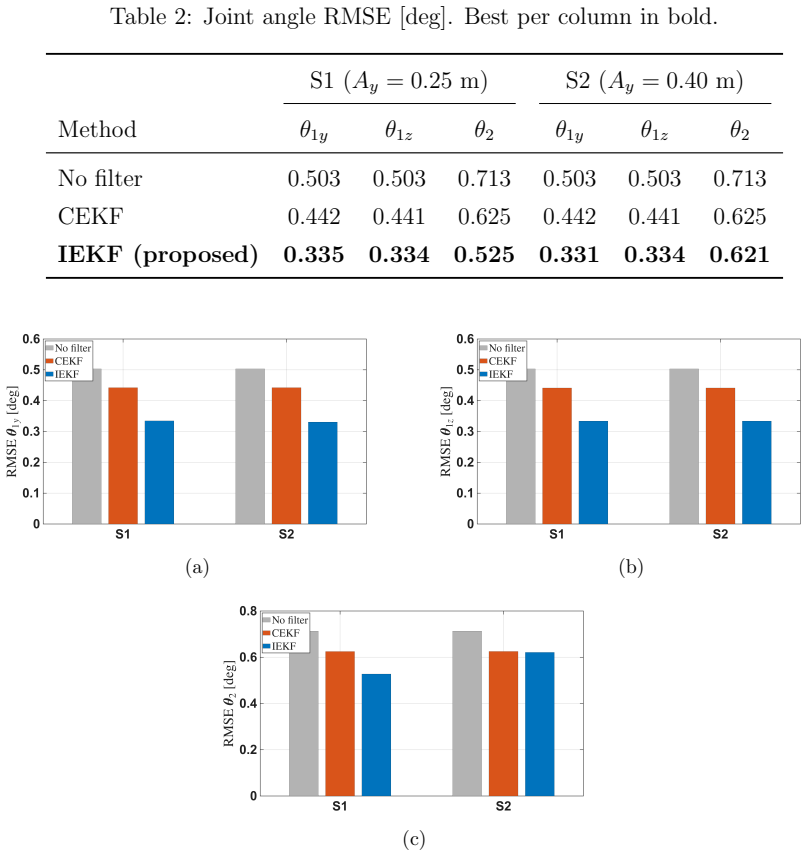

Figure 3. Figure 3: RMSE [deg] for S1 and S2 — no filter (grey), CEKF (orange), IEKF [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: NEES for Link 2, scenario S1. Solid: ideal ( [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
read the original abstract

An invariant extended Kalman filter (IEKF) is developed for state estimation of serial rigid manipulators with an arbitrary number of links, formulated entirely within the Lie group SE(3). The group-affine property of the kinematic equations makes the linearised error dynamics autonomous, so the Riccati equation governs the true error covariance rather than a local approximation. A physically separated noise model treats gyroscope and accelerometer channels independently: the accelerometer provides translational twist via gravity-compensated integration, yielding a measurement covariance that scales with the sample interval in exact analogy with process noise discretisation; a state-dependent Coriolis noise term captures gyroscope noise propagating through the nonlinear dynamics, vanishing at rest and growing with twist magnitude. The filter is structured as a modular chain of per-link IEKFs in which the predicted covariance of each link depends on its predecessor only through the Adjoint-transformed posterior, giving linear computational cost in link count. Exponential ultimate boundedness in mean square is established via a Lie algebra Lyapunov function, with per-link bounds chained through the Adjoint operator norm to yield a stability certificate that is modular and scalable to arbitrary chain length. Numerical results validate the design.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper develops an invariant extended Kalman filter (IEKF) for inertial-encoder state estimation of serial rigid manipulators with arbitrary link count, formulated on the Lie group SE(3). It asserts that the kinematic equations possess the group-affine property, rendering the linearized error dynamics autonomous so that the Riccati equation tracks the true covariance rather than a local approximation. A separated noise model is introduced (accelerometer-derived translational twist with interval-scaled covariance; state-dependent Coriolis term for gyroscope propagation). The filter is realized as a modular chain of per-link IEKFs whose covariances propagate via Adjoint-transformed posteriors, yielding linear complexity. Exponential ultimate boundedness in mean square is proven via a Lie-algebra Lyapunov function whose per-link bounds are chained by Adjoint operator norms. Numerical results are cited for validation.

Significance. If the group-affine property is shown to hold exactly for the composite chain kinematics (including the adjoint coupling and Coriolis noise), the work would deliver a scalable, modular IEKF with explicit mean-square stability certificates and linear cost, which is a meaningful advance for Lie-group filtering in robotics. The modular chaining via Adjoint norms and the physically motivated noise separation are concrete strengths that could be adopted in manipulator applications.

major comments (1)
  1. [Abstract (group-affine property paragraph)] Abstract (group-affine property paragraph) and the kinematic model section: the claim that the full kinematic equations (accelerometer integration, gyroscope propagation, and state-dependent Coriolis noise) remain group-affine on the product of SE(3) copies is load-bearing for autonomy of the error dynamics and for the Riccati equation governing true covariance. For a serial chain each link velocity depends on the preceding pose through the adjoint, and the Coriolis term is explicitly state-dependent; an explicit derivation confirming that the composite vector field is still group-affine (i.e., the error dynamics are state-independent) is required, otherwise the autonomy and the subsequent Lyapunov chaining argument do not apply to the implemented filter.
minor comments (1)
  1. The abstract states that 'numerical results validate the design' but supplies no information on the manipulator configuration, sensor noise levels, comparison filters, or quantitative metrics; adding these details in the results section would improve reproducibility and clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review. The single major comment is addressed below; we will revise the manuscript to incorporate the requested explicit derivation.

read point-by-point responses

  1. Referee: [Abstract (group-affine property paragraph)] Abstract (group-affine property paragraph) and the kinematic model section: the claim that the full kinematic equations (accelerometer integration, gyroscope propagation, and state-dependent Coriolis noise) remain group-affine on the product of SE(3) copies is load-bearing for autonomy of the error dynamics and for the Riccati equation governing true covariance. For a serial chain each link velocity depends on the preceding pose through the adjoint, and the Coriolis term is explicitly state-dependent; an explicit derivation confirming that the composite vector field is still group-affine (i.e., the error dynamics are state-independent) is required, otherwise the autonomy and the subsequent Lyapunov chaining argument do not apply to the implemented filter.

    Authors: We agree that an explicit derivation of the group-affine property for the composite kinematics on SE(3)^n is necessary. In the revised manuscript we will add a dedicated subsection in the kinematic model section that derives the vector field step by step. The deterministic kinematics are shown to satisfy the group-affine condition on the product Lie group, with adjoint couplings between consecutive links absorbed into the group action; the state-dependent Coriolis contribution is treated exclusively as multiplicative process noise and does not enter the deterministic vector field. This structure keeps the linearized error dynamics autonomous, so the Riccati equation tracks the true covariance and the subsequent Lyapunov chaining argument continues to apply. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation rests on stated group-affine kinematics and independent Lyapunov analysis.

full rationale

The paper states the group-affine property of the kinematic equations as an input property of serial rigid manipulators on SE(3), then derives autonomous error dynamics and Riccati covariance from it. Stability follows from a Lie-algebra Lyapunov function with Adjoint-norm chaining; neither step is defined in terms of the output filter nor obtained by fitting parameters to the target covariance. No self-citation chain or ansatz smuggling appears in the abstract or described derivation. The central claims therefore remain independent of the results they produce.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on the group-affine property of manipulator kinematics and the validity of the proposed physically separated noise models; these are standard domain assumptions in Lie-group robotics but unverified here.

axioms (2)
  • domain assumption The kinematic equations of the serial rigid manipulator are group-affine on SE(3).
    Invoked to make linearised error dynamics autonomous (abstract).
  • domain assumption Gyroscope and accelerometer noise can be treated as physically separated channels with the stated covariance scaling and state-dependent Coriolis term.
    Used to derive measurement and process noise models (abstract).
