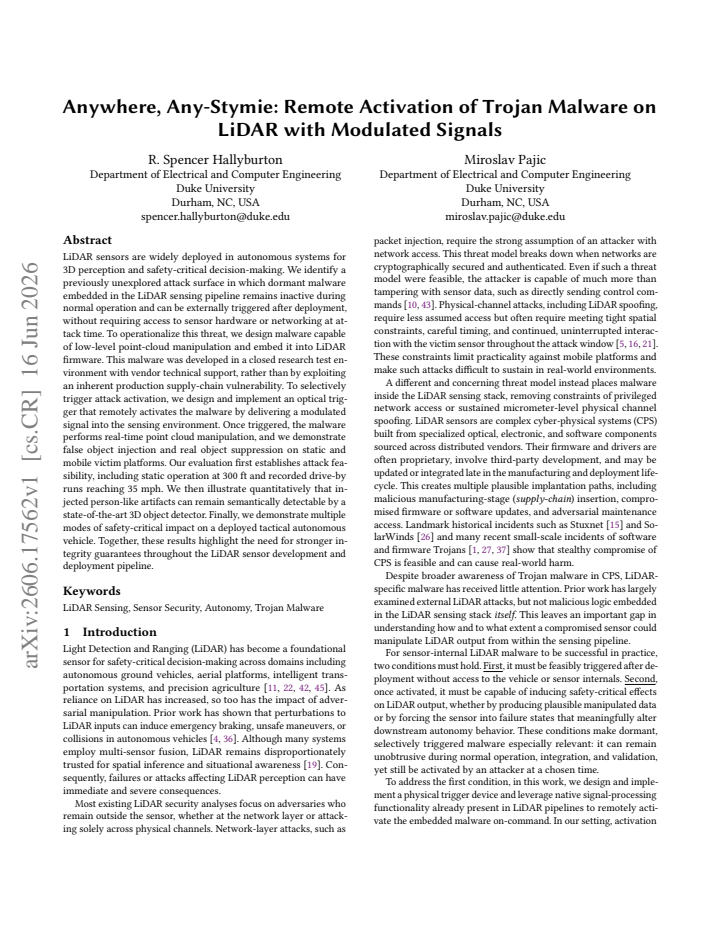

Anywhere, Any-Stymie: Remote Activation of Trojan Malware on LiDAR with Modulated Signals
Pith reviewed 2026-06-27 00:30 UTC · model grok-4.3
The pith
Dormant malware in LiDAR firmware activates via external modulated optical signals to manipulate point clouds in real time.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

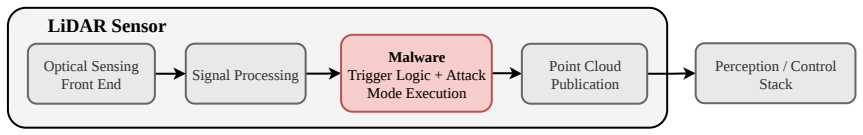

Dormant malware embedded in the LiDAR sensing pipeline remains inactive during normal operation and can be externally triggered after deployment, without requiring access to sensor hardware or networking at attack time, enabling real-time point cloud manipulation including false object injection and real object suppression.
What carries the argument

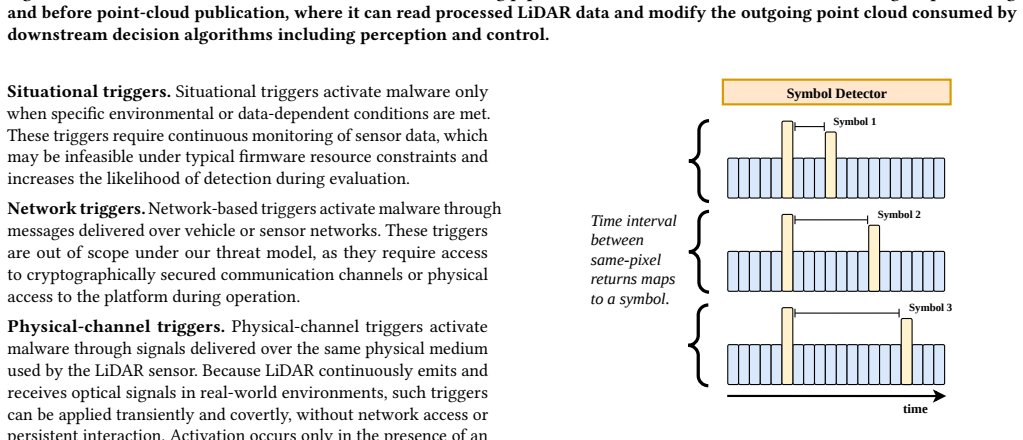

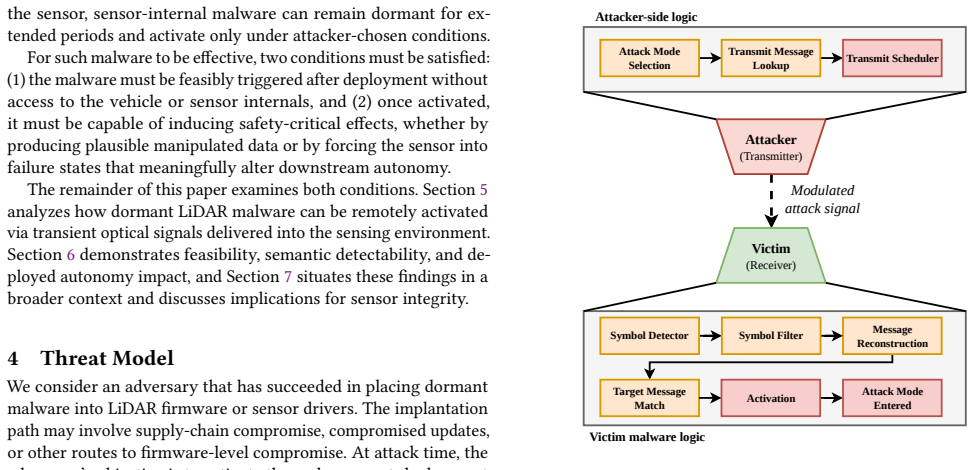

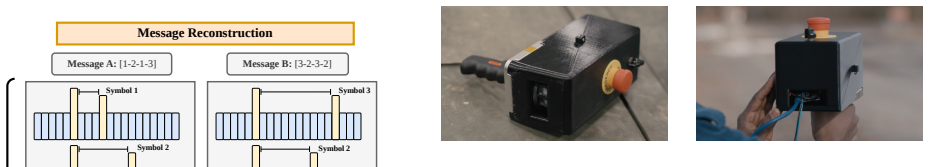

An optical trigger that delivers a modulated signal into the sensing environment to activate embedded firmware malware for point-cloud manipulation.
If this is right

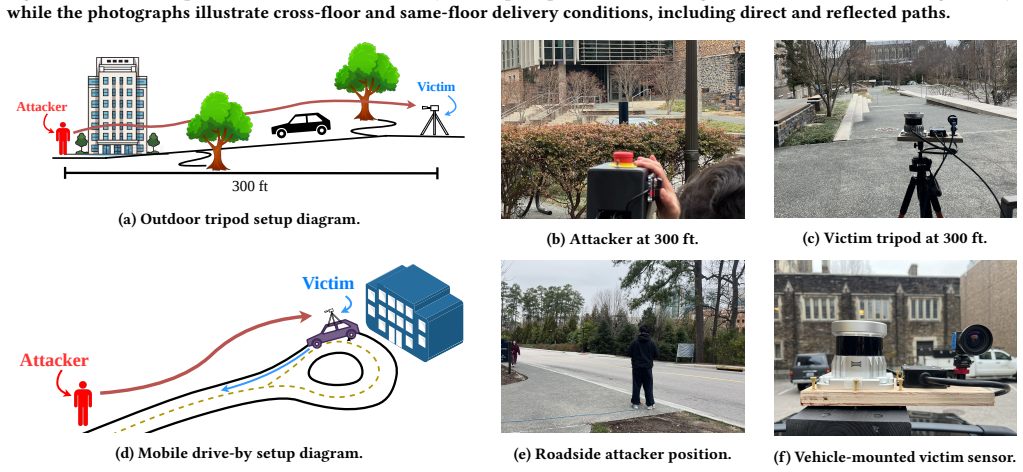

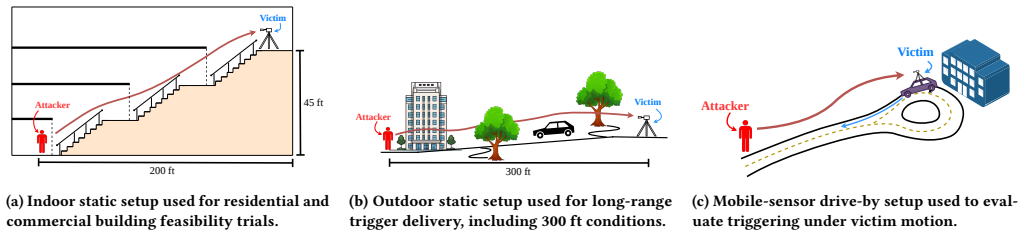

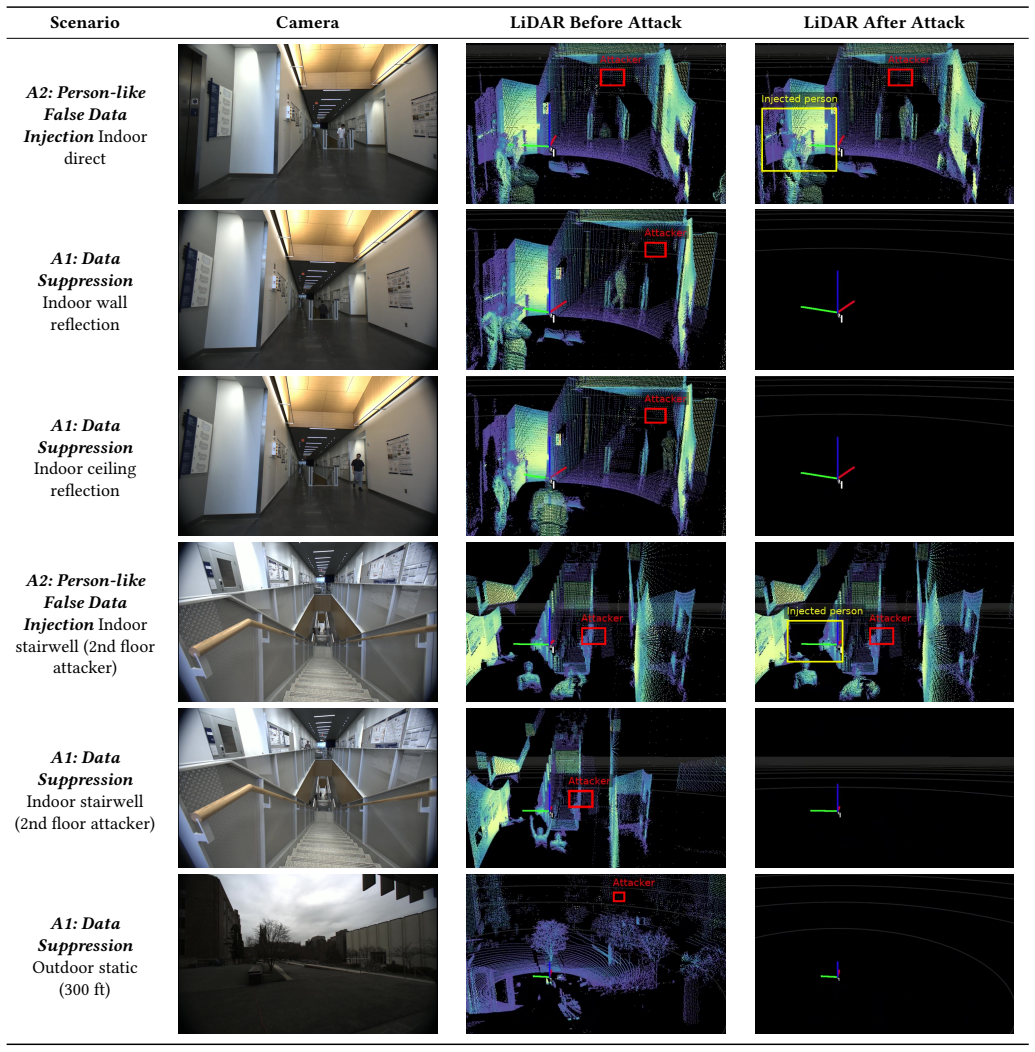

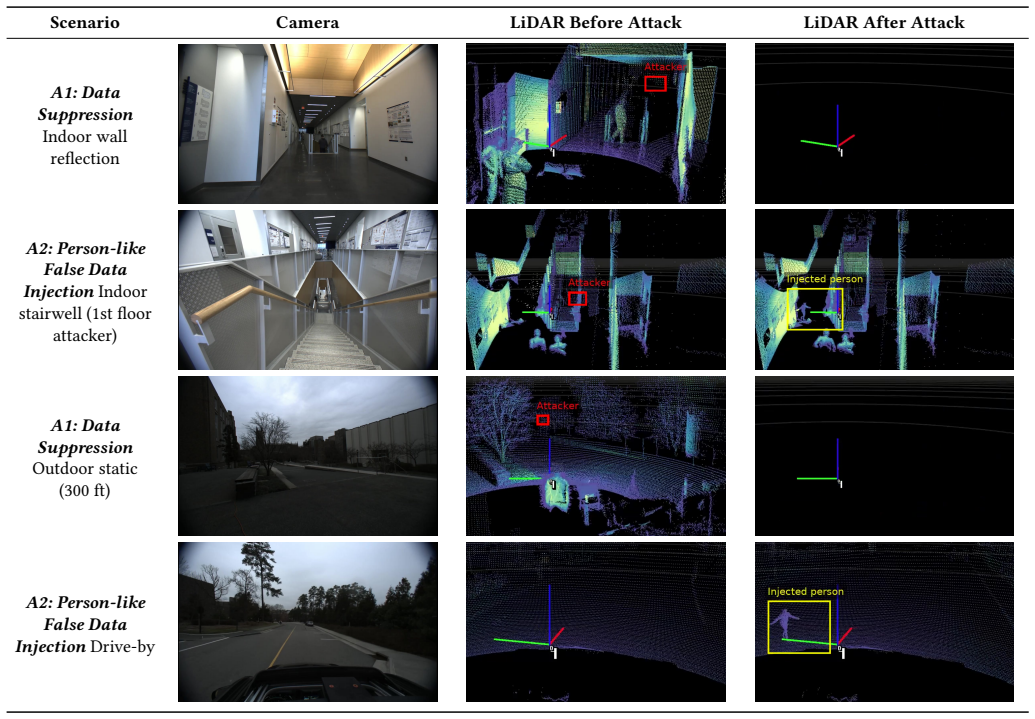

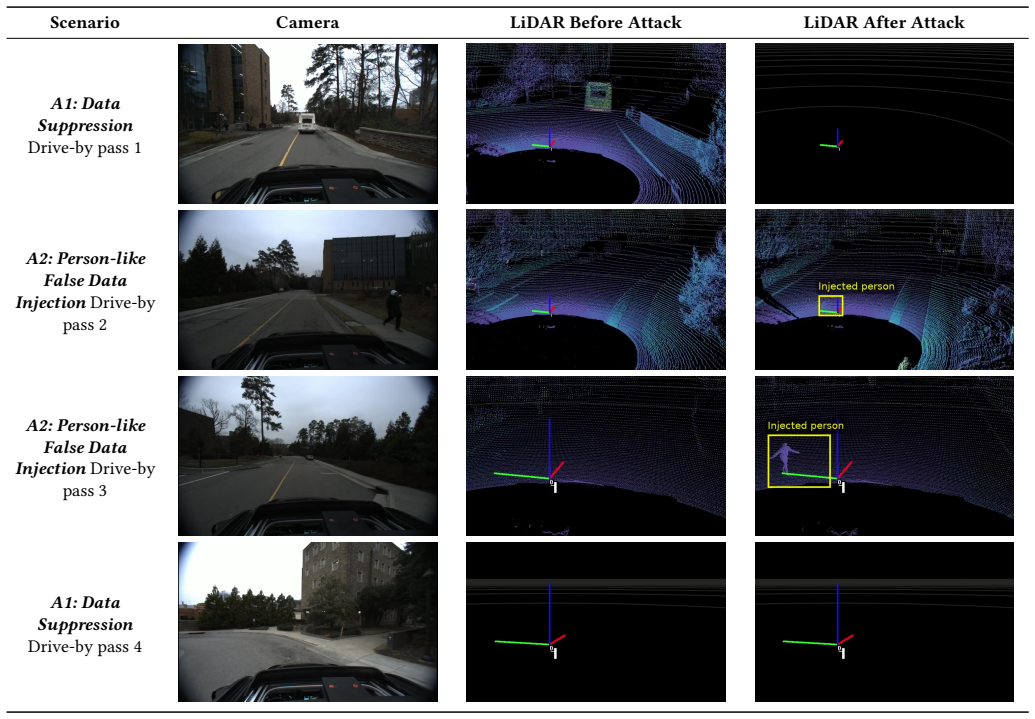

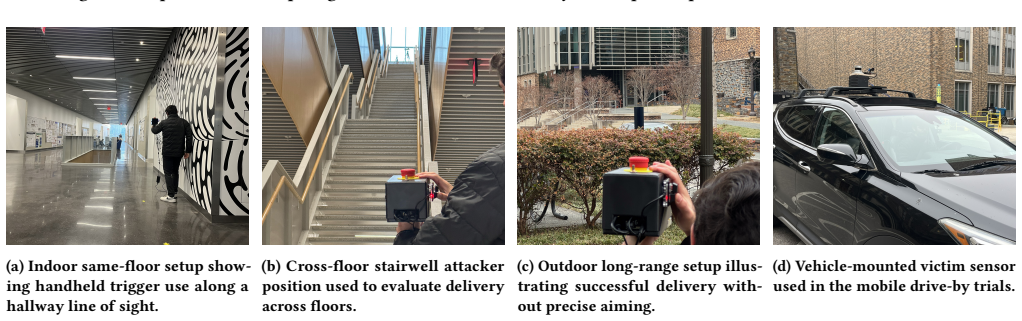

- Attack remains feasible at static ranges of 300 feet and during drive-by runs reaching 35 mph.

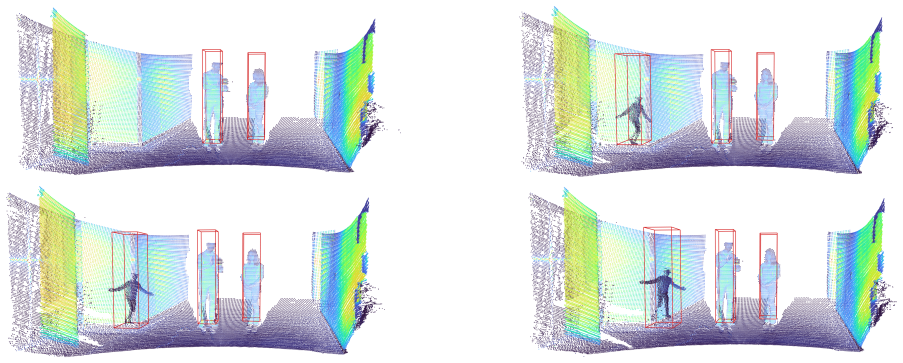

- Injected person-like artifacts stay semantically detectable by state-of-the-art 3D object detectors.

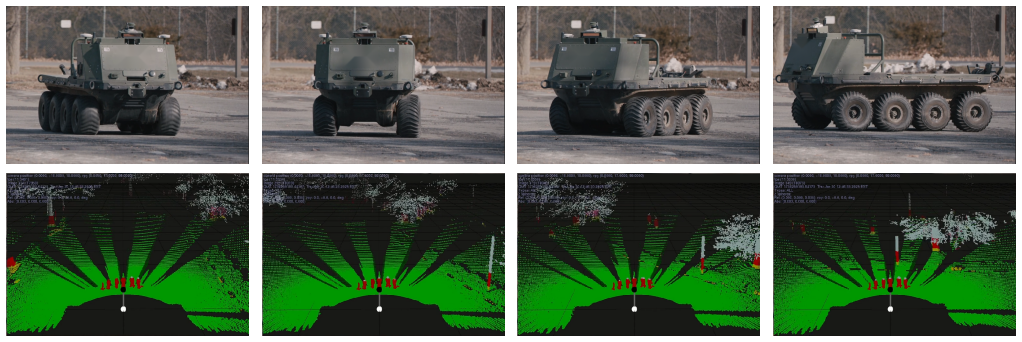

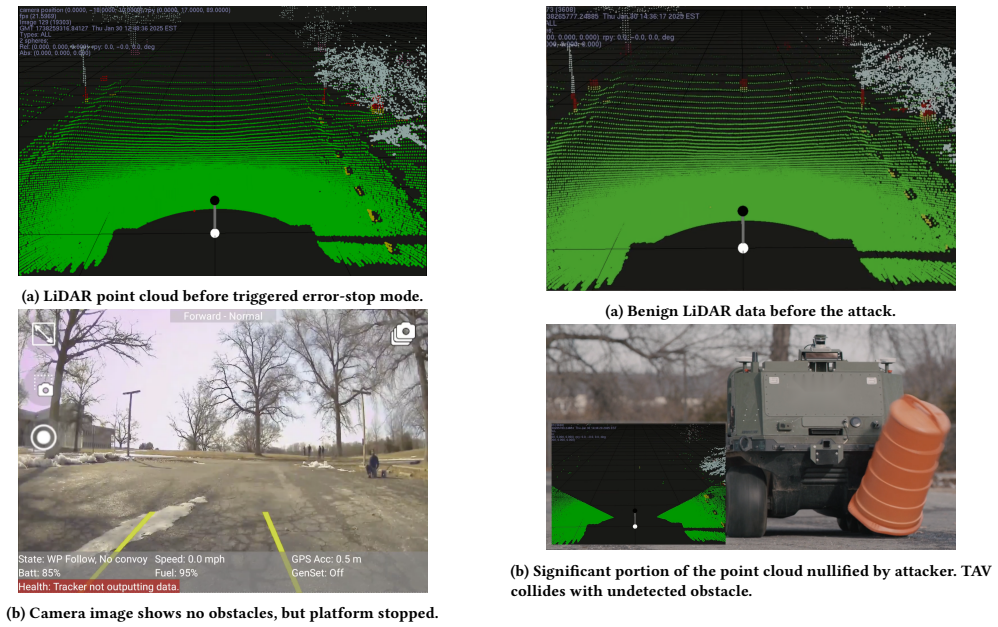

- Multiple modes of safety-critical impact appear on a deployed tactical autonomous vehicle.
Where Pith is reading between the lines
- Similar firmware-resident triggers could apply to other perception sensors if the same embedding pattern exists.
- LiDAR designs may require explicit checks on incoming optical signal patterns to reject activation attempts.
Load-bearing premise
The malware can be embedded into LiDAR firmware in a way that survives deployment and remains selectively triggerable by an external optical signal without being detected or disabled by normal sensor operation or vendor security measures.
What would settle it
A controlled test in which the modulated optical signal is delivered to a LiDAR sensor containing the malware and the point cloud is observed to change only in the presence of that signal.
Figures
read the original abstract
LiDAR sensors are widely deployed in autonomous systems for 3D perception and safety-critical decision-making. We identify a previously unexplored attack surface in which dormant malware embedded in the LiDAR sensing pipeline remains inactive during normal operation and can be externally triggered after deployment, without requiring access to sensor hardware or networking at attack time. To operationalize this threat, we design malware capable of low-level point-cloud manipulation and embed it into LiDAR firmware. This malware was developed in a closed research test environment with vendor technical support, rather than by exploiting an inherent production supply-chain vulnerability. To selectively trigger attack activation, we design and implement an optical trigger that remotely activates the malware by delivering a modulated signal into the sensing environment. Once triggered, the malware performs real-time point cloud manipulation, and we demonstrate false object injection and real object suppression on static and mobile victim platforms. Our evaluation first establishes attack feasibility, including static operation at 300~ft and recorded drive-by runs reaching 35~mph. We then illustrate quantitatively that injected person-like artifacts can remain semantically detectable by a state-of-the-art 3D object detector. Finally, we demonstrate multiple modes of safety-critical impact on a deployed tactical autonomous vehicle. Together, these results highlight the need for stronger integrity guarantees throughout the LiDAR sensor development and deployment pipeline.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to identify a new attack surface on LiDAR sensors in autonomous systems: dormant malware embedded in the sensing pipeline can be remotely activated by an external modulated optical signal after deployment, without further hardware or network access. Once triggered, the malware enables real-time point-cloud manipulation including false object injection and real object suppression. The authors report embedding the malware with vendor technical support in a closed lab environment, demonstrate feasibility at up to 300 ft static range and 35 mph drive-by speeds, show that injected artifacts remain detectable by a state-of-the-art 3D detector, and illustrate safety-critical effects on a tactical autonomous vehicle.
Significance. If the remote-activation mechanism and point-cloud manipulation results hold under realistic conditions, the work would be significant for exposing an integrity threat in deployed LiDAR pipelines and motivating stronger firmware verification. The reported distance, speed, and detector-impact experiments would constitute concrete evidence of practical reach; however, the explicit reliance on vendor-assisted embedding in a closed setting substantially narrows the real-world threat model relative to supply-chain or post-deployment compromise scenarios.
major comments (1)
- [Abstract] Abstract: the central threat model presupposes malware already present in deployed production firmware that can be selectively triggered without prior access at attack time. The manuscript explicitly states the embedding 'was developed in a closed research test environment with vendor technical support, rather than by exploiting an inherent production supply-chain vulnerability,' yet provides no mechanism, attack vector, or evidence for achieving the initial infection step without such assistance. This prerequisite is load-bearing for any claim that the remote-activation attack applies outside the lab.
Simulated Author's Rebuttal
We thank the referee for the careful review and for highlighting an important aspect of our threat model. We respond to the comment below.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central threat model presupposes malware already present in deployed production firmware that can be selectively triggered without prior access at attack time. The manuscript explicitly states the embedding 'was developed in a closed research test environment with vendor technical support, rather than by exploiting an inherent production supply-chain vulnerability,' yet provides no mechanism, attack vector, or evidence for achieving the initial infection step without such assistance. This prerequisite is load-bearing for any claim that the remote-activation attack applies outside the lab.
Authors: We agree that the manuscript does not demonstrate or provide a mechanism for the initial embedding of malware without vendor assistance, and we explicitly note this limitation in the abstract. Our contribution centers on the remote optical activation mechanism and the resulting real-time point-cloud manipulation once the malware is present and triggered, without requiring further hardware or network access at attack time. To address the comment, we will revise the abstract, introduction, and add a short discussion paragraph to more precisely bound the threat model: we assume dormant malware is already resident (via any means, including but not limited to the vendor-assisted embedding used for the proof-of-concept) and focus on showing that such malware can be selectively activated and used for safety-critical manipulation from a distance. We will also note potential real-world infection paths as an area for future investigation rather than claiming supply-chain compromise. revision: yes
Circularity Check
No circularity: experimental demonstration with no derivation chain
full rationale
The paper reports an experimental security demonstration rather than any mathematical derivation, prediction, or first-principles result. The abstract and text explicitly qualify the malware embedding as performed 'in a closed research test environment with vendor technical support, rather than by exploiting an inherent production supply-chain vulnerability,' so the work does not claim or derive the supply-chain step. No equations, fitted parameters, self-citations, or ansatzes appear that could reduce any claim to its own inputs by construction. The central results (optical trigger feasibility, point-cloud manipulation) are direct empirical measurements on the instrumented hardware.
Axiom & Free-Parameter Ledger
