arxiv: 1906.09861 · v1 · pith:5ZWBGBL4new · submitted 2019-06-24 · 🧬 q-bio.MN · physics.bio-ph

Independent channels for miRNA biosynthesis ensure efficient static and dynamic control in the regulation of the early stages of myogenesis

Jonathan Fiorentino , Andrea De Martino This is my paper

Pith reviewed 2026-05-25 17:00 UTC · model grok-4.3

classification 🧬 q-bio.MN physics.bio-ph
keywords miRNA regulationmyogenesisgene regulatory circuitsdeterministic modeldecoy systemsdynamic controlstatic controlcompetition for binding
0
0 comments X

The pith

Two independent miRNA biosynthesis channels are both required for proper static and dynamic control during early muscle cell differentiation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a deterministic model of the miRNA circuit thought to govern the start of myogenesis and asks what the two separate production routes for the same miRNA actually contribute. One route uses an exogenous controller and a decoy system; the other uses transcription from a second genomic site. The model shows that the decoy route alone can stabilize target levels but only inside narrow kinetic windows that tightly couple the two routes. The second route supplies the nonlinear sensitivity needed for quick miRNA surges that drive the differentiation program. Both routes together are necessary for the circuit to work as observed.

Core claim

While the miRNA-decoy system can deliver optimal static control, it forces the kinetic parameters into narrow ranges that cross-link the channels; the independent transcription locus supplies the nonlinear target response that permits the fast miRNA concentration changes demanded by differentiation. Static competition-mediated regulation can be achieved by the decoy channel alone, yet both channels prove essential for the circuit's full functionality.

What carries the argument

The dual-channel miRNA architecture in which one channel is a decoy system under exogenous control and the other is direct transcription from a distinct locus, with competition for miRNA binding as the shared control step.

If this is right

  • Optimal steady-state control via the decoy system restricts parameters so that the two channels become tightly interdependent.
  • Fast concentration shifts during differentiation arise specifically from the nonlinear response of the target to modest increases in the second-channel transcription rate.
  • Static regulation can be handled by the decoy channel in isolation, but full circuit performance requires both channels.
  • This joint-control pattern may constitute a minimal optimal architecture for miRNA circuits in other regulatory contexts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same two-channel pattern could be searched for in other differentiation programs that require both precise steady states and timed transitions.
  • Knocking out one channel in a cellular model and measuring the separate loss of either precision or timing would directly test the necessity claim.
  • The cross-linking of parameters may reduce the need for external tuning by letting one channel compensate for fluctuations in the other.

Load-bearing premise

The two miRNA production channels operate independently and competition for binding is the main control mechanism, so that parameters can be restricted to narrow ranges without needing separate experimental confirmation of those ranges or the independence assumption.

What would settle it

An experiment that removes or blocks the independent genomic transcription locus and still observes both stable target levels and the required rapid miRNA increase during differentiation would falsify the claim that both channels are essential.

Figures

Figures reproduced from arXiv: 1906.09861 by Andrea De Martino, Jonathan Fiorentino.

Figure 1

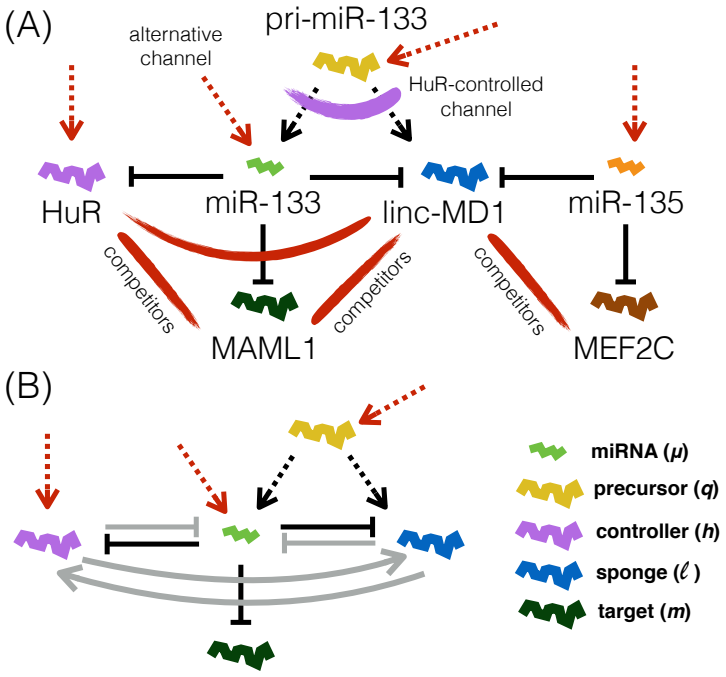

Figure 1. Figure 1: Scheme of the miRNA-decoy circuit controlling skeletal muscle-cell di [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Dynamical behaviour of the model, to be compared with the experimental time courses presented in [29, 31] [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (A) Steady state concentrations of m, `, h and µ as functions of bh with all other parameters kept constant and bµ = 0. A change in the transcription rate of h affects the levels of m and `, which crosstalk through µ. (B–D) Heat maps of [m], [µ] and α returning their values versus bh and bµ. As one would expect, the behaviour of [µ] is roughly opposite to that of [m]. Notice that in each case the dynamical… view at source ↗
Figure 4
Figure 4. Figure 4: (A–B) Heat maps of χmh and χmbµ as functions of bh and bµ. The grey lines represent, respectively, the curve of maximum χmh and minimum χmbµ , where control is optimized at fixed bh. In both cases, optimal target control at stationarity is achieved for bh ' 2 · 10−4 nM · s −1 and very small bµ. (C) Indeed, for bh = 10−5 nM · s −1 and bh = 1.5 · 10−4 nM · s −1 (red and blue curves), χmh is maximum for bµ = … view at source ↗
Figure 5
Figure 5. Figure 5: Heat maps showing the value of β, Eq. (29), as a function of bh and bµ for different values of b (increasing, as displayed, from (A) to (D)). The grey (resp. green) curve gives the β = 1 (resp. β = 2) contour. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

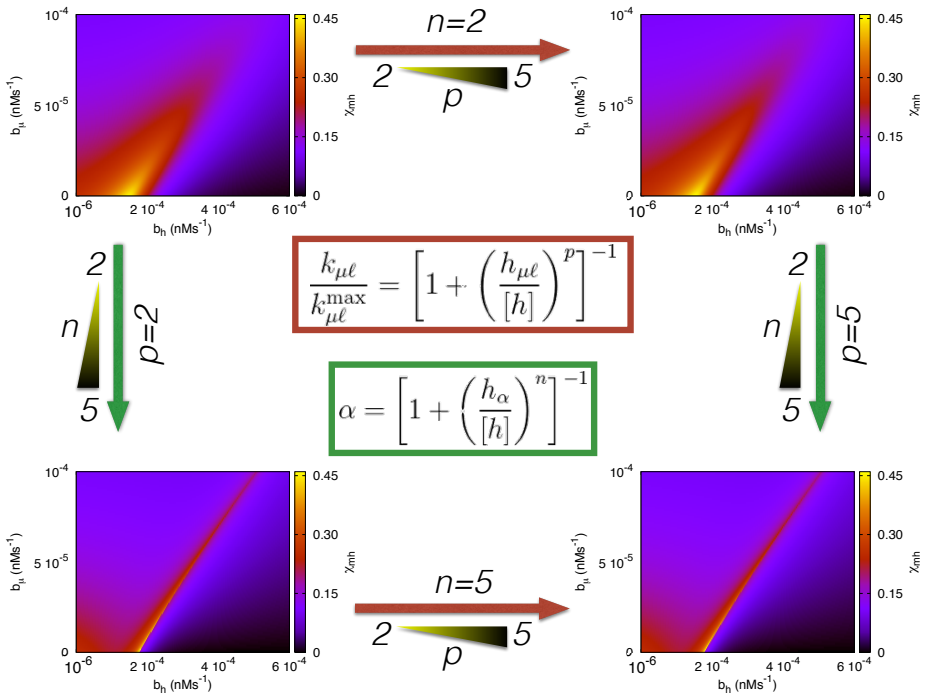

Figure 6. Figure 6: Behaviour of the susceptibility χmh versus bh and bµ upon varying the Hill indices n (controlling the steepness of the dependence of α on the controller level [h]) and p (controlling the steepness of the dependence of kµ` on [h]). Top left panel: n = p = 2. Top right: n = 2, p = 5. Bottom left: n = 5, p = 2. Bottom right: n = p = 5. χmh is only weakly affected by changes in p, while it is very sensitive to… view at source ↗
Figure 7
Figure 7. Figure 7: Integrated Response IR (absolute value) as a function of the fold-increase [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
read the original abstract

Motivated by recent experimental work, we define and study a deterministic model of the complex miRNA-based regulatory circuit that putatively controls the early stage of myogenesis in human. We aim in particular at a quantitative understanding of (i) the roles played by the separate and independent miRNA biosynthesis channels (one involving a miRNA-decoy system regulated by an exogenous controller, the other given by transcription from a distinct genomic locus) that appear to be crucial for the differentiation program, and of (ii) how competition to bind miRNAs can efficiently control molecular levels in such an interconnected architecture. We show that optimal static control via the miRNA-decoy system constrains kinetic parameters in narrow ranges where the channels are tightly cross-linked. On the other hand, the alternative locus for miRNA transcription can ensure that the fast concentration shifts required by the differentiation program are achieved, specifically via non-linear response of the target to even modest surges in the miRNA transcription rate. While static, competition-mediated regulation can be achieved by the miRNA-decoy system alone, both channels are essential for the circuit's overall functionality, suggesting that that this type of joint control may represent a minimal optimal architecture in different contexts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper defines a deterministic mass-action model of miRNA regulation during early myogenesis and claims that two independent biosynthesis channels (a decoy system regulated by an exogenous controller and transcription from a distinct genomic locus) are both required: the decoy channel constrains kinetic parameters to narrow ranges for static optimality via competition, while the second locus supplies the nonlinear dynamic response needed for differentiation; competition for miRNA binding is the central control mechanism, and the joint architecture is presented as a minimal optimal design.

Significance. If the model predictions are robust, the work would supply a concrete, quantitative rationale for why dual-channel miRNA control can be necessary for both steady-state precision and rapid transitions, with potential generality to other differentiation circuits. The deterministic formulation permits explicit identification of parameter windows and response nonlinearities, which is a strength when the ranges can be anchored experimentally.

major comments (2)
  1. [Abstract] Abstract: the central claim that 'both channels are essential for the circuit's overall functionality' and that the decoy system 'constrains kinetic parameters in narrow ranges' rests entirely on internal simulation outcomes; no model equations, parameter values, simulation protocols, or comparison to measured rates are supplied, so the necessity conclusion cannot be evaluated independently of the model's own assumptions.
  2. [Model construction and results] Model construction and results: the assertions that the channels operate independently and that the identified narrow kinetic windows are biologically required are load-bearing for the 'minimal optimal architecture' conclusion, yet the manuscript provides no external experimental benchmarks or robustness tests against plausible cross-talk or shared machinery that could relax the necessity of joint control.
minor comments (1)
  1. [Abstract] The abstract would be clearer if it briefly stated the form of the governing equations or the key observables used to define 'static optimality' and 'non-linear response'.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments. Below we respond point-by-point to the major comments. As a purely theoretical modeling study, our claims are based on systematic exploration of the deterministic model; we clarify the scope and indicate where revisions can strengthen the presentation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'both channels are essential for the circuit's overall functionality' and that the decoy system 'constrains kinetic parameters in narrow ranges' rests entirely on internal simulation outcomes; no model equations, parameter values, simulation protocols, or comparison to measured rates are supplied, so the necessity conclusion cannot be evaluated independently of the model's own assumptions.

    Authors: The abstract provides a concise summary of the findings. The full deterministic mass-action model, including all equations, parameter values (drawn from literature where possible), simulation protocols, and the systematic parameter sweeps demonstrating the narrow windows and necessity of both channels, are presented in the Methods and Results sections. The necessity conclusion is evaluated by comparing the joint architecture against reduced models lacking one channel. We will revise the abstract to explicitly reference the modeling framework and key simulation approach for improved clarity. revision: yes

  2. Referee: [Model construction and results] Model construction and results: the assertions that the channels operate independently and that the identified narrow kinetic windows are biologically required are load-bearing for the 'minimal optimal architecture' conclusion, yet the manuscript provides no external experimental benchmarks or robustness tests against plausible cross-talk or shared machinery that could relax the necessity of joint control.

    Authors: The model assumes independent channels based on the distinct biological mechanisms (exogenous decoy regulation versus separate genomic transcription locus) reported in the motivating experimental literature. Independence is an input assumption, not a derived claim; the narrow windows emerge from the requirement for effective competition-mediated static control. We conduct extensive robustness checks within the deterministic framework by varying parameters and initial conditions. Explicit modeling of cross-talk or shared machinery is not included, as it would introduce additional unanchored assumptions; the paper presents the joint architecture as a candidate minimal design suggested by the model rather than a proven biological requirement. revision: partial

standing simulated objections not resolved
  • Direct comparison to measured experimental rates or provision of new external experimental benchmarks, as this is a theoretical modeling study without new data collection or fitting to specific measurements.

Circularity Check

0 steps flagged

No circularity: standard mass-action model analyzed on its own terms

full rationale

The paper constructs a deterministic mass-action model from standard biochemical rate equations, then numerically explores its parameter space to identify ranges supporting static optimality via the decoy channel and nonlinear dynamic response via the second locus. The claim that both channels are required for full functionality is an output of that exploration rather than an input presupposed by definition, fitting, or self-citation. No load-bearing step reduces to its own inputs by construction, and the derivation remains self-contained against the model's internal dynamics.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim depends on postulated kinetic rates for transcription, binding, and decay, plus the assumption that the two channels are independent and that binding competition is the main regulatory mechanism; these are introduced to construct the model rather than derived from data.

free parameters (1)
  • kinetic parameters for transcription and binding rates
    Constrained to narrow ranges for optimal static control via the decoy system; values are not supplied but stated to be tightly linked between channels.
axioms (2)
  • domain assumption The regulatory circuit can be represented by a deterministic system of ordinary differential equations based on mass-action kinetics for miRNA production, binding, and target regulation.
    Standard modeling choice for miRNA circuits; invoked to enable the analysis of static and dynamic control.
  • domain assumption The two miRNA biosynthesis channels operate independently and competition for miRNA binding is the primary mechanism controlling molecular levels.
    Central modeling premise that allows the separation of static control (decoy) from dynamic control (alternative locus).
