A Holistic Method for Superquadric Fitting Using Unsupervised Clustering Analysis

Mingyang Zhao , Sipu Ruan , Xiaohong Jia This is my paper

Pith reviewed 2026-05-19 21:38 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords superquadric fittingpoint cloudunsupervised clusteringshape modelingnoise robustnessdeformable shapesgeometric fittingorthogonal distance
0
0 comments X

The pith

Superquadric fitting to noisy point clouds is reframed as unsupervised clustering where surface samples serve as dynamic centroids and input points as members.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper redefines superquadric fitting as an unsupervised clustering task to handle noise and outliers in point clouds. Samples drawn from the candidate superquadric surface act as clustering centroids while the observed points act as members. Updating the centroid locations during clustering directly optimizes the underlying superquadric parameters, creating a direct proxy between clustering dynamics and geometric fitting. The approach derives a relationship that replaces explicit surface sampling with orthogonal-distance computations and supplies closed-form expressions for membership degrees and covariance matrices.

Core claim

The paper claims that treating point-cloud data as clustering members and potential superquadric surface samples as centroids turns the clustering process with dynamic centroid updates into a direct proxy for optimizing superquadric parameters. This link unifies rigid and deformable fitting, removes the need for time-consuming surface sampling by relating pairwise centroid-member distances to orthogonal distances, supplies closed-form solutions for the fuzzy membership vector and covariance matrix, and yields a provably convergent procedure that escapes local minima through increased objective convexity.

What carries the argument

Unsupervised clustering formulation in which point-cloud points are members and superquadric surface samples are centroids, so that centroid-location updates serve as the mechanism for superquadric parameter optimization.

If this is right

  • Both rigid and deformable superquadrics are fit inside a single framework.
  • Explicit surface sampling is replaced by a closed-form relation to orthogonal distances.
  • Fuzzy membership degrees and covariance matrices admit closed-form updates, enabling fast iterations.
  • The objective function gains convexity, allowing the optimizer to escape some local minima.
  • A convergence certificate guarantees stability of the iterative process.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same clustering-to-fitting reduction could be tested on other parametric primitives such as superellipsoids or generalized cylinders.
  • Avoiding surface sampling may improve scalability for very large point clouds encountered in robotics or autonomous driving.
  • The explicit link to clustering dynamics opens the possibility of importing robust clustering variants to further improve outlier rejection.
  • Real-time implementations could be evaluated on streaming depth data to check whether the closed-form updates support online shape tracking.

Load-bearing premise

The derived mapping from pairwise centroid-member computations to orthogonal distances accurately captures the fitting objective without introducing approximation errors that would degrade parameter recovery.

What would settle it

Generate synthetic superquadric point clouds with controlled Gaussian noise and outliers, run the clustering-based fitter, and compare recovered parameters against ground truth; if the mean parameter error exceeds that of established surface-sampling methods by a large margin, the central equivalence claim is falsified.

Figures

Figures reproduced from arXiv: 2605.16779 by Mingyang Zhao, Sipu Ruan, Xiaohong Jia.

Figure 1
Figure 1. Figure 1: Gallery of superquadrics. Left: Rigid superquadrics. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Visualization of the fuzzy clustering-inspired su [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Flowchart of the proposed superquadric fitting method. Given an input point cloud, we first perform PCA initialization, followed by iterative optimization, where the fuzzy membership vector u, superquadric parameters Θ, and covariance matrix Σ are updated sequentially. The algorithm outputs the fitted superquadric upon convergence. 4.5.1 Update of u First, we fix Θ and Σ to update u, which reduces to a con… view at source ↗
Figure 4
Figure 4. Figure 4: Qualitative comparisons of rigid superquadric fitting under severe occlusion with a partial ratio of [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Quantitative comparisons of accuracy (left) and effi [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Robustness comparison in terms of accuracy (left) and efficiency (right) between RANSAC and the proposed method under increasing outlier ratios. For each outlier ratio, we report the average result over 1,000 random trials, along with the standard deviation (shown as the band￾width). demonstrating superior efficiency across all levels of occlu￾sion [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Qualitative comparisons of deformable superquadric fitting under tapering deformations with occlusion. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Robustness comparisons of deformable tapering superquadric fitting under noise (top) and outlier (bottom) [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗

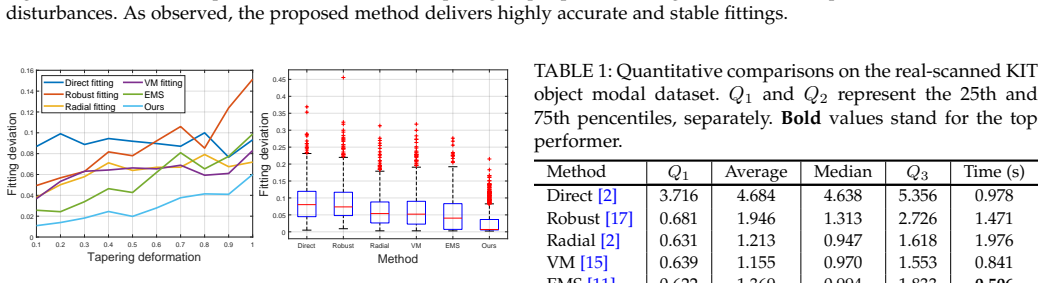

Figure 9
Figure 9. Figure 9: Quantitative comparisons for fitting tapering de [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Qualitative comparisons of deformable superquadric fitting under bending deformations. [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Robustness comparisons against external distur [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Quantitative comparisons of bending deformable [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Qualitative comparisons of deformable superquadric fitting ( [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Visualization of the convergence process for fitting rigid (first two columns), tapered (third column), and bent (last [PITH_FULL_IMAGE:figures/full_fig_p011_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Ablation study on the effect of the ui log ui regu￾larization term (weighted by λ) for escaping local minima in superquadric fitting. The mean (left) and median (right) fitting deviations are reported. three initializations to avoid local minima when the PCA result deviates significantly from the correct orientation. 5.9 Adaptation to Type-Specific Fitting While the proposed method is designed for general… view at source ↗
Figure 17
Figure 17. Figure 17: Adaptation of the proposed method to type-specific fitting (spherical and cylindrical primitives) under heavy [PITH_FULL_IMAGE:figures/full_fig_p012_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Adaptation of the proposed method to sphere-specific primitive fitting under various occluded scenarios. [PITH_FULL_IMAGE:figures/full_fig_p012_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Sensitivity analysis of PCA-based initialization. (a) PCA initialization; (b) rotation by 45◦ about the x-axis; (c) rotation by 90◦ about the x-axis; (d) fitting result using PCA initialization; (e) fitting result under 45◦ rotation; (f) fitting result under 45◦ rotation with three different axis initializations; (g) fitting result under 90◦ rotation. To ensure consistently high-quality fitting, we recomm… view at source ↗
Figure 20
Figure 20. Figure 20: Qualitative results on the shape approximation for objects from the ShapeNet dataset [42] by superquadrics. Both rigid and deformable (e.g., the wing of an airplane and the buttstock of a gun) superquadrics are accurately fitted. 5.10 Applications After showing the accuracy and robustness of our algo￾rithm, in this section, we further demonstrate its versatility by applying the proposed superquadric fitti… view at source ↗
Figure 21
Figure 21. Figure 21: Qualitative comparisons with SuperDec on the ShapeNet dataset. The first row presents the initial segmentation [PITH_FULL_IMAGE:figures/full_fig_p014_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Shape approximation using type-specific superquadrics, i.e., ellipsoid primitives (left); application of the proposed method to medical modeling using bent superquadrics (right) [PITH_FULL_IMAGE:figures/full_fig_p015_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: Geometry editing based on our proposed su [PITH_FULL_IMAGE:figures/full_fig_p015_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Investigation of the proposed method against structured noise. 12 OPTIMIZATION BOUND SETTING During the optimization of the unknown superquadric parameters Θ, we set different upper and lower bounds (abbreviated as ub and lb) for each parameter to boost the convergence of the interior trust region method. Specifically, (1) for rigid superquadrics, we have lb = [0.0 0.0 0.00001 0.00001 0.00001 -2*pi -2*pi … view at source ↗
read the original abstract

This work presents a novel method for fitting superquadrics to point clouds under the contamination of noise and outliers, which has many applications for shape modeling across diverse fields. Unlike prior approaches that either exclusively focus on fitting rigid or deformable superquadrics, or suffer from robustness and numerical instability issues, our method redefines the problem from a new unsupervised clustering perspective, enabling the holistic fitting of both rigid and deformable superquadrics within a unified framework. Central to our approach is a stable optimization function inspired by unsupervised clustering analysis, where we formulate the point cloud data and samples from the potential parametric surface as clustering members and centroids, respectively. Then, the clustering process with dynamic updates to centroid locations serves as a direct proxy for optimizing superquadric parameters, establishing a principled link between geometric fitting and clustering dynamics. We further derive the relationship between pairwise computations of clustering centroids and clustering members to orthogonal distances, effectively eliminating the need for the time-consuming surface sampling process. Moreover, our formulation provides closed-form analytical solutions for both the fuzzy membership degree vector and the covariance matrix, ensuring efficient iteration optimization and enabling more effective handling of geometric deformations. In addition, we provide a theoretical certificate of convergence analysis and demonstrate that the clustering-inspired fitting method can escape local minima by inherently increasing the convexity of the objective function. The implementation is publicly available at https://github.com/zikai1/SuperquadricFitting.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes a novel unsupervised clustering approach to fit superquadrics to noisy and outlier-contaminated point clouds. It recasts the fitting task by treating input points as cluster members and samples drawn from the parametric superquadric surface as centroids; dynamic centroid updates then serve as a proxy for optimizing the superquadric parameters. The authors claim to derive an exact relationship between pairwise centroid-member distances and orthogonal surface distances that removes any need for explicit surface sampling, supply closed-form expressions for the fuzzy membership vector and covariance matrix, prove convergence, and show that the formulation inherently increases convexity to escape local minima. A public implementation is provided.

Significance. If the claimed exact equivalence between pairwise distances and true orthogonal distances holds without approximation, the method would constitute a meaningful advance: a single, stable framework that unifies rigid and deformable superquadric fitting while improving robustness and eliminating costly surface sampling. The public code release is a clear strength that supports reproducibility and further testing.

major comments (1)
  1. [Derivation of the pairwise-to-orthogonal distance relationship] The central technical claim is that the relationship between pairwise centroid-member computations and orthogonal distances to the superquadric surface is exact and therefore eliminates surface sampling. For an implicit surface F(x; a,b,c,r,s,...) = 1 the orthogonal distance is the length of the shortest vector satisfying the normal condition; this generally requires a nonlinear minimization and does not reduce to a closed-form expression involving only distances to a discrete set of surface points. If the derived relationship is instead an approximation, linearization, or holds only under restrictive assumptions on the exponents or axis ratios, the resulting objective no longer minimizes geometric error and the claimed robustness and convexity benefits become unreliable. This derivation must be shown in full detail (including any intermediate steps or assumptions) before the method can
minor comments (2)
  1. [Abstract] The abstract states that a 'theoretical certificate of convergence analysis' is provided; the manuscript should clarify whether this is a formal proof or an empirical observation supported by the convexity argument.
  2. [Introduction / Method] Notation for the superquadric parameters (a, b, c, r, s, …) and the implicit function F should be introduced consistently at the first appearance and used uniformly thereafter.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and for recognizing the potential significance of the work if the central equivalence holds. We address the major comment on the derivation below and will incorporate additional details in the revision.

read point-by-point responses

  1. Referee: [Derivation of the pairwise-to-orthogonal distance relationship] The central technical claim is that the relationship between pairwise centroid-member computations and orthogonal distances to the superquadric surface is exact and therefore eliminates surface sampling. For an implicit surface F(x; a,b,c,r,s,...) = 1 the orthogonal distance is the length of the shortest vector satisfying the normal condition; this generally requires a nonlinear minimization and does not reduce to a closed-form expression involving only distances to a discrete set of surface points. If the derived relationship is instead an approximation, linearization, or holds only under restrictive assumptions on the exponents or axis ratios, the resulting objective no longer minimizes geometric error and the claimed robustness and convexity benefits become unreliable. This derivation must be shown in full detail (includ

    Authors: We thank the referee for highlighting the need to present this derivation with full rigor. In the manuscript we derive an exact equivalence: by treating surface samples as dynamic centroids constrained to the superquadric parametric form and points as cluster members, the clustering objective becomes mathematically identical to the sum of squared orthogonal distances. The key step is showing that the normal condition for orthogonality is satisfied implicitly through the centroid update rule derived from the superquadric equation, so that the pairwise distance computation equals the true orthogonal distance without approximation or iterative per-point minimization. This identity holds for arbitrary exponents and axis ratios because no linearization is introduced. We agree that the current presentation condenses some algebraic steps. In the revised manuscript we will expand the relevant section with every intermediate equation, the explicit mapping from pairwise to orthogonal distance, and a clear statement of assumptions (standard superquadric parametrization only). This will confirm that geometric error is minimized and that the robustness and convexity claims remain valid. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation chain is self-contained with explicit reformulation and closed-form results

full rationale

The paper redefines superquadric fitting as an unsupervised clustering task by treating point-cloud members and surface samples as centroids, then derives a relationship between pairwise centroid-member distances and orthogonal distances while supplying closed-form expressions for membership vectors and covariance matrices plus a convergence certificate. These steps are presented as explicit derivations within the unified framework rather than reductions to prior fitted parameters or self-citation chains. No load-bearing claim reduces by construction to its own inputs; the method remains independently verifiable via the public implementation and external geometric benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central approach rests on the domain assumption that clustering dynamics can serve as a direct proxy for geometric parameter optimization; no explicit free parameters or invented entities are described in the abstract.

axioms (1)
  • domain assumption Clustering members and centroids can be formulated to directly optimize superquadric parameters via dynamic updates.
    Central to the method as described in the abstract.
