Beyond the Black Box: Interpretability of Agentic AI Tool Use

Ariye Shater; Hariom Tatsat

arxiv: 2605.06890 · v3 · pith:6IV7I75Enew · submitted 2026-05-07 · 💻 cs.AI · cs.MA

Beyond the Black Box: Interpretability of Agentic AI Tool Use

Hariom Tatsat , Ariye Shater This is my paper

Pith reviewed 2026-06-30 22:57 UTC · model grok-4.3

classification 💻 cs.AI cs.MA

keywords mechanistic interpretabilitysparse autoencoderslinear probesAI agentstool useagentic AIinternal observabilityfunction calling

0 comments

The pith

A mechanistic interpretability toolkit built on sparse autoencoders and linear probes can read pre-action model states to predict whether an AI agent needs a tool and how risky the action is.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

AI agents in enterprise settings often fail at tool use by skipping needed calls, invoking tools unnecessarily, or committing early actions whose effects only appear later in long trajectories. External methods such as prompt inspection and post-execution logs arrive too late to prevent these cascading problems. The paper presents an internal toolkit that decomposes model activations into sparse features before each decision and trains lightweight probes to classify tool necessity and risk level from those features. It then locates the layers and features most tied to these decisions and confirms their role by ablating the features and measuring behavioral change. The resulting visibility into internal signals offers a way to diagnose and potentially control tool-use failures from inside the model rather than only after the fact.

Core claim

The paper claims that sparse autoencoders can decompose pre-action activations into sparse internal features from which linear probes can infer both the need for a tool call and the risk level of the next action, that these signals are concentrated in identifiable layers and features, and that ablating the features alters the model's tool-use behavior in the expected direction.

What carries the argument

Sparse Autoencoders (SAEs) that decompose activations into sparse internal features, combined with linear probes that classify signals for tool need and risk from those features.

If this is right

The toolkit locates specific layers and features most associated with tool decisions across the tested models.
Feature ablation provides a direct test of whether those features are functionally necessary for the observed tool-use behavior.
Pre-action inference supplies visibility into potential failures before they affect later steps in long-horizon agent runs.
The approach adds an internal monitoring layer that complements rather than replaces external evaluation methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same workflow could be applied at inference time to flag high-risk tool calls before they execute.
Extending the probes to additional agent behaviors such as planning or memory retrieval might reveal shared internal mechanisms.
Combining the internal signals with external logs could create hybrid monitoring systems that catch both early signals and downstream effects.

Load-bearing premise

That the sparse features derived from pre-action activations contain linearly readable signals about tool need and risk that can be isolated through ablation without confounding effects from other model behaviors.

What would settle it

If ablating the features identified by the probes produces no measurable change in the model's actual tool-calling frequency or risk profile on the same trajectories used for probe training.

Figures

Figures reproduced from arXiv: 2605.06890 by Ariye Shater, Hariom Tatsat.

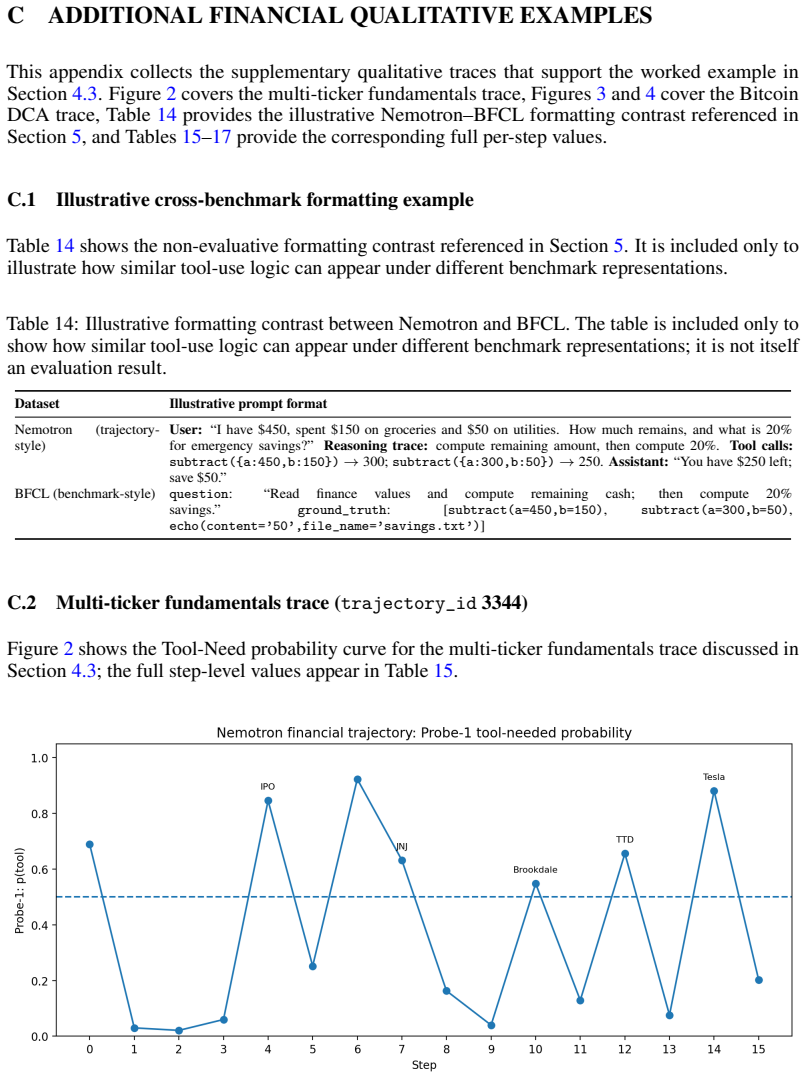

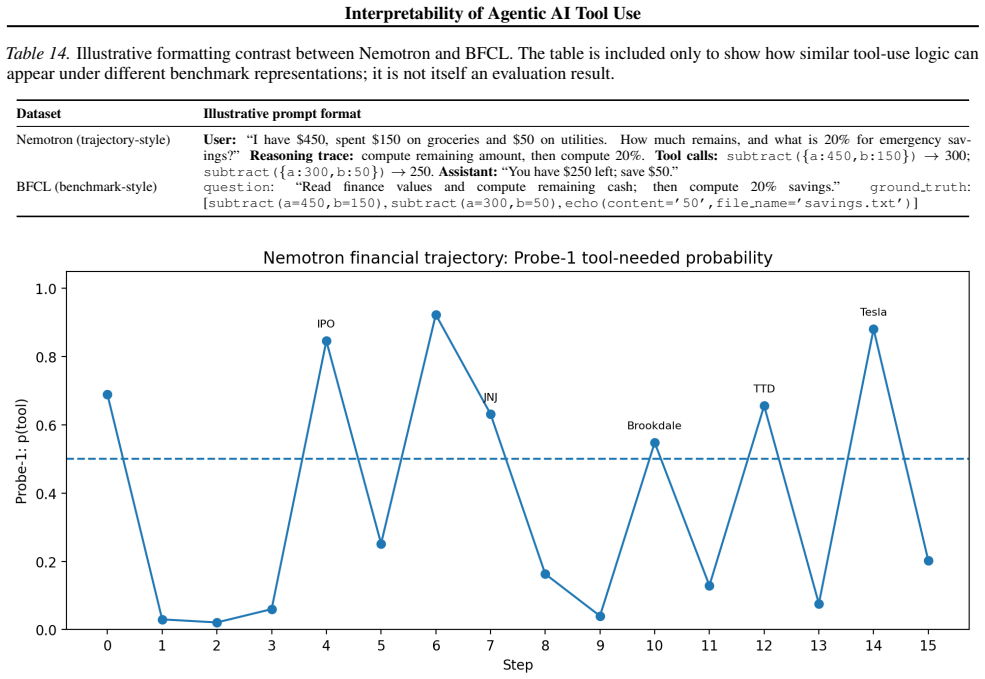

**Figure 2.** Figure 2: Tool-Need Probe (Probe 1) on the multi-ticker fundamentals trajectory. The signal rises on [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗

**Figure 2.** Figure 2: Tool-Need Probe (Probe 1) on the multi-ticker fundamentals trajectory. The signal rises on steps that require external financial retrieval and falls on follow-up no-tool steps. C.2. Multi-ticker fundamentals trace (trajectory id 3344) [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

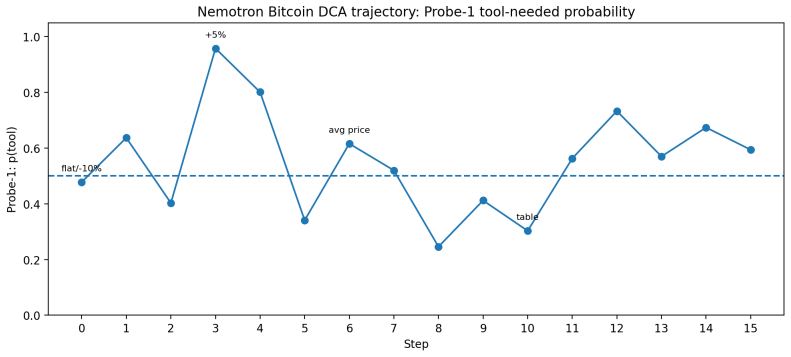

**Figure 3.** Figure 3: Tool-Need Probe (Probe 1) on the Bitcoin DCA trajectory. The tool-needed signal rises on [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗

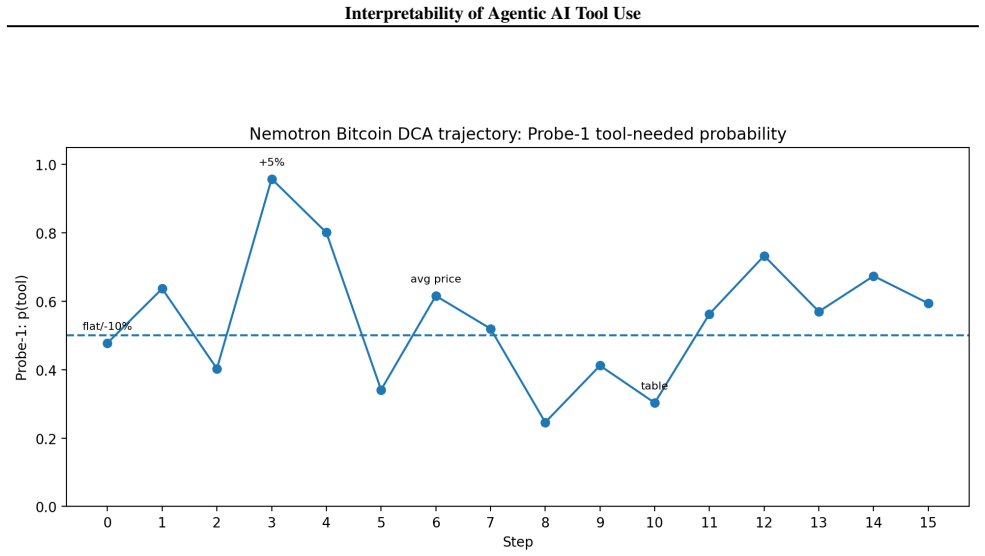

**Figure 3.** Figure 3: Tool-Need Probe (Probe 1) on the Bitcoin DCA trajectory. The tool-needed signal rises on calculation-heavy steps and falls on intervening no-tool steps [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗

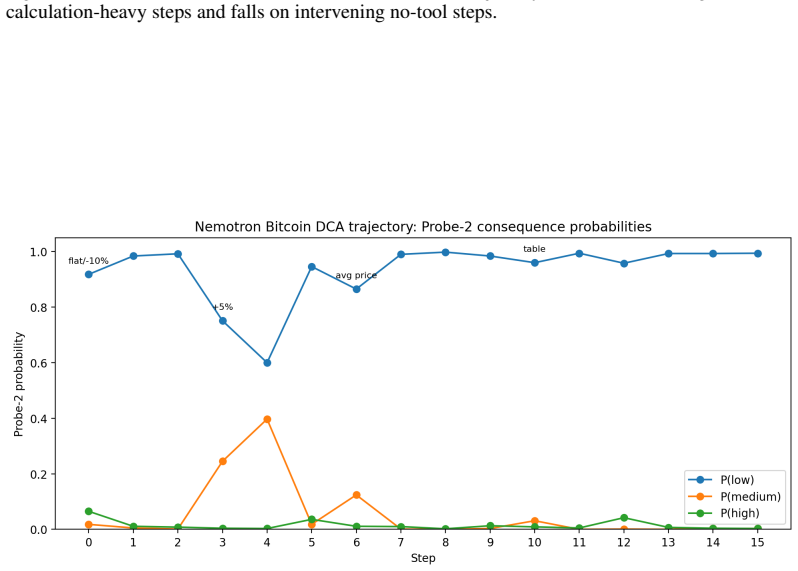

**Figure 4.** Figure 4: Tool-Risk Probe (Probe 2) on the Bitcoin DCA trajectory. Risk probabilities remain [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗

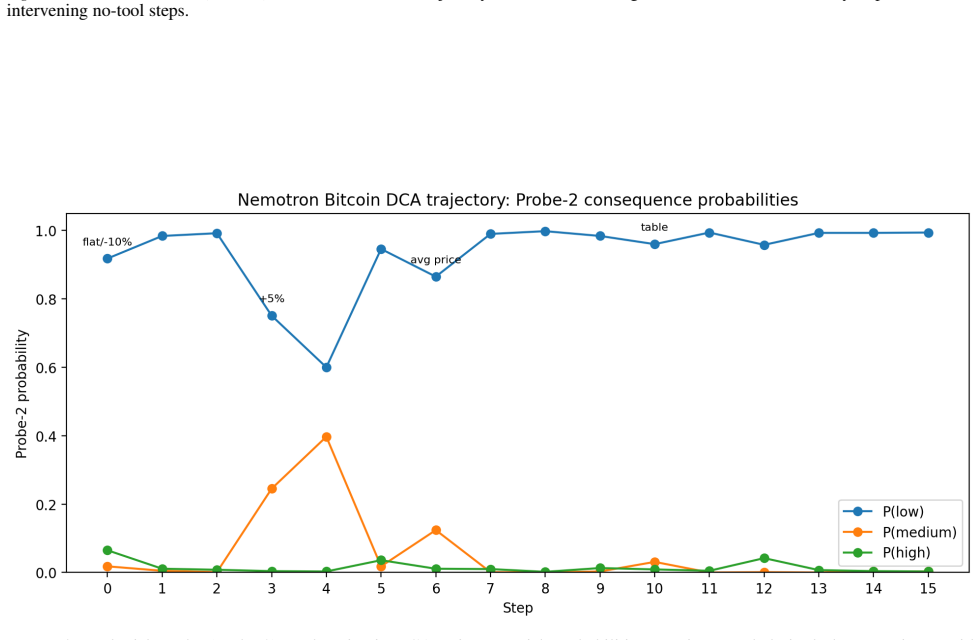

**Figure 4.** Figure 4: Tool-Risk Probe (Probe 2) on the Bitcoin DCA trajectory. risk probabilities remain overwhelmingly low, consistent with calculator-style actions. 11 [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

read the original abstract

AI agents are promising for high-stakes enterprise workflows, but dependable deployment remains limited because tool-use failures are difficult to diagnose and control. Agents may skip required tool calls, invoke tools unnecessarily, or take actions whose consequence becomes visible only after execution. Existing observability methods are external: prompts reveal correlations, evaluations score outputs, and logs arrive only after the model has already acted. In long-horizon settings, these failures are costly because an early tool mistake can alter the rest of the trajectory, increase token consumption, and create downstream safety and security risk. We introduce a mechanistic-interpretability toolkit built on Sparse Autoencoders (SAEs), which decompose activations into sparse internal features, and linear probes, lightweight classifiers that read signals from those features. The framework reads model states before each action and infers whether a tool is needed and how risky the next tool action is. It identifies the model layers and features most associated with tool decisions and tests their functional importance through feature ablation. We train the probes on multi-step trajectories from the NVIDIA Nemotron function-calling dataset and apply the same workflow to GPT-OSS 20B and Gemma 3 27B models. The goal is not to replace external evaluation, but to add a missing layer: visibility into what the model signaled internally before action. This helps surface deeper causes of agent failure, especially in long-horizon runs where an early mistake can impact subsequent agent behavior. More broadly, the paper shows how mechanistic interpretability can support internal observability for monitoring tool calls and risk in agent systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper outlines a plan to apply SAEs and probes to pre-action states in agents for tool decisions but reports no results or validation at all.

read the letter

The paper's main move is to take sparse autoencoders and linear probes, already standard in mechanistic interpretability, and point them at the activations right before an agent chooses a tool call. The goal is to read out whether a tool is needed and how risky the call looks, then ablate the relevant features to check their importance. They mention training on Nemotron trajectories and testing the workflow on a couple of open models.

This is a direct, narrow extension of existing techniques to one slice of agent behavior. It correctly flags that external logs and prompt checks arrive too late in long-horizon runs, and it tries to add an internal signal before the action happens. That framing is clear and practical for enterprise reliability questions.

The obvious gap is the total lack of any numbers. The abstract describes the intended workflow but gives no probe accuracies, no ablation outcomes, no controls for general capability drop, and no comparison to simpler baselines. Without those, there is no way to tell whether the SAE features actually carry linearly readable signals for tool need or risk, or whether the ablations isolate the right thing. The stress-test concern about distributed or nonlinear tool logic holds up on the text provided.

This is for people already working on interpretability for agents who want to see the same SAE toolkit tried in a new setting. It shows straightforward thinking about the problem but does not yet contain evidence that would support the claims. I would not bring it to reading group in this form and would not cite it. It does not look ready for peer review until the empirical section is added and the results can be examined.

Referee Report

2 major / 1 minor

Summary. The paper claims to introduce a mechanistic-interpretability toolkit for AI agents using Sparse Autoencoders (SAEs) to decompose activations into sparse internal features and linear probes to read signals from pre-action model states. The framework infers tool need and risk for the next action, identifies associated layers and features, and tests functional importance via feature ablation. It is trained on multi-step trajectories from the NVIDIA Nemotron function-calling dataset and applied to GPT-OSS 20B and Gemma 3 27B models, with the goal of adding internal visibility into tool-use decisions to diagnose failures in long-horizon agent workflows beyond external evaluations.

Significance. If the empirical claims hold, the work would provide a useful internal observability layer for agentic tool use, extending SAE-based interpretability to diagnose pre-action decisions in high-stakes settings. The multi-model application and focus on risk inference represent a timely direction for mechanistic interpretability in agents. However, the manuscript as presented contains no reported metrics or outcomes, so its current contribution is limited to a methodological proposal.

major comments (2)

[Abstract] Abstract: The abstract states that the framework 'infers whether a tool is needed and how risky the next tool action is' and 'tests their functional importance through feature ablation,' but reports no accuracy metrics for the probes, no ablation results (e.g., change in tool-calling behavior), and no validation outcomes. This absence makes it impossible to evaluate whether SAE features from pre-action activations contain the claimed linearly readable signals or whether ablation isolates tool-specific importance without confounds.
[Abstract] Methods/Results (as described in abstract): The central claim requires that linear probes on SAE features can accurately infer tool need/risk and that ablation demonstrates functional importance. No experiments, baselines, controls (e.g., ablation on non-tool features or random features), or performance numbers are provided to support this, leaving the weakest assumption untested.

minor comments (1)

[Abstract] Abstract: The model name 'GPT-OSS 20B' is nonstandard; clarify the exact model variant or citation to avoid ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that the manuscript as presented is a methodological proposal and that the abstract language implies empirical outcomes (accuracy metrics, ablation results) that are not supported by reported numbers or experiments. We will revise the abstract, claims, and framing to accurately reflect the contribution as a proposed toolkit and workflow without overstating untested results.

read point-by-point responses

Referee: [Abstract] Abstract: The abstract states that the framework 'infers whether a tool is needed and how risky the next tool action is' and 'tests their functional importance through feature ablation,' but reports no accuracy metrics for the probes, no ablation results (e.g., change in tool-calling behavior), and no validation outcomes. This absence makes it impossible to evaluate whether SAE features from pre-action activations contain the claimed linearly readable signals or whether ablation isolates tool-specific importance without confounds.

Authors: We agree the abstract phrasing is misleading. The manuscript introduces the SAE + probe toolkit and describes its intended use on pre-action activations from the Nemotron trajectories applied to the two models, but contains no quantitative probe accuracies, ablation deltas, or controls. In revision we will rewrite the abstract to state that the framework is designed to read pre-action states for tool-need and risk signals and outlines a method for feature ablation, while explicitly noting that empirical validation metrics are not reported here. We will add a limitations paragraph on the absence of these numbers. revision: yes
Referee: [Abstract] Methods/Results (as described in abstract): The central claim requires that linear probes on SAE features can accurately infer tool need/risk and that ablation demonstrates functional importance. No experiments, baselines, controls (e.g., ablation on non-tool features or random features), or performance numbers are provided to support this, leaving the weakest assumption untested.

Authors: The observation is accurate: the provided manuscript text describes the training procedure and model application but supplies no probe performance numbers, ablation outcomes, or control experiments. Because the central claims rest on untested assumptions, we will revise the abstract and introduction to remove any implication that the probes or ablations have been shown to work, and instead present the work as a methodological proposal whose empirical validation remains future work. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical toolkit application is self-contained

full rationale

The paper describes training SAEs and linear probes on the Nemotron function-calling dataset trajectories, then applying the resulting probes and ablations to GPT-OSS 20B and Gemma 3 27B. No equations, uniqueness theorems, or first-principles derivations are presented that reduce to fitted inputs by construction. No self-citation chains are invoked to justify core claims. The method is a direct empirical pipeline (decompose activations, train probes on labeled trajectories, ablate features) whose validity rests on external data and standard SAE/probe techniques rather than internal redefinition or renaming. This matches the default expectation of no circularity for an applied interpretability study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions from the mechanistic interpretability literature applied to agent tool use. No free parameters, new entities, or ad-hoc axioms are introduced or fitted in the abstract.

axioms (1)

domain assumption Sparse autoencoders decompose model activations into sparse, interpretable features relevant to specific behaviors such as tool decisions.
Core premise of the SAE component of the proposed toolkit.

pith-pipeline@v0.9.1-grok · 5813 in / 1237 out tokens · 37954 ms · 2026-06-30T22:57:07.777597+00:00 · methodology

Review history (3 revisions) →

discussion (0)

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

Looking Is Not Picking: An Attention-Segment Account of Tool-Selection Failures in LLM Agents
cs.AI 2026-06 unverdicted novelty 7.0

Attention analysis shows that LLM tool selection failures occur at the readout/decision stage, not because the model fails to attend to the correct tool definition.
