arxiv: 2606.02463 · v1 · pith:6ZRRTYWKnew · submitted 2026-06-01 · 💻 cs.CV · cs.AI

MASER: Modality-Adaptive Specialist Routing for Embodied 3D Spatial Intelligence

Hilton Raj , Vishnuram AV This is my paper

Pith reviewed 2026-06-28 15:12 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords modality routingembodied 3D QAadapter specializationvision-language modelsspatial intelligenceOpen3D-VQA
0
0 comments X

The pith

A small MLP router selects the single best modality adapter for each 3D spatial question from five options.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that embodied 3D question answering benefits from different input modalities for different questions, with no one modality winning universally. It trains five modality-specific adapters on a shared vision-language backbone and learns an MLP router that, from the question text alone, picks which adapter to run. The router is supervised by oracle labels that mark which adapter actually scored highest on each training question. On the Open3D-VQA benchmark this routing reaches 51.3 percent agreement with the oracle choice while calling only one adapter at inference time, beating a random-forest baseline.

Core claim

No single modality is optimal across questions; point clouds perform best in 51.5 percent of cases. Training an MLP on frozen sentence-transformer embeddings of questions, using oracle adapter-accuracy labels as supervision, produces a router that selects the best adapter 51.3 percent of the time and outperforms a random-forest ablation at 43.5 percent.

What carries the argument

MLP router trained on oracle adapter-accuracy labels to predict the best modality adapter from a question embedding.

If this is right

  • Point-cloud input is optimal for roughly half the questions while other modalities win on the remainder.
  • Only one adapter needs to be executed per question at inference time.
  • A learned router can outperform a non-learned baseline such as random forest when trained on the same oracle labels.
  • Specialized adapters plus routing can be applied on top of any shared VLM backbone without retraining the entire model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same routing idea could be tested on other multi-modal embodied tasks where question semantics predict the useful sensor type.
  • If the sentence embedding fails to capture fine spatial distinctions, the router may systematically misroute certain question classes.
  • Collecting oracle labels requires running all five adapters on the training set; cheaper proxy labels might reduce that cost.

Load-bearing premise

The oracle labels that mark which adapter performed best on each training question are accurate and unbiased.

What would settle it

On a held-out test set, compare end-to-end accuracy obtained by always using the router-chosen adapter against the accuracy obtained by always using the single best fixed adapter; if the routed version shows no gain, the routing benefit does not hold.

Figures

Figures reproduced from arXiv: 2606.02463 by Hilton Raj, Vishnuram AV.

Figure 1

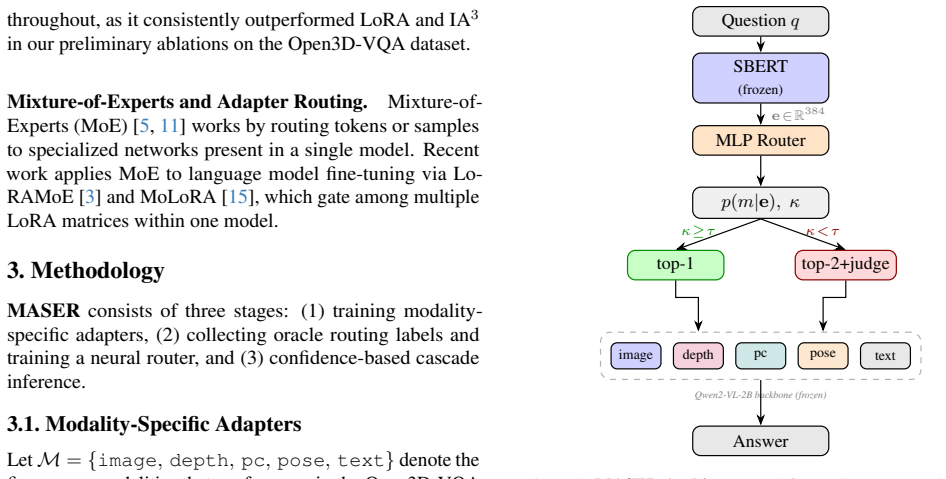

Figure 1. Figure 1: MASER Architecture. A frozen SBERT encoder maps the question to a 384-dim embedding; an MLP router selects the best modality adapter via mˆ = arg max pθ. All five adapters share the frozen Qwen2-VL-2B backbone. Sentence embedding. After collecting the oracle labels, each question qi is encoded with a frozen SBERT sentence transformer [10]: ei = SentEnc(qi) ∈ R 384 , ∥ei∥2 = 1. (3) The sentence encoder is k… view at source ↗
read the original abstract

In 3D environments, Embodied Agents answer spatially relevant questions through reasoning from a mixture of modalities including natural language, RGB images, point clouds, depth maps and camera poses. Existing Vision-Language models (VLMs) are fine-tuned over a single modality. This completely ignores the question semantics which may favor a different modality than the finetuned modality. To address this, we propose MASER (Modality-Adaptive SpEcialist Routing), a lightweight framework that trains five different modality adapters of a shared VLM backbone and learns a neural routing policy that selects the best adapter based on the question during inference. We encode each question with a frozen sentence transformer and pass the embedding through a small Multi-layer Perceptron (MLP) trained on oracle adapter-accuracy labels. We evaluate our methodology over the Open3D-VQA benchmark and our evaluations show that no single modality is universally optimal -- point-cloud answers are best in 51.5% of cases. MASER routes with 51.3% oracle agreement, outperforming a Random-Forest ablation (43.5%), with only a single adapter call per question.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes MASER, a framework that fine-tunes five modality-specific adapters (natural language, RGB, point clouds, depth, camera poses) on a shared VLM backbone for embodied 3D VQA and trains a lightweight MLP router (on frozen sentence-transformer embeddings) to select one adapter per question. The router is supervised by oracle labels indicating which adapter yields the highest accuracy on each question. On the Open3D-VQA benchmark the method reports 51.3% agreement with the oracle (vs. 43.5% for a Random-Forest ablation) while invoking only a single adapter per query; it also states that point-cloud answers are best in 51.5% of cases, showing no modality is universally optimal.

Significance. If the oracle labels are shown to be reliable and modality-neutral, the work would usefully demonstrate that question semantics can be used to route among modality specialists in 3D spatial reasoning, with the practical advantage of a single adapter call. The use of a small MLP on frozen embeddings and the explicit comparison to a non-neural baseline are concrete strengths. The modest absolute numbers and the dependence on unexamined labels currently limit the assessed contribution.

major comments (2)
  1. [Abstract] Abstract: the central claim of 51.3% oracle agreement (and the 51.5% point-cloud dominance statistic) is measured against oracle adapter-accuracy labels whose construction is not described. No information is given on the accuracy metric (exact match, semantic similarity, LLM judge, etc.), tie-breaking rule, or whether the metric is modality-neutral; without this the reported agreement does not establish that the MLP selects the actually superior adapter.
  2. [Abstract] Abstract: the Random-Forest ablation (43.5%) is presented as a baseline, yet no details are supplied on feature representation, hyper-parameters, or cross-validation procedure, making it impossible to judge whether the 7.8-point gap is statistically meaningful or reproducible.
minor comments (2)
  1. [Abstract] The abstract states that five adapters are trained but does not specify the training objective, loss weighting across modalities, or whether the backbone remains frozen during adapter training.
  2. [Abstract] No error bars, confidence intervals, or number of runs are reported for the 51.3% and 43.5% figures, preventing assessment of variability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the need for greater clarity on the oracle label construction and the Random-Forest baseline. We address each major comment below and will revise the manuscript accordingly to improve reproducibility.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of 51.3% oracle agreement (and the 51.5% point-cloud dominance statistic) is measured against oracle adapter-accuracy labels whose construction is not described. No information is given on the accuracy metric (exact match, semantic similarity, LLM judge, etc.), tie-breaking rule, or whether the metric is modality-neutral; without this the reported agreement does not establish that the MLP selects the actually superior adapter.

    Authors: We agree that the construction of the oracle labels requires explicit description to substantiate the reported agreement. The current manuscript does not provide these details in the abstract or methods. In the revised version we will add a dedicated paragraph in Section 3.2 specifying that oracle labels are generated via exact string match on answer outputs, with ties broken by the modality achieving the highest average accuracy on a held-out validation split, and that the identical metric is applied uniformly to all five modalities to ensure neutrality. This information will also be summarized in the abstract. revision: yes

  2. Referee: [Abstract] Abstract: the Random-Forest ablation (43.5%) is presented as a baseline, yet no details are supplied on feature representation, hyper-parameters, or cross-validation procedure, making it impossible to judge whether the 7.8-point gap is statistically meaningful or reproducible.

    Authors: We acknowledge that the Random-Forest ablation is under-specified. The manuscript currently provides only the aggregate accuracy without implementation details. In the revision we will expand the experimental section to state that the Random Forest uses the identical frozen sentence-transformer embeddings as input features, employs 100 trees with a maximum depth of 10, and is evaluated via 5-fold cross-validation on the same train/validation splits used for the MLP router. These additions will allow readers to assess the significance of the performance gap. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical training on external oracle labels with no derivations or self-referential reductions.

full rationale

The paper describes training five modality adapters on a shared VLM, then training an MLP router on separately computed oracle adapter-accuracy labels to select the best adapter per question. Evaluation reports agreement with those labels (51.3%) versus a Random-Forest baseline. No equations, derivations, or predictions appear; the reported metric is direct supervised performance against external labels rather than any quantity forced by construction from the router itself. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The work is self-contained against the benchmark and oracle labels as independent supervision.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no identifiable free parameters, axioms, or invented entities; the router MLP and oracle labels are mentioned but not specified.

pith-pipeline@v0.9.1-grok · 5729 in / 1050 out tokens · 23846 ms · 2026-06-28T15:12:09.413337+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 4 canonical work pages · 3 internal anchors

  1. [1]

    ScanQA: 3d question answering for point cloud understanding

    Daichi Azuma, Taiki Miyanishi, Shuhei Kurita, and Motoaki Kawanabe. ScanQA: 3d question answering for point cloud understanding. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2022. 1

    2022

  2. [2]

    Qwen-VL: A Versatile Vision-Language Model for Understanding, Localization, Text Reading, and Beyond

    Jinze Bai, Shuai Bai, Shusheng Yang, Shijie Wang, Sinan Tan, Peng Wang, Junyang Lin, Chang Zhou, and Jingren Zhou. Qwen-VL: A versatile vision-language model for understand- ing, localization, text reading, and beyond. InarXiv preprint arXiv:2308.12966, 2023. 1

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  3. [3]

    LoRAMoE: Alleviating world knowledge forgetting in large language models via MoE-style plugin

    Shihan Dou et al. LoRAMoE: Alleviating world knowledge forgetting in large language models via MoE-style plugin. In Association for Computational Linguistics (ACL), 2024. 2

    2024

  4. [4]

    LoRA: Low-rank adaptation of large language models

    Edward J Hu, Yelong Shen, Phillip Wallis, Zeyuan Allen-Zhu, Yuanzhi Li, Shean Wang, Lu Wang, and Weizhu Chen. LoRA: Low-rank adaptation of large language models. InInterna- tional Conference on Learning Representations (ICLR), 2022. 1

    2022

  5. [5]

    Adaptive mixtures of local experts

    Robert A Jacobs, Michael I Jordan, Steven J Nowlan, and Geoffrey E Hinton. Adaptive mixtures of local experts. 1991. 2

    1991

  6. [6]

    Few-shot parameter-efficient fine-tuning is better and cheaper than in- context learning

    Haokun Liu, Derek Tam, Mohammed Muqeeth, Jay Mohta, Tenghao Huang, Mohit Bansal, and Colin Raffel. Few-shot parameter-efficient fine-tuning is better and cheaper than in- context learning. InAdvances in Neural Information Process- ing Systems (NeurIPS), 2022. 1

    2022

  7. [7]

    Improved baselines with visual instruction tuning

    Haotian Liu, Chunyuan Li, Yuheng Li, and Yong Jae Lee. Improved baselines with visual instruction tuning. InPro- ceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2024. 1

    2024

  8. [8]

    DoRA: Weight-decomposed low-rank adaptation

    Shih-Yang Liu, Chien-Yi Wang, Hongxu Yin, Pavlo Molchanov, Yu-Chiang Frank Wang, Kwang-Ting Cheng, and Min-Hung Chen. DoRA: Weight-decomposed low-rank adaptation. InInternational Conference on Machine Learning (ICML), 2024. 1

    2024

  9. [9]

    SQA3D: Situated question answering in 3d scenes

    Xiaojian Ma, Silong Yong, Zilong Zheng, Qing Li, Yitao Liang, Song-Chun Zhu, and Siyuan Huang. SQA3D: Situated question answering in 3d scenes. InInternational Conference on Learning Representations (ICLR), 2023. 1

    2023

  10. [10]

    Sentence-BERT: Sentence embeddings using siamese BERT-networks

    Nils Reimers and Iryna Gurevych. Sentence-BERT: Sentence embeddings using siamese BERT-networks. InEmpirical Methods in Natural Language Processing (EMNLP), 2019. 1, 2

    2019

  11. [11]

    Outrageously Large Neural Networks: The Sparsely-Gated Mixture-of-Experts Layer

    Noam Shazeer, Azalia Mirhoseini, Krzysztof Maziarz, Andy Davis, Quoc Le, Geoffrey Hinton, and Jeff Dean. Outra- 4 Accepted at CVPR 2026 Workshop on Visual Computing geously large neural networks: The sparsely-gated mixture- of-experts layer.arXiv preprint arXiv:1701.06538, 2017. 2

    work page internal anchor Pith review Pith/arXiv arXiv 2026

  12. [12]

    Qwen2-VL: Enhancing Vision-Language Model's Perception of the World at Any Resolution

    Peng Wang, Shuai Bai, Sinan Tan, Shijie Wang, Zhihao Fan, Jinze Bai, Keqin Chen, Xuejing Liu, Jialin Wang, Wenbin Ge, et al. Qwen2-vl: Enhancing vision-language model’s perception of the world at any resolution.arXiv preprint arXiv:2409.12191, 2024. 3

    work page internal anchor Pith review Pith/arXiv arXiv 2024

  13. [13]

    Open3DVQA: A benchmark for spatial reasoning with multimodal large language models in open space

    Weiming Ye et al. Open3DVQA: A benchmark for spatial reasoning with multimodal large language models in open space. InarXiv preprint arXiv:2402.03366, 2024. 1, 3

    work page arXiv 2024

  14. [14]

    Point-BERT: Pre-training 3d point cloud transformers with masked point modeling

    Xumin Yu, Lulu Tang, Yongming Rao, Tiejun Huang, Jie Zhou, and Jiwen Lu. Point-BERT: Pre-training 3d point cloud transformers with masked point modeling. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2022. 4

    2022

  15. [15]

    Pushing mixture of experts to the limit: Extremely parameter efficient MoE for instruction tuning

    Ted Zadouri, Ahmet ¨Ust¨un, Arash Ahmadian, Beyza Ermis ¸, Luke Zettlemoyer, and Sara Hooker. Pushing mixture of experts to the limit: Extremely parameter efficient MoE for instruction tuning. InInternational Conference on Learning Representations (ICLR), 2024. 2 5

    2024
