arxiv: 2605.19385 · v2 · pith:B2STPUNSnew · submitted 2026-05-19 · 💻 cs.DC · cs.DB

LatentBox: Storing AI-Generated Images at Scale via a Latent-First Design

Zirui Wang , Yunjia Zheng , Tingfeng Lan , Zhaoyuan Su , Haoran Ni , Juncheng Yang , Yue Cheng This is my paper

Pith reviewed 2026-05-20 02:46 UTC · model grok-4.3

classification 💻 cs.DC cs.DB
keywords AI-generated imageslatent storageobject storagecache managementgenerative AIon-demand reconstructionstorage efficiencyproduction trace analysis
0
0 comments X

The pith

LatentBox stores AI-generated images as compact latent tensors and reconstructs full pixels on demand, cutting persistent storage by 78.7 percent while keeping mean and tail latency competitive with or below pure image storage.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

AI-generated images do not need to be kept as full-resolution pixel blobs because they can be deterministically rebuilt from much smaller latent tensors produced by the generative model. LatentBox makes the compressed latent the primary durable object and performs GPU-based reconstruction only when a read request arrives. A 35-month trace of two billion requests shows clear hot and cold access patterns, which the system exploits by keeping popular images decoded in a fast cache and the rest as space-efficient latents. It continuously rebalances the cache split to minimize the latency users actually see. The result is a large, sustained reduction in storage capacity and bandwidth with no measurable slowdown in user-facing performance.

Core claim

LatentBox treats compressed latents as durable storage objects and uses on-demand GPU reconstruction on the read path to trade inexpensive compute for large persistent storage savings. Motivated by the trace analysis, LatentBox keeps frequently accessed images in decoded pixel format for fast hits, stores less-active objects as compressed latents to expand effective cache capacity, and continuously adjusts the splits between the image and latent cache to optimize user-perceived access latency. Evaluation on the production trace shows a 78.7 percent reduction in persistent storage with competitive or lower mean and tail latency compared with conventional image-based storage.

What carries the argument

Dynamic split between a small decoded-image cache for hot objects and a much larger latent cache for cold objects, with on-demand GPU reconstruction triggered only on cache misses.

If this is right

  • Generative-image platforms can store several times more images on the same hardware without adding disks or bandwidth.
  • The cost of keeping every generated image permanently drops because the persistent form is now the compact latent rather than the full pixel file.
  • Cache capacity effectively increases because most objects occupy far less space until they are actually requested.
  • Reconstruction compute becomes a first-class resource that must be provisioned alongside storage, shifting the bottleneck from capacity to GPU cycles on read paths.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar latent-first designs could apply to other deterministic generative outputs such as video frames or 3-D assets if they share the same reconstruction property.
  • Integrating reconstruction directly into storage controllers or network cards might remove the GPU step entirely for many requests.
  • Workloads with bursty or one-time access patterns would need different cache policies than the ones tuned on this long-term trace.

Load-bearing premise

Reconstructing pixels from latents on GPUs adds only acceptable latency for user-facing reads and the access patterns observed in the 35-month trace will continue to hold for future workloads.

What would settle it

A production workload in which GPU reconstruction raises p99 latency by more than 20 ms for at least 5 percent of requests, or in which the effective storage reduction falls below 50 percent.

Figures

Figures reproduced from arXiv: 2605.19385 by Haoran Ni, Juncheng Yang, Tingfeng Lan, Yue Cheng, Yunjia Zheng, Zhaoyuan Su, Zirui Wang.

Figure 1
Figure 1. Figure 1: Illustration of latent-first storage. (a) Conventional object stores persist AI-generated images as opaque blobs, whereas Latent￾Box (LB) stores compact model-native latents (intermediate state) and reconstructs images on demand. (b) Cost–latency tradeoff of five storage strategies. LatentBox achieves low cost and latency. Existing large-scale image storage systems, including Face￾book’s Haystack [10] and … view at source ↗
Figure 2
Figure 2. Figure 2: Adobe Firefly sees ex￾plosive gen-image growth [3]. VAE decoder Text prompt CLIP/T5 Diffusion Latent z Image x Stage 1: Denoising (seconds) Stage 2: Decode (tens of ms) [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 4

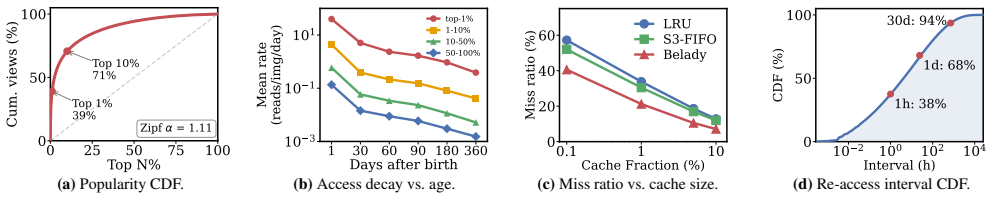

Figure 4. Figure 4: CompanyX trace characterization. (a) Image popularity CDF. (b) Mean access rate vs. age, stratified by lifetime-view quartile. (c) Miss ratio vs. cache size for three policies. (d) CDF of intervals between consecutive accesses. 3 Motivation This section motivates the design of LatentBox by analyzing a production trace (§3.1) and characterizing the cost of on￾demand pixel reconstruction (§3.2). 3.1 Producti… view at source ↗
Figure 5
Figure 5. Figure 5: LatentBox architecture and request flow. to map each identifier to its owner node and tracks per-GPU queue depths for load-aware dispatch. Every GPU node is functionally identical: it hosts a dual-format cache that holds each object either as a decoded image or as a compressed latent (§4.2), an adaptive resizer that balances the two tiers online (§4.3), and one decode pipeline per GPU streaming CPU decompr… view at source ↗
Figure 6
Figure 6. Figure 6: Dual-format cache design. over the full request stream: a request counts as an image miss if the requested object is not found in the image cache, regardless of whether it is later found in the latent cache. Let MRlat(α) denote the latent-cache miss ratio at this allocation, measured over the image-miss stream, i.e., only those requests that already missed the image cache. A latent miss is therefore a full… view at source ↗
Figure 7

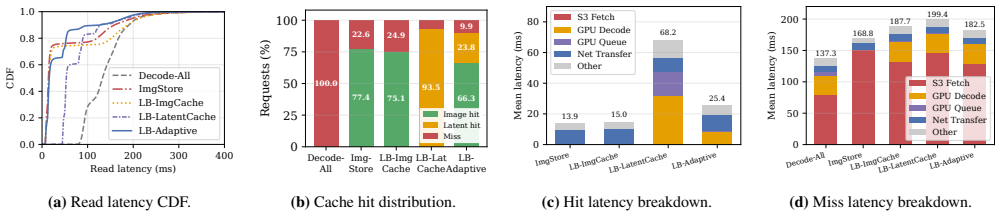

Figure 7. Figure 7: End-to-end read performance. (a) CDF of read latency for five store-and-read configurations. (b) Stacked cache hit distribution: image hit, latent hit, and full miss fractions. (c) Mean latency breakdown for cache-hit requests (image hit + latent hit); numbers above bars show total mean (ms). (d) Mean latency breakdown for cache-miss requests [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

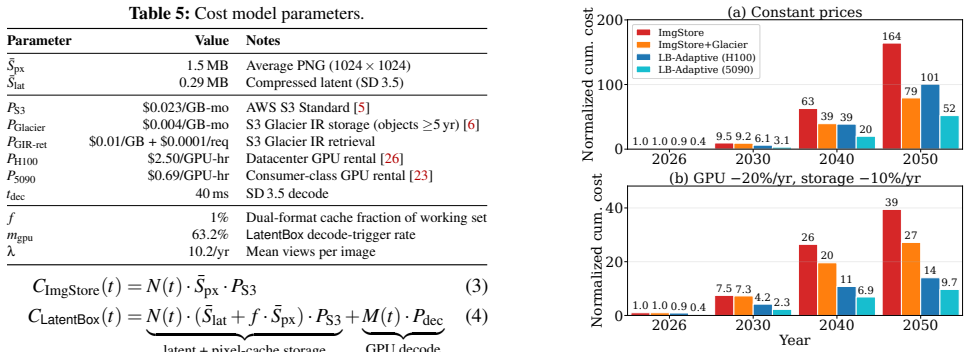

Figure 8. Figure 8: Cumulative cost at four time horizons (2026, 2030, 2040, 2050), normalized so ImgStore at the trace end (March 2026) equals 1. (Top) constant prices. (Bottom) with annual price decay (GPU −20%/yr, storage −10%/yr from 2026 [17, 18, 38, 49]). 5090 saves 64%, because cheaper GPUs amplify the decode￾based architecture’s advantage while storage-price reductions benefit both strategies proportionally. 6.5 Ablat… view at source ↗
Figure 11

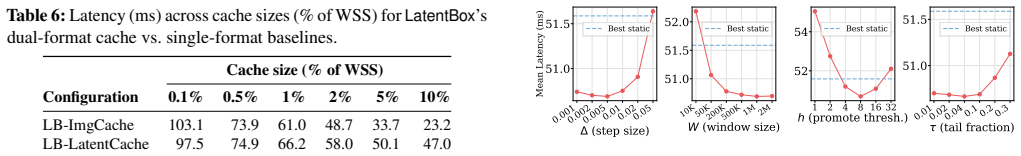

Figure 11. Figure 11: Sensitivity analysis. LatentBox is robust to step size, window size, and tail fraction; the promotion threshold h has the largest impact. 6.5.3 Spillover Dispatch To validate the effectiveness of the spillover path, we replay the same 48-hour trace on a 6-node GPU cluster at 1000× speed and an overflow threshold θ=4. The without-spillover baseline sets θ to infinity, so every request is dispatched to its … view at source ↗
Figure 9
Figure 9. Figure 9: Per-window latency im￾provement and α trajectory. E2E Mean E2E P99 GPU Wait Mean GPU Wait P99 0 200 400 600 Read Latency (ms) 79 94 360 472 5 8 78 153 w/ Spillover w/o Spillover [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 12
Figure 12. Figure 12: Reconstruction fidelity over 10 K SD 3.5 images (1024×1024). (a) Signed per-channel pixel difference aggregated across 2,000 sampled images; 47% of pixel-channel values are un￾changed. (b)-(c) White dot: median; thick bar: interquartile range. “q” in “q95” denotes quality factor; higher PSNR (dB) and SSIM closer to 1 indicate better fidelity. sults indicate that practitioners can deploy LatentBox without … view at source ↗
read the original abstract

The explosive growth of AI-generated images has created a sustainability challenge for storage infrastructure. Platforms like Midjourney and Adobe Firefly already host billions of generative images, yet conventional object stores persist them as blobs with full-resolution pixels, consuming huge amounts of storage capacity and bandwidth. Unlike natural photos, however, AI-generated images can be deterministically reconstructed from compact, model-native latent tensors, making persistent image storage fundamentally redundant. This paper presents LatentBox, a latent-first storage system for AI-generated images. LatentBox treats compressed latents as durable storage objects and uses on-demand GPU reconstruction on the read path to trade inexpensive compute for large persistent storage savings. Our design is guided by the first large-scale analysis of AI-generated image access we are aware of, based on a 35-month, 2-billion-request production trace from a major generative-content platform. Motivated by the trace analysis, LatentBox keeps frequently accessed images in decoded pixel format for fast hits, stores less-active objects as compressed latents to expand effective cache capacity, and continuously adjusts the splits between the image and latent cache to optimize user-perceived access latency.We build a LatentBox prototype and evaluate it with the production trace. LatentBox reduces persistent storage by 78.7% with competitive or even lower mean and tail latency over a pure image-based storage.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents LatentBox, a latent-first storage system for AI-generated images. It stores images as compressed latent tensors (rather than full-resolution pixel blobs) and performs on-demand GPU reconstruction on the read path. Design decisions are motivated by analysis of a 35-month, 2-billion-request production trace; the system maintains a dynamic split between an image cache (for hot objects) and a latent cache (to expand effective capacity) while continuously tuning the split to optimize user-perceived latency. The central empirical claim is a 78.7% reduction in persistent storage with competitive or lower mean and tail latencies relative to a pure image-based baseline.

Significance. If the latency results hold after proper isolation of reconstruction costs, the work demonstrates a concrete storage-compute tradeoff that could materially reduce capacity and bandwidth demands on platforms hosting billions of generative images. The large-scale trace analysis is a notable strength, providing empirical grounding for cache policies that would otherwise rest on synthetic assumptions. The approach is falsifiable via replay of the same trace with measured decoder forward-pass times.

major comments (2)
  1. [Evaluation] Evaluation section: the headline claim of competitive or lower tail latency requires that on-demand GPU reconstruction overhead (including decoder forward passes) was measured end-to-end and under realistic contention when the dynamic cache policy moves objects into the latent tier. The provided abstract and trace-replay description give no indication that reconstruction time was isolated or that p99 numbers include warm-GPU vs. contended-GPU cases; without this, the net-win argument over pure image storage is not yet load-bearing.
  2. [Evaluation] Evaluation section: the 78.7% storage-reduction figure and all latency comparisons lack reported error bars, confidence intervals, or sensitivity analysis to trace variations (e.g., different 35-month sub-windows or access-pattern shifts). This omission makes it impossible to judge whether the reported gains are statistically robust or sensitive to the particular production trace.
minor comments (2)
  1. [Abstract] Abstract: the sentence describing the dynamic cache split policy could be expanded with one concrete example of how the split threshold is adjusted (e.g., latency target or hit-rate feedback loop) to give readers an immediate sense of the control mechanism.
  2. [Evaluation] The manuscript would benefit from an explicit statement of the GPU model and batch size used for reconstruction measurements so that the overhead numbers can be reproduced or compared to other decoder implementations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments, which highlight important aspects of our evaluation that require clarification and strengthening. We address each major comment below and have revised the evaluation section of the manuscript accordingly.

read point-by-point responses

  1. Referee: [Evaluation] Evaluation section: the headline claim of competitive or lower tail latency requires that on-demand GPU reconstruction overhead (including decoder forward passes) was measured end-to-end and under realistic contention when the dynamic cache policy moves objects into the latent tier. The provided abstract and trace-replay description give no indication that reconstruction time was isolated or that p99 numbers include warm-GPU vs. contended-GPU cases; without this, the net-win argument over pure image storage is not yet load-bearing.

    Authors: We agree that explicit end-to-end measurement of reconstruction overhead under contention is necessary to support the latency claims. Our prototype trace replay did capture full read-path latencies, including decoder forward passes when objects were served from the latent tier. However, the submitted manuscript did not isolate reconstruction time or separately report warm-GPU versus contended-GPU p99 cases. In the revised version we have added a new subsection with these breakdowns, including measured decoder times under varying GPU load, to make the comparison against the pure-image baseline more transparent. revision: yes

  2. Referee: [Evaluation] Evaluation section: the 78.7% storage-reduction figure and all latency comparisons lack reported error bars, confidence intervals, or sensitivity analysis to trace variations (e.g., different 35-month sub-windows or access-pattern shifts). This omission makes it impossible to judge whether the reported gains are statistically robust or sensitive to the particular production trace.

    Authors: The referee correctly notes the absence of error bars and sensitivity analysis. The 78.7% storage reduction and latency results were obtained from replay of the full production trace, but the original submission did not quantify variability across trace sub-windows or report confidence intervals. We have performed additional sensitivity experiments on multiple 35-month sub-windows and access-pattern shifts; the revised manuscript now includes error bars on all latency plots and a dedicated sensitivity analysis showing that both storage savings and latency benefits remain consistent. revision: yes

Circularity Check

0 steps flagged

No circularity; results from empirical trace-driven evaluation on external production data.

full rationale

The paper presents a systems design whose headline claims (78.7% storage reduction and competitive latency) are obtained by building a prototype and replaying a 35-month, 2-billion-request production trace from an external platform. No equations, fitted parameters, or predictions are shown to reduce to the inputs by construction; the trace analysis guides the cache-split policy but the reported numbers come from direct end-to-end measurement against a baseline image store. No load-bearing self-citations or uniqueness theorems are invoked in the provided text. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The design rests on the domain assumption that latents allow deterministic reconstruction and on empirical fitting of cache policies to the observed trace; no new physical entities or mathematical axioms are introduced.

free parameters (1)
  • image vs latent cache split thresholds
    Continuously adjusted based on access patterns from the 35-month trace to optimize latency.
axioms (1)
  • domain assumption AI-generated images can be deterministically reconstructed from compact model-native latent tensors
    Invoked in the abstract as the fundamental property enabling storage of latents instead of pixels.
