CoLI: A Reproducible Platform for Continuum Robot Learning via Monolithic 3D Printing and Isomorphic Teleoperation

Ziyuan Tang , Chenxi Xiao* This is my paper

Pith reviewed 2026-06-26 17:30 UTC · model grok-4.3

classification 💻 cs.RO
keywords continuum robotmonolithic 3D printingisomorphic teleoperationimitation learningreproducibilityopen-source platformmanipulation taskscompliant structure
0
0 comments X

The pith

A monolithic 3D-printed continuum robot with direct actuator mapping enables reproducible learning without kinematic models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses reproducibility barriers in continuum robots that stem from complex fabrication, assembly, and kinematic modeling. It presents an open-source platform built around multi-material 3D printing that produces the robot arm as a single compliant monolithic structure requiring minimal assembly. Control uses an isomorphic teleoperation interface that maps commands directly to actuators, removing the need for explicit kinematic models and singularity handling. The same hardware supports collection of demonstration data for imitation learning. Hardware characterization and manipulation task experiments indicate the resulting system supplies consistent, learning-ready hardware and data pipelines.

Core claim

The proposed system features a simplified fabrication pipeline enabled by multi-material 3D printing, allowing the arm to be fabricated as a monolithic compliant structure with minimal assembly. Control is achieved through an isomorphic teleoperation interface that establishes a direct actuator-level mapping, eliminating the need for explicit kinematic modeling and providing a singularity-free mapping. Building on this hardware design, the platform further supports imitation-learning-based autonomous control. Experimental results demonstrate that the platform provides a reproducible, learning-ready continuum robot system.

What carries the argument

Monolithic multi-material 3D-printed compliant structure paired with actuator-level isomorphic teleoperation mapping that supplies direct, singularity-free control and demonstration data.

If this is right

  • Fabrication reduces to standard multi-material printing with little post-processing or assembly.
  • Teleoperation and data recording proceed without deriving or solving kinematic equations.
  • Demonstration data collected via the interface directly trains imitation-learning controllers.
  • Hardware consistency across users enables direct comparison of algorithms on identical platforms.
  • The open design lowers the entry cost for new groups to run continuum-robot experiments.
  • pith_inferences=[
  • Independent labs without specialized fabrication facilities could replicate the full pipeline if the consistency assumption holds.
  • The direct-mapping approach could extend to other soft or high-DOF robots where kinematic models remain difficult to obtain.

Load-bearing premise

The monolithic 3D printing process and actuator-level teleoperation mapping will produce consistent functional hardware and data collection pipelines across different fabrication setups and users without requiring additional calibration or modeling.

What would settle it

Multiple independent groups fabricating and operating the robot according to the provided instructions but obtaining inconsistent mechanical behavior or task performance that requires custom calibration or kinematic modeling to match reported results.

Figures

Figures reproduced from arXiv: 2606.20389 by Chenxi Xiao*, Ziyuan Tang.

Figure 1

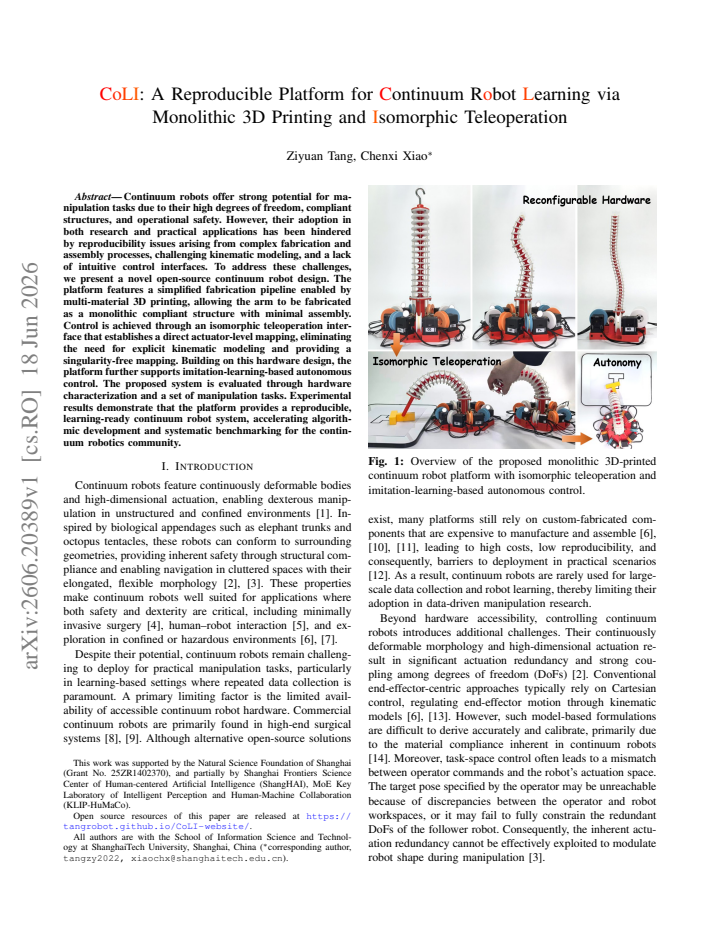

Figure 1. Figure 1: Overview of the proposed monolithic 3D-printed continuum robot platform with isomorphic teleoperation and imitation-learning-based autonomous control. exist, many platforms still rely on custom-fabricated com￾ponents that are expensive to manufacture and assemble [6], [10], [11], leading to high costs, low reproducibility, and consequently, barriers to deployment in practical scenarios [12]. As a result, c… view at source ↗
Figure 2

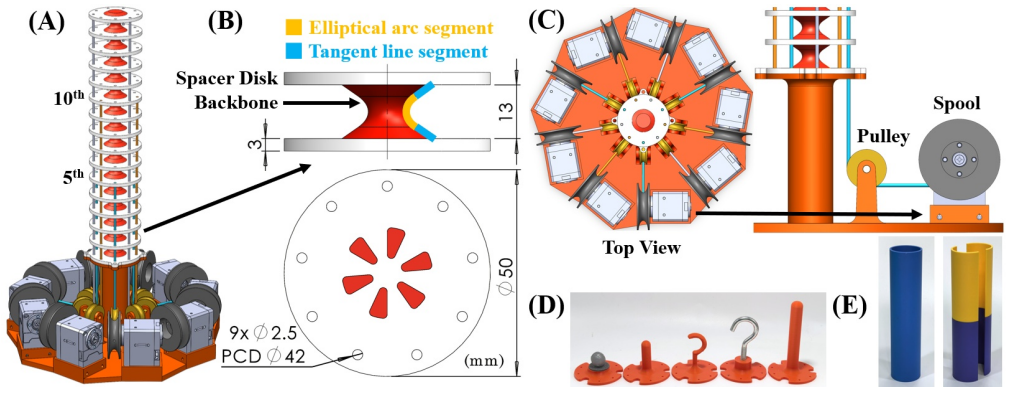

Figure 2. Figure 2: Structure of the proposed continuum robot: [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

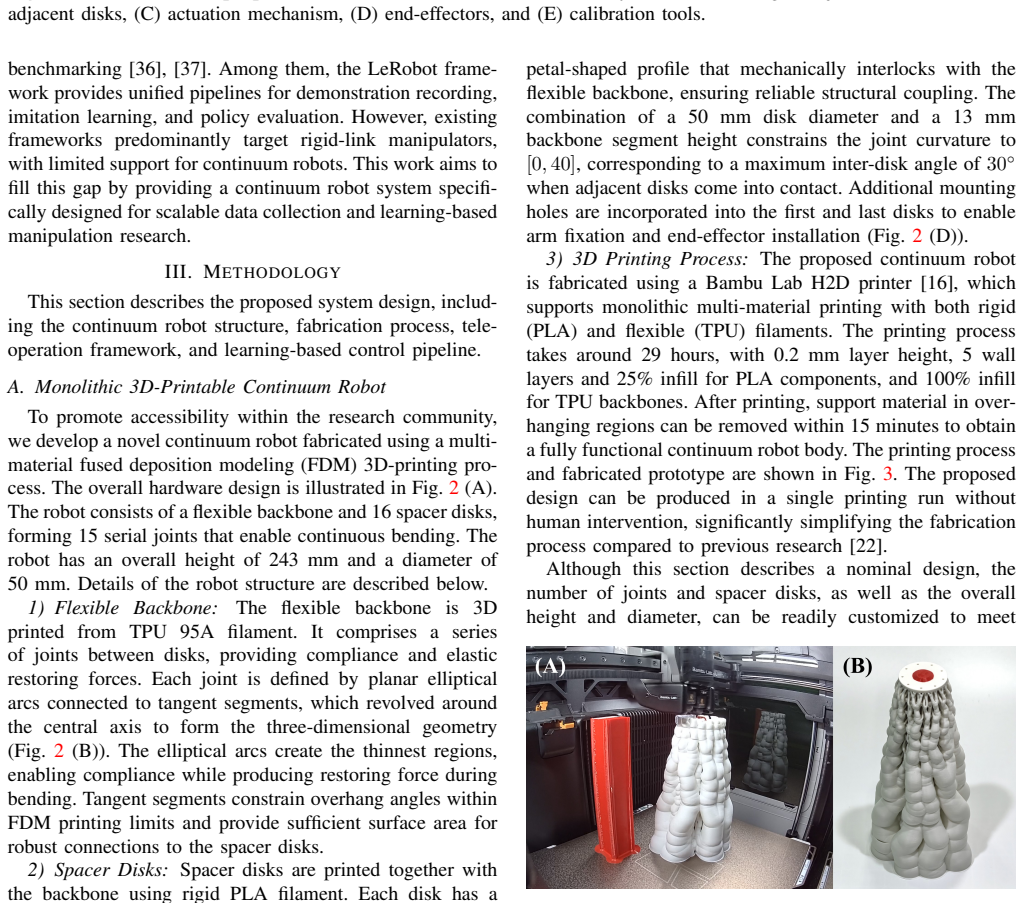

Figure 3. Figure 3: (A) The printing process of the continuum robot. (B) The printed continuum robot with support [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (A) Experimental setup for accuracy evaluation and imitation learning–driven manipulation tasks. (B) The data flow of learning–driven manipulation tasks. resulting changes in tendon lengths (and thus motor encoder values) are mapped to target position commands for the fol￾lower motors, which rotate the follower spools accordingly to adjust tendon lengths. This mapping is implemented using a simple rule: q … view at source ↗
Figure 6

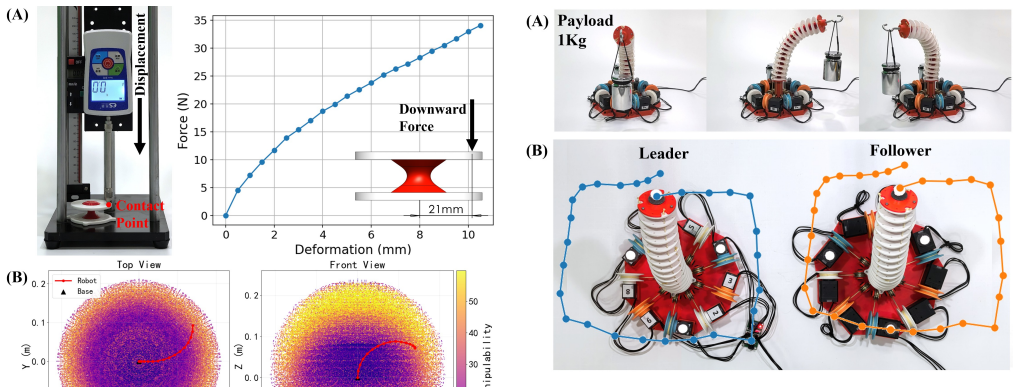

Figure 6. Figure 6: (A) Payload evaluation with a 1 kg load, and (B) teleoperation trajectory for both the leader and follower. similar to other spring-based designs [38], for which existing modeling and control theories are applicable. 2) Workspace: We also evaluated the robot’s workspace and manipulability, which are critical for task performance. For this purpose, the robot kinematic model was con￾structed using the Piecew… view at source ↗
Figure 7

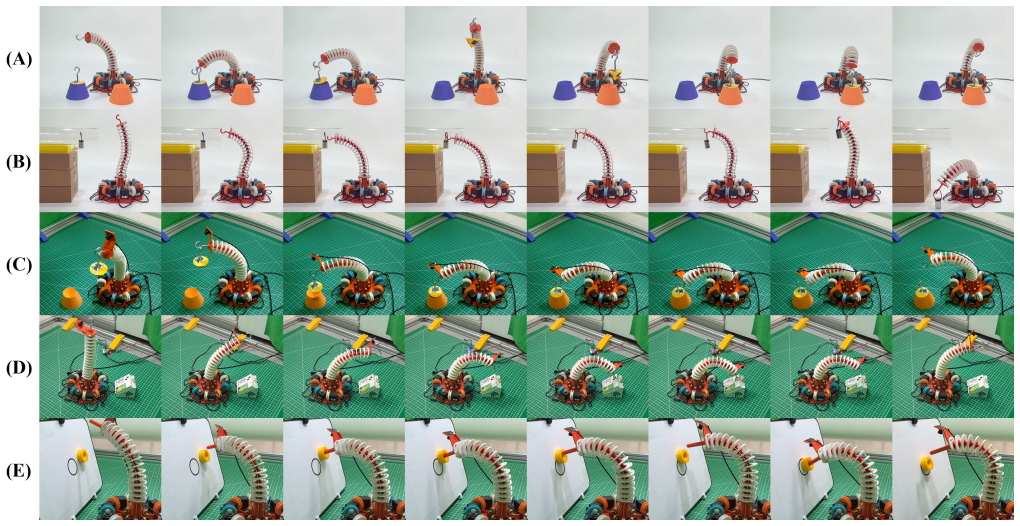

Figure 7. Figure 7: Demonstration of the robot’s teleoperation dexterity in (A) hooking and repositioning a weight and (B) reaching objects inside a tube. We further demonstrate autonomous capabilities in (C) positioning a weight, (D) contact-based switch toggling, and (E) non-prehensile pushing of an object toward a target location. for more than 90 minutes without failure. These results indicate that the robot’s durability … view at source ↗
read the original abstract

Continuum robots offer strong potential for manipulation tasks due to their high degrees of freedom, compliant structures, and operational safety. However, their adoption in both research and practical applications has been hindered by reproducibility issues arising from complex fabrication and assembly processes, challenging kinematic modeling, and a lack of intuitive control interfaces. To address these challenges, we present a novel open-source continuum robot design. The platform features a simplified fabrication pipeline enabled by multi-material 3D printing, allowing the arm to be fabricated as a monolithic compliant structure with minimal assembly. Control is achieved through an isomorphic teleoperation interface that establishes a direct actuator-level mapping, eliminating the need for explicit kinematic modeling and providing a singularity-free mapping. Building on this hardware design, the platform further supports imitation-learning-based autonomous control. The proposed system is evaluated through hardware characterization and a set of manipulation tasks. Experimental results demonstrate that the platform provides a reproducible, learning-ready continuum robot system, accelerating algorithmic development and systematic benchmarking for the continuum robotics community.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper introduces CoLI, an open-source continuum robot platform that uses monolithic multi-material 3D printing to create a compliant arm with minimal assembly and an isomorphic teleoperation interface providing direct actuator-level mapping without explicit kinematic models. It further supports imitation learning for autonomous control and reports evaluation via hardware characterization and manipulation tasks, claiming the system is reproducible and accelerates benchmarking in continuum robotics.

Significance. If the reproducibility and functionality claims hold with supporting quantitative evidence, the platform could meaningfully lower barriers to entry for continuum robot research by simplifying fabrication and control, enabling broader algorithmic development and systematic comparisons.

major comments (2)
  1. Abstract: the central claim that 'experimental results demonstrate that the platform provides a reproducible, learning-ready continuum robot system' is unsupported, as the text supplies no methods details, quantitative results, error bars, or data on task success rates.
  2. Abstract and conclusion: the reproducibility assertion depends on consistent performance of monolithic multi-material prints, yet no inter-print variance data (e.g., stiffness, workspace, or manipulation success across multiple fabrications) is reported, leaving the load-bearing assumption untested.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which identifies opportunities to strengthen the presentation of quantitative evidence and reproducibility claims. We respond to each major comment below.

read point-by-point responses

  1. Referee: Abstract: the central claim that 'experimental results demonstrate that the platform provides a reproducible, learning-ready continuum robot system' is unsupported, as the text supplies no methods details, quantitative results, error bars, or data on task success rates.

    Authors: We agree that the abstract, being a high-level summary, omits specific quantitative details present in the manuscript's evaluation section. That section describes the hardware characterization methods and reports manipulation task outcomes with associated metrics. We will revise the abstract to incorporate key quantitative results, including task success rates and variability measures, to directly support the claim. revision: yes

  2. Referee: Abstract and conclusion: the reproducibility assertion depends on consistent performance of monolithic multi-material prints, yet no inter-print variance data (e.g., stiffness, workspace, or manipulation success across multiple fabrications) is reported, leaving the load-bearing assumption untested.

    Authors: The presented results are based on a single monolithic fabrication, as the work prioritizes demonstrating the end-to-end platform and imitation learning pipeline. We acknowledge that explicit inter-print variance statistics are not included. We will revise the abstract and conclusion to ground the reproducibility claim in the design's reduction of assembly steps rather than multi-unit empirical statistics, and note multi-print validation as future work. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical hardware paper with no derivations or self-referential claims

full rationale

The paper describes a fabrication process via multi-material 3D printing, an isomorphic teleoperation interface, and evaluation via hardware characterization and manipulation tasks. No equations, derivations, fitted parameters, or self-citations appear in the provided text. The reproducibility claim rests on stated experimental results rather than any reduction to inputs by construction, self-definition, or load-bearing self-citation chains. This is the expected outcome for a self-contained empirical systems paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated or derivable.

axioms (1)
  • domain assumption Multi-material 3D printing can reliably produce functional monolithic compliant continuum structures with minimal post-processing.
    Invoked by the simplified fabrication pipeline claim.

pith-pipeline@v0.9.1-grok · 5707 in / 1075 out tokens · 31011 ms · 2026-06-26T17:30:36.123907+00:00 · methodology
