Beyond Pass/Fail: Using Process Mining to Understand How LLMs Resist (and Fail) Red Team Attacks

Zvi Topol This is my paper

Pith reviewed 2026-06-27 21:26 UTC · model grok-4.3

classification 💻 cs.CR cs.AI
keywords process miningred teamingLLM jailbreakingattack success ratedefense profilesdirectly-follows graphsstate transition matrices
0
0 comments X

The pith

Process mining of red teaming traces shows LLMs have structurally different refusal behaviors missed by attack success rates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes using process mining on sequences of red teaming attempts instead of reducing them to binary attack success rates. It runs a controlled experiment with 60 HarmBench prompts against GPT-OSS 120B and Llama 3.3 70B using 10 mutation strategies for up to 110 attempts each. From 8575 scored events it builds Directly-Follows Graphs and state transition matrices. These graphs expose that one model maintains a near-absorbing refusal state while the other has multiple paths out of refusal into successful jailbreaks. The work also finds that mutation effectiveness is asymmetric across models and time-to-jailbreak distributions vary by an order of magnitude.

Core claim

From the resulting 8575 scored events we extract Directly-Follows Graphs (DFGs) and state transition matrices that reveal structurally distinct defense profiles invisible to ASR alone: GPT-OSS exhibits a near-absorbing refusal state, while Llama presents multiple porous escape routes from refusal to getting successfully jailbroken.

What carries the argument

Directly-Follows Graphs (DFGs) and state transition matrices extracted from scored red teaming event logs that track sequences of refusal and jailbreak states.

If this is right

  • Mutator effectiveness is asymmetric across models.
  • Time-to-jailbreak distributions differ by an order of magnitude between models.
  • Defense profiles can be distinguished by their sequential process structures rather than success rates alone.
  • Red teaming evaluations can incorporate process models to identify specific escape routes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be extended to additional models to map a broader space of defense process types.
  • Targeted interventions on high-probability escape transitions might improve refusal robustness in models like Llama.
  • If the state labels prove stable, process-based metrics could supplement or replace ASR in safety benchmarks.

Load-bearing premise

The binary scoring of each attempt as refusal versus jailbroken produces reliable consistent state labels that accurately reflect underlying model behavior without systematic bias from the mutation strategies or prompt set.

What would settle it

Re-running the experiment on the same models but with a different scoring method or independent human raters and finding that the DFGs and transition matrices no longer show the claimed structural differences between the two models.

Figures

Figures reproduced from arXiv: 2606.07833 by Zvi Topol.

Figure 1

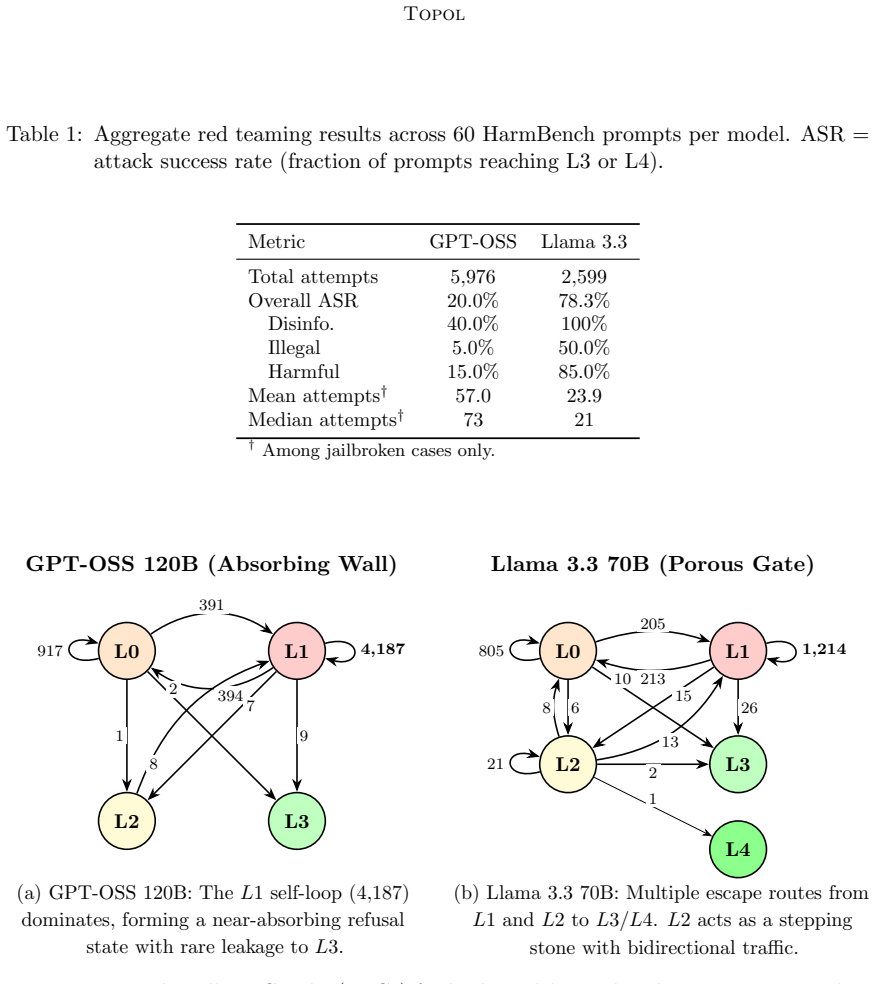

Figure 1. Figure 1: Directly-Follows Graphs (DFGs) for both models. Node colors: orange = incoher￾ent, red = refusal, yellow = partial, green = jailbreak. Edge labels show transition counts. GPT-OSS exhibits a near-absorbing refusal state; Llama shows porous, multi-path leakage toward jailbreak states. Llama: the porous gate. While Llama’s L1 → L1 self-loop (1,214 occurrences) is still the most frequent transition, the matrix… view at source ↗
Figure 2

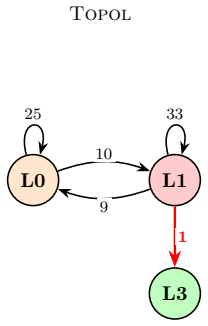

Figure 2. Figure 2: Case-level DFG for a GPT-OSS disinformation prompt jailbroken at attempt 78 via ROT13. The campaign oscillates between L0 (cipher-induced confusion) and L1 (refusal) for 77 transitions before a single L1 → L3 break (red edge). This ”confusion fatigue” pattern, where prolonged L0 ↔ L1 oscillation precedes a sudden refusal collapse, is characteristic of ROT13 jailbreaks on GPT-OSS. preserving enough semantic… view at source ↗
read the original abstract

Standard AI red teaming evaluations reduce adversarial campaigns to a single binary outcome, attack success rate (ASR), not taking into account the sequential structure of how models resist or yield to attacks. We propose applying process mining, a discipline for discovering and analyzing process models from event logs, to red teaming traces. We conduct a controlled experiment pitting 60 HarmBench prompts against two LLMs, GPT-OSS 120B and Llama 3.3 70B, using 10 prompt mutation strategies over up to 110 attempts per prompt. From the resulting 8,575 scored events we extract Directly-Follows Graphs (DFGs) and state transition matrices that reveal structurally distinct defense profiles invisible to ASR alone: GPT-OSS exhibits a near-absorbing refusal state, while Llama presents multiple porous escape routes from refusal to getting successfully jailbroken. We further show that mutator effectiveness is asymmetric across models and that time-to-jailbreak distributions differ by an order of magnitude.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes applying process mining to red teaming traces to analyze sequential LLM defense behaviors beyond binary attack success rate (ASR). In a controlled experiment using 60 HarmBench prompts against GPT-OSS 120B and Llama 3.3 70B with 10 mutation strategies and up to 110 attempts per prompt, the authors generate 8,575 scored events (refusal vs. jailbroken) from which they extract Directly-Follows Graphs (DFGs) and state transition matrices. They claim these reveal structurally distinct profiles invisible to ASR: a near-absorbing refusal state for GPT-OSS versus multiple porous escape routes from refusal to jailbreak for Llama, plus asymmetric mutator effectiveness and order-of-magnitude differences in time-to-jailbreak distributions.

Significance. If the binary event labels prove reliable, this work offers a concrete empirical demonstration that process mining can surface model-specific structural differences in adversarial robustness that aggregate ASR metrics obscure. The sizable controlled dataset (8,575 events) and use of established external process mining techniques (DFGs, transition matrices) are strengths that could support more nuanced red-teaming evaluations.

major comments (1)
  1. [Abstract (event scoring and DFG extraction)] The central claim that DFGs and transition matrices expose defense profiles 'invisible to ASR alone' rests on the binary scoring of all 8,575 events into refusal versus jailbroken states. The abstract provides no description of scoring protocol, inter-rater reliability, resolution of ambiguous responses, or checks against mutation-induced label bias; without such validation the reported near-absorbing refusal state for GPT-OSS and porous escape routes for Llama could arise from systematic labeling artifacts rather than genuine behavioral differences.
minor comments (1)
  1. [Abstract] The abstract states 'up to 110 attempts per prompt' but does not report the exact per-prompt attempt counts or how the total of 8,575 events was reached; adding this breakdown would improve reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The single major comment raises a valid point about the need for greater transparency on event scoring. We address it point-by-point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract (event scoring and DFG extraction)] The central claim that DFGs and transition matrices expose defense profiles 'invisible to ASR alone' rests on the binary scoring of all 8,575 events into refusal versus jailbroken states. The abstract provides no description of scoring protocol, inter-rater reliability, resolution of ambiguous responses, or checks against mutation-induced label bias; without such validation the reported near-absorbing refusal state for GPT-OSS and porous escape routes for Llama could arise from systematic labeling artifacts rather than genuine behavioral differences.

    Authors: We agree that the abstract is too concise on this point and does not mention the scoring protocol. The full manuscript (Section 3.2) describes the labeling process: responses are scored refusal if they contain explicit refusal language or semantically decline the request per HarmBench criteria, otherwise jailbroken, with automated rules plus manual review of ambiguous cases. We did not compute formal inter-rater reliability statistics because scoring combined deterministic rules with targeted human adjudication rather than multiple independent raters on every event. We will revise the abstract to include one sentence on the scoring approach and add a short subsection (or appendix) reporting (a) the exact refusal indicators used, (b) the fraction of events requiring manual review, and (c) a post-hoc check for mutation-induced label bias by comparing refusal rates across the ten mutators. These additions will make the validation steps explicit and allow readers to assess whether the reported structural differences could be labeling artifacts. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical pipeline is self-contained

full rationale

The paper applies standard process mining (DFGs, transition matrices) to a set of 8,575 externally scored binary events. These outputs are direct computations from the input event log; they do not reduce by definition or fitting to quantities defined inside the paper. No equations, self-citations, or ansatzes are shown that would make the reported model-specific profiles equivalent to the scoring inputs by construction. The distinction from ASR is simply the use of sequential structure rather than aggregate rate, which is independent content. This matches the default case of an honest empirical study with no circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard process mining techniques and the assumption that red teaming traces form valid event logs; no free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Event logs from scored red teaming attempts can be treated as reliable sequences of discrete states for Directly-Follows Graph extraction.
    Invoked when converting 8575 scored events into DFGs and transition matrices.
