This paper argues that structural-engineering LLM agents should be judged by the consistency of an executable evidence chain, not by the plausibility of final text or artifacts; it reports that artifact presence alone overstates reliability

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-04 04:14 UTC pith:EQRT7ENW

load-bearing objection A genuinely useful, carefully scoped benchmark for engineering LLM agents, whose headline gap is real under its own fixture rules but must be read as convention-conformity until independently reviewed alternatives are shown to be rare. the 3 major comments →

arxiv 2607.14896 v2 pith:EQRT7ENW submitted 2026-07-16 cs.SE cs.AIcs.MA

StructureClaw: Traceable LLM Agents and an Executable Benchmark for Structural Engineering Workflows

Sizhong Qin , Yi Gu , Yao Jiang , Ao Cai , Changjian Zhou , Shaoxuan Shuai , Jiachang Wang , Tianhao Shen
show 8 more authors
Yueqiang Li Xinhao Li Li Zeng Yueshi Chen Dachen Gao Genrong Xu Wenjie Liao Xinzheng Lu
This is my paper
classification cs.SE cs.AIcs.MA
keywords structural engineeringLLM agentsevidence chainexecutable benchmarkstructural model fidelitynumerical validationmultimodal reconstructionworkflow evaluation
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that evaluating an LLM by its final answer, or even by whether it produced a structural model, rewards fluent but incomplete or inconsistent work. It proposes that reliability in structural engineering means maintaining a linked chain of artifacts—interpreted requirements, a computable model, validation records, solver outputs, checks, and a report—where each stage consumes recorded state rather than conversational text. To test this, it builds StructureClaw, an artifact-centered agent workbench, and StructureClaw-Bench, 150 executable scenarios whose trials succeed only when every fixture-required assertion passes, including strict one-to-one model matching and numerical agreement with frozen solver responses. Across nine text-agent configurations, generic-only execution passed the model-artifact check in 87.0% of retained outcomes but achieved only 22.0% end-to-end success, while the automatic workflow reached 82.9%. The paper therefore concludes that artifact presence overstates reliability and that workflow-level evaluation localizes where evidence is lost.

Core claim

On the paper's own terms, the central discovery is a measurement: when success requires an unbroken evidence chain—strict one-to-one structural-model matching to a reference fixture and numerical-response agreement with frozen responses from the selected analysis engine—generic LLM execution collapses from 87.0% artifact-presence to 22.0% end-to-end success, while the artifact-centered automatic workflow retains 82.9%. This gap, the paper argues, shows that plausible models do not imply reliable engineering workflows. The same measurements localize the remaining bottlenecks: semantic-state consistency in interactive settings and executable model reconstruction from images or DXF drawings in

What carries the argument

The carrying mechanism is the evidence chain, defined as the linked set of artifacts, tool executions, validation records, and terminal decisions that support an engineering result. StructureClaw realizes it with persistent artifact state, governed skills, typed tools, a shared structural-model protocol, and local analysis backends; StructureClaw-Bench operationalizes it with fixture-defined typed assertions. The central evaluative machinery is strict one-to-one matching of nodes, elements, restraints, properties, and loads against a reference fixture, followed by numerical matching of mapped solver responses to frozen same-engine references, with a trial succeeding only when every required

Load-bearing premise

The benchmark's own reference fixtures and tolerance policy are treated as ground truth, so the end-to-end numbers measure agreement with StructureClaw's conventions; if those fixtures do not cover the space of valid engineering idealizations, the reliability claims shift accordingly.

What would settle it

An independent structural engineer could blind-review randomized trials from the generic-only condition, comparing those that produce a plausible model but fail strict matching against the reference fixture. If a large share of those failing trials is judged professionally sound, the benchmark's binary would be measuring convention-following rather than engineering reliability; if most are judged non-equivalent or unsafe, the evidence-chain requirement is necessary.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • Benchmarks that score final text or artifact presence overstate an LLM agent's reliability for structural engineering; executable, evidence-chain assertions are needed to expose missing or inconsistent intermediates.
  • The automatic workflow raised end-to-end success for every one of the nine evaluated text-agent configurations, with gains ranging from roughly 41 to 85 percentage points, indicating the benefit is not specific to one model.
  • High local performance on clarification, safe abstention, or artifact presence does not guarantee end-to-end success, so workflow-level measures should be reported alongside stage-level diagnostics.
  • Multimodal structural reconstruction is bottlenecked less by recognizing the structure type than by converting perception into a complete executable model with correct topology, restraints, properties, and loads.
  • Reporting single-attempt reliability and three-trial stability is more deployment-relevant than retry-oriented metrics such as pass@3.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: the evidence-chain evaluation design could transfer to other engineering domains, such as mechanical or geotechnical workflows, where a final report is only trustworthy if model, solver trace, checks, and report remain linked.
  • Editorial extension: the paper explicitly scopes its strict fixture matching in its reference-fixture appendix and validity-boundary table; an independent human-engineer review of rejected cases would test whether the benchmark measures engineering reliability or agreement with its own conventions.
  • Editorial extension: because the automatic-versus-generic comparison changes routing, guidance, artifact expectations, and validation together, the 60.9-point lift is a system-level result; component-level ablations would be a natural follow-up to attribute the gains.
  • Editorial extension: feeding the benchmark's positive-and-negative evidence conjunction back into agent training—rewarding safe non-execution only when paired with a clarification or recovery trace—might reduce the stable-failure cases, which remain common in multimodal reconstruction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 3 minor

Summary. The paper presents StructureClaw, an LLM-agent workbench for structural engineering that persists typed engineering artifacts (interpreted requirements, structural model, validation records, solver outputs, checks, report) under governed skills and typed tools, and StructureClaw-Bench, a 150-scenario executable benchmark spanning standard workflows, interactive robustness, and multimodal model reconstruction. Success requires a conjunctive evidence chain: strict one-to-one structural-model matching against author-generated reference fixtures plus numerical agreement with frozen same-engine responses for analyzable cases, and positive clarification/recovery evidence with safe non-execution for interactive cases. Across nine text-agent configurations, automatic StructureClaw reaches 82.9% pooled E2E Success versus 22.0% for generic-only execution; the generic-only model-artifact rate is 87.0% but strict structural fidelity is only 25.0%. Interactive robustness reaches 82.6% and multimodal reconstruction 53.2%. The central claim is that artifact presence alone overstates reliability and that failure bottlenecks differ by task family.

Significance. The contribution is substantial if the results hold: it is one of the few agentic-engineering benchmarks that executes and checks the full artifact chain rather than scoring final text, and it is methodologically careful — three retained trials with stability partitions, scenario-clustered bootstrap intervals with sign-flip tests and Holm correction, leakage guards, frozen evaluation snapshots, and cross-validation of 53 canonical fixtures against an independent direct-stiffness implementation plus six pairwise engine records. The paper is also unusually candid about its own boundaries (App. A.6, B.2, B.3, Table 8). The evidence ladder (87.0% artifact presence vs. 22.0% E2E in generic mode) is internally compelling. The principal risks are external validity: the strict matcher encodes the authors' own idealizations, the fixtures are author-generated, and the semantic judge is one of the evaluated models, so the absolute rates and the Auto–Generic gap currently measure agreement with the benchmark's conventions, pending professional-validation evidence.

major comments (3)
  1. [§5.1, §B.4, Table 10, App. B.2] The headline 60.9-point Auto–Generic gap assumes the strict one-to-one matcher is a fair proxy for engineering validity. §B.4 requires node/element/load precision and recall of exactly 1 with 0.05 m and 5% tolerances, so valid alternative discretizations, section groupings, or load idealizations are scored as failures. App. B.2 concedes this; Table 10 shows Generic collapsing from 87.0% artifact presence to 25.0% strict fidelity, with 838/1,053 Generic failures first failing strict-model fidelity (App. E.4). Since the Auto skills encode the same design-basis conventions as the author-generated fixtures, part of the gap may measure convention-conformity rather than engineering reliability. The internal evidence-ladder claim is supported; the externally readable reliability comparison needs support. Request: an engineer-reviewed sample of rejected Generic models, a matching-sensitivity ana
  2. [§B.3, §5.2, Table 2] The semantic judge is GLM-5.2 — itself one of the nine evaluated agents — run uncalibrated against professional raters (§B.3). Semantic evaluation is the most common first failed stage in interactive tasks (96/235; App. E.4), so interactive E2E rates and the 'semantic state consistency as dominant bottleneck' finding partly measure one evaluated model's interpretation of the rubric. The disclosure that judge outcomes 'measure consistency with the fixed benchmark rubric rather than professional correctness' mitigates but does not remove the same-model circularity: the top scorer (GLM-5.2, 90.0%) is also the arbiter of semantic success. Request: calibrate the judge on a sample against professional raters with agreement reported, and re-score a subset of interactive scenarios with a non-evaluated judge to show robustness.
  3. [§C.1, Eq. (5)] The primary metric pools only 'retained' trials, and §C.1 records 88 infrastructure reruns (78/3/7 across batches) that add no scoring rows. However, the rule by which a run is classified as an infrastructure failure — versus a scored model outcome — is not specified, nor are per-condition rerun counts and the rerun decision procedure. Without a pre-specified, outcome-independent exclusion rule, the clean 4,950-outcome matrix is not fully auditable and the stability partitions (Table 9) could be sensitive to exclusion choices. Request: state the rerun criterion, its pre-registration status, and per-condition rerun counts; confirm exclusions are outcome-independent.
minor comments (3)
  1. [§B.2 vs §B.5] The paper states there are 59 model fixtures (App. B.2) yet reports that all 50 standard and 47 multimodal scenarios evaluate numerical fidelity (App. B.5), implying 97 fixture-requiring scenarios. Clarify the fixture–scenario mapping: which scenarios share fixtures, which lack a reference fixture, and why the counts differ.
  2. [§5.1] The claim that 'every paired 95% scenario-bootstrap interval is strictly positive' is reported without interval bounds. Since Figure 4 shows pooled rates rather than paired differences, please include the interval limits (e.g., in a supplementary table) so readers can see the magnitude of uncertainty.
  3. [§C.1, Table 3] Kimi-K2.6's vision model runs at temperature 1 while all other vision configurations use temperature 0 (§C.1). This is a confound for its unusually low multimodal E2E (13.3%) and should be noted in the Table 3 caption or discussed as a limitation.

Circularity Check

0 steps flagged

No significant circularity: the benchmark's relative comparisons are symmetric under identical fixtures, no fitted parameter is renamed as a prediction, and the acknowledged fixture/judge limitations are validity scoping, not circular reductions.

full rationale

I walked the paper's derivation chain from the evidence-chain formulation, through Benchmark assertions (Eq. 1), to the Auto-vs-Generic comparison and the conclusion that 'artifact presence alone overstates reliability' (§5.1). No load-bearing step reduces to its inputs by construction. The main quantitative result (82.9% vs 22.0% E2E) is an empirical measurement under a fixed evaluation protocol, not a quantity fitted to the same data. The structural-fidelity and numerical-response assertions are deterministic and defined independently of agent outputs; the fixtures are generated with cross-process and cross-engine validation (§B.2). The Auto-vs-Generic and OpenClaw comparisons apply identical fixtures, tools, and assertions to both conditions, so the relative claims are symmetric and not convention-conforming by construction. The semantic judge (GLM-5.2) is used for a subset of natural-language assertions and is disclosed as uncalibrated (§B.3); this is a measurement limitation, not a circular derivation. The paper explicitly scopes its claims to agreement with its declared fixtures and operational rules rather than professional design validity (§B.2, Table 8), and lists external review and externally authored challenge cases as extensions. Self-citations appear only as contextual references in Related Work and are not load-bearing. Thus no specific circular step can be exhibited under the required evidence standard.

Axiom & Free-Parameter Ledger

3 free parameters · 6 axioms · 0 invented entities

No physical constants are fitted. The central results depend on hand-chosen evaluation tolerances and author-generated fixtures; these are implementation parameters that directly set pass/fail boundaries. The 'evidence chain' and 'artifact state' are software-engineering concepts, not newly postulated physical entities.

free parameters (3)
  • coordinate matching tolerance = 0.05 m
    Hand-set threshold in strict node matching (Appendix B.4); directly determines model-match pass/fail.
  • property/load relative tolerance = 5%
    Hand-set tolerance for declared properties and load magnitudes (Appendix B.4); affects strict structural fidelity.
  • numerical response tolerance = 1% relative, 1e-8 absolute
    Hand-set agreement threshold for solver responses (Appendix B.5); directly controls numerical-fidelity pass/fail.
axioms (6)
  • standard math Euler-Bernoulli closed-form and an independent direct-stiffness implementation are valid cross-checks for canonical fixtures.
    Used in Appendix B.2 to validate reference models before freezing numerical responses.
  • domain assumption One-to-one strict model matching is the correctness criterion for structural-model fidelity.
    Appendix B.4; alternative idealizations are deliberately excluded, so benchmark results are convention-relative.
  • domain assumption Frozen solver responses from the requested engine define numerical ground truth.
    Appendix B.2 and B.5; PKPM/YJK references are same-engine frozen outputs, not externally certified truth.
  • domain assumption The 150 author-designed scenarios represent the intended structural-engineering agent workflows.
    Appendix E Table 8 'Sampling' boundary; transfer to externally authored cases is untested.
  • ad hoc to paper A fixed, uncalibrated LLM (GLM-5.2) can judge natural-language semantic assertions.
    Appendix B.3; judge-dependent outcomes are separated from deterministic assertions but not calibrated against professional raters.
  • domain assumption Safe non-execution is operationalized as no analysis artifact plus positive clarification or semantic evidence.
    Table 6 and Appendix A.5; an operational definition rather than professional safety certification.

pith-pipeline@v1.3.0-alltime-deepseek · 23102 in / 12042 out tokens · 118782 ms · 2026-08-04T04:14:09.483291+00:00 · methodology

0 comments
read the original abstract

Addressing a structural-engineering request requires more than a single answer; it requires a chain of interdependent artifacts: interpreted requirements, a computable model, validation records, solver outputs, applicable engineering checks, and a final report. Evaluations centered on question answering or script generation may therefore reward fluent outputs even when the underlying workflow is incomplete, inconsistent, or non-executable. We present StructureClaw, an artifact-centered workbench in which LLM agents operate through governed engineering skills, typed tools, shared artifact state, and local analysis backends, together with StructureClaw-Bench, an executable benchmark of 150 controlled scenarios spanning standard workflows, interactive robustness, and multimodal structural-model reconstruction. Its analyzable standard and multimodal cases require both strict one-to-one structural-model matching and numerical-response agreement with frozen reference responses from the selected analysis engine; interactive cases instead require positive clarification or recovery evidence together with safe non-execution when appropriate. A trial succeeds only when every fixture-required assertion passes. Across nine text-agent configurations, generic-only execution passed the model-artifact check in 87.0% of retained outcomes but achieved only 22.0% E2E Success, whereas automatic StructureClaw reached 82.9%. Interactive and multimodal evaluations further identify semantic state consistency and executable model reconstruction as the dominant remaining bottlenecks. The code and benchmark are available at https://github.com/structureclaw/structureclaw.

Figures

Figures reproduced from arXiv: 2607.14896 by Ao Cai, Changjian Zhou, Dachen Gao, Genrong Xu, Jiachang Wang, Li Zeng, Shaoxuan Shuai, Sizhong Qin, Tianhao Shen, Wenjie Liao, Xinhao Li, Xinzheng Lu, Yao Jiang, Yi Gu, Yueqiang Li, Yueshi Chen.

Figure 1

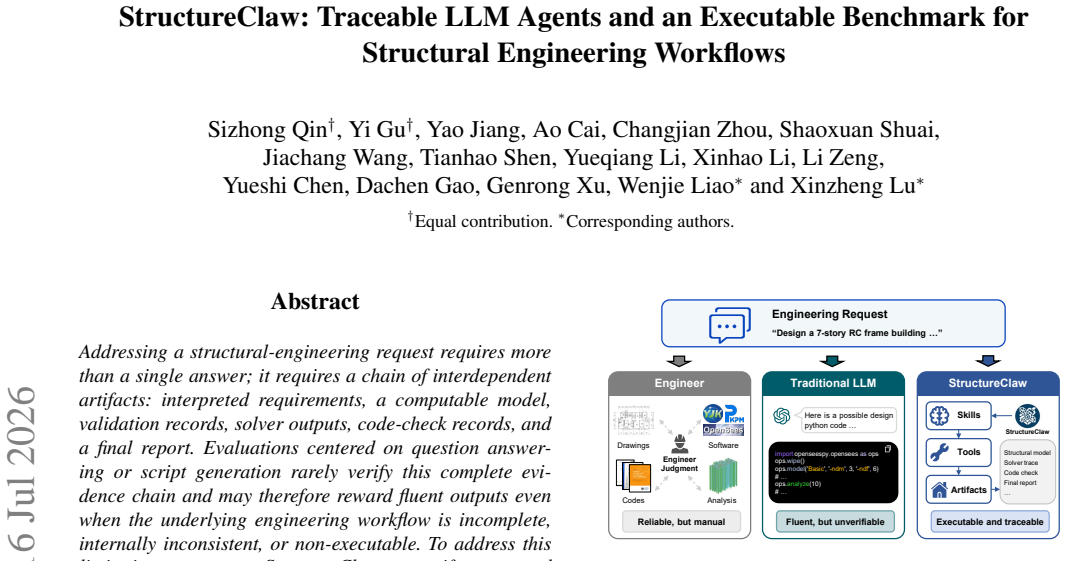

Figure 1. Figure 1: From a structural-engineering request to reviewable ev [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overall framework of StructureClaw. Multimodal engineering context enters a StructureClaw agent kernel, where capability [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

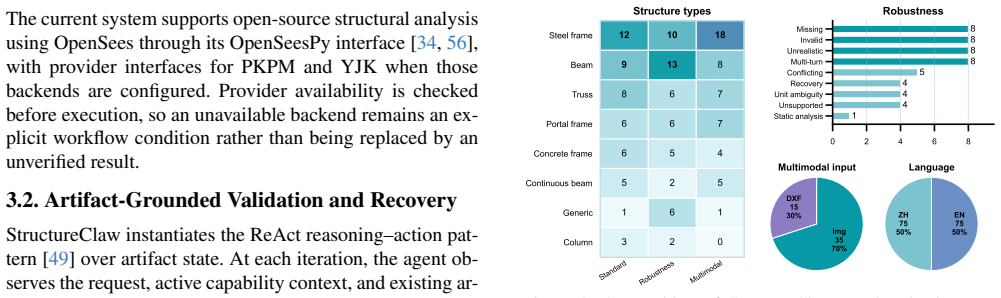

Figure 3. Figure 3: Composition of StructureClaw-Bench. The heatmap [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 3
Figure 3. Figure 3: Composition of StructureClaw-Bench. The benchmark [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Descriptive evaluation profiles. The radial display zooms [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Standard workflow results. Purple points denote generic [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 5
Figure 5. Figure 5: Steel-frame example of the declarative skill and artifact [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Multimodal structural-model reconstruction results. Bars [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Multimodal configurations. Bars show image and DXF [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 8
Figure 8. Figure 8: Steel-frame example of the declarative skill and artifact [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: Interactive robustness. Bars show pooled E2E Success, [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 10
Figure 10. Figure 10: Assertion-level diagnostics by setting. Gray cells with [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: Within-axis model ranks across six evaluation dimen [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 12
Figure 12. Figure 12: Success Rate by recorded locale and multimodal input [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Success Rate versus recorded mean wall-clock dura [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
