Stability and Extension of Steady and Ranging Persistence

T0 review · 2 major / 2 minor · reviewed 2026-05-19 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Steady and ranging persistence extend to general objects through category theory, enabling stability analysis and feature characterization.

desk verdict Extends steady and ranging persistence to hypergraphs via categories and characterizes balanced features, but stability for general objects rests on unverified functoriality assumptions. read the letter →

arxiv 2506.07911 v2 pith:F2GIIMCI submitted 2025-06-09 math.AT cs.DMmath.CT

Yann-Situ Gazull This is my paper · ORCID
classification math.ATcs.DMmath.CT
keywords persistenthomologysteadypersistencerangingcategorytheoryhypergraphstopologicaldataanalysisstabilityfeaturecharacterization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper develops extensions of steady and ranging persistence from graphs to arbitrary objects by means of category theory. It analyzes the stability of these generalized persistence constructions. The central result is a characterization of the features on these objects that produce balanced steady and ranging persistence. A sympathetic reader would care because this generalization allows persistence techniques to apply to richer data structures such as hypergraphs while maintaining desirable stability properties.

What carries the argument

Category-theoretic extension of steady and ranging persistence, which carries the definitions, stability results, and the feature characterization.

What would settle it

Observation of a specific feature on hypergraphs where the induced persistence fails to be balanced despite satisfying the characterization conditions, or where stability does not hold as predicted.

Watch

Extended reading notes

Core claim

By employing category theory, steady and ranging persistence are lifted to general objects, and the features that induce balanced forms of these persistences are characterized. Stability is studied for the resulting constructions, with concrete illustration on hypergraphs.

Load-bearing premise

The extension of steady and ranging persistence via category theory preserves the necessary structure to support a well-defined stability analysis and feature characterization.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript extends steady and ranging persistence—originally defined for graphs via filtrations tracking a feature of interest—to general objects in a categorical setting. It investigates stability of the resulting persistence modules and supplies a characterization of those features that produce balanced steady and ranging persistence. The main results are illustrated by a concrete implementation on hypergraphs.

Significance. If the categorical extension preserves the requisite functoriality and the stability bounds hold without extra axioms, the work would meaningfully broaden the scope of persistence-based methods beyond graphs to hypergraphs and other structured objects. The provision of a practical hypergraph implementation and the explicit characterization of balanced features are concrete strengths that could support reproducible follow-up work.

major comments (2)
  1. [§3] §3 (Categorical Extension): the construction defines feature maps as functors but does not verify that these functors commute with the filtration functors for arbitrary objects in the target category, so that the interleaving distance (or bottleneck stability) remains controlled under small perturbations of the feature. This verification is load-bearing for the claim of a well-defined stability analysis outside the hypergraph case.
  2. [§5] §5 (Characterization of balanced features): the stated characterization is shown to hold for the hypergraph implementation, yet the general categorical statement does not include an explicit check that the balance condition is preserved when the underlying category lacks the limits or colimits needed to form the persistence modules. Without this, the characterization risks being restricted to the illustrated examples rather than applying to the general extension asserted in the abstract.
minor comments (2)
  1. [§2] The notation distinguishing steady from ranging persistence could be introduced with a small commutative diagram in §2 to aid readers unfamiliar with the graph case.
  2. [Figure 4] Figure 4 (hypergraph example) would benefit from an explicit legend indicating which bars correspond to steady versus ranging persistence.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and the constructive comments. We address each major comment point by point below and indicate the revisions made to strengthen the presentation.

read point-by-point responses

  1. Referee: [§3] §3 (Categorical Extension): the construction defines feature maps as functors but does not verify that these functors commute with the filtration functors for arbitrary objects in the target category, so that the interleaving distance (or bottleneck stability) remains controlled under small perturbations of the feature. This verification is load-bearing for the claim of a well-defined stability analysis outside the hypergraph case.

    Authors: We appreciate the referee drawing attention to this point. In the categorical extension of §3, feature maps are defined as functors, and the commutation with filtration functors follows from the naturality of the steady and ranging constructions with respect to the underlying category. To make this explicit and to confirm that the interleaving distance remains controlled for arbitrary objects (without extra axioms), we have added a new lemma in the revised §3 that verifies the required commutation diagrams hold generally. This supports the stability analysis beyond the hypergraph case while preserving the functoriality of the original definitions. revision: yes

  2. Referee: [§5] §5 (Characterization of balanced features): the stated characterization is shown to hold for the hypergraph implementation, yet the general categorical statement does not include an explicit check that the balance condition is preserved when the underlying category lacks the limits or colimits needed to form the persistence modules. Without this, the characterization risks being restricted to the illustrated examples rather than applying to the general extension asserted in the abstract.

    Authors: We agree that greater clarity on categorical assumptions is helpful. The characterization of balanced features in §5 is proved using the limits and colimits that exist in the categories under consideration (including those needed to form the persistence modules). The hypergraph case provides a concrete check, but the general statement already presupposes these structures. In the revision we have added an explicit remark at the beginning of §5 stating that the result applies in any category possessing the requisite limits and colimits, thereby clarifying the scope without restricting the generality claimed in the abstract. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: derivation relies on independent categorical constructions

full rationale

The paper defines steady and ranging persistence on graphs, then uses category theory to extend the constructions to general objects before characterizing features that yield balanced versions and proving stability. No quoted step reduces a claimed prediction or characterization to a fitted parameter, self-citation, or definitional tautology; the extension and stability results are presented as consequences of functoriality and interleaving-distance arguments rather than being presupposed by the inputs. The hypergraph illustrations serve only as verification, not as the source of the general claims. This is a standard self-contained mathematical development.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

No free parameters, axioms, or invented entities are specified in the abstract; the work relies on standard category theory and persistent homology concepts without detailing additional postulates.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Stability and Extension of Steady and Ranging Persistence." pith.science (2026). https://pith.science/paper/F2GIIMCI

@misc{pith2026250607911,
  author       = {Pith},
  title        = {Pith review of: Stability and Extension of Steady and Ranging Persistence},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/F2GIIMCI}},
  note         = {Machine review of arXiv:2506.07911}
}
read the original abstract

Persistent homology is a topological data analysis tool that has been widely generalized, extending its scope beyond the field of topology. Among its extensions, steady and ranging persistence were developed to study a wide variety of graph properties. Precisely, given a feature of interest on graphs, it is possible to build two types of persistence (steady and ranging persistence) that follow the evolution of the feature along graph filtrations. This study extends steady and ranging persistence to other objects using category theory and investigates the stability of such persistence. In particular, a characterization of the features that induce balanced steady and ranging persistence is provided. The main results of this study are illustrated using a practical implementation for hypergraphs.

Figures

Figures reproduced from arXiv: 2506.07911 by the authors.

Figure 1
Figure 1. A persistence function (on the left) and its representation as a persistence [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. On the left: three hypergraphs (nodes in black and hyperedges in blue) and [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. A hypergraph filtration H0 ↣ H1 ↣ H2 in Hgph= m. e0 is a hub in H0 and H2 but not in H1 so the feature F h is not convex in Hgph= m. Hence, it is not convex in Hgph≤ m and Hgphm 2. The exclusivity feature: a hyperedge e is said to have an exclusivity in hypergraph H if and only if it possesses a node that does not belong to any other hyperedge: e has an exclusivity in (V, E) ⇐⇒ e ̸⊆ ∪e′∈E\{e}e ′ ⇐⇒ ∃v ∈ e / ∀e ′ ∈ E… view at source ↗
Figures from the paper (15 more)
Figure 4
Figure 4. Figure 4: A hypergraph filtration H0 ↣ H1 ↣ H2 in Hgph≤ m. The max-originality values of e0 are OH0 (e0) = 1, OH1 (e0) = 0 and OH2 (e0) = 2/3. Hence, the feature F O is not convex in Hgph≤ m (nor is it in Hgphm). Moreover, e0 has an exclusivity in H0 and H2, but not in H1. This …
Figure 5
Figure 5. Figure 5: The scene-hypergraph filtration of King Lear at t = 3 and t = 5. The play has 26 scenes, so the filtration starts at t = 0, and is constant after t = 25. The hypergraphs rapidly start being dense and unreadable, so only some of the first ones are represented [PITH_FUL…
Figure 6
Figure 6. Figure 6: Steady persistence of the hub feature F h for the scene-hypergraph filtration induced by King Lear. The 0-th scene starts being a hub at t = 1, and stops being a hub between t = 6 and t = 16 before becoming a hub again at t = 25. This induces a difference between the s…
Figure 7
Figure 7. Figure 7: Ranging persistence of the hub feature F h for the scene-hypergraph filtration induced by King Lear. The first and the last scene (0-th and 25-th scenes) are the only hubs that appear in the filtration [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8
Figure 8. Figure 8: Persistence of F x for the scene-hypergraph filtration induced by King Lear. This feature is convex in Hgph= m, so the steady and ranging persistence diagrams are equal (see Theorem 4.8). In the scene-hypergraph, the exclusivity feature represents the scenes that featu…
Figure 9
Figure 9. Figure 9: Persistence of F O for the scene-hypergraph filtration induced by King Lear. This feature is convex in Hgph= m so the steady and ranging persistence diagrams are equal (see Theorem 4.8). This diagram is sparse because the only max-original scenes are the 0-th, the 16-t…
Figure 10
Figure 10. Figure 10: The character-hypergraph filtration of King Lear at t = 3 and t = 5. The second hypergraph is the dual of the first hypergraph of [PITH_FULL_IMAGE:figures/full_fig_p017_10.png]
Figure 11
Figure 11. Figure 11: Steady persistence of the hub feature F h for the character-hypergraph fil￾tration induced by King Lear. The character hubs are Kent, Gloucester and Goneril. Kent stops being a hub between t = 8 and t = 9. This induces a difference between the steady and ranging diagr…
Figure 12
Figure 12. Figure 12: Ranging persistence of the hub feature F h for the character-hypergraph fil￾tration induced by King Lear. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_12.png]
Figure 13
Figure 13. Figure 13: Steady persistence of F x for the character-hypergraph filtration induced by King Lear. In the character-hypergraph, the exclusivity feature represents the characters that are the only character for some scene, i.e. the characters who have a monologue scene. In this p…
Figure 14
Figure 14. Figure 14: Steady persistence of F O for the character-hypergraph filtration induced by King Lear. The persistence diagram is empty, which means that no character is max￾original, i.e. for every character e, there is another character e ′ that appears in more than half of the sc…
Figure 15

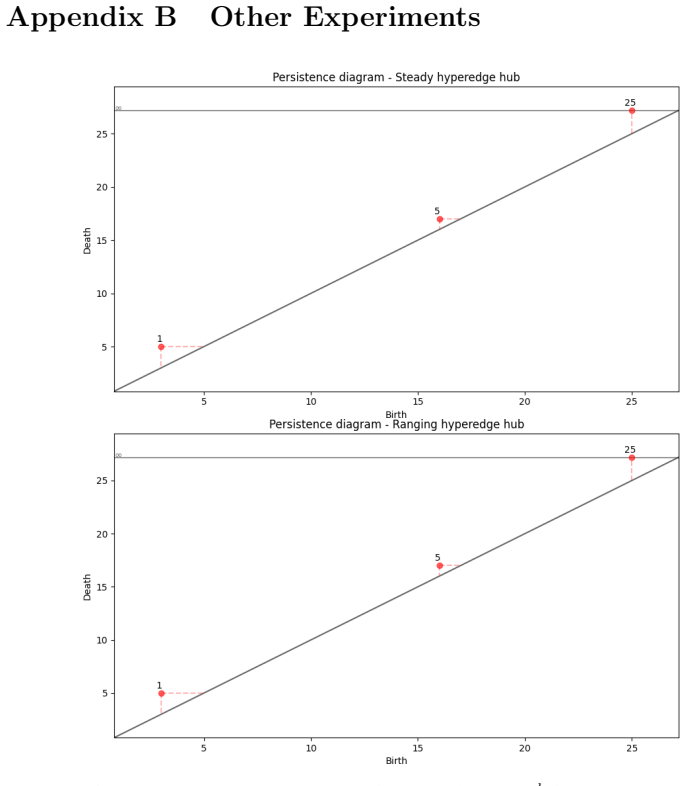

Figure 15. Figure 15: Steady and ranging persistence of the hub feature [PITH_FULL_IMAGE:figures/full_fig_p028_15.png]
Figure 16

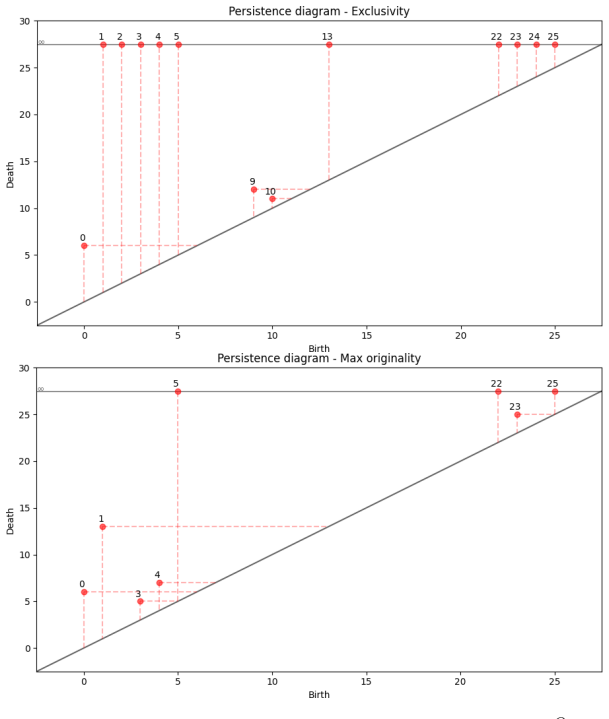

Figure 16. Figure 16: Persistence of the two convex features (for [PITH_FULL_IMAGE:figures/full_fig_p029_16.png]
Figure 17
Figure 17. Figure 17: Steady and ranging persistence of the hub feature [PITH_FULL_IMAGE:figures/full_fig_p030_17.png]
Figure 18

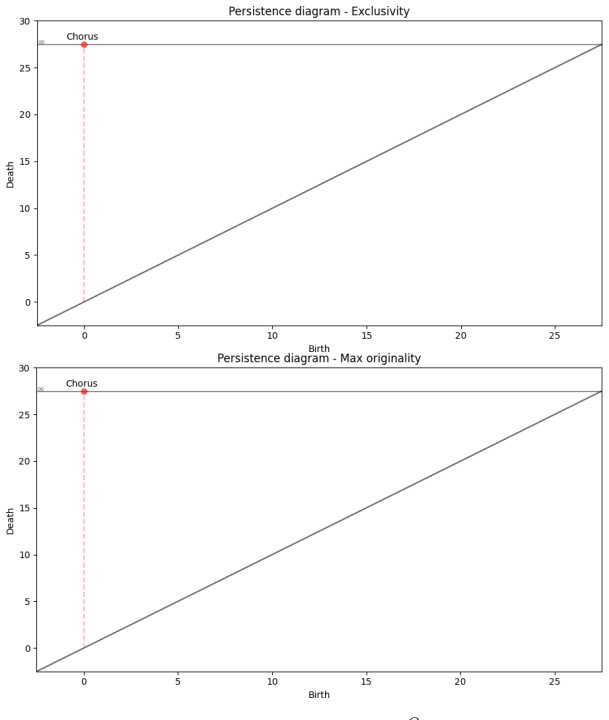

Figure 18. Figure 18: Persistence of the two features F x and F O for the character-hypergraph filtration induced by Romeo and Juliet. Although these two features are not convex for Hgph≤ m, their steady and ranging persistence diagrams for this filtration are equal. Note that every charac…

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages

  1. [1]

    Persistent homology based bottleneck distance in hyper- graph products

    Archana Babu and Sunil John. Persistent homology based bottleneck distance in hyper- graph products. Applied Network Science, 9, 04 2024

    work page 2024

  2. [2]

    Bergomi and Massimo Ferri

    Mattia G. Bergomi and Massimo Ferri. Exploring graph and digraph persistence. Algo- rithms, 16(10), 2023

    work page 2023

  3. [3]

    Bergomi, Massimo Ferri, and Antonella Tavaglione

    Mattia G. Bergomi, Massimo Ferri, and Antonella Tavaglione. Steady and ranging sets in graph persistence. Journal of Applied and Computational Topology , 7:33 – 56, 2020

    work page 2020

  4. [4]

    Bergomi, Massimo Ferri, Pietro Vertechi, and Lorenzo Zuffi

    Mattia G. Bergomi, Massimo Ferri, Pietro Vertechi, and Lorenzo Zuffi. Beyond topological persistence: Starting from networks. Mathematics, 9(23), 2021

    work page 2021

  5. [5]

    Bergomi and Pietro Vertechi

    Mattia G. Bergomi and Pietro Vertechi. Rank-based persistence. Theory and Applications of Categories, 35(9):228–260, 2020

    work page 2020

  6. [6]

    Mul- tidimensional size functions for shape comparison

    Silvia Biasotti, Andrea Cerri, Patrizio Frosini, Daniela Giorgi, and Claudia Landi. Mul- tidimensional size functions for shape comparison. Journal of Mathematical Imaging and Vision, 32:161–179, 10 2008

    work page 2008

  7. [7]

    The embedded homology of hypergraphs and applications, 2016

    St´ ephane Bressan, Jingyan Li, Shiquan Ren, and Jie Wu. The embedded homology of hypergraphs and applications, 2016. 20

    work page 2016

  8. [8]

    Metrics for generalized persistence modules

    Peter Bubenik, Vin de Silva, and Jonathan Scott. Metrics for generalized persistence modules. Foundations of Computational Mathematics , 15(6):1501–1531, October 2014

    work page 2014

Show all 32 references
  1. [9]

    Peter Bubenik and Jonathan A. Scott. Categorification of persistent homology. Discrete and Computational Geometry , 51(3):600–627, jan 2014

    2014

  2. [10]

    The theory of multidimensional persistence

    Gunnar Carlsson and Afra Zomorodian. The theory of multidimensional persistence. Discrete and Computational Geometry , 42:71–93, 06 2007

    2007

  3. [11]

    Carlsson and Vin de Silva

    Gunnar E. Carlsson and Vin de Silva. Zigzag persistence. Foundations of Computational Mathematics, 10:367–405, 2008

    2008

  4. [12]

    Guibas, and Steve Y

    Fr´ ed´ eric Chazal, David Cohen-Steiner, Marc Glisse, Leonidas J. Guibas, and Steve Y. Oudot. Proximity of persistence modules and their diagrams. SCG ’09, page 237–246, New York, NY, USA, 2009. Association for Computing Machinery

    2009

  5. [13]

    Stability of persistence diagrams

    David Cohen-Steiner, Herbert Edelsbrunner, and John Harer. Stability of persistence diagrams. volume 37, pages 263–271, 06 2005

    2005

  6. [14]

    Hyperbard (dataset), June 2022

    Corinna Coupette, Jilles Vreeken, and Bastian Rieck. Hyperbard (dataset), June 2022

    2022

  7. [15]

    Natural pseudo-distance and opti- mal matching between reduced size functions

    Michele D’Amico, Patrizio Frosini, and Claudia Landi. Natural pseudo-distance and opti- mal matching between reduced size functions. Acta Applicandae Mathematicae, 109:527– 554, 2008

    2008

  8. [16]

    D¨ orfler and D

    W. D¨ orfler and D. A. Waller. A category-theoretical approach to hypergraphs. Archiv der Mathematik, 34(1):185–192, Dec 1980

    1980

  9. [17]

    Muranov, and Shing-Tung Yau

    Alexander Grigor’yan, Yong Lin, Yuri V. Muranov, and Shing-Tung Yau. Path complexes and their homologies. Journal of Mathematical Sciences , 248:564–599, 2020

    2020

  10. [18]

    Muranov, and Rolando Jim´ enez

    Alexander Grigor’yan, Yuri V. Muranov, and Rolando Jim´ enez. Homology of digraphs. Mathematical Notes, 109:712 – 726, 2021

    2021

  11. [19]

    Muranov, and Shing-Tung Yau

    Alexander Grigor’yan, Yuri V. Muranov, and Shing-Tung Yau. Graphs associated with simplicial complexes. Homology, Homotopy and Applications , 16:295–311, 2014

    2014

  12. [20]

    Basic category theory, 2016

    Tom Leinster. Basic category theory, 2016

    2016

  13. [21]

    The theory of the interleaving distance on multidimensional persistence modules

    Michael Lesnick. The theory of the interleaving distance on multidimensional persistence modules. Foundations of Computational Mathematics , 15(3):613–650, March 2015

    2015

  14. [22]

    Persistent spectral hypergraph based machine learning (psh-ml) for protein-ligand binding affinity prediction

    Xiang Liu, Huitao Feng, Jie Wu, and Kelin Xia. Persistent spectral hypergraph based machine learning (psh-ml) for protein-ligand binding affinity prediction. Briefings in Bioinformatics, 22(5):bbab127, 04 2021

    2021

  15. [23]

    Computing hypergraph homology

    Xiang Liu, Huitao Feng, Jie Wu, and Kelin Xia. Computing hypergraph homology. Foundations of Data Science , 6(2):172–194, 2024

    2024

  16. [24]

    Hypergraphs: an introduction and review

    Xavier Ouvrard. Hypergraphs: an introduction and review. CoRR, abs/2002.05014, 2020

    2002

  17. [25]

    Generalized persistence diagrams

    Amit Patel. Generalized persistence diagrams. Journal of Applied and Computational Topology, 1(3–4):397–419, May 2018

    2018

  18. [26]

    HyperNetX: A Python package for model- ing complex network data as hypergraphs

    Brenda Praggastis, Sinan Aksoy, Dustin Arendt, Mark Bonicillo, Cliff Joslyn, Emilie Purvine, Madelyn Shapiro, and Ji Young Yun. HyperNetX: A Python package for model- ing complex network data as hypergraphs. Journal of Open Source Software , 9(95):6016, March 2024

    2024

  19. [27]

    Measuring originality in science

    Sotaro Shibayama and Jian Wang. Measuring originality in science. Scientometrics, 122, 10 2019

    2019

  20. [28]

    Basic Category Theory

    Jaap Van Oosten. Basic Category Theory . University of Aarhus. Basic Research in Computer Science [BRICS], Aarhus, DK, 1995

    1995

  21. [29]

    Steady and ranging persistence for hypergraphs

    Yann-Situ. Steady and ranging persistence for hypergraphs. https://github.com/ Yann-Situ/Hypergraph-Steady-Ranging-Persistence , 2024. Appendix A Proofs A.1 Proofs of Section 2 Proof of Lemma 2.2. =⇒ There exist ( ϕw : Fw → Gw+ϵ)w∈R and ( ψw : Gw → Fw+ϵ)w∈R two families of mon...

    2024

  22. [30]

    Indeed, let u ∈ V

    χ(V ) ⊂ V ′. Indeed, let u ∈ V . ι is a hypergraph monomorphism so we have ι(u) ∈ V ′′. As ι(u) = ι′(χ(u)), this gives ι′(χ(u)) ∈ V ′′, which implies χ(u) ∈ V ′ because ι′ is a hypergraph monomorphism

  23. [31]

    χ(E) ⊂ E′ using the same argument

  24. [32]

    Indeed, let u ∈ e

    u ∈ e =⇒ χ(u) ∈ χ(e). Indeed, let u ∈ e. We have ι(u) ∈ ι(e) so ι′(χ(u)) ∈ ι′(χ(e)). As ι′ is a monomorphism of Hgph≤ m, we obtain χ(u) ∈ χ(e). Finally, we show that χ ∈ morph(Hgph≤ m). As ι and ι′ are in morph( Hgph≤ m) we have: χ(u) ∈ χ(e) = ⇒ ι′(χ(u)) ∈ ι′(χ(e)) = ⇒ ι(u) ∈ ...
