arxiv: 2606.19645 · v1 · pith:HEWXMJMHnew · submitted 2026-06-17 · 🧮 math.DS · math.MG

Renormalisation techniques for inflation systems and some of their applications

Michael Baake , Franz G\"ahler , Anna Klick , Neil Ma\~nibo , Jan Maz\'a\v{c} This is my paper

Pith reviewed 2026-06-26 18:35 UTC · model grok-4.3

classification 🧮 math.DS math.MG
keywords renormalisationinflation systemsmonotile tilingsdiffraction measureswindow covariogramspure point spectrumLyapunov exponentsdynamical systems
0
0 comments X

The pith

Renormalisation gives exact values for window covariograms and diffraction in inflation systems, including new monotile tilings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reviews renormalisation techniques that turn highly irregular functions arising in inflation-generated tilings into objects that can be computed exactly by iteration. It recalls the structural conditions under which the renormalisation principle applies directly to window covariograms and diffraction measures. The methods are then used to obtain the diffraction pattern of the recently discovered monotile tilings to any desired accuracy. The same framework supplies an invariant called orbit separation dimension for systems with pure-point spectrum and combines renormalisation with Lyapunov exponents to rule out an absolutely continuous spectral component.

Core claim

Under primitivity and finite local complexity the renormalisation principle maps the window covariogram of an inflation system to a rescaled copy of itself, thereby converting an erratic integral into a finite computation that yields the exact diffraction measure; the same principle is applied to the new monotile tilings and extended via Lyapunov exponents to exclude absolutely continuous spectrum.

What carries the argument

The renormalisation principle, which equates the window covariogram of an inflation system to a linearly rescaled version of itself after one inflation step.

If this is right

  • Diffraction patterns of the new monotile tilings can be computed to arbitrary precision without truncation error.
  • The orbit separation dimension is preserved under renormalisation and distinguishes pure-point spectrum systems.
  • Renormalisation combined with positive Lyapunov exponents excludes an absolutely continuous part of the diffraction spectrum.
  • The same iterative procedure applies to any inflation system meeting the stated structural conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be tested on other known aperiodic point sets whose inflation rules are not yet fully classified.
  • If the Lyapunov-exponent criterion generalises, it would give a practical test for the absence of continuous spectrum in many substitution systems.
  • High-precision diffraction data obtained this way could be compared directly with experimental scattering from candidate physical realisations of the monotile.

Load-bearing premise

The inflation systems must satisfy primitivity and finite local complexity so that the renormalisation identity holds exactly for the covariograms and measures.

What would settle it

A direct numerical integration of the window covariogram for a monotile tiling that differs from the value obtained by iterating the renormalisation map beyond any prescribed error bound.

Figures

Figures reproduced from arXiv: 2606.19645 by Anna Klick, Franz G\"ahler, Jan Maz\'a\v{c}, Michael Baake, Neil Ma\~nibo.

Figure 1

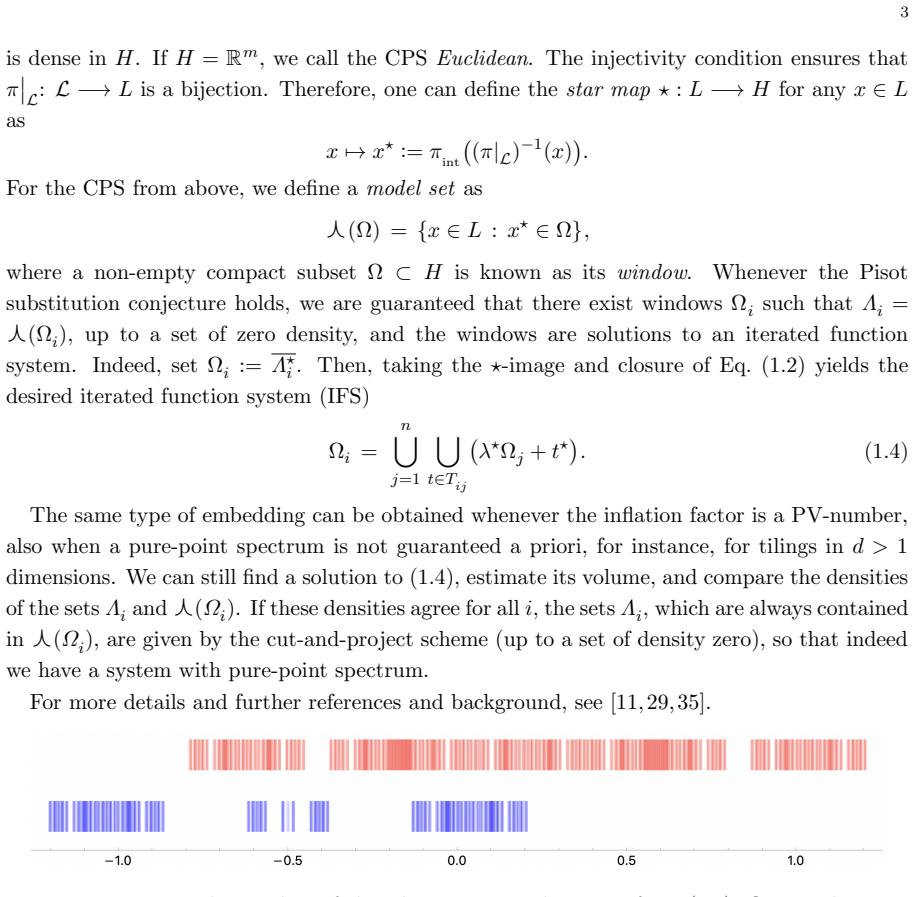

Figure 1. Figure 1: The window of the tiling corresponding to ϱ from (2.3); Ωa is red (top) and Ωb is blue (bottom). The windows are one-dimensional, but we assign some fixed arbitrary height to the points for illustration. The windows are measure-theoretically disjoint, but the resolution is limited by the large Hausdorff dimension of the window boundaries. 2. Covariograms The Pisot substitution conjecture holds for unimodul… view at source ↗
Figure 2

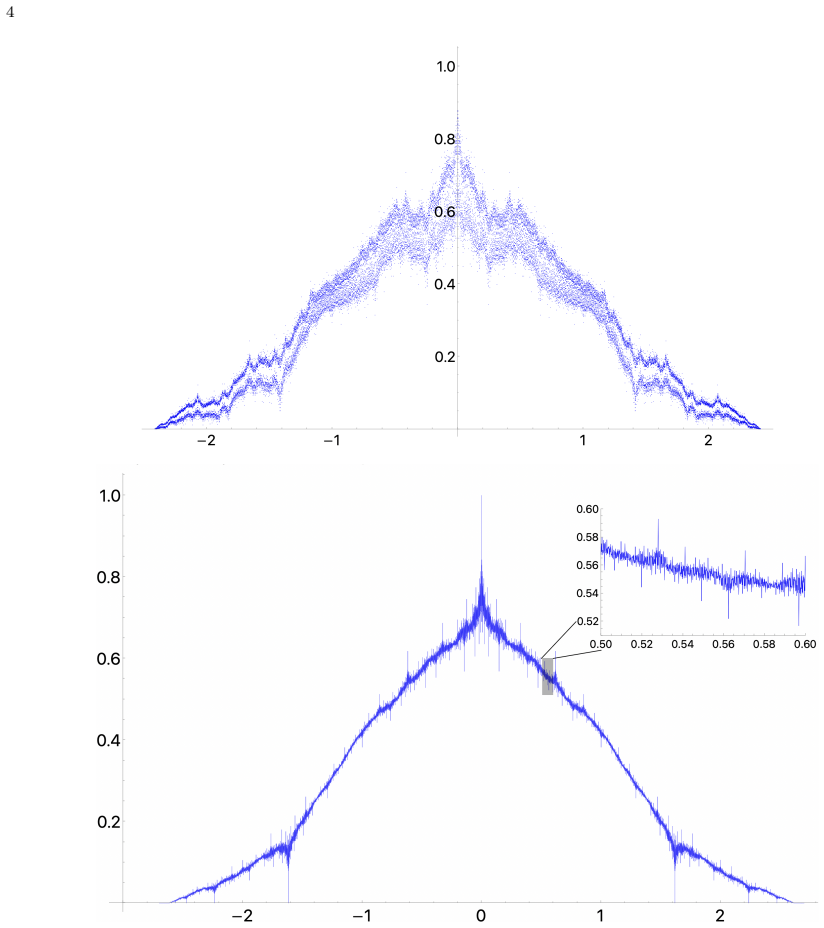

Figure 2. Figure 2: Upper: point plot, with 33877 points, of the covariogram of the window of [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

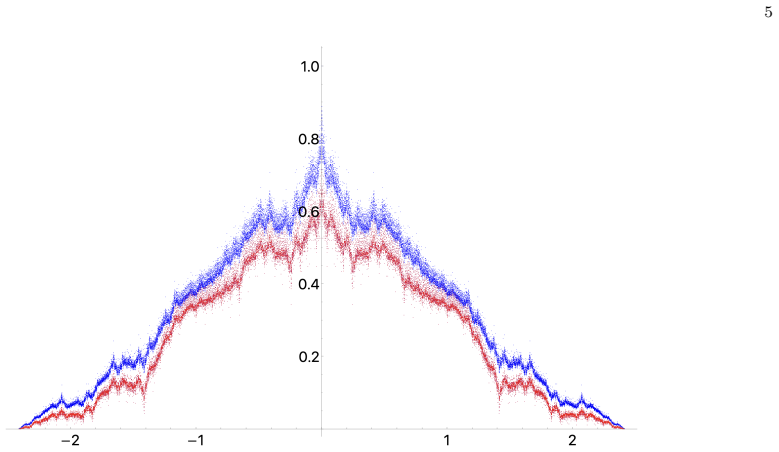

Figure 3. Figure 3: Point plot, with 33877 points, of the covariogram of the window of [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

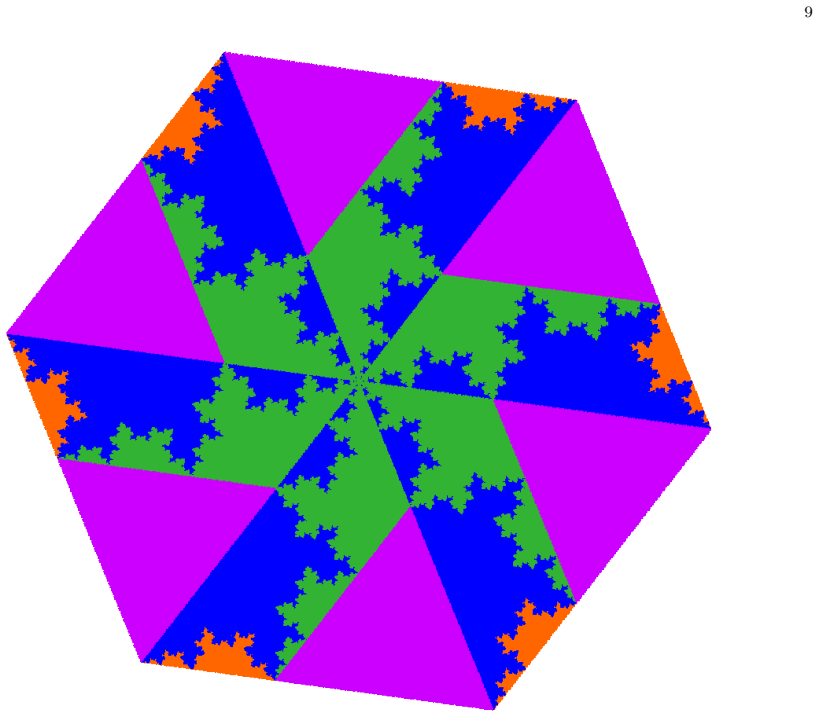

Figure 4. Figure 4: The window for the control points of the CAP tiling. The four different colours correspond to the four different shapes of prototiles (and hence four classes of control points). For more details, see [9, 29]. Theorem 3.1. The control points of the CAP tiling, Λ CAP i , grouped according to the 24 pro￾totiles, are model sets with windows from [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

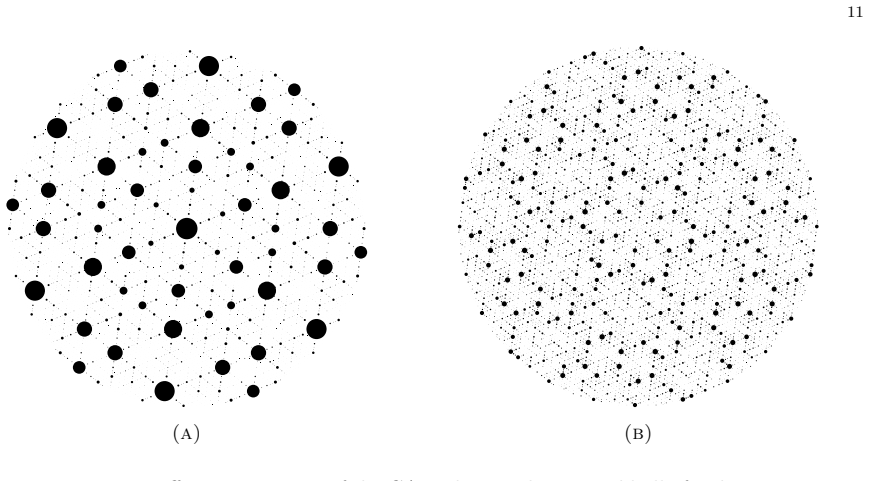

Figure 5. Figure 5: Diffraction pattern of the CAP tiling in the centred ball of radius 0.6. Panel (a) shows the case when all control points have equal weights, whereas Panel (b) shows the diffraction for weights chosen so that the central peak van￾ishes. See [7, 29] for a detailed discussion of the diffraction pattern [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

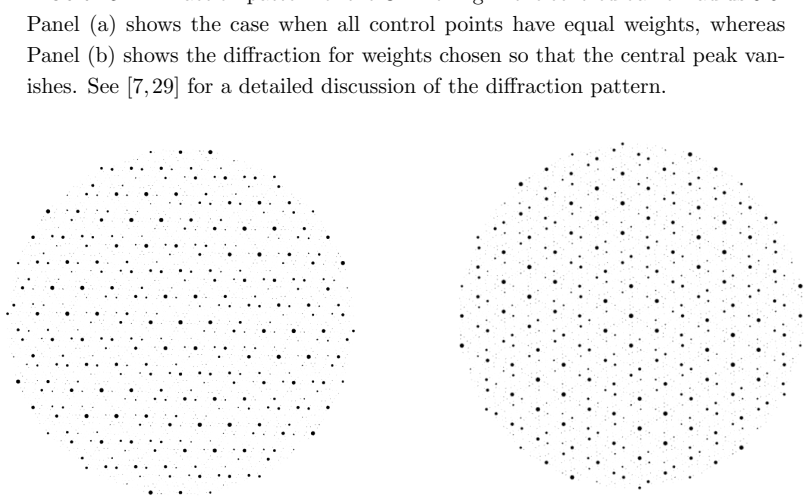

Figure 6. Figure 6: Diffraction of the Spectre tiling with equal weights for the corre￾sponding two LI-classes of the Spectre tiling (with indicated control points), each depicted under the corresponding diffraction image (Bragg peaks in a ball of radius 0.5). For further details, we refer to [7, 29]. the Hat tiling are given by the same intensity function ICAP as before, only evaluated at a modified position, namely, for any… view at source ↗
Figure 7

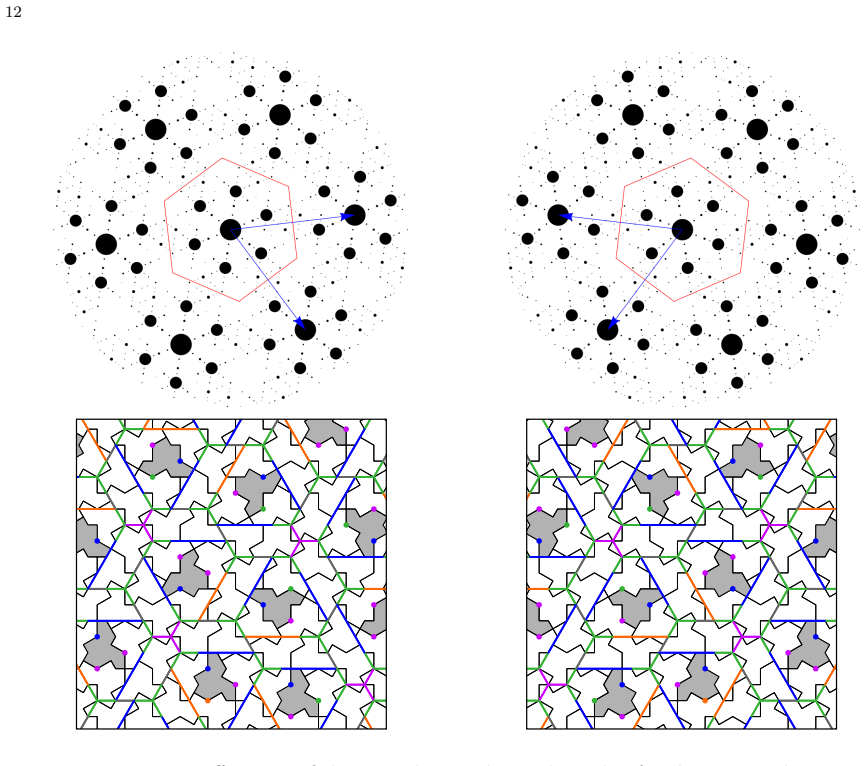

Figure 7. Figure 7: Diffraction of the Hat tiling with equal weights for the two LI-classes of the Hat tiling (with indicated control points), each depicted under the cor￾responding diffraction image. Both pictures display a lattice-periodic structure, with lattice (1+ξ)(τ−ξ) 3 i 3 √ 15 Z[ξ] for the left one and its mirror image for the right one. For further details, we refer to [7] or to [29], where a continuous transfor￾ma… view at source ↗
Figure 8

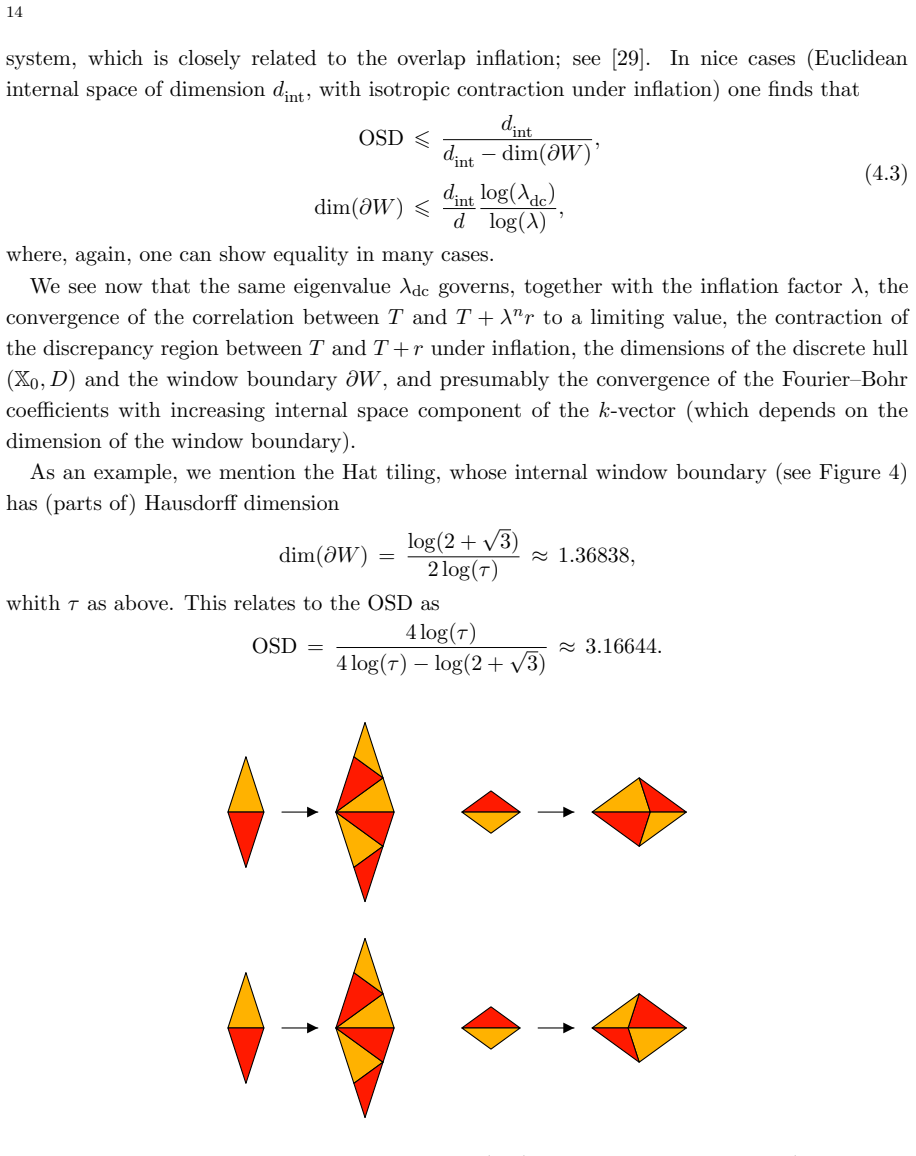

Figure 8. Figure 8: Inflation of the Penrose tiling (top) and the pentagonal tiling (bot￾tom). As a second example, we compare a Penrose tiling (by Robinson triangles) with a closely related pentagonal tiling (compare [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

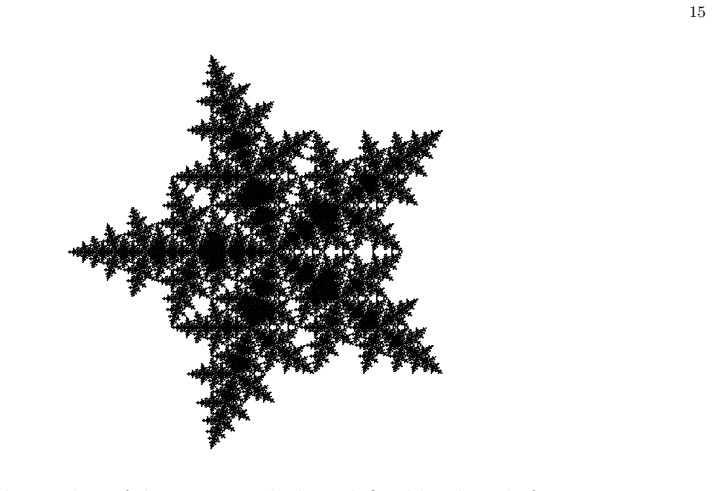

Figure 9. Figure 9: The window of the pentagonal tiling, defined by the rule from [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10

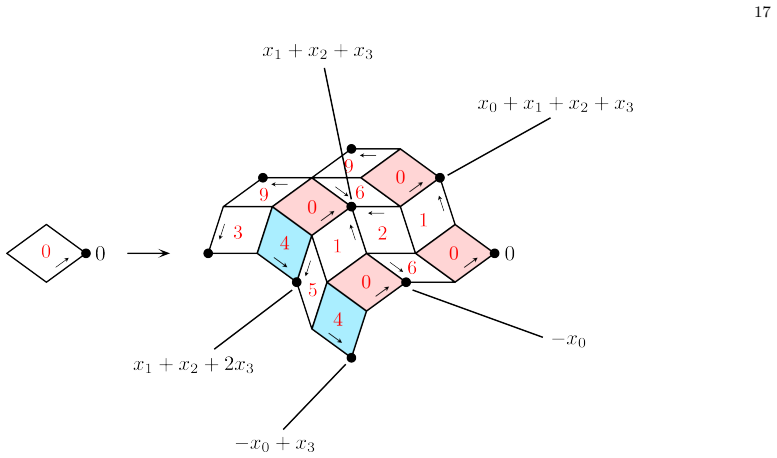

Figure 10. Figure 10: The level-1 supertile of type 0 for the Godr`eche–Lan¸con–Billard (GLB) inflation rule. The location of the type-0 (pink) and type-4 (blue) tiles are labeled, where one has x0 = λ e iπ/10, xℓ = e2πiℓ/10x0 (for 1 ⩽ ℓ ⩽ 4), and λ = q 1 2 (5 + √ 5); see [6, 28] for a complete account. (4) Compute Kingman-type bounds KR for the cocycle Be(n) (x), which are of the form χ Be (x) ⩽ 1 R Z Td log ∥Be(R) (x)∥ dx < … view at source ↗
read the original abstract

Exact renormalisation techniques are important and powerful, particularly for inflation-generated systems. We review recent results in this direction. We recall the necessary notions for inflation systems and show the renormalisation principle, which allows us to obtain exact values of highly erratic functions, such as window covariograms. We apply these techniques to compute the diffraction pattern of the new monotile tilings with arbitrary precision. We also recall a recent invariant for system with pure-point spectrum, the orbit separation dimension, and its relation to renormalisation. Lastly, we recall results beyond the pure-point spectrum setting and show how renormalisation and Lyapunov exponents can be used to exclude the presence of absolutely continuous part of the spectra.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript is a review of renormalisation techniques for inflation systems. It recalls the necessary notions and structural hypotheses (primitivity, finite local complexity), states the renormalisation principle for obtaining exact values of window covariograms, applies the principle to compute diffraction patterns of new monotile tilings with arbitrary precision, recalls the orbit separation dimension and its link to renormalisation for pure-point spectrum systems, and discusses extensions beyond pure-point spectrum where renormalisation combined with Lyapunov exponents can exclude absolutely continuous spectral components.

Significance. If the stated hypotheses hold for the monotile examples, the review consolidates recent exact methods for computing diffraction measures in inflation systems and demonstrates their direct applicability to contemporary aperiodic tilings. The emphasis on exact (rather than approximate) values for erratic functions such as covariograms, together with the explicit statement of the structural conditions before application, is a strength for the mathematical diffraction and aperiodic order literature.

minor comments (2)
  1. [Review of necessary notions] In the section recalling the renormalisation principle, the statement of the structural hypotheses (primitivity, finite local complexity) should be cross-referenced explicitly to the subsequent monotile application so that readers can immediately locate the verification.
  2. [Application to monotile tilings] The abstract claims 'arbitrary precision' for the monotile diffraction; the corresponding section should clarify whether this is achieved via finite truncation of the renormalisation or via an explicit error bound derived from the principle.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of the manuscript, for highlighting its strengths in consolidating exact renormalisation methods for diffraction and spectral analysis, and for recommending minor revision. The referee's description aligns closely with the paper's scope and contributions.

Circularity Check

0 steps flagged

Review paper with standard self-citations to prior techniques; no load-bearing reduction

full rationale

This manuscript is explicitly a review that recalls the renormalisation principle (under primitivity, finite local complexity, and related structural hypotheses) from prior literature before applying it to the new monotile examples. The central claim—that the recalled principle yields exact window covariograms and diffraction measures once the hypotheses are verified—is presented as a direct consequence rather than a new derivation internal to the paper. No equation or step reduces by construction to a fitted input, self-definition, or unverified self-citation chain; the applications to monotiles constitute independent content once the standard conditions are checked. Minor self-citation is expected in a review but does not render the argument circular.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is a review summarizing existing techniques from prior literature on inflation systems. No new free parameters, axioms, or invented entities are introduced in the provided abstract.

pith-pipeline@v0.9.1-grok · 5655 in / 1026 out tokens · 36232 ms · 2026-06-26T18:35:55.048827+00:00 · methodology
