arxiv: 2606.13400 · v1 · pith:I7PZ6MZDnew · submitted 2026-06-11 · 💻 cs.LG · cs.AI· cs.RO

PolyFlow: Safe and Efficient Polytope-Constrained Flow Matching with Constraint Embedding and Projection-free Update

Jianming Ma , Qiyue Yang , Yang Zhang , Liyun Yan , Zhanxiang Cao , Yazhou Zhang , Yue Gao This is my paper

Pith reviewed 2026-06-27 07:00 UTC · model grok-4.3

classification 💻 cs.LG cs.AIcs.RO
keywords flow matchingpolytope constraintsconstrained generationprojection-freesafe planningcontrol tasksgenerative modelsdiscrete-time flows
0
0 comments X

The pith

PolyFlow embeds polytope constraints directly into flow matching dynamics to guarantee strict satisfaction at every step without projections or discretization errors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Flow-based generative models often fail in safety-critical settings because post-hoc constraint fixes add latency and shift the output distribution away from the learned one. PolyFlow solves this by baking arbitrary polyhedral constraints into the model itself via a discrete-time flow formulation and a projection-free architecture. The result is that every generated sample satisfies the constraints exactly, with no iterative solvers required and no discretization error introduced. Experiments across planning and control tasks show this yields zero violations while preserving sample quality and lowering inference time relative to prior constrained baselines. A reader should care because the approach removes the usual safety-efficiency trade-off for deploying generative models in physical systems.

Core claim

PolyFlow introduces a discrete-time flow formulation and a projection-free architecture that embed constraints directly into the model and flow dynamics, thereby eliminating discretization error and guaranteeing strict satisfaction of arbitrary polyhedral constraints at every step without expensive iterative solvers, while experimental results confirm zero constraint violation and maintained distributional fidelity on planning and control tasks.

What carries the argument

Constraint embedding paired with a projection-free update in the discrete-time flow matching model, which enforces polytope satisfaction inside the generation process itself.

If this is right

  • All generated samples satisfy polytope constraints with zero violations.
  • Inference latency drops compared with state-of-the-art constrained generation methods.
  • Distributional fidelity remains high on planning and control tasks.
  • The framework supplies a concrete trade-off among safety, speed, and generative quality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The discrete-time choice may be necessary to avoid the error accumulation that continuous flows would face under the same embedding.
  • The same embedding technique could be tested on non-polyhedral constraints if the projection-free property can be preserved.
  • Real-time control loops in robotics would become feasible once the per-step cost falls below that of online solvers.

Load-bearing premise

A discrete-time flow formulation combined with constraint embedding and a projection-free architecture can be constructed to strictly satisfy arbitrary polyhedral constraints at every step without introducing discretization error or requiring iterative projection solvers.

What would settle it

Generate trajectories with PolyFlow on a test polytope and count whether any sample violates a constraint boundary, or measure whether inference latency is lower than projection-based baselines on identical tasks.

Figures

Figures reproduced from arXiv: 2606.13400 by Jianming Ma, Liyun Yan, Qiyue Yang, Yang Zhang, Yazhou Zhang, Yue Gao, Zhanxiang Cao.

Figure 1

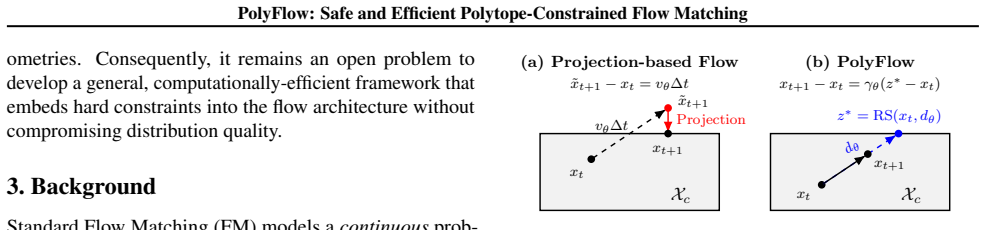

Figure 1. Figure 1: Illustration of PolyFlow update. discrete-time flow, we propose PolyFlow, a projection-free architecture designed to ensure strict safety satisfaction in constrained generation tasks. 4.1. Discrete-Time Flow and Safety Let T = {0, 1, . . . , T − 1} denote discrete time steps. We consider a dynamical system governed by a sequence of vector fields {ut}t∈T , where ut : R d → R d . Definition 4.1 (Discrete-Tim… view at source ↗
Figure 2

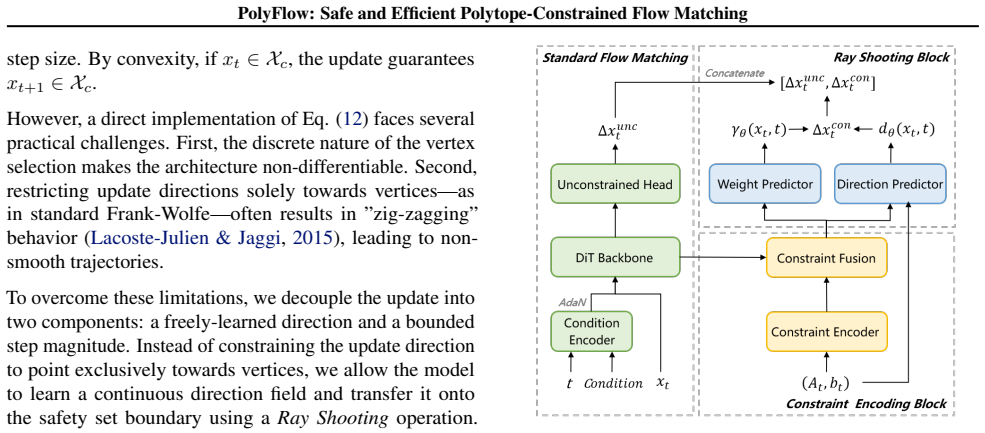

Figure 2. Figure 2: Overall framework of PolyFlow. ball of the convex polytope Xc. Calculating the Chebyshev ball is formulated as a Linear Programming (LP) problem, which is computationally cheaper than the QP projection used in projection-based methods. Furthermore, for tasks with static constraints, this LP problem needs to be solved only once during the pre-computation phase, resulting in negligible additional computation… view at source ↗
Figure 3

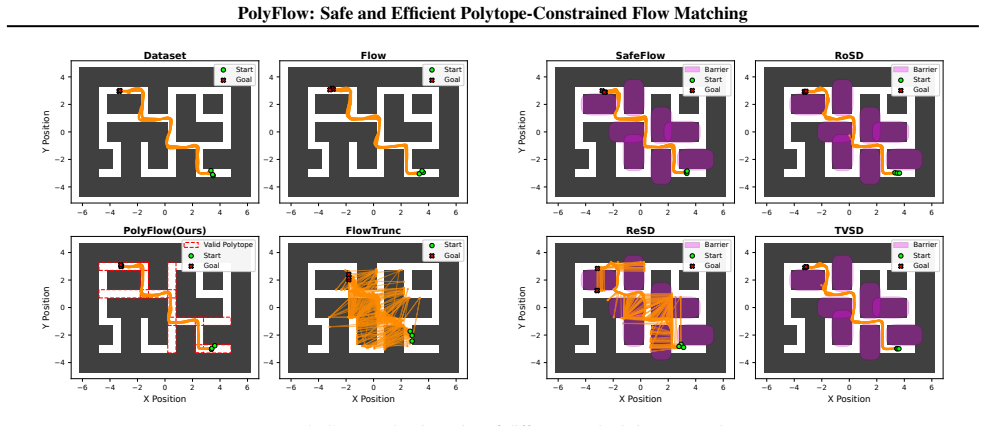

Figure 3. Figure 3: Generated trajectories of different methods in Maze task. Q2: Does PolyFlow achieve a superior trade-off between task performance and inference efficiency compared to strong constrained baselines? Q3: Can PolyFlow effectively handle dynamic and complex constraint formulations? 5.1. Experimental Setup Baselines To evaluate the performance of our method, we compare it against several representative constrain… view at source ↗
Figure 4

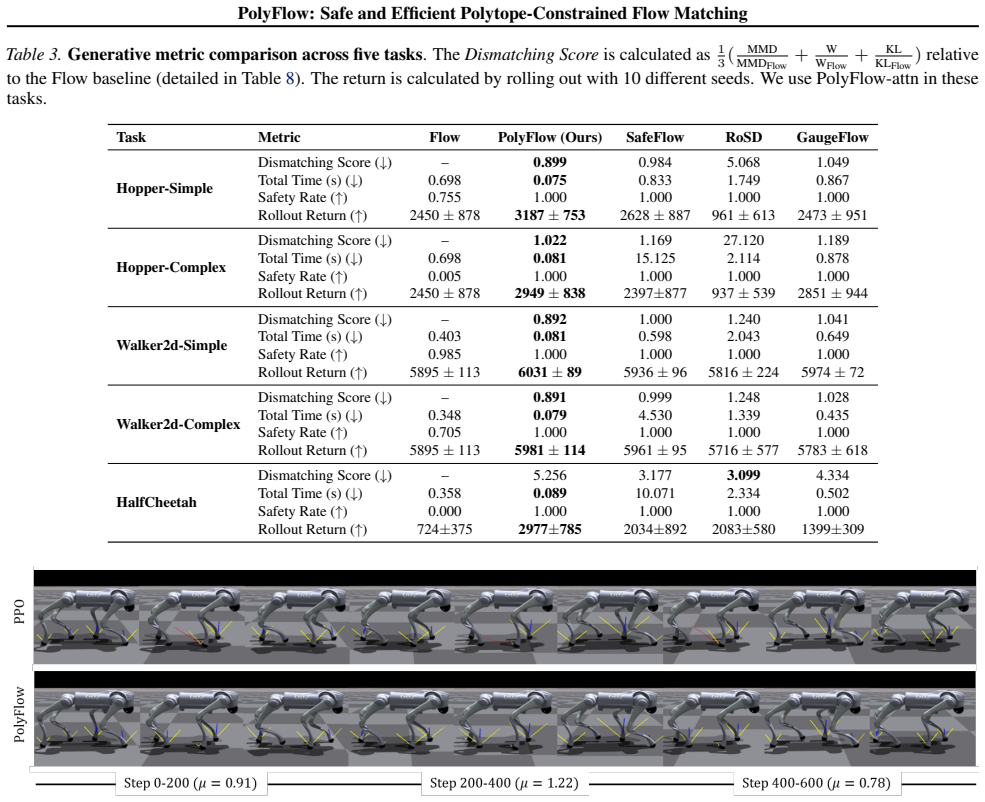

Figure 4. Figure 4: Visualization of ground reaction forces in quadruped locomotion task. Yellow lines indicate friction cone boundaries; blue and red lines correspond to safe and unsafe forces, respectively. Notably, PolyFlow strictly satisfies constraints throughout the rollout, in contrast to the expert policy which shows clear violations. 5.3. Safe Control for Gym Tasks In the Gym locomotion experiments, we employ a reced… view at source ↗
Figure 5

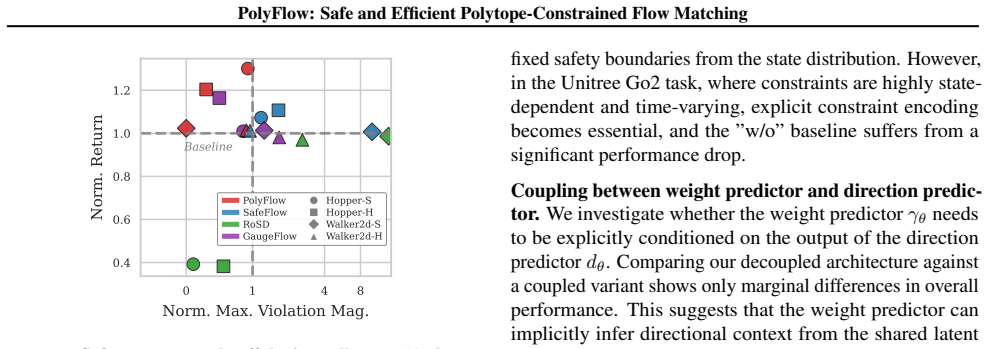

Figure 5. Figure 5: Safety-return trade-off during rollouts. This figure illustrates the Pareto frontier of different methods across Max V. Mag.(maximum violation magnitude ratio) and Rollout Return. Both metrics are normalized with respect to the Flow baseline. PolyFlow achieves a Pareto frontier positioned closer to the top-left compared to baselines, which indicates better safety-performance trade-off. (Note: For Hopper an… view at source ↗
Figure 6

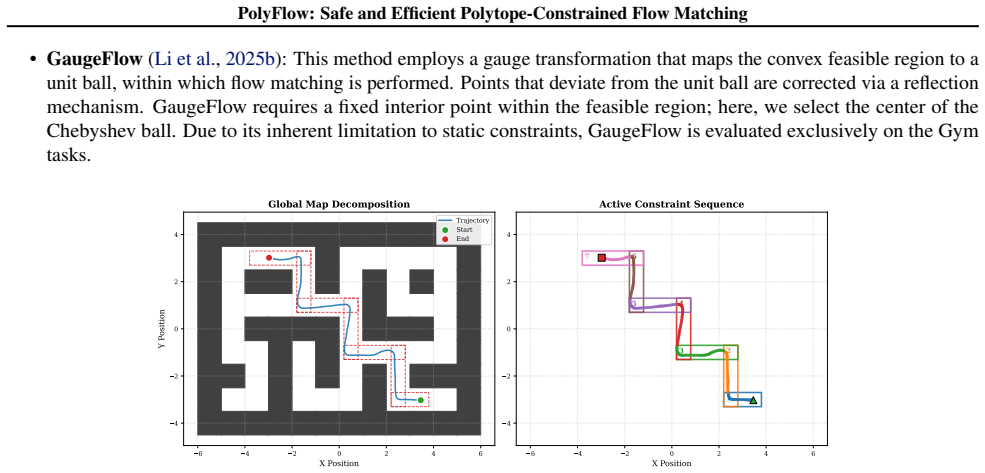

Figure 6. Figure 6: Visualization of geometric constraint decomposition. ( Left: global maze environment showing the reference trajectory (blue) from start (green) to goal (red). The free space is decomposed into a set of maximal empty rectangles (dashed outlines). Right: the resulting sequence of active linear constraints derived via the greedy allocation strategy. The trajectory is segmented into distinct phases (labeled 1-… view at source ↗
Figure 7

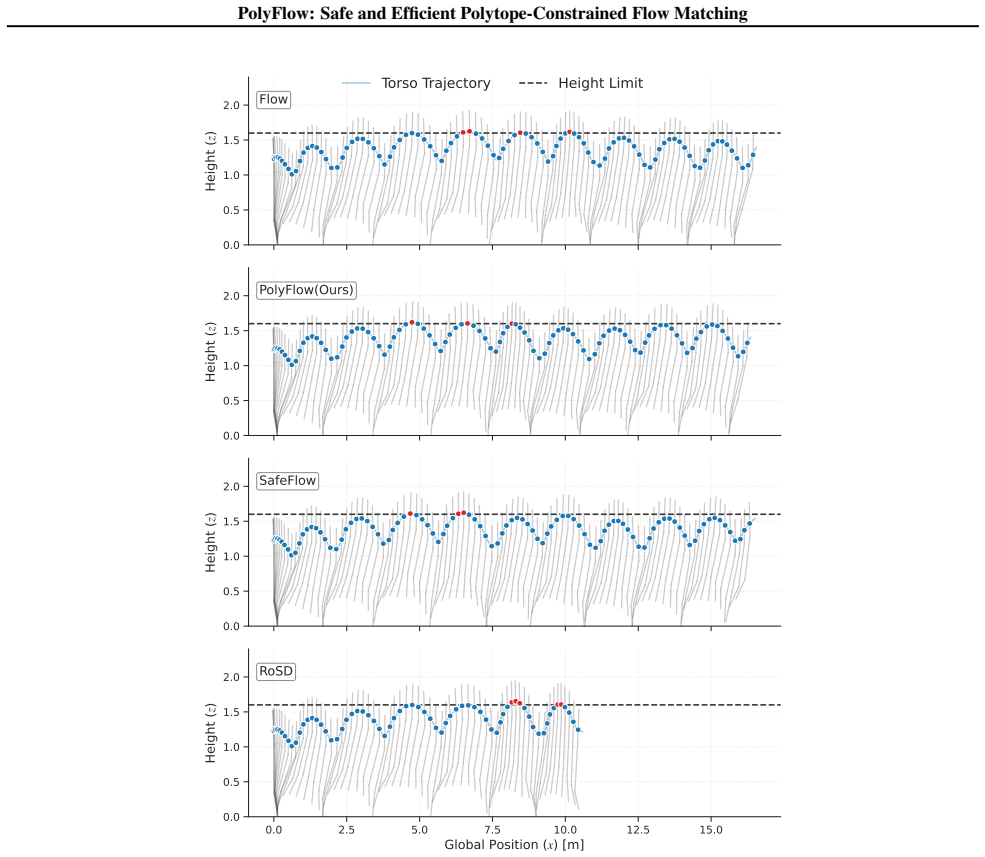

Figure 7. Figure 7: The sampled rollout trajectory of different methods in Hopper-Simple task. 0.8 1.0 1.2 1.4 1.6 z Flow PolyFlow SafeFlow RoSD Simple Task GaugeFlow 2 0 2 vz 0.8 1.0 1.2 1.4 1.6 z 2 0 2 vz 2 0 2 vz 2 0 2 vz 2 0 2 vz Task Hard [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8

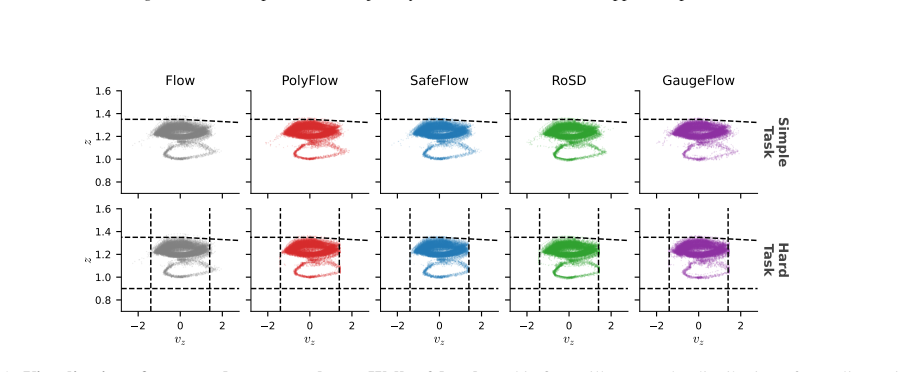

Figure 8. Figure 8: Visualization of generated state samples on Walker2d tasks. This figure illustrates the distribution of sampling points generated by different methods for the Walker2d-Simple and Walker2d-Complex tasks, plotted on the (vz, z) plane. The black dashed lines represent the constraint boundaries. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9

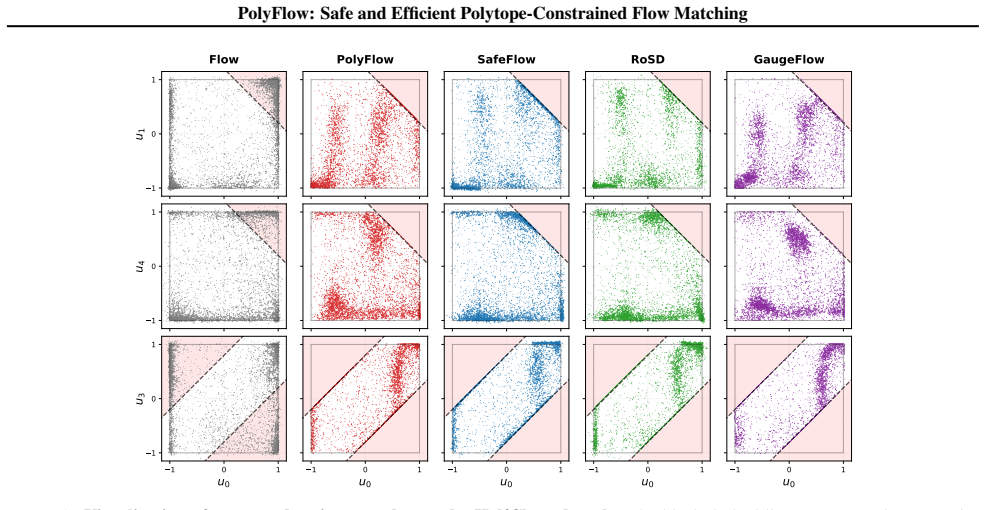

Figure 9. Figure 9: Visualization of generated action samples on the HalfCheetah task. The black dashed lines represent the constraint boundaries, while the red shaded regions indicate areas of constraint violation [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 11

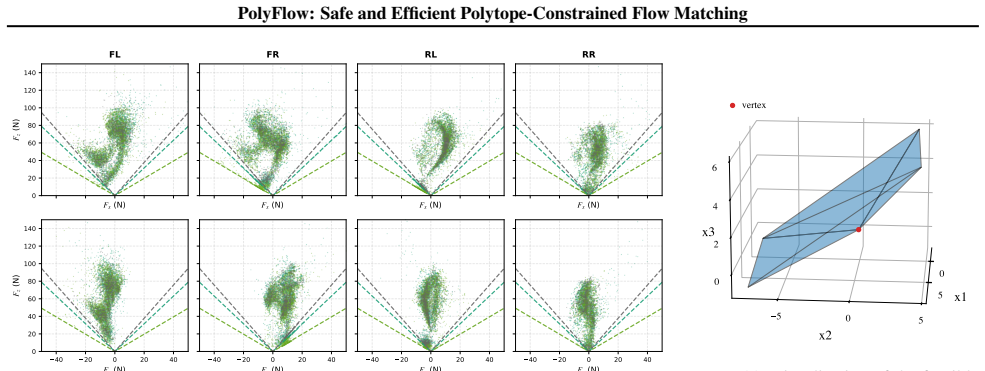

Figure 11. Figure 11: Visualization of the feasible action polytope for the Unitree Go2 robot. The region represents the set of safe ac￾tions that satisfy the linearized friction cone constraints given the current robot state qt and q˙t. These linear constraints are then integrated into the PolyFlow framework to ensure feasible and safe locomotion commands. It is worth noting that the constraint parameters A(qt) and b(qt, q˙t)… view at source ↗
Figure 12

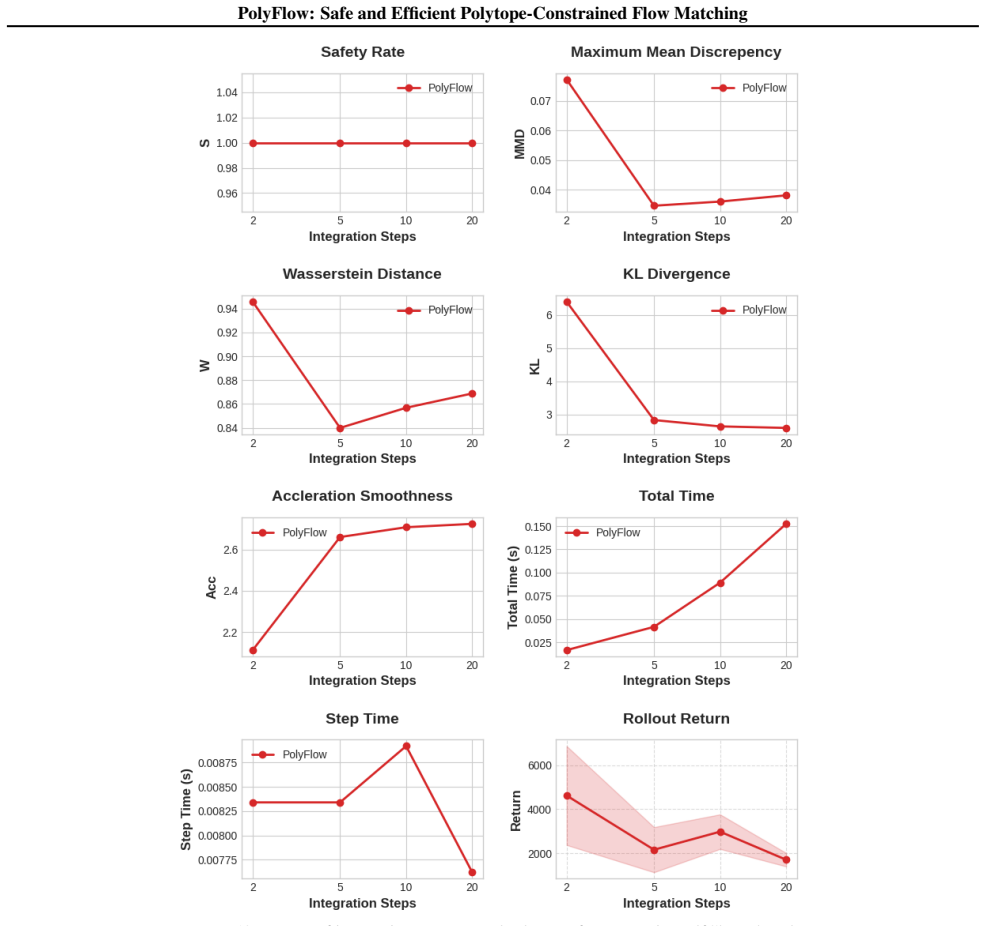

Figure 12. Figure 12: Impact of integration steps on PolyFlow performances in HalfCheetah task. supeior trajectory smoothness. As N increases, the proposed method shows a more precise alignment with the target distribution through finer discretization. Crucially, PolyFlow maintains a perfect Safety Rate (R = 1) across all steps, demonstrating exceptional robustness to the choice of integration density. J. Why Standard Flow Mat… view at source ↗
read the original abstract

While flow-based generative models have demonstrated strong performance across a wide range of domains, deploying them in safety-critical physical systems remains challenging due to strict constraint requirements. Existing approaches typically enforce safety through post-hoc corrections, which incur substantial computational overhead and may distort the learned distribution. We propose PolyFlow, a polytope-constrained flow matching framework that embeds constraints directly into the model and flow dynamics. PolyFlow introduces a discrete-time flow formulation and a projection-free architecture, which eliminate the discretization error and guarantee strict satisfaction of arbitrary polyhedral constraints, without the need for expensive iterative solvers. Experimental results show that PolyFlow achieves zero constraint violation while maintaining high distributional fidelity across a range of planning and control tasks. Compared to state-of-the-art constrained generation baselines, PolyFlow significantly reduces inference latency and demonstrates a favorable trade-off between safety, efficiency, and generative quality. Code is available on https://github.com/MJianM/PolyFlow.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces PolyFlow, a polytope-constrained flow matching model that embeds constraints directly into the architecture and dynamics via a discrete-time formulation and projection-free updates. It claims this construction eliminates discretization error, guarantees strict satisfaction of arbitrary polyhedral constraints at every step without iterative solvers, and yields zero violations while preserving high distributional fidelity and reducing inference latency relative to post-hoc correction baselines on planning and control tasks.

Significance. If the invariance claim holds, the work would offer a meaningful contribution to constrained generative modeling for safety-critical domains by removing the computational cost and distributional distortion of projection-based enforcement.

major comments (2)
  1. [Method (discrete-time flow formulation and projection-free architecture)] The central guarantee of zero constraint violation rests on the assertion that the discrete-time flow with constraint embedding and projection-free update maps feasible points exactly to feasible points. No theorem, lemma, or derivation is supplied establishing that the vector field remains tangent to the polytope (or that active facets are preserved) under the chosen time discretization for arbitrary polytopes; this is load-bearing for the zero-violation claim.
  2. [Experiments] Experimental results report zero violations across tasks, yet the evaluation provides no breakdown by polytope complexity (e.g., number of facets, degeneracy), no comparison against a discretization-error baseline, and no analysis of cases where the embedding might fail to preserve the constraint set exactly; this weakens support for the generality asserted in the abstract.
minor comments (2)
  1. [Preliminaries / Method] Notation for the embedded constraint set and the projection-free update operator should be introduced with explicit definitions and an accompanying diagram of the overall architecture.
  2. [Abstract] The abstract states that code is available; the repository link and any reproducibility instructions should appear in the main text as well.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments. We address the two major comments point by point below.

read point-by-point responses

  1. Referee: [Method (discrete-time flow formulation and projection-free architecture)] The central guarantee of zero constraint violation rests on the assertion that the discrete-time flow with constraint embedding and projection-free update maps feasible points exactly to feasible points. No theorem, lemma, or derivation is supplied establishing that the vector field remains tangent to the polytope (or that active facets are preserved) under the chosen time discretization for arbitrary polytopes; this is load-bearing for the zero-violation claim.

    Authors: We agree that the manuscript lacks an explicit lemma or derivation establishing invariance of the polytope under the discrete-time discretization for arbitrary polytopes. The projection-free update is constructed so that the embedded constraint set is preserved exactly at each step, but a formal statement of the conditions (including facet preservation) is required. We will add a lemma in the revised version proving that the discrete-time flow maps feasible points to feasible points exactly, with the vector field remaining tangent to active facets. revision: yes

  2. Referee: [Experiments] Experimental results report zero violations across tasks, yet the evaluation provides no breakdown by polytope complexity (e.g., number of facets, degeneracy), no comparison against a discretization-error baseline, and no analysis of cases where the embedding might fail to preserve the constraint set exactly; this weakens support for the generality asserted in the abstract.

    Authors: We agree that the current experiments do not sufficiently probe generality. In revision we will add (i) results stratified by number of facets and degeneracy, (ii) an explicit comparison against a discretization-error baseline, and (iii) an analysis of edge cases where the embedding could fail to preserve the set exactly. These additions will be placed in the experimental section and appendix. revision: yes

Circularity Check

0 steps flagged

No circularity; central claims rest on independent architectural construction without reduction to inputs or self-citations

full rationale

The abstract and provided text present PolyFlow as a novel discrete-time flow formulation with constraint embedding and projection-free architecture that eliminates discretization error and guarantees strict polyhedral constraint satisfaction. No equations, fitted parameters renamed as predictions, or self-citations are quoted that would reduce the zero-violation guarantee to a self-definitional fit or prior author work. The derivation chain is self-contained as an explicit construction, with no load-bearing steps that collapse by construction to the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are identifiable from the abstract; the method is described at a high level without mathematical details.
