Interactive Reasoning: Visualizing and Controlling Chain-of-Thought Reasoning in Large Language Models

T0 review · 3 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper claims that turning a model's chain-of-thought into an interactive topic tree gives users a sense of control over, and understanding of, the reasoning behind an LLM's answer.

desk verdict Timely HCI prototype for editing chain-of-thought, but the steering claim outruns the self-report evidence—worth refereeing nonetheless. read the letter →

arxiv 2506.23678 v1 pith:J35VJDTM submitted 2025-06-30 cs.HC cs.AI

Rock Yuren Pang , K. J. Kevin Feng , Shangbin Feng , Chu Li , Weijia Shi , Yulia Tsvetkov , Jeffrey Heer , Katharina Reinecke This is my paper
classification cs.HCcs.AI
keywords interactivereasoningchain-of-thoughtLLMtreevisualizationhuman-AIinteractiontest-timescalinguserstudyAIdecision-making
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper introduces Interactive Reasoning, an interaction design that turns a large language model's verbose, linear chain-of-thought into a hierarchical tree of topics that users can directly edit. It implements this in Hippo, a prototype for AI-assisted decision-making under trade-offs, and reports a within-subjects study of 16 participants. The study finds that, compared to a baseline interface that also allows editing but in plain text, Hippo significantly increases users' perceived control, sense-making, layout comprehension, and awareness of assumptions in the reasoning. The promise is that users can catch and interrupt wrong turns, add their own context and priorities, and receive a final answer that feels personalized rather than generic. The paper frames this as a new paradigm: putting human oversight inside the reasoning step, not just at the final answer.

What carries the argument

The central object is the interactive reasoning tree, a depth-first progressively generated topic hierarchy created by a few-shot prompt that structures raw chain-of-thought text into <topic> and <branch> XML-like tags. A Clarify operator flags feedback nodes where user input would be valuable, and a Link operator uses zero-shot natural-language inference to highlight which reasoning nodes support which sentences of the final response. User edits (add, edit, delete, regenerate, or branch with a custom prompt) are collected, and the updated reasoning is placed back inside <think>...</think> tags to condition the model's final generation.

What would settle it

A controlled experiment where users insert a node asserting a clearly false or contradictory premise (for example, 'the user has no budget constraints' when the query is about budget travel) and the final response is compared against a baseline run without that edit; if the response does not systematically and reliably incorporate the edit, the steering mechanism fails. Repeating across multiple users and edits would show whether the effect is real or merely perceived.

Watch

Extended reading notes

Core claim

On its own terms, the central claim is that representing a model's chain-of-thought as an interactive topic tree, rather than as a linear text wall, lets users feel they are steering the model, and this sense of agency extends to the final response. In the user study, perceived control rose from a mean of 4.19 to 5.75 (p = 0.003), sense-making from 5.19 to 6.44 (p = 0.004), layout comprehensibility from 3.44 to 6.00 (p = 0.009), and awareness of assumptions from 4.69 to 6.25 (p = 0.012). Participants described outputs as personalized, saying the model 'hears my voice rather than generating a generic answer,' and a case-study user called the tree 'essentially a plan for me to consider' in financial analysis. The paper is careful not to claim that editing the chain improves the factual correctness of outputs; it claims an improved sense of control, understanding, and personalization from the end user's perspective.

Load-bearing premise

The load-bearing premise is that editing the visible chain-of-thought text and feeding it back inside <think> tags actually steers the model's final answer in the direction the user intends; if the written chain is not a faithful or effective control handle, the claimed benefits are illusory even if users feel more confident.

Editorial extensions

If this is right

  • Reasoning-model interfaces can be redesigned around review-and-edit, letting users interrupt wrong assumptions before an answer is finalized.
  • In high-stakes decisions, the reasoning chain itself becomes a plan the user can refine, while the final response becomes a personalized summary rather than the main deliverable.
  • Tree visualization may reduce cognitive load enough that users actually read reasoning they would otherwise skim or ignore.
  • The Link highlight feature offers traceability from each response sentence back to the reasoning step that produced it, which can support appropriate trust calibration.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: This study measures perceived control and understanding, not whether edited chain-of-thought text actually changes the model's final output; the paper itself cites evidence that chain-of-thought may not faithfully reflect a model's real reasoning.
  • Editorial inference: The feedback-node mechanism may act as a cognitive forcing function, so part of the measured awareness gain could come from being asked questions rather than from the tree layout itself.
  • Editorial inference: A testable extension would insert a deliberately contradictory or false premise into a node and measure whether the final response systematically reflects that edit across repeated runs, which would separate real steering from perceived steering.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper introduces Interactive Reasoning, an interaction design that converts an LLM's chain-of-thought into a hierarchical tree of topics, allows users to add, edit, delete, and regenerate nodes, and generates a final answer conditioned on the edited thinking. This is implemented in Hippo, a prototype for decision-making under trade-offs. The authors report a within-subjects user study (N=16) comparing Hippo to an editable linear-text baseline, finding significant self-reported improvements in control, sense-making, layout, awareness of assumptions, and confidence, plus qualitative evidence of personalization and repurposing of the final response. Two follow-up case studies illustrate use for information seeking and financial planning. The paper claims that interactive reasoning lets users 'efficiently steer the model towards customized responses' and proposes a new paradigm for human oversight during test-time scaling.

Significance. If the steering claim holds, this is a timely and useful contribution to human-AI interaction: it directly addresses a real usability problem with long, unstructured chain-of-thought output and offers a concrete design space for test-time scaling control. The work's strengths include a thoughtful derivation of design goals from prior HCI/XAI literature, a fair baseline that is also editable, rich qualitative analysis, and unusually candid limitations. I see no circularity in the empirical evaluation, which is an external user study. However, the paper's most attention-grabbing claim, that edited chain-of-thought text inside <think> tags steers the final output, is not tested objectively, and the headline statistical results are based on a small number of unadjusted Likert comparisons. These issues are load-bearing because the system is framed as a control mechanism rather than a visualization only. The paper is worth publishing after the causal and statistical concerns are addressed.

major comments (3)
  1. [Abstract; §4.2.3; §8] The abstract states that Hippo lets users 'efficiently steer the model towards customized responses', and contribution (2) asserts that users reported 'increased confidence in making the final decision' with Hippo. Yet §8 explicitly says that 'our current approach does not systematically analyze the model behaviors given users’ feedback' and that the paper 'does not claim that user feedback led to more personalized or accurate reasoning chains or final model outputs'. These statements are in tension. The mechanism in §4.2.3, which places edited reasoning inside <think>...</think> tags, is a causal assumption: the final response should change in the direction of the user's edits. The user study provides only self-reported Likert scales and qualitative anecdotes (e.g., P8, P10), with no objective measure of whether the final output actually changed in the intended direction. This is not merely a presentation issue; the central value proposition of Hippo is control and steering, not just display. I recommend either softening the abstract and contribution claims to describe perceived control, or adding a systematic evaluation of edit-to-output alignment (e.g., a small controlled experiment with blind raters or automated entailment/similarity metrics comparing responses with and without a given edit).
  2. [§5.3.1; §5.3.2] The headline quantitative findings rest on nine Likert items tested with Wilcoxon signed-rank tests without any correction for multiple comparisons. With a conservative Bonferroni threshold of α=0.0056 for nine tests, control (p=0.003) and sense-making (p=0.004) remain significant, but layout (p=0.009), awareness (p=0.012), and confidence (p=0.049) would not survive. At minimum, the authors should report effect sizes and confidence intervals for each comparison, use a mixed-effects model or otherwise account for the multiple outcomes, and temper the wording in the abstract and Section 5.3 that presents all five results as equally robust. The lack of correction is especially relevant because the measures are correlated (e.g., layout and sense-making) and the sample is only N=16.
  3. [§5.3.3; §5.1] RQ3 concerns how users interact with the reasoning tree, but the paper provides no quantitative interaction logs. Statements such as 'we observed that participants rarely made edits', 'only four users typed their own experiences and opinions', and 'zero participants used the collapse function during tree generation' are based on informal observation. Since the system was implemented with a logging backend (Next.js/Flask), the authors can easily report counts of add/edit/delete/regenerate operations, time-to-first-edit, and usage of the collapse feature. Such logs would also help distinguish perceptual effects in RQ1–RQ2 from actual behavioral changes, and would strengthen the design implications in Section 7.
minor comments (6)
  1. [§2.2] The phrase 'long reasonig chain' contains a typo; it should read 'long reasoning chain'.
  2. [§5.3.1] The section heading 'A wareness' should be 'Awareness'.
  3. [Figure 4 caption] The figure caption says 'Review and edit the reaching chain below!' but should say 'reasoning chain'.
  4. [Appendix B.1.1] The literal placeholder '[More of this example]' appears inside the few-shot prompt; this should be removed or clearly marked as an abridged prompt rather than part of the actual prompt text.
  5. [§4.2.2; Appendix B.1.2] The duplicate-clarification threshold (cosine similarity > 0.8 with all-MiniLM-L6-v2) and the group-thoughts paragraph limit (8 paragraphs) are introduced without any sensitivity analysis or justification; a brief ablation or note on their influence would improve reproducibility.
  6. [§5.2] The power analysis is reported as Cohen's d = 0.8, α = 0.05, N = 16, but the assumed effect size and the paired versus independent design are not justified; please specify the target power and whether the test is two-sided.

Circularity Check

0 steps flagged · score 1.0 of 10

No circular derivation: the central evidence is an external user study, and the untested steering assumption is an acknowledged correctness limitation rather than a circular loop.

full rationale

The paper's central claims are empirical and are not derived from fitted parameters or from the authors' prior theorems. The quantitative findings in §5.3.1 (control p=0.003, sense-making p=0.004, layout p=0.009, awareness p=0.012) are Wilcoxon tests on 16 participants' Likert ratings comparing Hippo to an editable baseline; these are observations from an external user study, not predictions generated by the system's own construction. The pipeline in §4.2 uses few-shot and zero-shot GPT-4o prompts for structuring, clarifying, and linking, and DeepSeek-R1 for the reasoning chain; no parameter is fit to the outcome being claimed, and no quantity is defined in terms of the result it is supposed to explain. The assumption that edited chain-of-thought text inside <think> tags steers the final response is arguably load-bearing for the design, but the paper candidly flags it in §8: 'our current approach does not systematically analyze the model behaviors given users' feedback,' and it cites [10] to note that CoTs may not faithfully represent a model's actual reasoning. That is an admitted lack of causal validation, which is a correctness risk, not a circularity. Self-citations (e.g., [13], [46], [53], [76]) appear only as related-work background and do not supply the argument's conclusion; there is no imported uniqueness theorem, no ansatz smuggled in by citation, and no renaming of a known result presented as a derivation. Because no circular step can be exhibited with the required specificity, the appropriate score is 1, reflecting only minor, non-load-bearing self-citations.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The central claims rely on the reliability of LLM-based structuring, clarifying, and linking operators, on a hand-set deduplication threshold, and critically on the assumption that the visible chain-of-thought is a causally effective steering handle. These are domain assumptions rather than derived results.

free parameters (2)
  • Duplicate clarification detection threshold = 0.8 cosine similarity
    Hand-chosen in §4.2.2 to deduplicate Clarify questions; affects which Feedback nodes appear and was not empirically tuned or validated.
  • Group Thoughts paragraph limit = at most 8 paragraphs
    Prompt rule in appendix B.1.2 constraining the theme grouping step; controls tree granularity and was set by the authors without a comparative evaluation.
assumptions (4)
  • domain assumption LLM-based few-shot tagging with XML-like tags reliably recovers a topic hierarchy from raw CoT text.
    Invoked in §4.2.1 and appendix B.1; no accuracy metrics are reported for this structuring pipeline.
  • domain assumption GPT-4o can reliably identify which reasoning nodes would benefit from user clarification.
    Invoked in §4.2.2 and appendix B.2; relies on LLM classification ability, with pilot feedback but no systematic validation against human judgments.
  • domain assumption Zero-shot NLI linking between reasoning nodes and response sentences is accurate enough for the highlighting feature.
    Invoked in §4.2.4 and appendix B.3; the earlier bart-large approach was dropped for latency, and no gold-label evaluation of the zero-shot linker is provided.
  • domain assumption Editing visible chain-of-thought text and placing it back into <think> tags steers the final model output as the user intends.
    Invoked in §4.2.3; the paper does not systematically test this causal link and cites [10], which shows CoT may not faithfully represent model reasoning. This is the weakest load-bearing premise.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Interactive Reasoning: Visualizing and Controlling Chain-of-Thought Reasoning in Large Language Models." pith.science (2026). https://pith.science/paper/J35VJDTM

@misc{pith2026250623678,
  author       = {Pith},
  title        = {Pith review of: Interactive Reasoning: Visualizing and Controlling Chain-of-Thought Reasoning in Large Language Models},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/J35VJDTM}},
  note         = {Machine review of arXiv:2506.23678}
}
read the original abstract

The output quality of large language models (LLMs) can be improved via "reasoning": generating segments of chain-of-thought (CoT) content to further condition the model prior to producing user-facing output. While these chains contain valuable information, they are verbose and lack explicit organization, making them tedious to review. Moreover, they lack opportunities for user feedback, such as to remove unwanted considerations, add desired ones, or clarify unclear assumptions. We introduce Interactive Reasoning, an interaction design that visualizes chain-of-thought outputs as a hierarchy of topics and enables user review and modification. We implement interactive reasoning in Hippo, a prototype for AI-assisted decision making in the face of uncertain trade-offs. In a user study with 16 participants, we find that interactive reasoning in Hippo allows users to quickly identify and interrupt erroneous generations, efficiently steer the model towards customized responses, and better understand both model reasoning and model outputs. Our work contributes to a new paradigm that incorporates user oversight into LLM reasoning processes.

Figures

Figures reproduced from arXiv: 2506.23678 by the authors.

Figure 1
Figure 1. Hippo includes a tree visualization of the reasoning steps and allows users to directly control when models need users’ feedback. Users input their query in the input bar A③. Then, the reasoning tree progressively generates nodes B③following a preorder (depth-first) tree traversal order. Users can branch out a reasoning node C③by providing a customized prompt, which will add a new child node F③. Hippo halts the tree… view at source ↗
Figure 2
Figure 2. Hippo highlights the tree nodes G③and sentences in the reasoning model final response H③. structure of reasoning) and tags (capturing the low-level details and important entities given structural constraints). This process requires structuring the raw text from the model’s reasoning into a hierarchy of smaller components, drawing out components that require human intervention, and linking the final output to compo￾n… view at source ↗
Figure 3

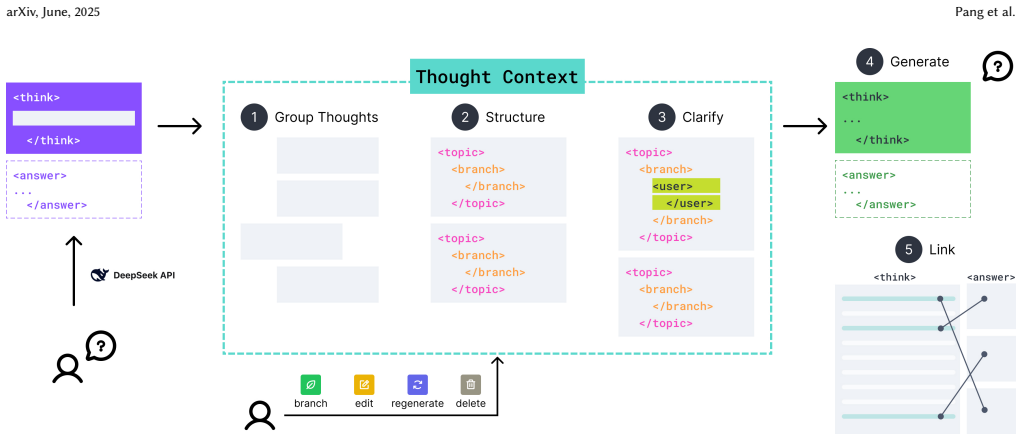

Figure 3. The Interactive Reasoning pipeline fetches the initial reasoning chain, structures the reasoning into topical hierarchy, flags text that might benefit from user intervention. The final output is directed back to the updated reasoning chain. challenges in the case of long reasoning chains, which usually gen￾erate numerous reasoning nodes and response paragraphs. Process￾ing times in batch for visual highlighting freq… view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: The baseline system. The reasoning steps show up [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Participants’ responses to the Likert-scale questions, contrasting the baseline and [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6

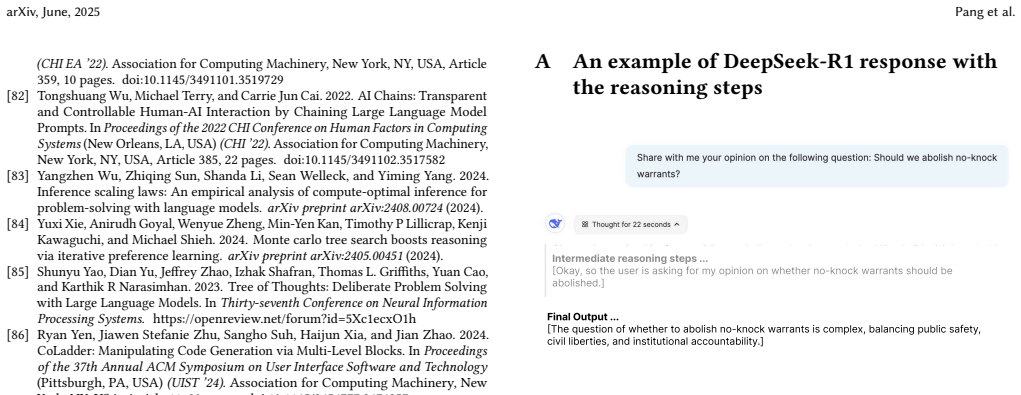

Figure 6. Figure 6: An example of the current DeepSeek-R1 platform [PITH_FULL_IMAGE:figures/full_fig_p014_6.png]
