PhyRoGen: Synthetic Generation of Physical Robot Manipulation Puzzles Using Procedural Content Generation

Lennart Julian Dro{\ss} , Andreas Orthey , Marc Toussaint This is my paper

Pith reviewed 2026-06-28 01:18 UTC · model grok-4.3

classification 💻 cs.RO
keywords procedural content generationrobot manipulationphysical puzzlessynthetic datasetsinterlocking dependenciessampling-based planningKUKA LBR iiwamanipulation benchmarks
0
0 comments X

The pith

PhyRoGen uses procedural content generation to automatically create unique physical robot manipulation puzzles with interlocking object dependencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Creating large datasets for training robots to manipulate physical puzzles is time-consuming when done manually. The paper introduces PhyRoGen as a framework that applies procedural content generation rules to produce synthetic puzzles where one articulated object must be moved before another can be accessed. Six concrete generators built on this framework produced 24 distinct puzzles. Sampling-based planning algorithms solved every puzzle in simulation within 1 to 300 seconds, and a KUKA LBR iiwa robot arm was shown to manipulate each one successfully in the same simulation environment. This establishes an automated route to generating solvable instances for algorithm benchmarking and model training.

Core claim

PhyRoGen is a general-purpose framework that leverages procedural content generation to produce physical puzzles featuring interlocking object dependencies, where one articulated object must be manipulated before another can be moved. Six concrete generators defined within PhyRoGen yielded 24 puzzles. All 24 puzzles were solved by sampling-based planning algorithms in 1 to 300 seconds, and each was demonstrated to be manipulatable by a KUKA LBR iiwa robot in physical simulation. The framework thereby produces unique, solvable robot manipulation puzzles suitable for benchmarking manipulation algorithms and developing foundation models.

What carries the argument

The PhyRoGen framework, which encodes procedural rules into six concrete generators that create puzzles defined by sequential manipulation requirements arising from physical interlocking dependencies.

If this is right

  • Large collections of distinct, solvable puzzles can be produced without manual design for each instance.
  • Manipulation algorithms gain standardized test cases that vary in their dependency structures.
  • Training datasets for learning-based manipulation methods become available at lower human effort.
  • The generated puzzles support repeated benchmarking runs because each instance is known to be solvable in simulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same procedural approach could be extended to generate puzzles with higher numbers of interlocks to stress-test more sophisticated planners.
  • If the simulation-to-real transfer holds, the puzzles could function as standardized physical test artifacts for hardware validation.
  • The method opens a path to procedural generation of related tasks such as automated assembly or disassembly sequences.

Load-bearing premise

The puzzles generated by the six concrete generators have interlocking dependencies that remain physically valid and whose simulated solutions match actions a real robot can perform.

What would settle it

A physical robot executing the planned sequences on the generated puzzles fails to complete the manipulations because of unmodeled contact forces, friction, or dynamics present in the real world but absent from simulation.

Figures

Figures reproduced from arXiv: 2606.06569 by Andreas Orthey, Lennart Julian Dro{\ss}, Marc Toussaint.

Figure 1

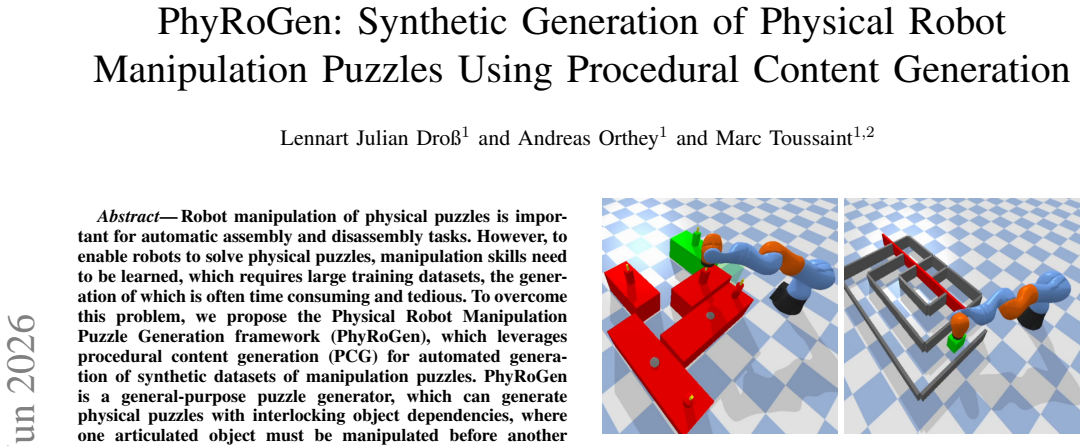

Figure 1. Figure 1: A KUKA mobile manipulator solves a procedurally gen￾erated manipulation puzzle with interlocking object dependencies. Left: The grid world environment, where a green slider has to be moved, but is blocked by multiple red objects. Right: The Move N Times environment, where a green cube has to be moved out of a maze which is blocked by a sliding prismatic door, requiring multiple re-grasping sequences. which… view at source ↗
Figure 2

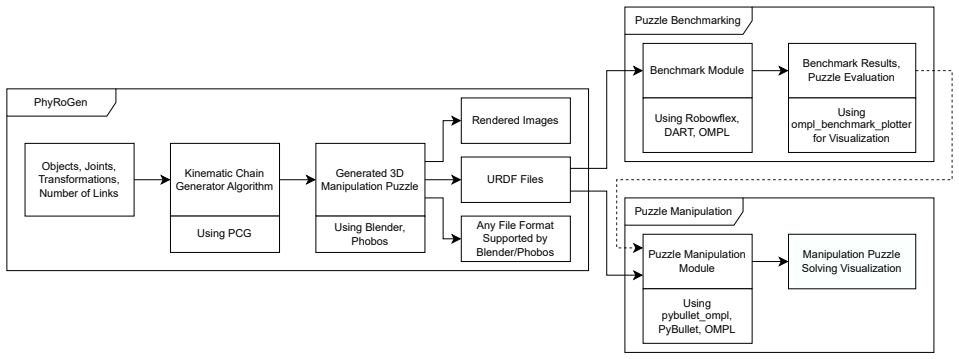

Figure 2. Figure 2: Systems overview about this paper, including the puzzle generation (left), and the puzzle benchmarking and manipulation modules (right). Algorithm 1 PhyRoGen Maker Input: (Objects, Joints, Transforms, N, Seed) Output: Kinematic Chain K 1: K ← INITIALIZEKINEMATICCHAIN() 2: for n ∈ {1, . . . , N} do 3: while True do 4: obj ← GETITEM(Objects, n, Seed) 5: jnt ← GETITEM(Joints, n, Seed) 6: tf ← GETITEM(Transfor… view at source ↗
Figure 3

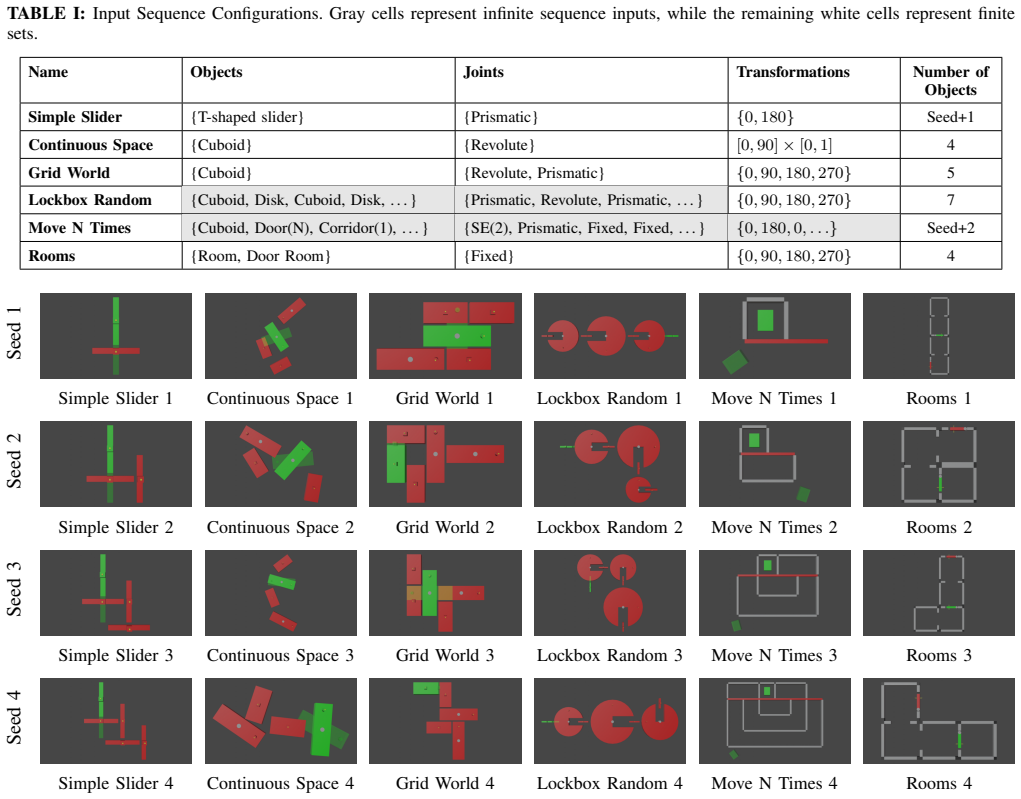

Figure 3. Figure 3: Visualization of puzzle environments for the first four seeds using the input from Table I. way. Eventually, Frame 4 shows the last action where the robot moves the green object (the only one with a dedicated goal configuration) towards its goal position. The robot used is a KUKA LBR iiwa on a mobile manipulator base, having three degrees of freedom (dof) for the base and 7-dof for the manipulator arm. Ful… view at source ↗
Figure 4

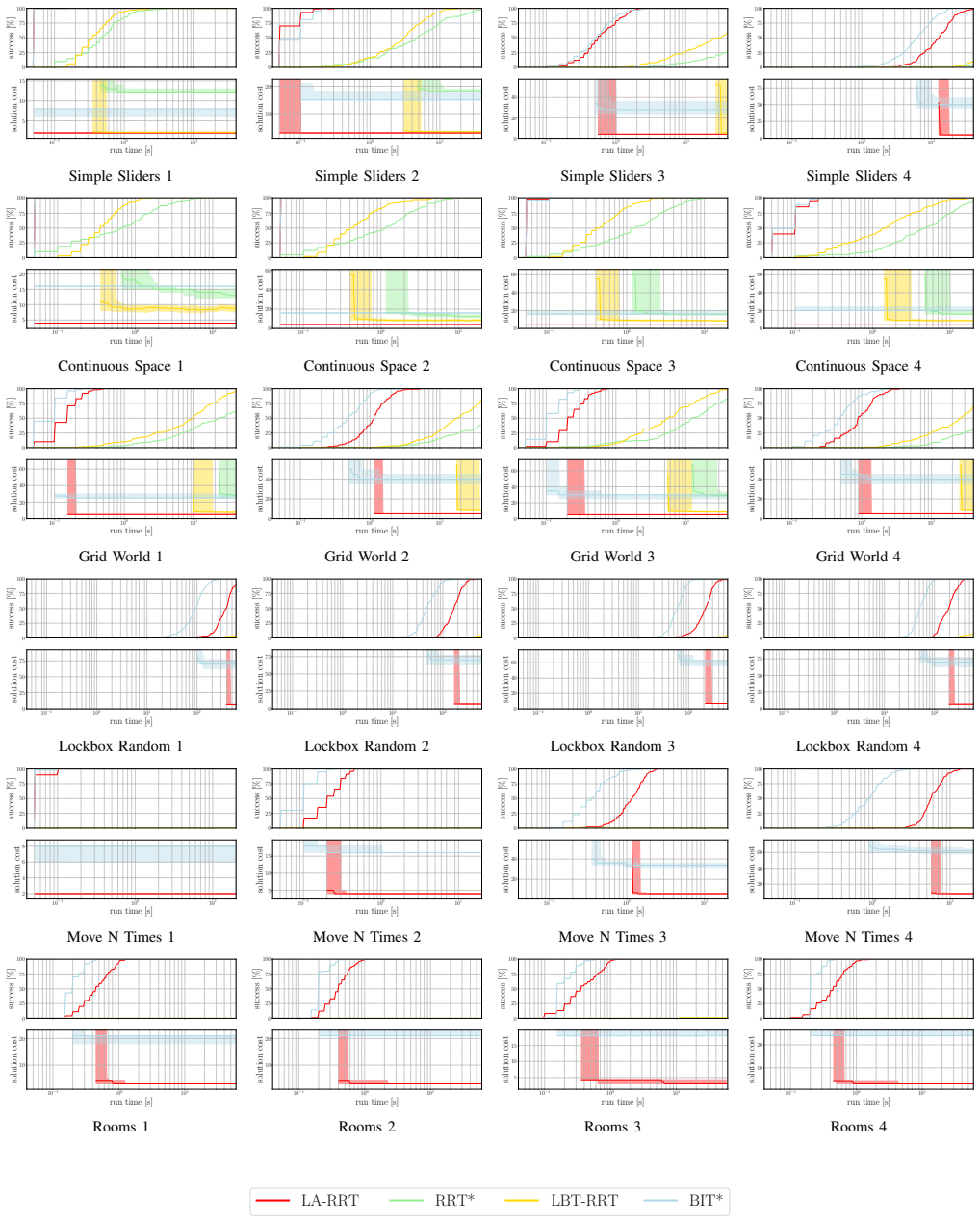

Figure 4. Figure 4: Visualization of benchmark results across six generators, each with four variations, and with the legend below [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

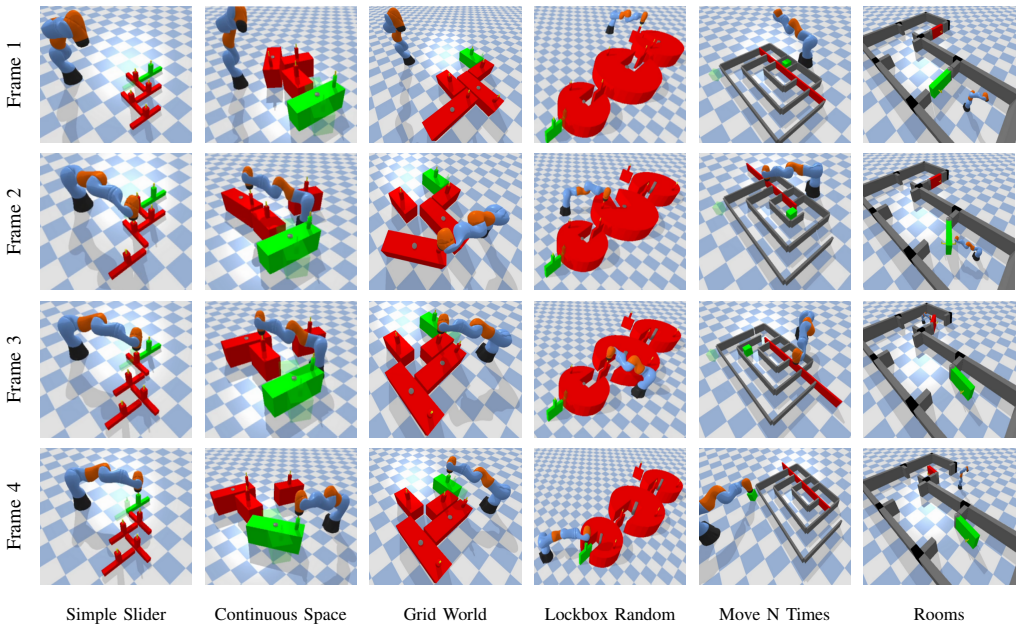

Figure 5. Figure 5: Visualization of manipulation tasks across all six environments. The manipulation task for the mobile manipulator robot is to move the green object to its goal position (transparent green), while red objects block the green object and have to be moved out of the way (interlocking dependencies). The Rooms environment is different in that the robot has to move out of the room itself, but is blocked by all ob… view at source ↗
read the original abstract

Robot manipulation of physical puzzles is important for automatic assembly and disassembly tasks. However, to enable robots to solve physical puzzles, manipulation skills need to be learned, which requires large training datasets, the generation of which is often time consuming and tedious. To overcome this problem, we propose the Physical Robot Manipulation Puzzle Generation framework (PhyRoGen), which leverages procedural content generation (PCG) for automated generation of synthetic datasets of manipulation puzzles. PhyRoGen is a general-purpose puzzle generator, which can generate physical puzzles with interlocking object dependencies, where one articulated object must be manipulated before another can be moved. Based upon PhyRoGen, we define six concrete generators which we use to generate 24 physical puzzles. By using a benchmarking framework, we are able to solve all puzzles in 1 to 300 seconds using sampling-based planning algorithms. Finally, we demonstrate that every generated puzzle is manipulatable by using a KUKA LBR iiwa robot in a physical simulation. This shows that our framework is able to procedurally generate unique, solvable robot manipulation puzzles, which is a crucial ingredient to benchmark manipulation algorithms and to develop robust foundation models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces PhyRoGen, a procedural content generation (PCG) framework for automatically synthesizing datasets of physical robot manipulation puzzles that feature interlocking object dependencies (one articulated object must be manipulated before another can move). Six concrete generators are defined and used to produce 24 puzzles; all are reported solvable via sampling-based planning in 1–300 s and demonstrated manipulable by a KUKA LBR iiwa in simulation. The central claim is that this framework supplies unique, solvable puzzles suitable for benchmarking manipulation algorithms and training foundation models.

Significance. If the interlocking dependencies are shown to be physically enforced rather than artifacts of planner constraints or initial conditions, the framework could supply scalable synthetic data for manipulation research. The constructive nature of the generators and the explicit demonstration of simulation solvability are positive features, but the absence of quantitative validation metrics, error analysis, or physical-validity tests limits the immediate impact.

major comments (3)
  1. [Abstract / benchmarking section] Abstract and § on benchmarking/results: solvability of all 24 puzzles in 1–300 s via sampling-based planning is reported, yet no quantitative test (e.g., collision counts, forced-order violation rates, or comparison against a non-interlocking baseline) is supplied to confirm that the claimed interlocking dependencies arise from the physics engine rather than planner heuristics or initial pose constraints.
  2. [Generator definitions] Description of the six concrete generators: the procedural rules are stated to produce “interlocking object dependencies,” but the manuscript provides no explicit mechanism (e.g., joint limits, collision geometry, or stability checks) that would make bypassing an interlock physically impossible inside the simulator; solvability alone does not establish this.
  3. [Simulation experiments] KUKA LBR iiwa simulation demonstration: the claim that “every generated puzzle is manipulatable” is supported only by successful execution; no metrics on grasp success rate, trajectory deviation, or failure modes under perturbed initial conditions are given, leaving open whether the generated puzzles test sequential manipulation or merely planner reachability.
minor comments (2)
  1. [Abstract] The abstract states “24 physical puzzles” but the text does not clarify whether these are distinct up to rigid transformation or merely 24 instances; a table enumerating generator-to-puzzle mapping would improve clarity.
  2. [Methods] No mention of the underlying physics engine parameters (friction, contact solver tolerance) or whether the same parameters are used for both generation and planning validation.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive feedback. The comments correctly identify areas where additional evidence would strengthen the paper's claims regarding the physical enforcement of interlocking dependencies. We address each point below and commit to revisions that incorporate the suggested validations.

read point-by-point responses

  1. Referee: [Abstract / benchmarking section] Abstract and § on benchmarking/results: solvability of all 24 puzzles in 1–300 s via sampling-based planning is reported, yet no quantitative test (e.g., collision counts, forced-order violation rates, or comparison against a non-interlocking baseline) is supplied to confirm that the claimed interlocking dependencies arise from the physics engine rather than planner heuristics or initial pose constraints.

    Authors: We agree with this observation. The current results focus on solvability times but do not include quantitative tests to isolate the effect of physical interlocks. In the revised manuscript, we will add quantitative metrics including collision counts during planning, rates of forced-order violations, and comparisons to non-interlocking baseline puzzles. This will be presented in an expanded benchmarking section to demonstrate that the dependencies are enforced by the physics engine. revision: yes

  2. Referee: [Generator definitions] Description of the six concrete generators: the procedural rules are stated to produce “interlocking object dependencies,” but the manuscript provides no explicit mechanism (e.g., joint limits, collision geometry, or stability checks) that would make bypassing an interlock physically impossible inside the simulator; solvability alone does not establish this.

    Authors: The manuscript outlines the procedural rules for generating puzzles with interlocking dependencies but does not provide detailed descriptions of the simulator-level mechanisms. We will revise the section on generator definitions to explicitly specify the physical mechanisms, including joint limits, collision geometries, and stability checks that prevent bypassing the interlocks. This will clarify how the dependencies are physically enforced. revision: yes

  3. Referee: [Simulation experiments] KUKA LBR iiwa simulation demonstration: the claim that “every generated puzzle is manipulatable” is supported only by successful execution; no metrics on grasp success rate, trajectory deviation, or failure modes under perturbed initial conditions are given, leaving open whether the generated puzzles test sequential manipulation or merely planner reachability.

    Authors: We recognize that the simulation results are presented only as successful demonstrations without supporting metrics. To address this, the revised version will include quantitative metrics such as grasp success rates over multiple trials, average trajectory deviations, and performance under perturbed initial conditions. This will better illustrate that the puzzles challenge sequential manipulation capabilities. revision: yes

Circularity Check

0 steps flagged

No circularity: constructive PCG framework with direct simulation demonstration

full rationale

The paper describes a procedural content generation framework (PhyRoGen) that defines six concrete generators to produce 24 puzzles, then reports that sampling-based planners solve all of them in simulation and that a KUKA LBR iiwa model can manipulate them. No equations, parameter fitting, or derivation chain exists. The central claim is that the generators produce solvable interlocking puzzles; this is shown by explicit construction and planner output rather than by reducing any quantity to a fitted input or self-citation. The work is self-contained as an engineering artifact whose outputs are directly exhibited.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that procedurally generated puzzles with stated interlocking dependencies are physically realizable and solvable; no free parameters or invented entities are described in the abstract.

axioms (1)
  • domain assumption Procedural generators can produce puzzles whose interlocking dependencies require sequential manipulation and remain physically valid.
    Invoked when claiming the generated puzzles are solvable and manipulatable (abstract, final sentences).

pith-pipeline@v0.9.1-grok · 5737 in / 1140 out tokens · 22454 ms · 2026-06-28T01:18:50.056980+00:00 · methodology
