arxiv: 2606.29296 · v1 · pith:KORTA25Inew · submitted 2026-06-28 · 💻 cs.AI

Process Advantage Signal Shaping: A Paradigm-Agnostic Middleware for Process-Supervised RL in LLM Reasoners

Chao Wang , Hongtao Tian , Tao Yang , Yunsheng Shi , Ting Yao , Wenbo Ding This is my paper

Pith reviewed 2026-06-30 07:30 UTC · model grok-4.3

classification 💻 cs.AI
keywords process-supervised RLGRPOLLM reasonersadvantage shapingprocess reward modelssignal shapingmulti-hop QAreinforcement learning
0
0 comments X

The pith

PASS middleware fixes channel contamination, resolution mismatch and cumulative trap when layering process signals on GRPO, delivering consistent pass@1 gains.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Process Advantage Signal Shaping (PASS) as middleware that sits between any scalar step-level process signal and GRPO's clipped surrogate. It identifies three structural problems that arise when dense process rewards are added to group-standardized advantages: mixing of process, outcome and format streams during standardization, mismatch between signal granularity and decision credit, and return-to-go summation that produces length inflation or truncated search. PASS corrects these with three independent operations that standardize streams separately, derive value-homogeneous chunks for credit assignment, and convert the objective to average value density. The approach is tested on mathematical reasoning with a learned PRM and on multi-hop QA with on-policy KL distillation, under two different standardization operators. A reader would care because the fixes are compact, paradigm-agnostic, and produce measurable accuracy lifts without altering the underlying GRPO algorithm.

Core claim

Process Advantage Signal Shaping (PASS) addresses three pathologies in process-supervised GRPO by standardizing process, outcome and format streams independently within each group (Advantage Fusion), deriving value-homogeneous chunks from the signal and broadcasting credit inside each chunk (Chunk-by-Value), and replacing the cumulative return-to-go with an average-value-density score (Divide-Length). Across mathematical reasoning and multi-hop question answering, using both learned PRM signals and on-policy KL signals, and under two group-standardization operators, PASS produces consistent pass@1 gains relative to the corresponding GRPO baseline.

What carries the argument

PASS middleware with Advantage Fusion for independent per-stream standardization, Chunk-by-Value for signal-derived homogeneous chunks, and Divide-Length for average-value-density conversion.

If this is right

  • Process supervision can be added to GRPO without the three listed pathologies.
  • The same shaping steps work for both learned PRM signals and on-policy distillation KL signals.
  • Gains appear under different choices of group-standardization operator.
  • The method applies across mathematical reasoning and multi-hop question-answering domains.
  • Credit assignment improves without changing the base clipped-surrogate objective.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same three operations could be ported to other group-relative or advantage-based RL recipes beyond GRPO.
  • The chunking and density ideas might extend to outcome-only or sparse-reward settings where length bias is also observed.
  • If the fixes prove robust at larger model sizes, they could become a default preprocessing layer for any step-level signal.
  • The resolution-mismatch diagnosis suggests similar granularity problems may exist in other dense-reward RL pipelines for sequential decision tasks.

Load-bearing premise

The three pathologies dominate the failure modes when process signals are added to GRPO, and the three fixes correct them without introducing new offsetting problems at other scales or regimes.

What would settle it

A controlled experiment on a new task or model scale in which PASS produces no pass@1 improvement or a clear degradation relative to the GRPO baseline would falsify the claim of consistent gains.

Figures

Figures reproduced from arXiv: 2606.29296 by Chao Wang, Hongtao Tian, Tao Yang, Ting Yao, Wenbo Ding, Yunsheng Shi.

Figure 1
Figure 1. Figure 1: The process-supervised RL computation graph. Baseline GRPO pools all reward signals directly into a [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

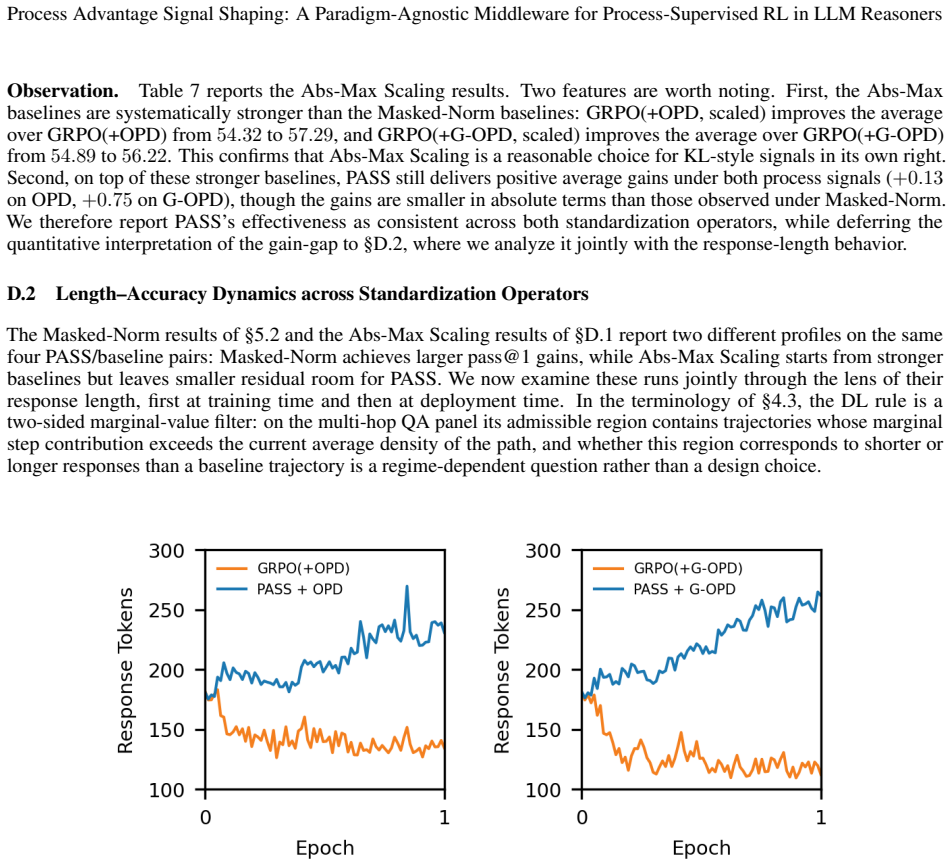

Figure 2. Figure 2: Training-time mean rollout length (in tokens) on HotpotQA across one training epoch, for the four Masked [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗
Figure 3

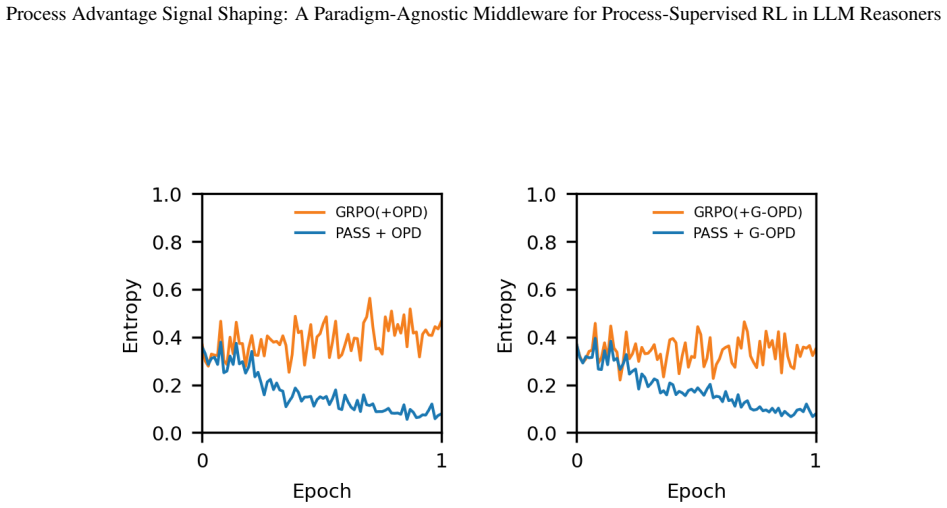

Figure 3. Figure 3: Training-time token-level entropy of the actor on HotpotQA across one training epoch, for the same four [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Training-time mean token-level KL divergence against the teacher on HotpotQA across one training epoch, [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
read the original abstract

Group Relative Policy Optimization (GRPO) is a default recipe for process-supervised reinforcement learning of LLM reasoners, and dense process supervision -- via learned process reward models (PRMs) or on-policy-distillation KL signals -- is a common way to densify its otherwise weak outcome reward. Layering such a step-level signal on top of GRPO's group-standardized advantage, however, exposes three structural pathologies: \emph{channel contamination} between the pooled process, outcome, and format streams at group standardization; \emph{resolution mismatch} between the granularity of the process signal and the granularity of the logical decisions being credited; and a \emph{cumulative trap} by which GRPO's return-to-go sum surfaces either length inflation or truncated exploration depending on the sign regime of the signal. We propose \textbf{PASS} (\emph{Process Advantage Signal Shaping}), a compact middleware that sits between any scalar step-level process signal and GRPO's clipped surrogate and addresses the three pathologies in turn: \emph{Advantage Fusion} standardizes the three streams independently within each group, \emph{Chunk-by-Value} derives value-homogeneous chunks from the signal itself and broadcasts credit within each chunk, and \emph{Divide-Length} converts the cumulative objective into an average-value-density score. We validate PASS across two domains and two process-signal paradigms -- a learned PRM on mathematical reasoning and an on-policy-distillation KL signal (with a generalized variant) on multi-hop question answering -- and under two group-standardization operators. In every regime PASS delivers a consistent pass@1 gain over the corresponding GRPO baseline.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes PASS (Process Advantage Signal Shaping), a paradigm-agnostic middleware for process-supervised RL with GRPO in LLM reasoners. It identifies three pathologies when layering step-level process signals (learned PRMs or on-policy KL distillation) on GRPO's group-standardized advantage—channel contamination, resolution mismatch, and cumulative trap—and addresses them via Advantage Fusion (independent per-stream standardization), Chunk-by-Value (value-homogeneous chunks for credit assignment), and Divide-Length (average-value-density objective). The central claim is that PASS yields consistent pass@1 gains over GRPO baselines across two domains (mathematical reasoning, multi-hop QA), two signal paradigms, and two standardization operators.

Significance. If the results hold, PASS supplies a compact, reusable layer that improves dense process supervision without requiring per-paradigm redesigns, which could streamline RL for LLM reasoning. The work is strengthened by its procedural (non-fitted, non-circular) construction from existing GRPO components and by explicit testing across multiple signal types and operators rather than a single setting.

major comments (2)
  1. [Abstract and empirical validation] Abstract (final sentence) and empirical validation: the claim that PASS 'delivers a consistent pass@1 gain ... in every regime' is load-bearing for the contribution yet rests on results from only two domains and two signal types; this narrow base leaves open the possibility that Chunk-by-Value or Divide-Length introduce offsetting side-effects (e.g., credit misalignment on noisy PRMs or length bias in longer horizons) that are not ruled out by the reported experiments.
  2. [Abstract and experiments section] Abstract and § on experiments: no quantitative deltas, confidence intervals, ablation tables, or details on hyper-parameter selection and data exclusion are supplied to support the 'consistent gains' assertion, making it impossible to assess effect size or robustness of the three proposed fixes.
minor comments (2)
  1. [Method description] Notation for the three streams (process, outcome, format) is introduced without an explicit equation or diagram showing how they are pooled before versus after Advantage Fusion.
  2. [Introduction] The term 'middleware' is used without a short comparison to existing RL wrappers or adapters in the related-work section.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive report and the recognition of PASS as a compact middleware. We respond to each major comment below, indicating planned revisions where the manuscript can be strengthened without misrepresenting the reported results.

read point-by-point responses

  1. Referee: [Abstract and empirical validation] Abstract (final sentence) and empirical validation: the claim that PASS 'delivers a consistent pass@1 gain ... in every regime' is load-bearing for the contribution yet rests on results from only two domains and two signal types; this narrow base leaves open the possibility that Chunk-by-Value or Divide-Length introduce offsetting side-effects (e.g., credit misalignment on noisy PRMs or length bias in longer horizons) that are not ruled out by the reported experiments.

    Authors: We agree that the empirical base is limited to two domains and two signal paradigms (learned PRM and on-policy KL distillation), even though consistency holds across both standardization operators. This scope does not fully exclude potential side-effects such as credit misalignment on noisier PRMs or length bias under longer horizons. In revision we will qualify the abstract claim to 'consistent gains in the evaluated regimes' and add an explicit limitations paragraph discussing these possibilities. revision: partial

  2. Referee: [Abstract and experiments section] Abstract and § on experiments: no quantitative deltas, confidence intervals, ablation tables, or details on hyper-parameter selection and data exclusion are supplied to support the 'consistent gains' assertion, making it impossible to assess effect size or robustness of the three proposed fixes.

    Authors: We accept that the abstract and experiments section lack the requested quantitative detail. The revised manuscript will incorporate specific pass@1 deltas (with confidence intervals where computed), ablation tables isolating Advantage Fusion, Chunk-by-Value, and Divide-Length, plus expanded descriptions of hyper-parameter selection and data exclusion criteria. revision: yes

standing simulated objections not resolved
  • Expanding the experimental scope to additional domains or signal paradigms to more comprehensively rule out side-effects of Chunk-by-Value and Divide-Length.

Circularity Check

0 steps flagged

No circularity: procedural definitions and empirical validation are self-contained

full rationale

The paper defines PASS via three explicit algorithmic components (Advantage Fusion, Chunk-by-Value, Divide-Length) that operate on the input process signal and GRPO's group standardization; these are presented as direct procedural fixes for the three named pathologies rather than as fitted parameters or quantities derived from the target metric. No equations reduce a prediction to a self-referential fit, no self-citations are invoked as load-bearing uniqueness theorems, and the central claim rests on reported empirical gains across the tested regimes rather than on any renaming or ansatz smuggling. The derivation chain is therefore independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the assumption that GRPO is the appropriate base optimizer and that the three pathologies are the primary obstacles; no free parameters or new physical entities are introduced.

axioms (1)
  • domain assumption Group Relative Policy Optimization (GRPO) is a default recipe for process-supervised reinforcement learning of LLM reasoners
    Stated directly in the opening sentence of the abstract as the starting point for the work.
invented entities (1)
  • PASS middleware no independent evidence
    purpose: Compact layer that sits between any scalar step-level process signal and GRPO's clipped surrogate
    New proposed component whose effectiveness is asserted via the validation experiments; no independent evidence outside the paper is supplied.
