arxiv: 2605.26782 · v1 · pith:KZPM7UVCnew · submitted 2026-05-26 · 💻 cs.RO · cs.HC

Manipulating Tangible Virtual Object Dynamics to Promote Learning of Precision Force Generation

Alberto Garz\'as-Villar , Alba Riera-Cardona , Alexis Derumigny , J. Micah Prendergast , Jane Murray Cramm , Laura Marchal-Crespo This is my paper

Pith reviewed 2026-06-29 16:54 UTC · model grok-4.3

classification 💻 cs.RO cs.HC
keywords force generationhaptic feedbackvirtual realityprecision controlsomatosensory learningrehabilitationnonlinear dynamics
0
0 comments X

The pith

Antisymmetric Gaussian spring dynamics improve force accuracy during training compared to linear dynamics

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper tests whether the shape of a virtual spring's force-elongation curve can be adjusted to help people learn precise force application in a curling-inspired task. Healthy participants stretched the spring to hit a target release force, with the curve set as linear, Gaussian, or antisymmetric Gaussian that flattens at the target. The antisymmetric version produced higher accuracy across training sessions than the linear version, while the Gaussian version improved accuracy only late in training. No lasting retention gains appeared for any curve shape, and participants transferred performance based on stretch length rather than force value.

Core claim

By setting the virtual spring's force-elongation relationship to an antisymmetric Gaussian function with zero derivative at the target release force, participants achieved higher force accuracy during training sessions than with a linear relationship, whereas a standard Gaussian relationship only showed improvement toward the end of training; however, no differences emerged in long-term retention, and performance transferred based on elongation rather than force.

What carries the argument

The antisymmetric Gaussian force-elongation function with zero derivative at the release target force

If this is right

  • The antisymmetric Gaussian group maintained higher force accuracy throughout the training period compared with the linear group.
  • The Gaussian group only outperformed the linear group in later training blocks.
  • No significant retention differences appeared across the three spring types after training ended.
  • Participants relied primarily on learned target elongation rather than target force in transfer tasks with changed stiffness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be adapted to minimize position cues so that force learning becomes more independent of proprioception.
  • Personality scores that correlate with exploration behavior might be used to select or adjust dynamics for individual learners.
  • Extending the task to clinical populations would test whether the training gains survive when somatosensory deficits are present.

Load-bearing premise

That improved training accuracy in healthy participants on this curling task will generalize to neurological patients and that the setup supports learning of force independent of position cues.

What would settle it

A transfer test in which removing or altering position cues eliminates the accuracy advantage of the antisymmetric Gaussian dynamics.

Figures

Figures reproduced from arXiv: 2605.26782 by Alba Riera-Cardona, Alberto Garz\'as-Villar, Alexis Derumigny, Jane Murray Cramm, J. Micah Prendergast, Laura Marchal-Crespo.

Figure 1
Figure 1. Figure 1: FIGURE 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

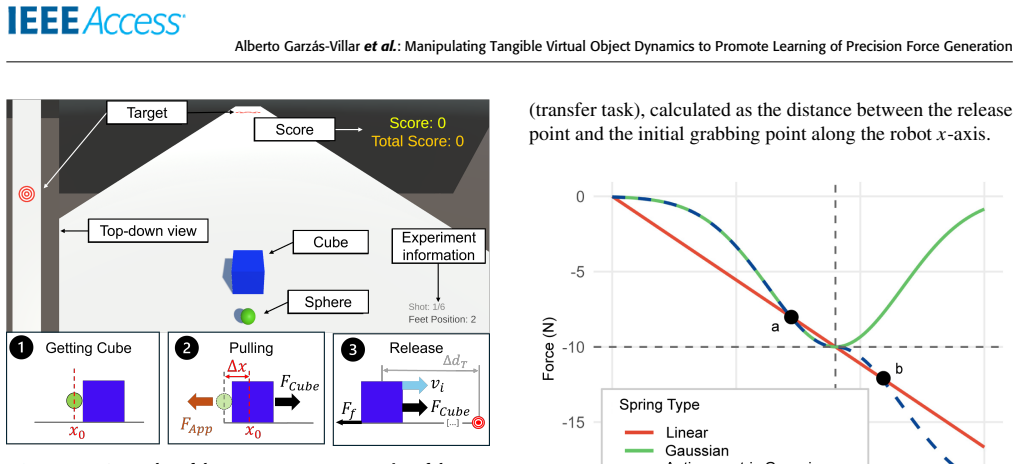

Figure 2
Figure 2. Figure 2: FIGURE 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

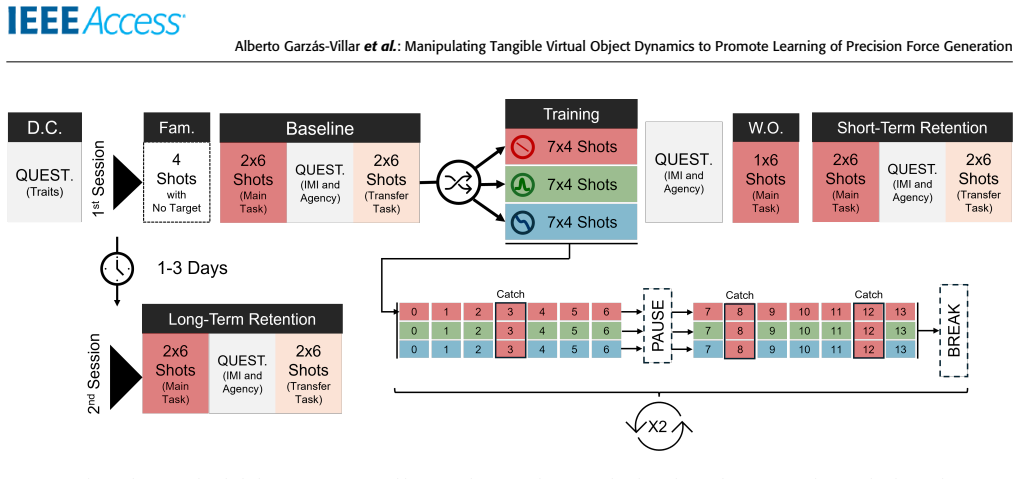

Figure 4
Figure 4. Figure 4: FIGURE 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

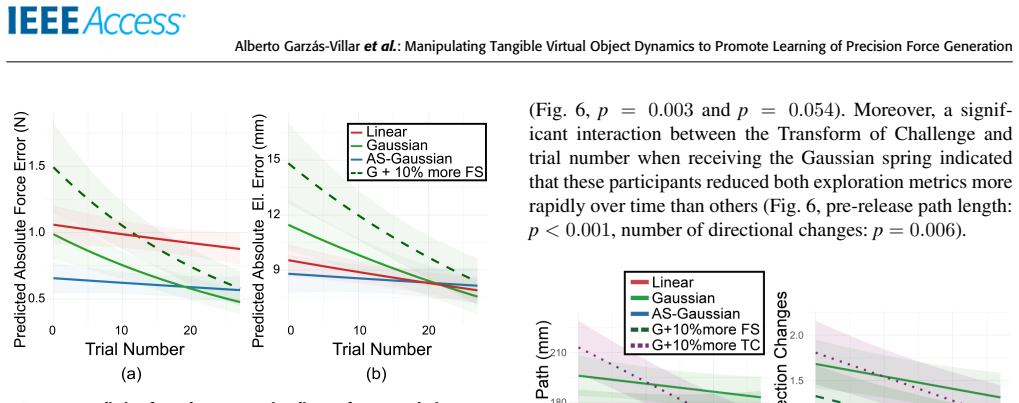

Figure 5
Figure 5. Figure 5: FIGURE 5 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

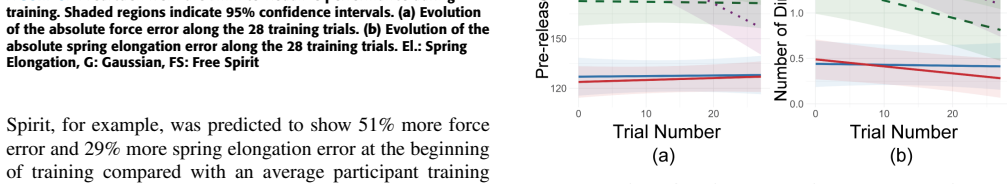

Figure 6
Figure 6. Figure 6: FIGURE 6 [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

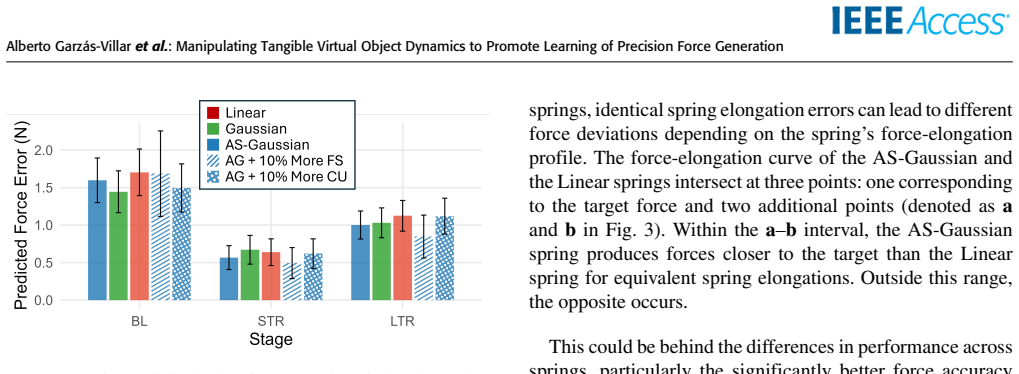

Figure 7
Figure 7. Figure 7: FIGURE 7 [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗

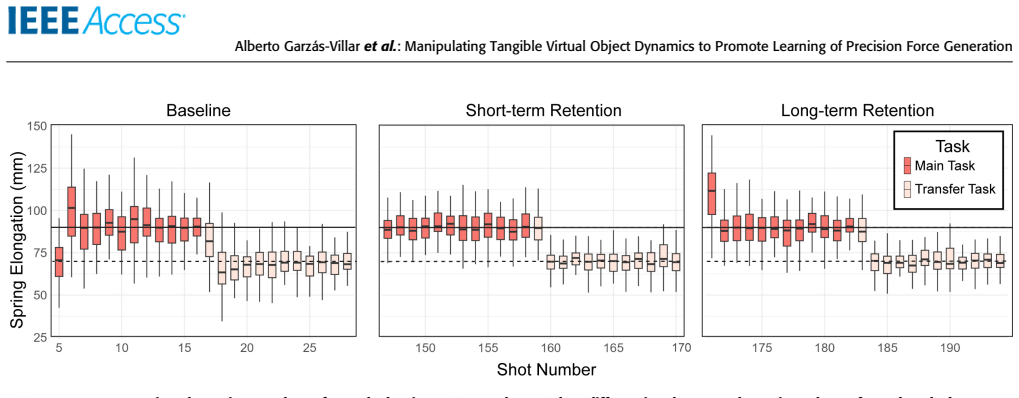

Figure 8
Figure 8. Figure 8: FIGURE 8 [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗

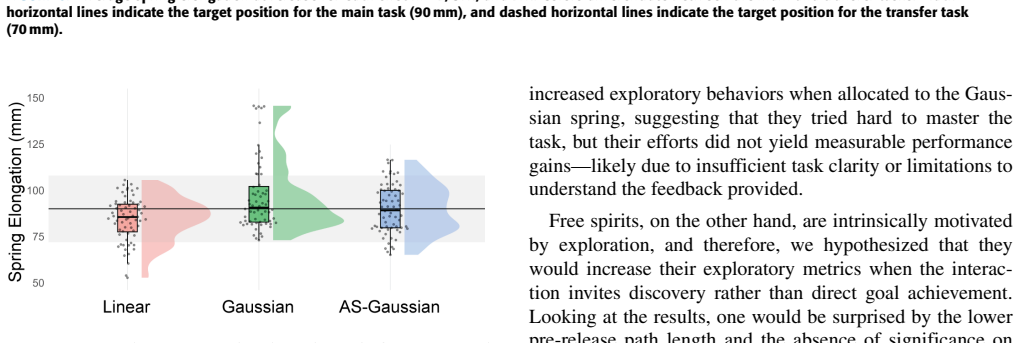

Figure 9
Figure 9. Figure 9: FIGURE 9 [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIGURE 10 [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

Robotic haptic devices combined with virtual reality offer novel opportunities to train fine force generation, an essential yet overlooked component of post-stroke rehabilitation. This study proposes that manipulating the rendered dynamics of tangible virtual objects can be leveraged to train precise force control while engaging the somatosensory system. We conducted an experiment with fifty healthy participants who performed a curling-inspired task in which they had to stretch a virtual spring to generate a target release force to propel the stone to a predefined location on the ice sheet. During training, the spring's force-elongation relationship was modeled as either a linear or non-linear function, i.e., a Gaussian or antisymmetric Gaussian (AS-Gaussian) function with zero derivative at the release target force. Results indicate that the AS-Gaussian group consistently achieved higher force accuracy during training than the linear group, while the Gaussian group only outperformed the linear group toward the end of training. Analysis of personality traits revealed that higher Free Spirit scores were associated with poorer performance and reduced task exploration under Gaussian dynamics, whereas higher Transform-of-Challenge scores correlated with increased exploration. Despite these training effects, no significant differences in long-term retention were found across spring types or personality traits. Participants primarily relied on learned target elongation rather than target force, as evidenced by performance in a transfer task with a different stiffness but the same target force. While promising for somatosensory neurorehabilitation, these methods require refinement to reduce reliance on proprioceptive cues before testing with neurological patients.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper reports results from an experiment with 50 healthy participants performing a VR curling-inspired task in which they stretch a virtual spring to generate a target release force. Three spring force-elongation models were compared during training (linear, Gaussian, antisymmetric Gaussian with zero derivative at target force). The AS-Gaussian group showed consistently higher force accuracy than linear; Gaussian outperformed linear only late in training. No retention differences were found across conditions. A transfer task (different stiffness, same target force) revealed that participants primarily relied on learned target elongation rather than force. Personality traits modulated exploration under certain dynamics. The authors conclude the approach is promising for somatosensory neurorehabilitation but requires refinement to reduce proprioceptive reliance before patient testing.

Significance. If the training advantage can be shown to reflect genuine force-specific learning rather than position memory, the work could inform design of haptic interfaces for precision force training in rehabilitation. The explicit acknowledgment of position reliance and null retention results already limits the strength of the force-learning claim; the personality-trait correlations are secondary and exploratory.

major comments (2)
  1. [Abstract] Abstract (and implied Results section): The transfer-task finding that participants 'primarily relied on learned target elongation rather than target force' directly undermines the central claim that the manipulated dynamics promote precision force generation via somatosensory force sensing. Because the accuracy advantage during training may therefore reflect position rather than force memory, the interpretation that AS-Gaussian dynamics improve force control requires either additional evidence isolating force from position or a reframing of the contribution.
  2. [Abstract] Abstract: No retention differences are reported across spring types. This null result is load-bearing for any claim of lasting improvements in force control and should be accompanied by effect sizes, power analysis, or explicit discussion of whether the training protocol was insufficient to produce retention.
minor comments (1)
  1. [Abstract] Abstract lacks any statistical details (p-values, effect sizes, error bars, or sample-size justification) for the reported group differences, making it impossible to assess the reliability of the training-accuracy claims from the provided text alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for these insightful comments, which help clarify the scope of our claims. We respond to each major point below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Abstract] Abstract (and implied Results section): The transfer-task finding that participants 'primarily relied on learned target elongation rather than target force' directly undermines the central claim that the manipulated dynamics promote precision force generation via somatosensory force sensing. Because the accuracy advantage during training may therefore reflect position rather than force memory, the interpretation that AS-Gaussian dynamics improve force control requires either additional evidence isolating force from position or a reframing of the contribution.

    Authors: The manuscript already foregrounds this exact finding in the abstract and qualifies the conclusions accordingly. The training-phase accuracy advantage under AS-Gaussian dynamics is still a genuine effect of the force-elongation mapping, even if participants ultimately used position cues; the dynamics manipulation demonstrably altered exploration and performance during acquisition. We will reframe the introduction and discussion to present the work as demonstrating how non-linear dynamics can shape training behavior and performance, while explicitly limiting claims about isolated force sensing. No new data isolating force from position are available, so the contribution will be reframed rather than overstated. revision: partial

  2. Referee: [Abstract] Abstract: No retention differences are reported across spring types. This null result is load-bearing for any claim of lasting improvements in force control and should be accompanied by effect sizes, power analysis, or explicit discussion of whether the training protocol was insufficient to produce retention.

    Authors: We agree that the null retention result requires fuller statistical context. The revised manuscript will report effect sizes for all retention comparisons, include a post-hoc power analysis, and add explicit discussion of whether the single-session training protocol may have been insufficient to produce measurable retention. These additions will strengthen the interpretation without altering the reported findings. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical experiment with direct measurements

full rationale

The paper reports results from a human-subject experiment comparing force accuracy under linear vs. nonlinear (Gaussian, AS-Gaussian) spring dynamics in a curling task. No derivation chain, equations, or fitted parameters are presented that reduce to their own inputs. All claims rest on measured participant performance data, retention tests, and transfer-task observations. Self-citations, if present, are not load-bearing for any central result. This matches the default expectation for an empirical study with no mathematical reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Empirical human-subjects study with no mathematical model or derivation; relies on standard experimental assumptions.

axioms (1)
  • standard math Standard statistical assumptions for group comparisons and significance testing
    Used to interpret accuracy differences and null retention results.

pith-pipeline@v0.9.1-grok · 5822 in / 1135 out tokens · 40885 ms · 2026-06-29T16:54:05.215409+00:00 · methodology
