A Sparsity Predicting Approach for Large Language Models via Activation Pattern Clustering

T0 review · 4 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Activation-pattern clustering makes LLM sparsity prediction cheaper while keeping perplexity as low as 12.49.

desk verdict Solid clustering work undone by an oracle-based PPL claim: the title promises prediction, but no predictor is ever trained or tested. read the letter →

arxiv 2507.14179 v1 pith:M2KGLG2N submitted 2025-07-11 cs.LG cs.AIcs.CLcs.DC

Nobel Dhar , Bobin Deng , Md Romyull Islam , Xinyue Zhang , Kazi Fahim Ahmad Nasif , Kun Suo This is my paper · ORCID
classification cs.LGcs.AIcs.CLcs.DC
keywords activationsparsitylargelanguagemodelsclusteringcentroidpredictioninferenceaccelerationperplexityMistral-7Bnon-ReLUactivations
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that the cost of exploiting activation sparsity in large language models can be pushed from predicting individual neuron states to predicting a small set of cluster assignments, and that this compression preserves model quality. Using activations extracted from Mistral-7B's feed-forward layers on WikiText-2, it clusters roughly 10.6 million binary activation patterns into as few as 256 or as many as 8,192 centroids with a custom sparsity-aware algorithm called Activation-Aware Clustering. The paper reports clustering precision up to about 79% for gate projections, beating standard binary clustering baselines, and a perplexity of 12.49 at 20% sparsity when centroids are selected by a simulated predictor that already knows the correct cluster. The efficiency argument is a cost identity: replacing roughly 4.7 billion neuron predictions with 6,144 cluster predictions cuts prediction overhead by a factor of about 760,000. The headline numbers therefore describe centroid reconstruction quality rather than a trained predictor, which the paper leaves to future work.

What carries the argument

The central object is Activation-Aware Clustering (AWC), a tailor-made binary clustering algorithm for LLM activations. Its assignment step computes distances only over active (nonzero) neurons and sorts data points by distance so that centroids receive balanced numbers of patterns; its update step sums the real-valued activations in a cluster, sorts the summed features, and keeps the top fraction (e.g., 60%) as the new centroid, preserving activation magnitude rather than binarizing. Together with the cost identity $C_{\text{direct}}/C_{\text{clustered}} = N_{\text{FFN}}/K \approx 7.6 \times 10^5$, this machinery is what turns neuron-level sparsity prediction into cluster-level prediction. The centroids are built offline from 10.6 million activation patterns collected from 163 WikiText-2 sequences passing through 32 layers.

What would settle it

Train a real predictor that guesses the group for each new token, run it on text the model has not seen, and compare the resulting perplexity and prediction time against the paper's simulated numbers; if guessing is often wrong or slow, the 12.49 perplexity and the 760,000x saving will not be reached in practice.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that activation patterns of a non-ReLU LLM (Mistral-7B) are sufficiently repetitive to be compressed into a compact set of centroids without collapsing model quality. The authors define clustering precision as the fraction of active neurons that the assigned centroid preserves, and their Activation-Aware Clustering (AWC) reaches 79% precision for gate_proj, 65% for up_proj, and 64% for down_proj, clearly above the two binary-clustering baselines. Under a 100%-accurate simulation of cluster assignment, replacing real activations by centroids at 20% sparsity with $K = 8192$ clusters yields a perplexity of 12.49, compared with a 50%-sparse non-clustered baseline of 6.45; at 40% sparsity the same $K$ keeps perplexity in a usable range as cluster count grows. The authors frame this as the foundation for a future predictor: at inference, one would predict a centroid per layer rather than the state of billions of neurons, cutting the prediction cost by roughly 760,000x according to their cost model.

Load-bearing premise

The load-bearing premise is that a future system can guess which group each new input belongs to almost always correctly and almost for free, and that the 163 texts used to build the groups represent what the model will actually see.

Editorial extensions

If this is right

  • At inference, a model would predict one centroid per layer instead of billions of neuron states, reducing prediction overhead by roughly 760,000x.
  • Larger cluster counts compensate for higher sparsity: perplexity drops from 933.78 at K=256 and 40% sparsity to 58.84 at K=2048, and reaches 12.49 at K=8192 and 20% sparsity.
  • Sparsity in non-ReLU LLMs can be exploited without modifying the activation function, unlike approaches limited to ReLU-based architectures.
  • The method is complementary to quantization, pruning, and distillation because it does not alter model weights or architecture.
  • Clustering is a one-time offline preprocessing step and does not affect inference runtime.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural next step the paper does not take is to train the cluster-assignment predictor itself, for example a small network reading the previous layer's hidden state; the measurable claim is that such a predictor can be far cheaper than neuron-level prediction and still select centroids accurately enough to approach PPL 12.49.
  • Because centroids are built from 163 WikiText-2 sequences, the method is sensitive to distribution shift; one testable extension is to build centroids from a broader or domain-mixed corpus and measure whether clustering precision and perplexity transfer to out-of-distribution text.
  • The 760,000x reduction applies to prediction cost only, not to the cost of actually computing with sparse activations; combining cluster prediction with sparse kernels or mixture-of-experts-style routing remains an open systems question.
  • The same centroid-reconstruction idea could apply to other structured high-dimensional activations, such as attention maps or KV-cache patterns, not just feed-forward neurons.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes Activation-Aware Clustering (AWC/APC), a method that clusters activation patterns from the FFN layers of Mistral-7B into representative centroids, with the stated goal of enabling sparsity prediction at the cluster level rather than the neuron level. It reports clustering precision against BMF and BRB-KMeans baselines, and evaluates the impact on perplexity by assigning activations to centroids under a simulated 100% cluster-selection accuracy. The advertised results are up to 79.34% clustering precision, a PPL of 12.49 at K=8192 and 20% sparsity, and a 760,000x reduction in prediction overhead.

Significance. If the paper's central claims held, the idea of predicting cluster assignments instead of individual neuron states would be a useful step toward making activation sparsity practical in non-ReLU LLMs. The clustering algorithm is clearly described, the code is available, and the authors disclose the offline clustering cost. However, the significance of the paper as a sparsity-prediction method is not supported by the presented evidence: the PPL results come from an oracle simulation on the same data used to build the centroids, no predictor is trained or evaluated, and the efficiency claim is an idealized target-count ratio rather than a measured speedup. The clustering-precision results may be reproducible, but the paper's central conclusions about prediction and efficiency do not follow from them.

major comments (4)
  1. [Section 5.2, Figure 4(b)] The central claim of this paper is that activation patterns can be predicted at cluster level, but Section 5.2 explicitly states: 'We simulated the prediction process with 100% accuracy in cluster selection.' No predictor is trained, no held-out split is used, and no prediction latency or overhead is measured. The PPL values in Figure 4(b), including the advertised 12.49 at K=8192 and 20% sparsity, are therefore in-sample reconstruction bounds under an oracle assignment, not achievable inference results. This is load-bearing because the abstract and conclusion present these numbers as evidence that the method preserves model quality while reducing computational overhead.
  2. [Sections 5.1 and 5.2] The centroids are built from 163 WikiText-2 data points (163 x 32 x 2048 = 10,682,368 activation patterns), and the same data points are then assigned to those centroids with 100% accuracy to compute PPL. This is a training-set reconstruction test, not a generalization test. A held-out split or a trained cluster-assignment predictor is required before the PPL numbers can support any claim about how the method will behave on new inputs.
  3. [Section 5.2] The claim of 'minimal degradation' is contradicted by the reported numbers. The unclustered 50%-sparse Mistral-7B baseline has PPL 6.45, while the clustered model at only 20% sparsity (i.e., 80% active neurons) has PPL 12.49. Since 20% sparsity is less aggressive than 50%, this is not a matched comparison, and a matched-sparsity baseline would likely show an even larger gap. The quality-preservation claim is therefore not supported.
  4. [Section 2.2, Eq. (5)] The claimed 760,000x overhead reduction is an idealized ratio N_FFN/K, not a measured or estimated end-to-end speedup. The cost model omits the cost of extracting the input features used to select a centroid, the cost of running any cluster-assignment predictor, and the cost of centroid lookup and data movement. No inference runtime is reported anywhere in the paper, so the efficiency claim is unsubstantiated. In addition, K in Eq. (3) is a total across three sub-layers, whereas the experiments report K per projection type in Figure 4(b), which makes the ratio in Eq. (5) ambiguous.
minor comments (6)
  1. [Sections 4 and 5.2] The acronym is inconsistently used: Section 4 defines 'Activation-Aware Clustering (AWC)', while Section 2.2 and Section 5.2 refer to 'Activation-Aware Patterns Clustering (APC)'. Please unify.
  2. [Section 5.2] The phrase 'even at 20% sparsity' is misleading: 20% sparsity is the least sparse of the three tested levels (20%, 30%, 40%), so the better PPL at 20% is expected. The conclusion that 20% is the 'optimal sparsity level' should be rewritten to reflect that this is the least aggressive sparsity setting, not a high-sparsity tradeoff.
  3. [Figure 2(b) and Section 4.1] The distances quoted in the text (0.31, 0.43 for P2/P3 to C2) do not match the distances shown in Figure 2(b) (0.88, 0.10, 0.17, 0.27). Please correct the inconsistency.
  4. [Section 5.1] The text says 'each activation pattern represented by a feature vector of dimensionality 14336', but down_proj activations in Table 1 have dimensionality 4096; clarify whether the reported clustering is run separately per projection type.
  5. [Table 1, Section 3.1] The 'Clustering Error' column is not defined; state whether the numbers are absolute counts, error rates, or percentages, and give the definition.
  6. [References] Reference [1] is titled 'Artifactofactivationawareclusteringineuropeanconferenceonparallelprocessing (euro-par) (2025)' with missing spaces; also check the code repository link for a stable URL.

Circularity Check

1 steps flagged · score 6.0 of 10

Section 5.2's PPL results are a training-set reconstruction under a simulated 100%-accurate cluster selector, not a prediction; no predictor is trained or evaluated on held-out data.

  1. fitted input called prediction [Section 5.1 and Section 5.2, Figure 4(b)]
    "We simulated the prediction process with 100% accuracy in cluster selection, allowing us to assess how using these clusters would affect the model's PPL score."

    The centroids were fit to 10,682,368 activation patterns extracted from 163 WikiText-2 data points (Section 5.1), and the 'prediction' is then simulated with 100% accurate cluster selection on that same data. Consequently, the PPL values in Figure 4(b), including the headline 12.49 at K = 8192 and 20% sparsity, measure how well the fitted centroids reconstruct their own training inputs, not how well cluster assignments can be predicted for new inputs. No predictor is trained, no held-out split is described, and no cluster-assignment accuracy is reported; the abstract's claim that 'future models can efficiently infer activation patterns from pre-computed centroids' is assumed rather than demonstrated.

full rationale

The paper's only quantitative support for 'sparsity prediction' is the Section 5.2 simulation, and that simulation is circular in the fitted-input-called-prediction sense: centroids are built from WikiText-2 activations and then reused with a perfect oracle cluster selector on the same inputs. The reported PPL 12.49 is therefore a training-set reconstruction bound, not an achievable inference-time prediction, and the paper itself defers the actual predictor to future work ('future models can efficiently infer activation patterns'). The self-cited 6.45 baseline from Dhar et al. [4] is an empirical, externally checkable number and is not itself a circular load-bearing step, though the 'minimal degradation' language overstates the comparison to the clustered PPL. The 760,000x overhead figure in Eq. (5) is an arithmetic ratio N_FFN/K under an assumed zero-cost predictor, so it is an idealized bound rather than a measured speedup and should not be cited as a validated efficiency result. The clustering-precision measurements in Sections 3 and 4 are internally consistent but evaluate representation fidelity, not the prediction pipeline that gives the paper its title.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The central claim rests on three main unpaid-for assumptions: binarization preserves enough signal, 163 WikiText-2 contexts represent all inputs, and perfect cluster selection is achievable. The free parameters are the top-60% centroid threshold, the cluster count K, and the sparsity level, all chosen by hand. No new physical or architectural entities are introduced.

free parameters (3)
  • top-60% centroid threshold = 60%
    Section 4.2 keeps the top 60% of summed activation values in each centroid; this percentile threshold is chosen by hand and directly controls centroid sparsity and precision.
  • number of clusters K = 256 to 8192
    K is swept by the authors across six values; the headline PPL uses K=8192, and the overhead reduction estimate uses K=2048 per sub-layer.
  • sparsity levels = 40%, 30%, 20%
    Three sparsity levels are tested; the paper recommends 20% sparsity as the best tradeoff, but the choice is an experimental setting rather than a derived optimum.
assumptions (3)
  • domain assumption Binarized activation masks after thresholding preserve enough information for model quality.
    The entire pipeline converts activations to binary masks via the thresholding mechanism from Dhar et al. [4], and the PPL baseline 6.45 is assumed to hold for that binarized model. The cluster precision metric only evaluates binary masks, not continuous activation fidelity.
  • domain assumption Activation statistics from 163 WikiText-2 data points generalize to all inputs.
    Only 163 data points, each 2048 tokens, are used to build centroids, and no cross-dataset or held-out validation is reported, so representativeness is assumed.
  • ad hoc to paper Oracle cluster selection is a valid proxy for a deployable predictor.
    Section 5.2 simulates 100% accuracy in cluster selection, but no predictor is implemented or evaluated, so the PPL results assume a capability the paper does not demonstrate.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Sparsity Predicting Approach for Large Language Models via Activation Pattern Clustering." pith.science (2026). https://pith.science/paper/M2KGLG2N

@misc{pith2026250714179,
  author       = {Pith},
  title        = {Pith review of: A Sparsity Predicting Approach for Large Language Models via Activation Pattern Clustering},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/M2KGLG2N}},
  note         = {Machine review of arXiv:2507.14179}
}
read the original abstract

Large Language Models (LLMs) exhibit significant activation sparsity, where only a subset of neurons are active for a given input. Although this sparsity presents opportunities to reduce computational cost, efficiently utilizing it requires predicting activation patterns in a scalable manner. However, direct prediction at the neuron level is computationally expensive due to the vast number of neurons in modern LLMs. To enable efficient prediction and utilization of activation sparsity, we propose a clustering-based activation pattern compression framework. Instead of treating each neuron independently, we group similar activation patterns into a small set of representative clusters. Our method achieves up to 79.34% clustering precision, outperforming standard binary clustering approaches while maintaining minimal degradation in perplexity (PPL) scores. With a sufficiently large number of clusters, our approach attains a PPL score as low as 12.49, demonstrating its effectiveness in preserving model quality while reducing computational overhead. By predicting cluster assignments rather than individual neuron states, future models can efficiently infer activation patterns from pre-computed centroids. We detail the clustering algorithm, analyze its effectiveness in capturing meaningful activation structures, and demonstrate its potential to improve sparse computation efficiency. This clustering-based formulation serves as a foundation for future work on activation pattern prediction, paving the way for efficient inference in large-scale language models.

Figures

Figures reproduced from arXiv: 2507.14179 by the authors.

Figure 1
Figure 1. Clustering Patterns Into Representative Centroids [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Distance Calculation and Assignment Process [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

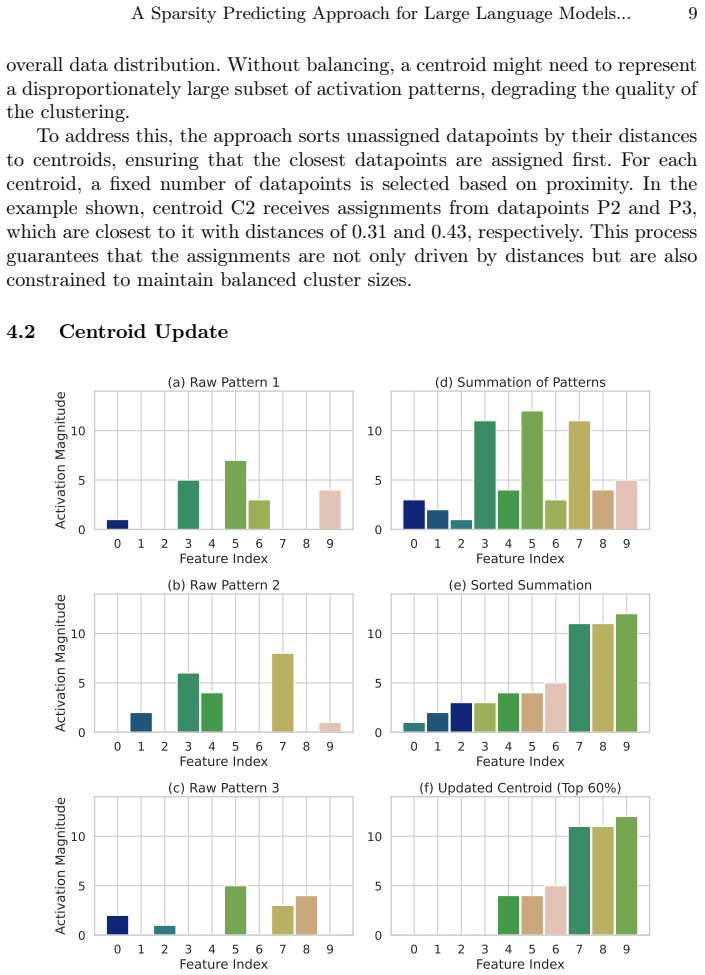

Figure 3
Figure 3. Evenly Distributed Assignments The methodology for updating centroids during clustering, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: Results Analysis and Comparison 5.1 Evaluation of Clustering Precision We applied our customized clustering algorithm to the activation values derived from the input of 163 data points in the WikiText-2 dataset. Each data point consisted of 2048 tokens and went through…
