Making Multimodal LLMs Reliable Chart Data Extractors: A Benchmark and Training Framework

Yuchen He , Peizhi Ying , Liqi Cheng , Kuilin Peng , Yuan Tian , Dazhen Deng , Yingcai Wu This is my paper

Pith reviewed 2026-06-30 05:27 UTC · model grok-4.3

classification 💻 cs.HC cs.AI
keywords multimodal LLMschart data extractionbenchmarkprogressive trainingnumerical accuracymixed-initiative systems
0
0 comments X

The pith

A training framework based on progressive human-like learning enables 7B multimodal models to extract precise chart data at state-of-the-art levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates a benchmark using diverse real-world charts lacking data labels to assess multimodal large language models' ability to extract data tables. While these models reconstruct table structures reliably, they fall short on recovering exact numerical values. The authors introduce a training framework that follows a progressive process akin to human chart reading to address this shortfall. This method boosts numerical accuracy, letting a 7B model achieve top performance. User studies confirm the model aids mixed-initiative extraction workflows.

Core claim

Chart data extraction from images should mimic the progressive learning process humans use when reading charts. Implementing this in a training framework for multimodal LLMs substantially improves the recovery of precise numerical values from unlabeled charts, resulting in state-of-the-art performance from a 7B-parameter model on a new benchmark of real-world charts.

What carries the argument

The progressive training framework that models chart reading as a step-by-step human-like process to improve value recovery.

Load-bearing premise

That modeling chart reading as a progressive human-like learning process will reliably close the gap in precise value recovery on the authors' benchmark of unlabeled real-world charts.

What would settle it

Running the progressive training on the benchmark and finding no significant gain in numerical accuracy over baseline fine-tuning would falsify the central claim.

Figures

Figures reproduced from arXiv: 2606.29808 by Dazhen Deng, Kuilin Peng, Liqi Cheng, Peizhi Ying, Yingcai Wu, Yuan Tian, Yuchen He.

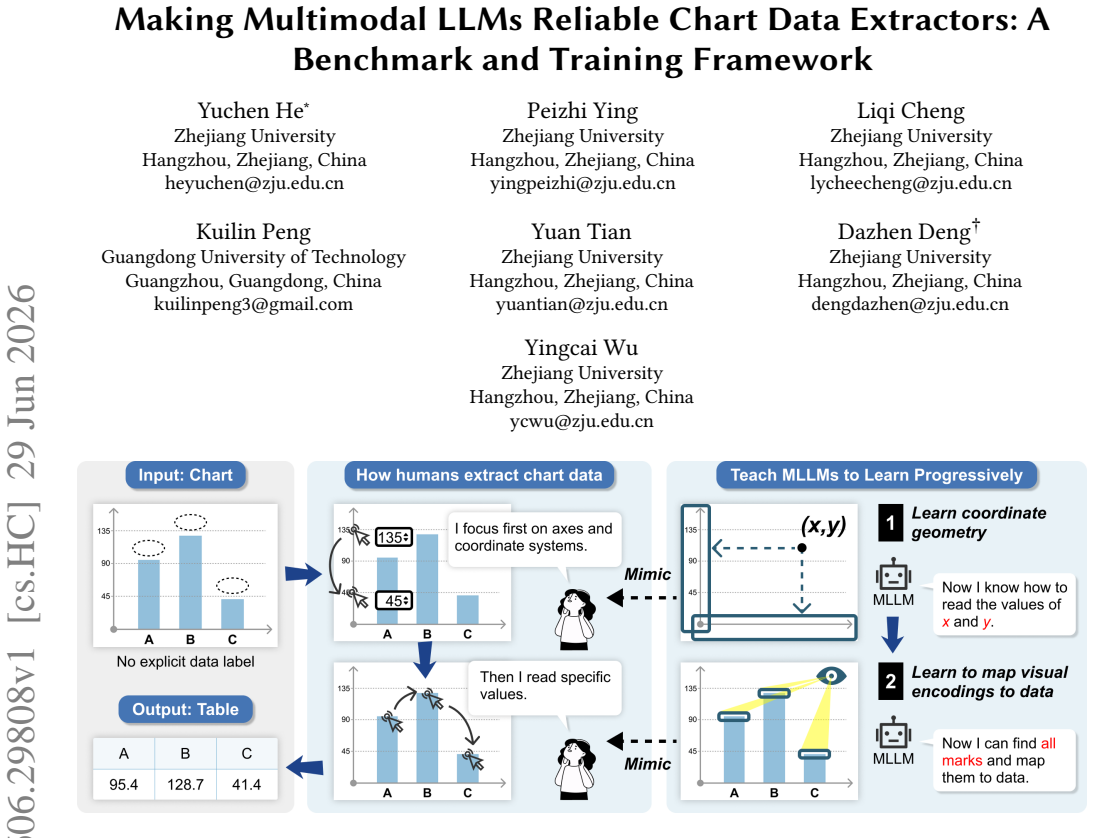

Figure 1
Figure 1. Figure 1: Chart data extraction aims to recover the underlying data table from a chart image. Although existing interactive [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

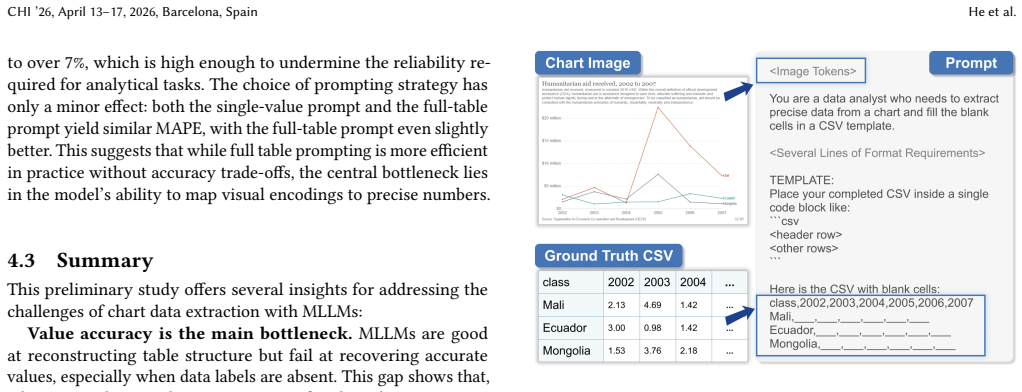

Figure 2. Figure 2: Prompt creation in ExChart-Bench. We provide the [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

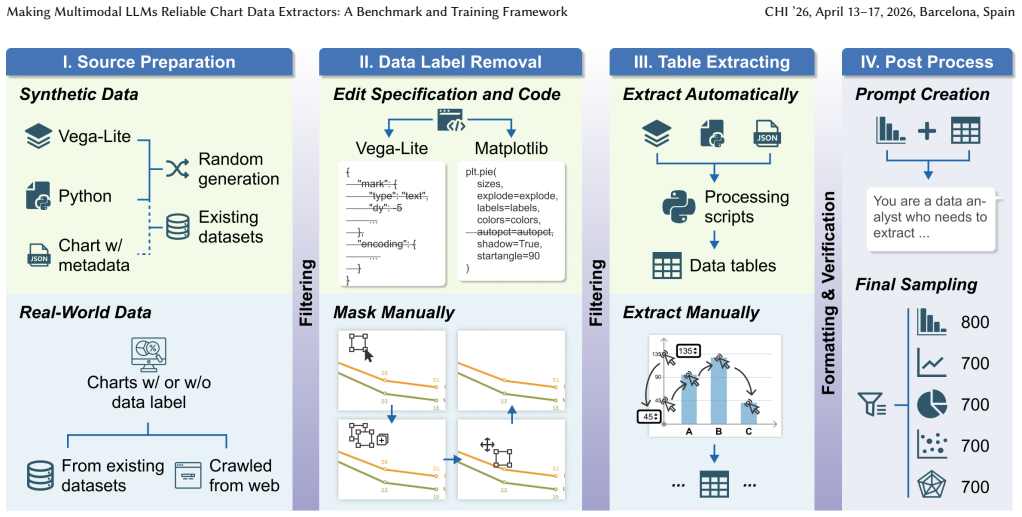

Figure 3. Figure 3: The benchmark dataset construction pipeline. We collected both real-world and synthetic chart sources, removed data [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

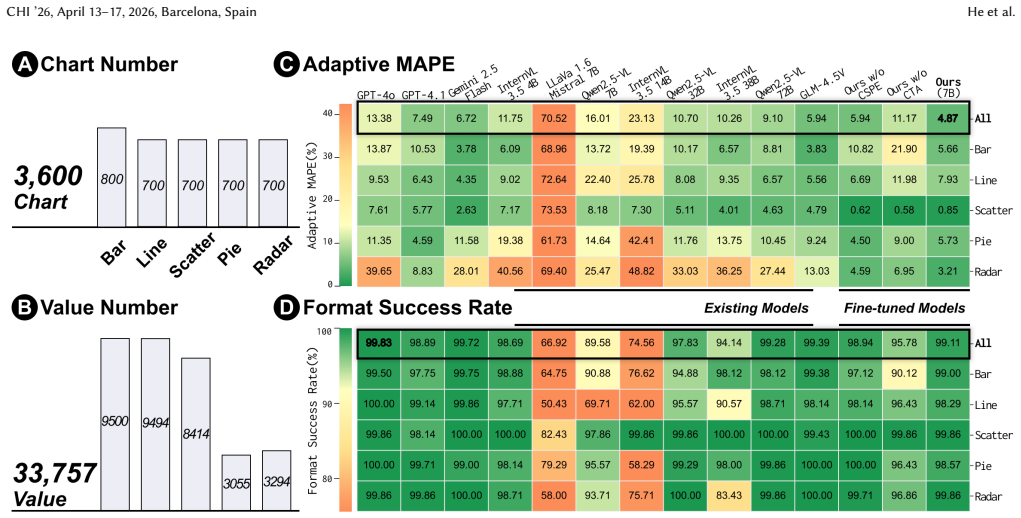

Figure 4. Figure 4: Distribution of benchmark samples and evaluation results of MLLMs across different chart types. (A) Distribution [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

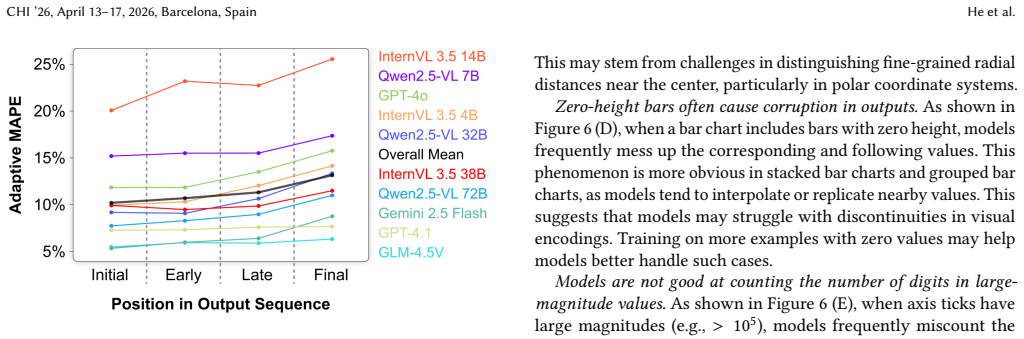

Figure 5. Figure 5: Trends in Adaptive MAPE relative to the position [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

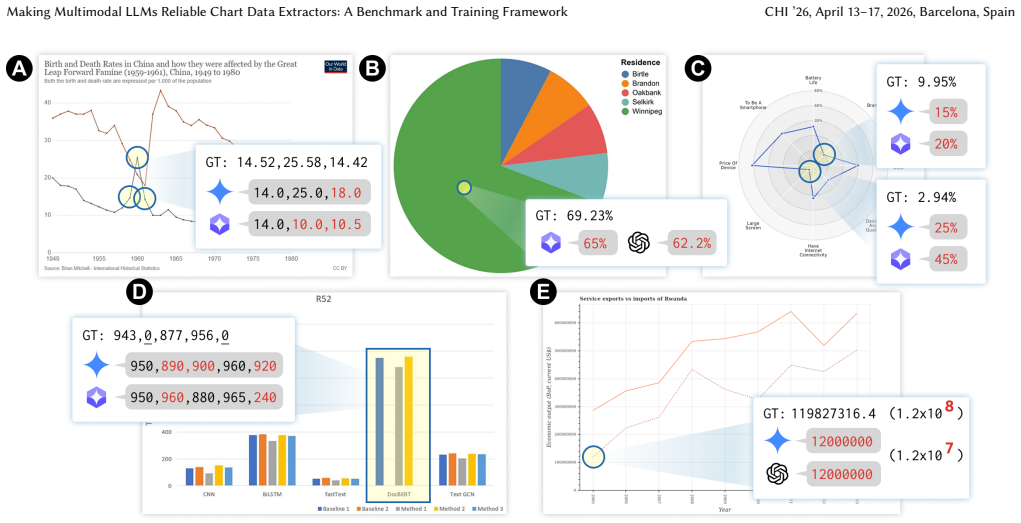

Figure 6
Figure 6. Figure 6: Common failure cases of MLLMs on our benchmark: (A) Sudden changes in value on line charts. (B) Pie slices exceeding [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7

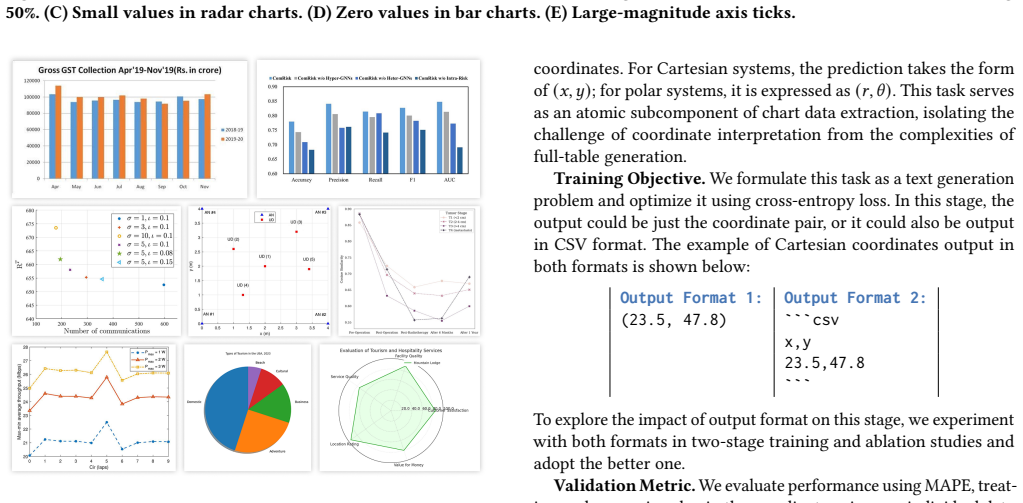

Figure 7. Figure 7: Success examples, where each chart achieves less than 1% average Adaptive MAPE across Gemini 2.5 Flash, GLM-4.5V, and GPT-4.1. between marks to infer values, leading to error accumulation in sequential outputs. By explicitly training models to reason about co￾ordinate geometry, we aim to reduce this dependency and improve overall robustness. In this task, for each type of coordinate system, the model is gi… view at source ↗
Figure 8

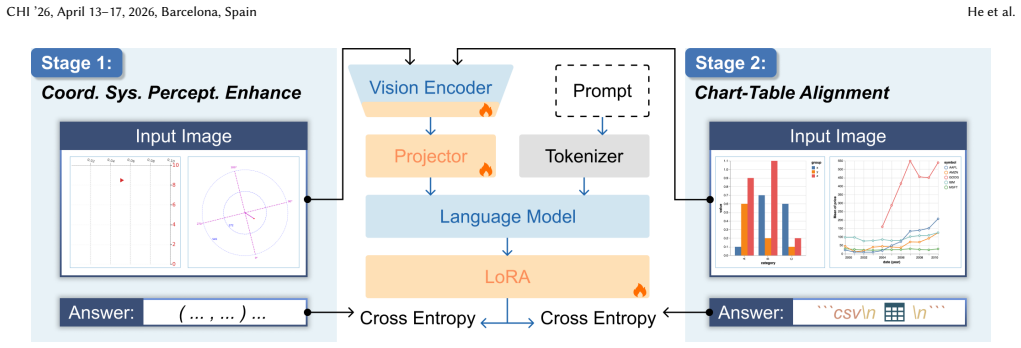

Figure 8. Figure 8: The proposed training framework includes a [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9

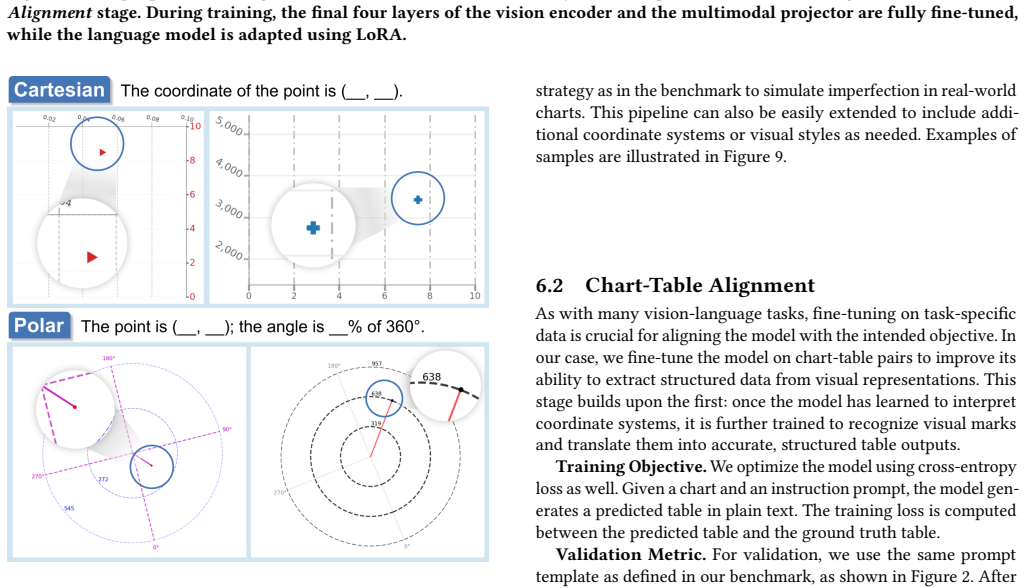

Figure 9. Figure 9: Examples of training samples for the Coordinate [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10

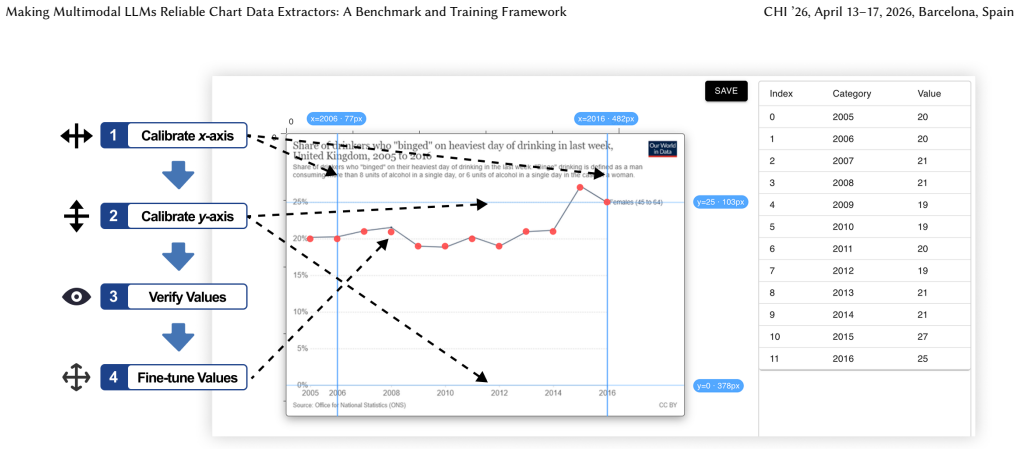

Figure 10. Figure 10: Using the prototype system to validate and correct extracted chart data for a basic line chart. Users first calibrate the [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
read the original abstract

Chart data extraction, which reverse-engineers data tables from chart images, is essential for reproducibility, analysis, retrieval, and redesign. Existing interactive tools are reliable but tedious, and mixed-initiative systems, while more efficient, lack generalizability. Recent multimodal large language models (MLLMs) offer a unified interface for chart interpretation, yet their ability to extract accurate data tables, especially without visible labels, remains unclear. We build a benchmark featuring diverse real-world charts without data labels to evaluate this capability. Results show that, while current MLLMs reliably reconstruct table structures, they struggle with precise value recovery. To address this, we revisit chart data extraction from a human-centered perspective and argue that extraction should follow a progressive learning process similar to how people read charts. Our training framework substantially improves numerical accuracy, achieving state-of-the-art performance with a 7B-parameter model. A user study further shows that our model effectively supports mixed-initiative workflows for reliable chart data extraction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper introduces a benchmark of diverse unlabeled real-world charts to evaluate MLLMs on chart data extraction. It reports that current MLLMs reliably reconstruct table structures but struggle with precise numerical value recovery. The authors propose a human-centered progressive training framework modeled on how people read charts; this framework is claimed to substantially improve numerical accuracy and reach state-of-the-art performance using a 7B-parameter model. A user study is presented showing the model supports mixed-initiative workflows.

Significance. If the quantitative claims hold on a properly constructed benchmark, the work would demonstrate a practical route to reliable chart data extraction with relatively small models, which could benefit reproducibility, data analysis, and visualization tools. The human-centered progressive-learning framing is a constructive angle that merits empirical testing.

major comments (1)
  1. [Abstract] Abstract: the central claim of 'state-of-the-art performance' and 'substantially improves numerical accuracy' is asserted without any reported metrics, baselines, dataset sizes, error bars, or exclusion criteria, rendering the magnitude and reliability of the improvement unverifiable from the provided text.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and for highlighting the need for greater verifiability in the abstract. We address the comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of 'state-of-the-art performance' and 'substantially improves numerical accuracy' is asserted without any reported metrics, baselines, dataset sizes, error bars, or exclusion criteria, rendering the magnitude and reliability of the improvement unverifiable from the provided text.

    Authors: We agree that the abstract, as currently written, summarizes the claims at a high level without the supporting quantitative details the referee requests. The full manuscript reports these elements in the experimental sections (benchmark construction, baseline comparisons, numerical accuracy results with standard deviations, and dataset statistics). To make the central claims immediately verifiable from the abstract itself, we will revise it to include the key metrics, baseline references, and dataset scale. This is a straightforward and warranted change. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The provided abstract and text describe a benchmark of unlabeled real-world charts plus a human-centered progressive training framework for MLLMs. No equations, fitted parameters, self-citations, or uniqueness theorems appear. The central claim of improved numerical accuracy is presented as an empirical outcome of the framework rather than a derivation that reduces to its own inputs by construction. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract describes no free parameters, background axioms, or new postulated entities.

pith-pipeline@v0.9.1-grok · 5718 in / 953 out tokens · 25281 ms · 2026-06-30T05:27:20.707663+00:00 · methodology
