Multi-chip modules with two Xilinx Zynq Ultrascale+ MPSoCs were fabricated on 68.5 mm x 55 mm substrates and passed all defect and 10 Gbps link tests for Exascale use.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that advanced laminate-based MCMs can integrate two Xilinx Zynq Ultrascale+ MPSoCs without manufacturing defects while supporting stable high-speed operation. This addresses the integration barriers that currently block the density and efficiency needed for Exascale systems. Acoustic microscopy, x-ray, cross-section, and Thermo-Moire checks found no voids, shorts, delamination, cracks, or warpage. Memory tests at 1866 MHz and 2133 MHz succeeded on the daughter-board SODIMMs, and all intra-board links remained error-free at 10 Gbps under 31-bit PRBS patterns.

Core claim

We report successful fabrication of first ExaNoDe's MCM prototypes dedicated to Exascale computing applications. Each MCM was composed of 2 Xilinx Zynq Ultrascale+ MPSoC, assembled on advanced 68.5 mm x 55 mm laminate substrates specifically designed and fabricated for the project. Acoustic microscopy, x-ray, cross-section and Thermo-Moire investigations revealed no voids, shorts, delamination, cracks or warpage issues. Two MCMs were mounted on a daughter board by FORTH for testing purposes. The DDR memories on the 4 SODIMMs of the daughter board were successfully tested by running extensive Xilinx memory tests with clock frequencies of 1866 MHz and 2133 MHz. All 4 FPGAs were programmed with

What carries the argument

The MCM that places two Xilinx Zynq Ultrascale+ MPSoCs on a custom 68.5 mm x 55 mm laminate substrate to provide the high-density integration and 10 Gbps intra-board links required for Exascale workloads.

If this is right

  • MCMs can be mounted on daughter boards and still pass DDR memory validation at 2133 MHz.
  • All intra-board high-speed links between the four FPGAs remain stable at 10 Gbps even with demanding 31-bit PRBS patterns.
  • The chosen laminate substrate and assembly process produce modules free of voids, shorts, delamination, cracks, and warpage.
  • The approach supplies a concrete hardware building block that meets the density and power-efficiency targets stated for Exascale.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same substrate and assembly techniques could be extended to modules containing more than two MPSoCs without introducing new defect classes.
  • Stable 10 Gbps links on the tested board layout suggest that similar routing on larger systems would maintain signal integrity.
  • Absence of warpage under Thermo-Moire testing implies the modules can tolerate the thermal cycling expected in continuous Exascale operation.

Load-bearing premise

That passing the described memory tests at 1866/2133 MHz and PRBS link tests at 10 Gbps demonstrates suitability for actual Exascale application workloads.

What would settle it

Discovery of voids, delamination, cracks, or bit errors on the 10 Gbps links in a second set of fabricated MCMs under the same test conditions.

Figures

Figures reproduced from arXiv: 1906.11175 by Aggelos Ioannou, Astrinos Damianakis, David Danovitch, Dominique Drouin, Iakovos Mavroidis, Julien Sylvestre, Maxime Godard, Michael Ligerakis, Pierre-Yves Martinez, Yann Beilliard.

Figure 1
Figure 1. Figure 1: Schematic representations of a) the full ExaNoDe’s [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: a) Top-down x-ray image of a soldered FPGA showing no [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Photograph of a fully assembled daughter board used for [PITH_FULL_IMAGE:figures/full_fig_p002_4.png] view at source ↗
Figure 5

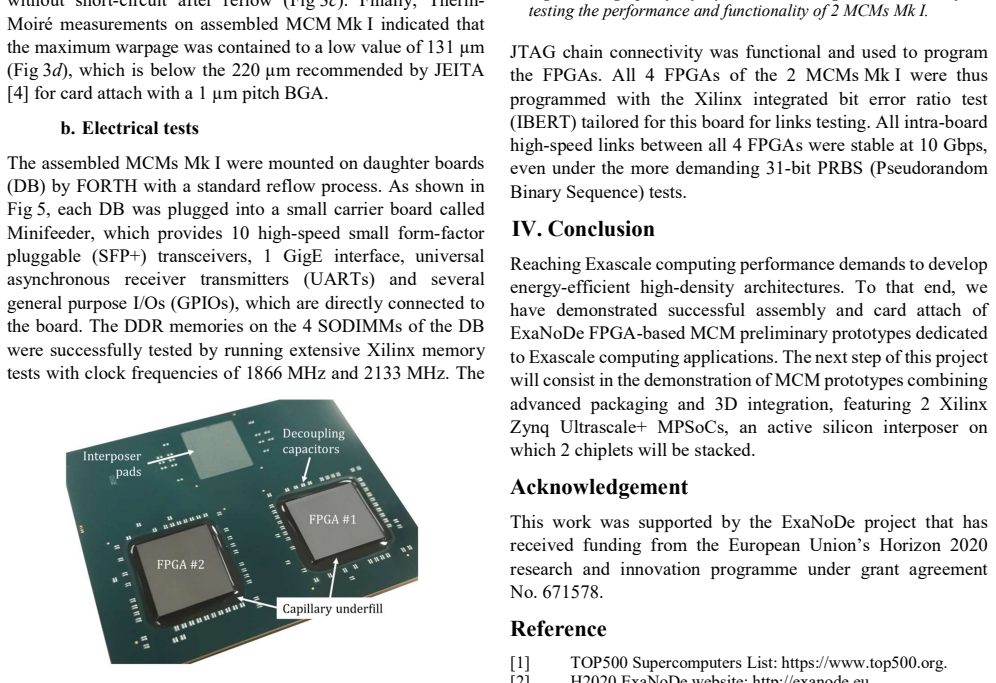

Figure 5. Figure 5: Photograph of an assembled MCM Mk I, composed of 2 [PITH_FULL_IMAGE:figures/full_fig_p002_5.png] view at source ↗
