Inverse Design with Dynamic Mode Decomposition

T0 review · 4 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A least-squares fit to snapshots can replace simulators for inverse design.

desk verdict ID-DMD is a simple and genuinely fast parametric DMD wrapper for inverse design, but the headline claims outrun the evidence because the optimized designs are only checked against the fitted surrogate. read the letter →

arxiv 2502.09490 v1 pith:NSML33HC submitted 2025-02-13 cs.LG cs.SYeess.SYmath.DSmath.OCphysics.flu-dyn

Yunpeng Zhu , Liangliang Cheng , Anping Jing , Hanyu Huo , Ziqiang Lang , Bo Zhang , J. Nathan Kutz This is my paper · ORCID
classification cs.LGcs.SYeess.SYmath.DSmath.OCphysics.flu-dyn
keywords inversedesigndynamicmodedecompositionparametricsurrogatemodelKoopmanoperatorlow-rankapproximationleast-squaressystemidentificationuncertaintyquantificationlearning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

ID-DMD is a data-driven inverse design method built from one least-squares fit. The paper models the system as a single linear operator that depends affinely on the design parameters, $x_k=(A_0+\varepsilon_1 A_1+\cdots)x_{k-1}$ (using a Koopman lift for nonlinear systems), and fits that operator family to snapshot data collected at a few parameter values. With the fitted surrogate, the designer can predict responses at unseen and even extrapolated parameters, evaluate design objectives on the resulting dynamic modes, and solve the inverse design optimization directly. The payoff claimed is concrete: on problems from structural vibration to fluid dynamics, the method is about an order of magnitude more accurate than neural-operator baselines while being three to five orders of magnitude faster, with training on a laptop CPU instead of a GPU. In short, the paper is trying to show that many inverse-design problems do not need deep learning at all.

What carries the argument

The central object is the affine-in-parameter dynamic operator $A(\varepsilon)=A_0+\varepsilon_1 A_1+\cdots$, which carries the parameter dependence linearly so that one operator family serves all design points. The workhorse identity is the block least-squares factorization $Z=\Theta\Xi$ with shared operators $\Theta=[A_0\ A_1\ \cdots]$, followed by truncated SVDs of $Z$ and $\Xi$; the low-rank projected operators $\tilde A_i=U^*Z V_\Xi\Sigma_\Xi^{-1}U_{\Xi,i}^*U$ are what make the method computationally light. Proposition 2's eigen-equivalence turns the low-rank eigenvalues and eigenvectors into the system's dynamic modes, so design objectives such as frequencies, decay rates, and response energy can be evaluated from the reduced operator. For nonlinear systems, a polynomial Koopman lift $\psi(x)$ precedes the same regression, giving the parametric form $\psi(x_k)=(A_{\kappa,0}+\varepsilon_1 A_{\kappa,1}+\cdots)\psi(x_{k-1})$.

What would settle it

Run ID-DMD on a parametric problem whose dynamics change qualitatively within the design interval, such as a system crossing a bifurcation; if the surrogate's extrapolated trajectories and its recommended design deviate sharply from direct numerical simulation at that crossing, the general claim fails. A cheaper check is to compute the normalized projection residual $\lVert Z - UU^*Z\rVert_F/\lVert Z\rVert_F$ on the training data: when this residual is not small, the eigen-equivalence in Proposition 2 no longer holds.

Watch

Extended reading notes

Core claim

The central claim is that a low-rank parametric dynamic-mode-decomposition operator, fitted by least squares across several parameter values, is sufficient as a surrogate for inverse design of complex engineering systems. The construction is explicit: concatenate snapshot data from different parameter values into the block regression $Z=\Theta\Xi$, truncate the SVDs $Z\approx U\Sigma V^*$ and $\Xi\approx U_\Xi\Sigma_\Xi V_\Xi^*$, and form reduced operators $\tilde A_i=U^* Z V_\Xi\Sigma_\Xi^{-1} U_{\Xi,i}^* U$. Proposition 2 states that the eigenvalues of $\tilde A_0+\varepsilon_1\tilde A_1+\cdots$ are those of the full operator, and the eigenvectors are recovered by exact or projected DMD, giving the modal prediction $x_k=\Phi\exp[S(k-1)]b$. The paper reports this surrogate accurately predicts interpolated and extrapolated parameter values on a pitched airfoil, a four-story building, a viscous shock-forming PDE, cavity flow, a smoke plume, a limit-cycle oscillator, and a droplet-printing experiment, and that design optimization on the surrogate finds the target, such as a $7^\circ$ airfoil pitch angle or a stiffness value that places a resonant pole, with narrow uncertainty bands.

Load-bearing premise

The load-bearing assumption is that a single operator that depends affinely on the design parameters, after a fixed Koopman lift for nonlinear systems, remains accurate across the whole design range and beyond it; if the dynamics change qualitatively, as in a bifurcation or a discontinuity, that one operator family cannot represent the design space.

Editorial extensions

If this is right

  • Design loops for periodic or damped systems can run on a laptop CPU, with the surrogate fit being a single least-squares solve rather than a network training run.
  • Because the surrogate exposes eigenvalues and eigenvectors, design goals can be specified directly on the dynamics, such as target frequencies, damping rates, or mode content, and not only on output waveforms.
  • The fitted operator family extrapolates in both time and design parameter, so a designer can query parameter values never present in the training snapshots, a capability the paper shows the neural-operator baselines lack.
  • Bagging on random column subsets turns the optimal design parameter into a distribution, yielding uncertainty bars on the design at negligible extra cost.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The Discussion's proposed extension, replacing the affine coefficients $\varepsilon_i$ with differentiable functions $f_i(\varepsilon)$, would preserve the least-squares core while covering systems with bifurcations; fitting those functions is a natural next test.
  • Because the modal form makes design objectives cheap functions of the parameters, ID-DMD could be coupled with global search or multi-fidelity loops where the surrogate proposes parameters and a full solver validates them.
  • Since Eq. (1) is a parametric state-space model, the same construction should transfer to control design, treating control inputs as additional affine parameters to produce a data-driven gain schedule.
  • A testable prediction is that ID-DMD's relative advantage over operator learning grows as the parameter-to-dynamics map becomes smoother and more nearly linear, and shrinks where the Koopman lift must absorb strong nonlinearity.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes ID-DMD, a parametric dynamic-mode-decomposition variant in which the dynamics are modeled as x_k = (A_0 + ε_1 A_1 + ···) x_{k−1}, or with a polynomial Koopman lift for nonlinear systems, and the operators are identified by least squares over snapshots collected at several parameter values. The identified low-rank model is then used both to predict responses at unseen parameters and to evaluate design objectives and constraints, including eigen-based quantities such as resonant frequencies. The authors demonstrate reconstruction and interpolation/extrapolation on several structural and fluid systems and compare the method against PI-DON, PINNs, NIF, and FNO on the 1-D Burgers equation. They also report three inverse-design tasks: an airfoil pitch-angle optimization, a linear-building pole-placement design, and a nonlinear-damper energy-dissipation design.

Significance. If the central claims are supported, ID-DMD would be a useful low-cost baseline for parametric inverse design. Its strengths are real: the least-squares identification is simple and avoids expensive neural-network training; the Burgers interpolation and extrapolation tests are genuine out-of-sample evaluations; the low-rank projection follows standard DMD arguments; and the authors make code and data available on GitHub. The main burden is whether the optimized design parameters are valid in the true system rather than only in the affine fitted surrogate, and whether the broad accuracy and speed claims are supported by more than a single benchmark. These issues are fixable within the scope of the manuscript, so I view them as requiring a major revision rather than rejection.

major comments (4)
  1. [§II.A and §II.D] The inverse-design results are generated and evaluated with the same fitted ID-DMD surrogate. In the airfoil example, the optimum θ = 7° is selected from the ID-DMD model, and the only validation shown (Fig. 1(c), Fig. S2) compares the surrogate with training/test LBM snapshots at other angles; no fresh LBM run at θ = 7° is reported. Similarly, the pole-placement stiffness k = 2.82×10^9 N/m (§II.D, Fig. S9) is checked against ID-DMD's own estimated resonant frequencies, and the nonlinear-damper design c3 > 12.6 is judged by the same ψ(x_k) model. Because Eqs. (1) and (3) are affine in the design parameters and the Discussion concedes that this form fails for bifurcating or strongly nonlinear dynamics, a systematically biased surrogate can produce an optimum that is not valid in the true system. I ask the authors to rerun each reported design at its optimum with the original high-fidelity simulator or experiment; a single verification run per design task would settle this issue and is necessary to support the claim that ID-DMD enables reliable inverse design.
  2. [Table II and Fig. 2] The headline claim that ID-DMD is 'an order of magnitude more accurate' than competing methods is based on one interpolation viscosity (v = 0.02) and one extrapolation viscosity (v = 0.01), each reported as a single max-relative-error number. This is too thin a basis for the abstract's accuracy claim: there are no error bars, no multiple held-out parameter values, and no repeated training runs. In addition, the paper positions ID-DMD against prior parametric DMD methods (Refs. [52,53]) but reports no comparison with them. I recommend reporting error statistics over several held-out viscosity values and adding at least one parametric-DMD baseline to the comparison.
  3. [Methods §IV.C; Supp. §A.3] The stability-clipping rule 'set σ_j = 0 if σ_j > 0' is an unmodeled modification of the identified eigenvalues. Since the paper claims to prescribe intrinsic dynamics and uses eigen-based quantities for pole placement, this clipping can change the very quantities being optimized whenever an identified mode is unstable. The authors should state how often the clipping is active in the reported examples, justify it with respect to the design objective, and report the sensitivity of the optimized parameters to this rule.
  4. [§II.D vs Supp. §5.2] The design threshold for the nonlinear-damper example is internally inconsistent. The main text (§II.D) reports an energy dissipation of η_E > 30% achieved with c3 > 12.6 and states 'c3 > 12.6' as the design result, while the supplementary text (§5.2) states 'an energy loss of E_d < 0.013 is achieved when c3 > 6', with no definition connecting E_d to η_E. Since this is one of the three central design demonstrations, the discrepancy must be resolved before the design result can be assessed.
minor comments (5)
  1. [Abstract and title] The abstract uses 'dynamic mode composition' but the method is elsewhere called 'dynamic mode decomposition'; the terminology should be consistent.
  2. [Methods §IV.B] The sentence beginning 'These hyper-parameters can be determined by using The U_Ξ matrix is divided' is incomplete and appears to be a typographical error; the intended description of how to choose r_Z and r_Ξ should be completed.
  3. [Supp. Eq. (B2)] The constraint θ ∈ Z+ in Eq. (B2) restricts the airfoil pitch angle to positive integers; if this is intentional it should be stated, and if not it is likely a typo for a box constraint on the real-valued angle.
  4. [Supp. Table XI] The row 'Scaling factor for c3' is inconsistent with the design parameter k_s in the linear-building example; this appears to be a copy-paste error and should be corrected.
  5. [§II.B, Table I] The 'Van de Pol equation' is conventionally spelled 'van der Pol equation'; more importantly, the validation entries in Table I report results at single test parameter values, so it would be useful to state whether these are representative or the worst case.

Circularity Check

2 steps flagged · score 2.0 of 10

Core ID-DMD identification and held-out predictions are not circular; only the optimized designs are certified with the same surrogate, a validation gap that is partial circularity rather than a derivation flaw.

  1. other [Section II.A, Eqs. (B2)-(B3) in Supplementary; Section IV.D]
    "The optimal airfoil pitched angle that meets the required dynamic properties is obtained as θ = 7◦ by solving the optimization problem in Fig.1(d). ... Here, Pair is defined as the root mean value of the sum square vorticity over time."

    The optimization objective and constraint are evaluated from ID-DMD's own reconstructed snapshots: Pair is computed from x_k (Eq. B3), and x_k is produced by the fitted surrogate Eq. (1). Thus the reported θ=7° is, by construction, the minimizer of the surrogate's own output; saying it 'meets the required dynamic properties' restates that the surrogate's evaluation satisfies its own criterion. No fresh LBM run at θ=7° is reported to certify the design in the true system (Fig. S2 shows predicted vorticities). The same surrogate-only certification applies to the pole-placement and nonlinear-damper designs.

  2. self citation load bearing [Section IV.D; Section II.D; Refs. [43], [39], [35] in the paper]
    "Uncertainties matrices of the design are assessed by integrating the bagging approach into the ID-DMD [43]. ... For more complex nonlinear systems, other projections, i.e., encoding-decoding networks [49], can be applied to implement the ID-DMD using the same method."

    The bagging UQ step cites prior work by a co-author, and the Koopman/encoding-decoding extensions cite prior work by a co-author, but these citations are not used to justify the central affine-in-parameter ansatz or the eigen-equivalence; they provide standard algorithmic components. No uniqueness theorem is imported from the authors' own work, and the central claim of held-out predictive accuracy does not rest on those citations. This is therefore a minor self-citation pattern that is not load-bearing for the main derivation.

full rationale

The derivation of ID-DMD itself is self-contained least-squares regression: Eq. (8) writes X'=ΘE and the low-rank operators are obtained by SVD projection, with Proposition 2 resting on the standard approximate identity UU*Z≈Z rather than on a self-citation. Held-out predictions (airfoil θ=5°, Burgers v=0.02 interpolation and v=0.01 extrapolation, and the other systems in Table I) are genuine out-of-sample tests, so the accuracy and extrapolation claims are not circular. The self-citations to DMD, Koopman theory, and bagging are standard methodological references and are not used as an external uniqueness theorem; they do not force the paper's central results. The main circularity-adjacent issue is that the inverse-design results — the airfoil angle, the building stiffness, and the nonlinear damper value — are optimized and then effectively certified using the same ID-DMD surrogate, so their status as real-system designs is not independently established. This is a validation gap, or mild circularity in the demonstration, rather than a circular derivation of the model itself. The Discussion's concession that the affine-in-parameter form fails for bifurcations and severe nonlinearity is an honest stated limitation, not a hidden circular assumption.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The ledger shows that ID-DMD is not free of fitting choices. Per-problem truncation ranks, parameter scaling factors, polynomial lifting degrees, and a stability clipping rule are all hand-set or threshold-selected, and they directly affect the reported accuracy. The core computational advantage comes from replacing many expensive simulations with one least-squares fit, but the validity of that fit depends on the affine-in-parameter and low-rank subspace assumptions, which are not proven and are known to fail for bifurcating systems. No new physical entities are introduced.

free parameters (5)
  • Truncation ranks rZ and rXi = Per example: 120, 100, 70, 150, 60, 350, 200, 40, 35, 16
    Hard/soft thresholding or manual choice; controls accuracy of the low-rank surrogate; set separately for every application.
  • Scaling factors alpha_i for design parameters = Examples: 1, 0.001, 0.1, 1e-9
    Introduced to condition the regressor matrix; no automatic rule is given, and the fitted operators depend on these values.
  • Polynomial Koopman lifting degree = Up to 8th order (45 observables) for ODE examples; 11th order (77 observables) for Van der Pol
    Choice of lifting dimension and polynomial degree is a modeling decision that determines which nonlinearities can be captured.
  • Stability clipping rule = sigma_j := 0 for all sigma_j > 0
    A hand-imposed constraint that alters the identified operator; no uncertainty is assigned to this modification.
  • Bagging settings = Half of columns per run; 30 runs
    Chosen for UQ in the airfoil and nonlinear ODE examples; not justified or varied.
assumptions (5)
  • domain assumption Dynamics are well approximated by x_k=(A0+sum epsilon_i A_i)x_{k-1} over the design range
    This is the ID-DMD ansatz in Eq.(1); it is exact only for systems affine in parameters, and the Discussion concedes it fails for bifurcations and severe nonlinearities.
  • domain assumption The truncated SVD subspace U satisfies UU*Z approx Z, so the low-rank projected operator retains the full operator's eigenvalues
    Used in Proposition 2, Eq.(A12); requires the column space of the concatenated future-state matrix to be well captured by rZ principal components.
  • domain assumption Polynomial observables span a nearly invariant Koopman subspace for the nonlinear systems
    Eq.(3) and Section II.D rely on polynomial lifting to make nonlinear dynamics linear; no error bound or invariance check is provided.
  • domain assumption Initial states are known exactly for all predictions
    Section IV.C states 'this study assumes that the initial system states are known a priori for all predictions'; this removes a source of error that real deployments face.
  • domain assumption Training parameter samples are representative of the design space
    All examples train on a handful of uniformly spaced parameter values (e.g., 6 angles, 5 viscosities) and extrapolate; no coverage or identifiability analysis is given.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Inverse Design with Dynamic Mode Decomposition." pith.science (2026). https://pith.science/paper/NSML33HC

@misc{pith2026250209490,
  author       = {Pith},
  title        = {Pith review of: Inverse Design with Dynamic Mode Decomposition},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NSML33HC}},
  note         = {Machine review of arXiv:2502.09490}
}
read the original abstract

We introduce a computationally efficient method for the automation of inverse design in science and engineering. Based on simple least-square regression, the underlying dynamic mode decomposition algorithm can be used to construct a low-rank subspace spanning multiple experiments in parameter space. The proposed inverse design dynamic mode composition (ID-DMD) algorithm leverages the computed low-dimensional subspace to enable fast digital design and optimization on laptop-level computing, including the potential to prescribe the dynamics themselves. Moreover, the method is robust to noise, physically interpretable, and can provide uncertainty quantification metrics. The architecture can also efficiently scale to large-scale design problems using randomized algorithms in the ID-DMD. The simplicity of the method and its implementation are highly attractive in practice, and the ID-DMD has been demonstrated to be an order of magnitude more accurate than competing methods while simultaneously being 3-5 orders faster on challenging engineering design problems ranging from structural vibrations to fluid dynamics. Due to its speed, robustness, interpretability, and ease-of-use, ID-DMD in comparison with other leading machine learning methods represents a significant advancement in data-driven methods for inverse design and optimization, promising a paradigm shift in how to approach inverse design in practice.

Figures

Figures reproduced from arXiv: 2502.09490 by the authors.

Figure 1
Figure 1. FIG. 1. The inverse design of airfoil pitched angle using ID-DMD. (a) Collect vorticity simulation data as snapshots across [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

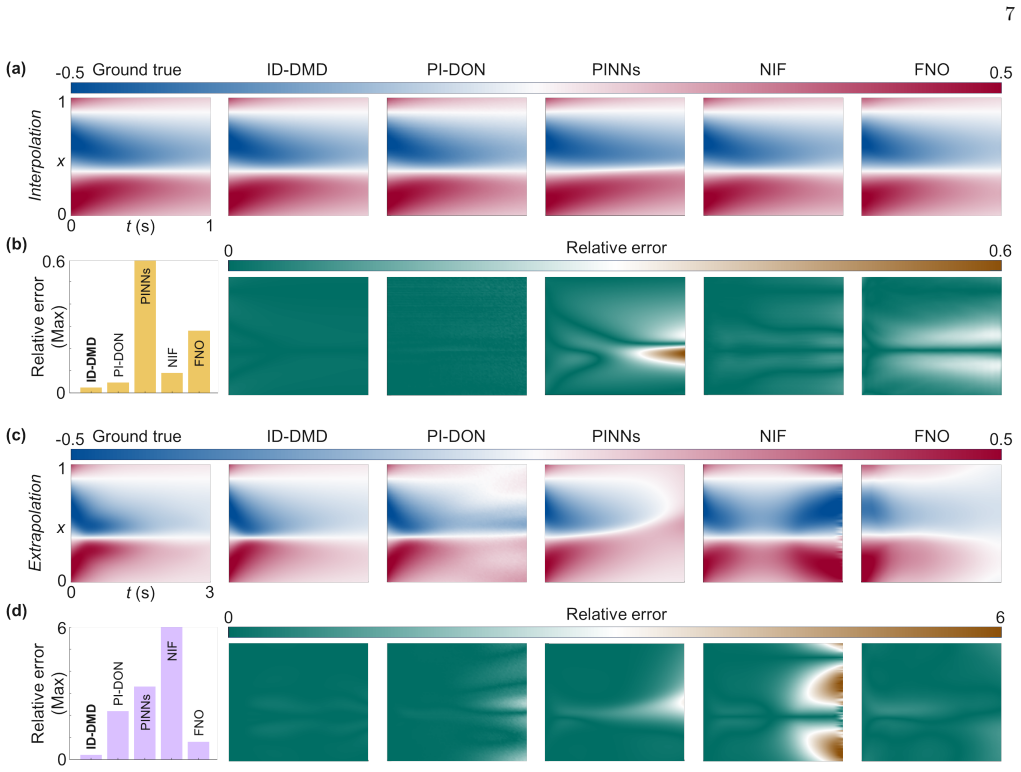

Figure 2. FIG. 2. Interpolation and extrapolation of the 1-D Burgers’ equation using the ID-DMD, PI-DON, PINNs, NIF, and FNO. [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Evaluate the first three order modes from the polynomial-projected Koopman operator. (a) The dominant modes [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Configuration for the vorticity simulation of a pitched airfoil. [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. Prediction of the vorticity distribution around the airfoil. [PITH_FULL_IMAGE:figures/full_fig_p016_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Nonlinearly damped building structure and the ID-DMD prediction results. [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. Prediction of the incident-jet flow. [PITH_FULL_IMAGE:figures/full_fig_p019_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8. Prediction of the cavity flow [PITH_FULL_IMAGE:figures/full_fig_p020_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9. Prediction of the smoke plume [PITH_FULL_IMAGE:figures/full_fig_p021_9.png]
Figure 10
Figure 10. Figure 10: FIG. 10. Experimental setup for the droplet test. (a) Overview of the main components of the DSA Inkjet system. (b) [PITH_FULL_IMAGE:figures/full_fig_p021_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11. Extended architectures of parametric PI-DON, PINNs, NIF, and FNO. [PITH_FULL_IMAGE:figures/full_fig_p023_11.png]
Figure 12
Figure 12. Figure 12: FIG. 12. The 4-DoF linear building system and pole placement design using the ID-DMD. [PITH_FULL_IMAGE:figures/full_fig_p024_12.png]
