arxiv: 2607.00694 · v1 · pith:OC4FDYRTnew · submitted 2026-07-01 · ⚛️ physics.optics · cond-mat.mes-hall· cond-mat.mtrl-sci· physics.app-ph

Near-Field Characterisation of Guided Modes in WS2 Nanobeams and Quasi-Bulk Crystals

Pith reviewed 2026-07-02 07:16 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hallcond-mat.mtrl-sciphysics.app-ph
keywords WS2waveguidess-SNOMextinction coefficientguided modesnanobeamsvan der Waals materialsnear-field microscopy
0
0 comments X

The pith

Hyperspectral cavity-enhanced imaging sets bounds on WS2 extinction while s-SNOM maps mode-specific dispersion and loss in its waveguides from 800-1400 nm.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to reduce large uncertainty in the extinction coefficient of WS2 and in predicted waveguide performance by applying two near-field techniques. Cavity-enhanced hyperspectral imaging supplies tight upper and lower bounds on sub-bandgap absorption. s-SNOM then tracks the wavevector and attenuation of TE0, TM0 and higher-order modes inside both thick crystals and nanobeams, exposing clear differences between modes and between geometries. The work also tests s-SNOM itself as a practical diagnostic, showing it yields reliable relative trends and upper limits on loss even when absolute values vary with tip-sample geometry.

Core claim

Hyperspectral cavity-enhanced imaging determines high-resolution upper and lower bounds on the extinction coefficient of WS2 within the visible-NIR edge, while s-SNOM measurements of TE0, TM0 and higher-order modes in quasi-bulk and nanobeam WS2 waveguides across 800-1400 nm identify mode-specific trends in wavevector dispersion and loss; s-SNOM supplies upper bounds on propagation loss and relative modal trends despite geometry dependence, and nanobeam data contain artefacts from transverse interference that can shift extracted effective indices by up to 0.25.

What carries the argument

scattering-type scanning near-field optical microscopy (s-SNOM) together with hyperspectral cavity-enhanced imaging to isolate material extinction from waveguide loss channels.

If this is right

  • Tighter extinction bounds narrow the predicted range of modal decay lengths for WS2-based integrated circuits.
  • Mode-specific dispersion and loss trends guide selection of TE versus TM operation in anisotropic WS2 waveguides.
  • s-SNOM can be used as a diagnostic that supplies upper bounds on loss and relative modal trends for other anisotropic van der Waals waveguides.
  • Artefacts from transverse interference must be corrected when extracting effective indices from nanobeams whose width approaches the excitation wavelength.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The reported bounds could reduce uncertainty in wafer-scale yield estimates when WS2 is integrated with silicon photonic circuits.
  • Similar s-SNOM surveys on other transition-metal dichalcogenides might expose common trends in mode confinement versus layer thickness.
  • Accounting for spatial sampling effects could extend accurate effective-index extraction to sub-wavelength nanobeam devices.

Load-bearing premise

Cavity-enhanced imaging and s-SNOM geometry can separate intrinsic material extinction from other loss channels, interference and sampling effects sufficiently to yield reliable bounds.

What would settle it

A direct cut-back measurement of propagation loss in a long, straight WS2 waveguide whose value lies outside the extinction-derived upper and lower limits reported from the cavity data.

Figures

Figures reproduced from arXiv: 2607.00694 by Alexander I. Tartakovskii, Alexander J. Knight, Fabian Felixberger, Luke M. Hallacy, Luke R. Wilson, Oliver T. Williams, Simone Strohmair, Timothy Chester-Parsons, Xuerong Hu, Zara S. Taylor.

Figure 1

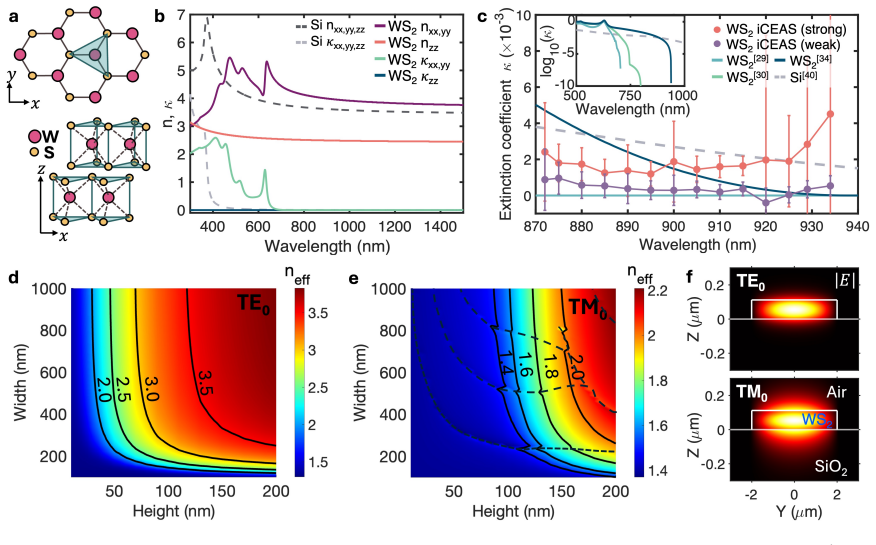

Figure 1. Figure 1: Optical waveguide quality of WS2 throughout the vis-NIR spectral window relative to silicon. a) atomic structure of WS2 as seen from above (top) and the side (bottom). b) Refractive indices in the vis-NIR window of WS2 and silicon sourced from [30] and [40], respectively. c) Extinction coefficient of a WS2 crystal measured via imaging Cavity-Enhanced Absorption Spectroscopy (iCEAS) within strongly and weak… view at source ↗
Figure 2

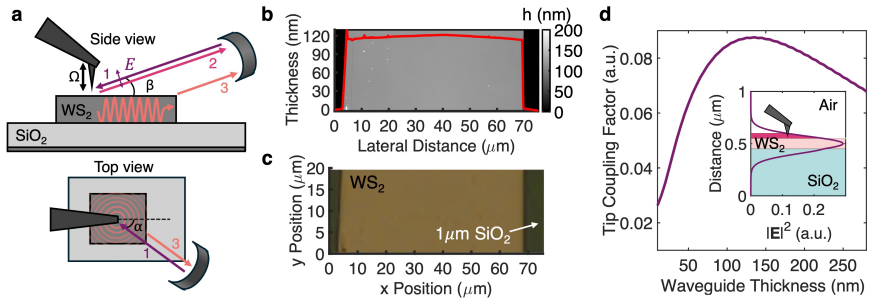

Figure 2. Figure 2: a) s-SNOM schematic showing side and top view. A metal-coated AFM tip is illuminated by a beam [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

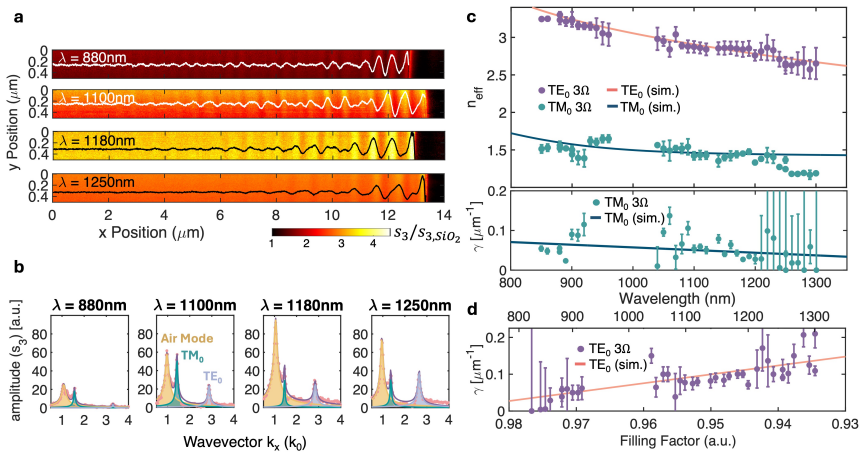

Figure 3. Figure 3: Nanoimaging of waveguide mode dispersion in WS [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Characterisation and s-SNOM fringe measurements of 200 nm-thick WS [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

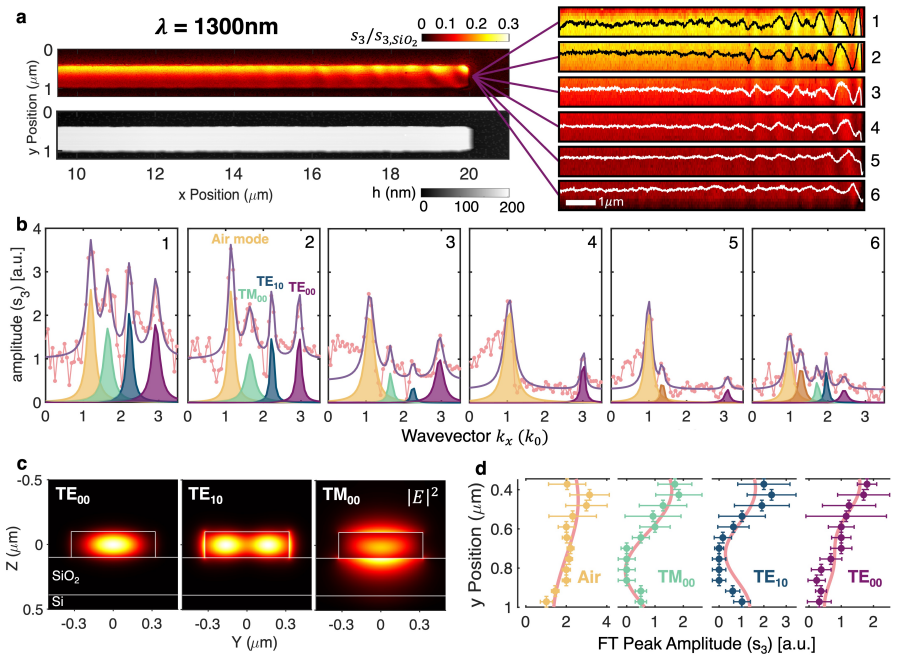

Figure 5. Figure 5: Waveguided mode analysis within a single nanobeam. a) Normalised 3rd order amplitude and AFM [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

The exceptionally high in-plane refractive index, low sub-bandgap absorption, and strong optical anisotropy of WS2 make it a promising material platform for next-generation integrated circuits for nanophotonics. Its layered van der Waals structure further enables heterogeneous integration with silicon photonics and emerging two-dimensional optoelectronic materials. However, despite increasing interest in the waveguiding properties of WS2, experimental studies of wavelength-dependent modal confinement and attenuation remain limited. Additionally, though the extinction coefficient of WS2 is expected to be near-negligible beneath the bandgap, reported values span orders of magnitude, leading to large uncertainty in predicted modal decay lengths and wafer-scale integration feasibility. To resolve these ambiguities we perform hyperspectral cavity-enhanced imaging, determining high-resolution upper and lower bounds on the extinction coefficient of WS2 within the visible-NIR edge. We further employ scattering-type scanning near-field optical microscopy (s-SNOM) to probe TE0, TM0, and higher-order modes in both quasi-bulk and nanobeam WS2 waveguides across the 800-1400 nm spectral range, enabling identification of mode-specific trends in wavevector dispersion and loss. This work simultaneously assesses s-SNOM as a probe of waveguide performance, and we find that while absolute loss values depend on measurement geometry, s-SNOM reliably captures relative modal trends and provides upper bounds on propagation loss, supporting its use as a diagnostic tool for anisotropic waveguides. We further identify significant artefacts in nanobeam measurements arising from transverse interference and spatial sampling effects when the structure size approaches the excitation wavelength, which can shift extracted effective indices by up to 0.25.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper reports experimental measurements on WS2 nanobeams and quasi-bulk crystals using hyperspectral cavity-enhanced imaging to establish high-resolution upper and lower bounds on the sub-bandgap extinction coefficient in the visible-NIR range, combined with s-SNOM characterization of TE0, TM0 and higher-order guided modes across 800-1400 nm to extract wavevector dispersion and loss trends, while explicitly noting geometry-dependent artefacts that can shift effective indices by up to 0.25 and framing absolute loss values as geometry-specific rather than intrinsic material constants.

Significance. If the extinction bounds and relative modal trends hold after improved quantification, the work would reduce uncertainty in WS2 waveguide design for nanophotonics integration, provide a practical diagnostic role for s-SNOM on anisotropic structures, and supply falsifiable experimental constraints on sub-bandgap absorption that are currently reported over orders of magnitude in the literature.

major comments (3)
  1. [Methods/Results] Methods and Results sections: the central claim of high-resolution upper/lower bounds on the extinction coefficient via cavity-enhanced imaging lacks accompanying sample-thickness metrology, full error propagation, or raw hyperspectral data traces, making independent verification of the separation between material extinction and cavity/interface losses impossible from the presented information.
  2. [s-SNOM results] s-SNOM analysis (800-1400 nm range): the statement that absolute loss values depend on geometry while relative trends remain reliable is load-bearing for the diagnostic-tool conclusion, yet the manuscript provides no quantitative comparison (e.g., cross-geometry loss ratios or simulated vs. measured dispersion shifts) to substantiate that the 0.25 effective-index artefact does not also affect the reported mode-specific loss trends.
  3. [Abstract/Discussion] Abstract and discussion: the weakest assumption—that cavity-enhanced imaging and s-SNOM geometries sufficiently isolate material extinction from interference and scattering channels—is not tested with a control experiment or sensitivity analysis, which directly limits in the reported bounds.
minor comments (3)
  1. [Figures] Figure captions and axis labels should explicitly state the number of independent samples or spatial locations averaged for each dispersion/loss datum.
  2. [Notation] Notation for effective index and propagation loss should be introduced consistently in the text before first use in figures.
  3. [Discussion] A brief comparison table of the new extinction bounds against the range of literature values would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed comments, which highlight important areas for strengthening the manuscript's rigor and verifiability. We address each major comment point-by-point below. Where the comments identify gaps in supporting information or analysis, we have incorporated revisions to address them directly.

read point-by-point responses
  1. Referee: [Methods/Results] Methods and Results sections: the central claim of high-resolution upper/lower bounds on the extinction coefficient via cavity-enhanced imaging lacks accompanying sample-thickness metrology, full error propagation, or raw hyperspectral data traces, making independent verification of the separation between material extinction and cavity/interface losses impossible from the presented information.

    Authors: We agree that these details are necessary for independent verification. In the revised manuscript, we have added AFM-based sample thickness metrology to the Methods section, included a complete error propagation analysis (accounting for cavity losses, interface effects, and measurement uncertainties) in the Supplementary Information, and provided raw hyperspectral data traces as new supplementary figures. These additions enable readers to assess the separation of material extinction from other loss channels. revision: yes

  2. Referee: [s-SNOM results] s-SNOM analysis (800-1400 nm range): the statement that absolute loss values depend on geometry while relative trends remain reliable is load-bearing for the diagnostic-tool conclusion, yet the manuscript provides no quantitative comparison (e.g., cross-geometry loss ratios or simulated vs. measured dispersion shifts) to substantiate that the 0.25 effective-index artefact does not also affect the reported mode-specific loss trends.

    Authors: We acknowledge the need for quantitative substantiation of the relative trends. The revised manuscript includes a new subsection with cross-geometry loss ratios derived from both experimental data and finite-element simulations, along with direct comparisons of simulated versus measured dispersion shifts. These demonstrate that the 0.25 effective-index artefact impacts absolute values but preserves the relative ordering and trends in mode-specific losses, supporting the diagnostic utility of s-SNOM. revision: yes

  3. Referee: [Abstract/Discussion] Abstract and discussion: the weakest assumption—that cavity-enhanced imaging and s-SNOM geometries sufficiently isolate material extinction from interference and scattering channels—is not tested with a control experiment or sensitivity analysis, which directly limits in the reported bounds.

    Authors: This is a fair critique of the isolation assumption. A dedicated control experiment would require additional sample sets not available within the current study scope. However, we have added a sensitivity analysis in the revised Discussion quantifying the impact of interference and scattering channels on the extracted bounds. We have also revised the Abstract and Discussion to more explicitly qualify the bounds as geometry-constrained and to note the sensitivity results, thereby tempering the claims appropriately. revision: partial

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper is a purely experimental study reporting direct measurements via hyperspectral cavity-enhanced imaging for extinction bounds and s-SNOM for waveguide modes. No derivation chain, fitted parameters presented as predictions, self-citations as load-bearing uniqueness theorems, or ansatzes exist. All claims reduce to observed data without internal reduction to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental measurement paper; no mathematical model, free parameters, or postulated entities are introduced. All content rests on standard optical measurement assumptions and prior knowledge of WS2 properties.
