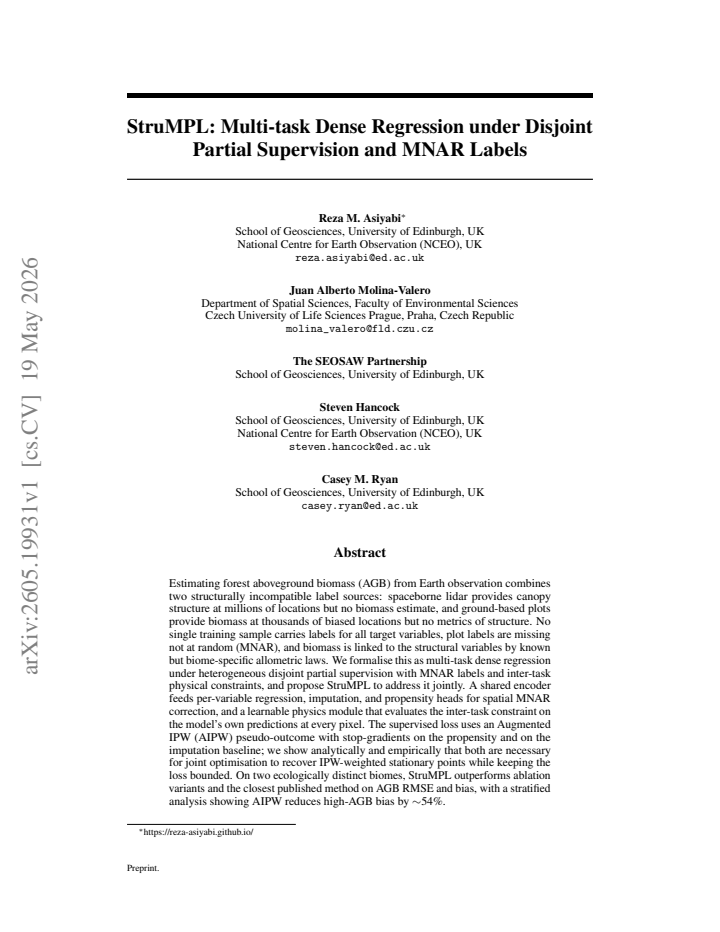

StruMPL: Multi-task Dense Regression under Disjoint Partial Supervision and MNAR Labels

Reza M. Asiyabi , Juan Alberto Molina-Valero , The SEOSAW Partnership , Steven Hancock , Casey M. Ryan This is my paper

Pith reviewed 2026-05-20 06:52 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.LG
keywords aboveground biomassmulti-task regressionMNAR labelsinverse propensity weightinglidarremote sensingphysics-informed modelforest mapping
0
0 comments X

The pith

A multi-task model with shared encoding, propensity correction, and allometric physics recovers accurate forest biomass from disjoint lidar and plot labels despite MNAR data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper formalizes the task of dense regression for forest aboveground biomass when lidar supplies structure at millions of sites but no biomass values, while ground plots supply biomass at thousands of biased locations with no structure metrics. It introduces StruMPL, which routes a shared encoder through regression, imputation, and propensity heads and adds a learnable module that applies known allometric laws directly to the model's pixel-wise outputs. Training uses an augmented inverse-propensity-weighted pseudo-outcome whose stop-gradients on the propensity and imputation terms are shown to keep the loss bounded while recovering the correct weighted stationary points. If the approach holds, existing incompatible Earth-observation and field datasets can be combined at continental scales for carbon and ecosystem monitoring without requiring new fully labeled samples.

Core claim

StruMPL addresses multi-task dense regression under heterogeneous disjoint partial supervision with MNAR labels and inter-task physical constraints by feeding a shared encoder into per-variable regression, imputation, and propensity heads together with a learnable physics module that evaluates biome-specific allometric laws on the model's own predictions at every pixel, trained via an Augmented IPW pseudo-outcome loss that incorporates stop-gradients on the propensity and imputation baseline to enable joint optimisation while keeping the loss bounded.

What carries the argument

The Augmented IPW pseudo-outcome with stop-gradients on the propensity and imputation baseline, which recovers IPW-weighted stationary points under the joint physical constraints.

If this is right

  • StruMPL yields lower AGB RMSE and bias than ablation variants and the closest published method on two ecologically distinct biomes.
  • The AIPW component reduces bias in high-AGB strata by approximately 54 percent in stratified analysis.
  • The architecture successfully integrates spaceborne lidar canopy structure with MNAR ground-plot biomass under disjoint supervision and known allometric constraints.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same propensity-plus-imputation heads could be applied to other remote-sensing tasks that combine dense but unlabeled sensor data with sparse, biased ground truth.
  • Making the physics module itself learnable from data rather than fixed allometrics might allow transfer across more biomes without manual recalibration.
  • Stratified bias reduction observed here suggests similar weighting schemes could mitigate selection effects in other ecological mapping problems where high-value regions are undersampled.

Load-bearing premise

The Augmented IPW pseudo-outcome with stop-gradients on the propensity and imputation baseline enables joint optimisation to recover IPW-weighted stationary points while keeping the loss bounded.

What would settle it

If an ablation that removes the stop-gradients produces unbounded loss or fails to recover the IPW-weighted stationary points on the same training distribution, while the full model remains stable, the necessity claim would be falsified.

Figures

Figures reproduced from arXiv: 2605.19931 by Casey M. Ryan, Juan Alberto Molina-Valero, Reza M. Asiyabi, Steven Hancock, The SEOSAW Partnership.

Figure 1

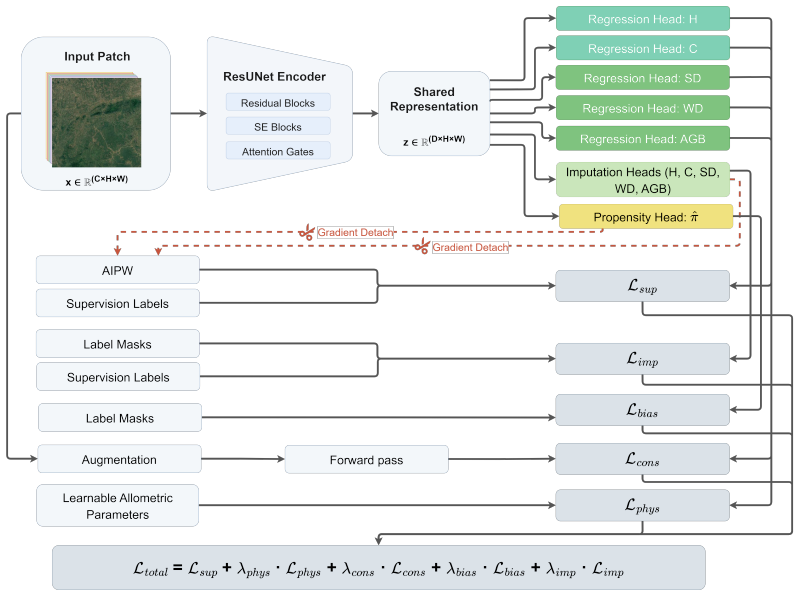

Figure 1. Figure 1: Overview of StruMPL. A shared encoder feeds regression, imputation and propensity heads. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: AGB RMSE (bars, left axis) and AGB bias (red markers, right axis) for all model configu [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

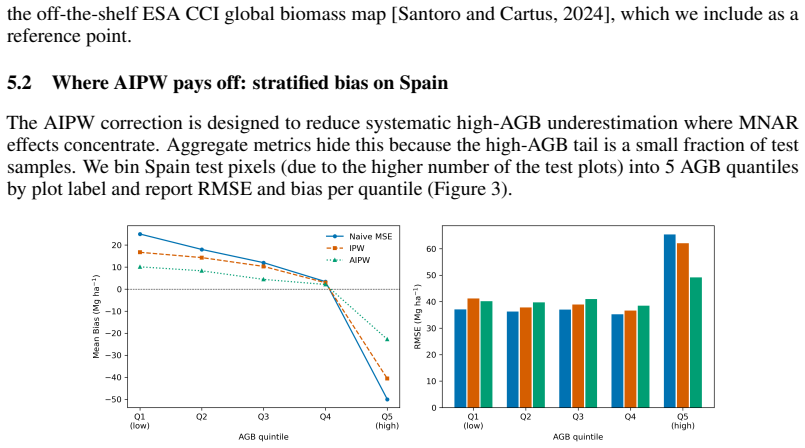

Figure 3. Figure 3: Bias and RMSE on AGB across five quantiles for naive masked MSE, IPW, and AIPW [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Propensity calibration on the Spain test set. Predicted [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗
read the original abstract

Estimating forest aboveground biomass (AGB) from Earth observation combines two structurally incompatible label sources: spaceborne lidar provides canopy structure at millions of locations but no biomass estimate, and ground-based plots provide biomass at thousands of biased locations but no metrics of structure. No single training sample carries labels for all target variables, plot labels are missing not at random (MNAR), and biomass is linked to the structural variables by known but biome-specific allometric laws. We formalise this as multi-task dense regression under heterogeneous disjoint partial supervision with MNAR labels and inter-task physical constraints, and propose StruMPL to address it jointly. A shared encoder feeds per-variable regression, imputation, and propensity heads for spatial MNAR correction, and a learnable physics module that evaluates the inter-task constraint on the model's own predictions at every pixel. The supervised loss uses an Augmented IPW (AIPW) pseudo-outcome with stop-gradients on the propensity and on the imputation baseline; we show analytically and empirically that both are necessary for joint optimisation to recover IPW-weighted stationary points while keeping the loss bounded. On two ecologically distinct biomes, StruMPL outperforms ablation variants and the closest published method on AGB RMSE and bias, with a stratified analysis showing AIPW reduces high-AGB bias by ~54%.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes StruMPL for multi-task dense regression of forest aboveground biomass (AGB) and structural variables under disjoint partial supervision with MNAR labels and inter-task allometric constraints. A shared encoder drives regression, imputation, and propensity heads; a learnable physics module enforces constraints on the model's own predictions at each pixel. The core technical contribution is an Augmented IPW (AIPW) pseudo-outcome loss that applies stop-gradients to the propensity and imputation heads, with an analytical claim that this recovers IPW-weighted stationary points while keeping the loss bounded. Empirical results on two biomes report outperformance versus ablations and prior methods on AGB RMSE and bias, including a stratified ~54% reduction in high-AGB bias.

Significance. If the AIPW stop-gradient construction is shown to isolate the IPW terms even after gradients from the differentiable physics module are included, the framework would provide a principled route to joint optimization under heterogeneous supervision and physical constraints. The reported bias reduction and ablation comparisons supply concrete evidence of practical utility for ecological remote-sensing tasks. The absence of explicit equations or proofs in the abstract, however, leaves the load-bearing analytical claim difficult to assess from the provided material.

major comments (1)
  1. [Abstract] Abstract: the analytical claim that the AIPW pseudo-outcome with stop-gradients on the propensity and imputation heads recovers IPW-weighted stationary points while keeping the loss bounded does not address the fact that the learnable physics module evaluates inter-task constraints directly on the model's predictions and therefore passes gradients back into the regression, imputation, and propensity heads. No derivation or argument is supplied showing that the stop-gradient construction still isolates the IPW terms once this additional differentiable path is present.
minor comments (2)
  1. [Experiments] Dataset descriptions and label statistics for the two biomes are not detailed enough to allow independent verification of the stratified high-AGB bias analysis.
  2. [Experiments] Ablation tables should explicitly quantify performance when stop-gradients are removed from the propensity or imputation heads, rather than reporting only the full model versus generic variants.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment on the analytical claim in the abstract. The point regarding gradient flow from the learnable physics module is well taken, and we address it directly below. We will revise the manuscript to strengthen the presentation of the derivation.

read point-by-point responses

  1. Referee: the analytical claim that the AIPW pseudo-outcome with stop-gradients on the propensity and imputation heads recovers IPW-weighted stationary points while keeping the loss bounded does not address the fact that the learnable physics module evaluates inter-task constraints directly on the model's predictions and therefore passes gradients back into the regression, imputation, and propensity heads. No derivation or argument is supplied showing that the stop-gradient construction still isolates the IPW terms once this additional differentiable path is present.

    Authors: We appreciate the referee drawing attention to this interaction. The manuscript derives the stationary-point property for the AIPW term under stop-gradients on the propensity and imputation heads, but the current text does not explicitly re-derive the result after including the additional gradient path through the differentiable physics module. We will add a concise appendix derivation showing that the stop-gradients continue to isolate the IPW weighting for the supervised loss even when the physics loss back-propagates through the regression outputs: the physics term depends only on the regression predictions (not on the stopped propensity or imputation values inside the AIPW expression), so the overall gradient with respect to the propensity and imputation parameters retains the IPW-weighted form. The empirical ablations already include the physics module and confirm that removing the stop-gradients degrades performance, providing supporting evidence. We will also move the key equations from the abstract into the main text for clarity. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper's central technical claim is an analytical demonstration that the Augmented IPW pseudo-outcome with stop-gradients on propensity and imputation heads recovers IPW-weighted stationary points while bounding the loss under joint optimization. This demonstration is presented as internal to the manuscript (abstract states 'we show analytically and empirically'), with the learnable physics module introduced as an additional differentiable component rather than a redefinition of the IPW terms. No equations or steps reduce the claimed stationary-point recovery to a fitted parameter or self-citation by construction; the empirical gains are evaluated against external AGB benchmarks and ablation variants. The derivation therefore remains independent of its own fitted outputs and does not match any enumerated circularity pattern.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review is limited to the abstract; no explicit free parameters, axioms, or invented entities can be audited in detail. The approach relies on domain knowledge of allometric laws and MNAR mechanisms but provides no enumeration of fitted values or unproven assumptions.

axioms (1)
  • domain assumption Biomass is linked to structural variables by known but biome-specific allometric laws
    Stated in the abstract as the basis for the inter-task physical constraints.
