Automated Quality Assessment of Geospatial Vector Data: A GeoAI Approach using Spatial Representation Learning
Pith reviewed 2026-06-30 09:52 UTC · model grok-4.3
The pith
Topo4Vec detects topological errors in geospatial vector data by training on simulated examples and isolating faults in a learned latent space.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

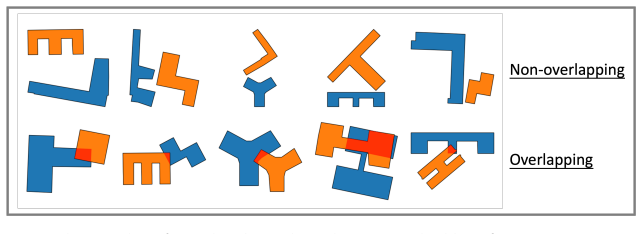

Topo4Vec relaxes manual annotation by simulating topological errors such as overlapping polygons and street network overshoots or undershoots, then encodes complex vector geometries with spatial representation learning so that errors become isolated from valid geometries in the resulting latent space.
What carries the argument

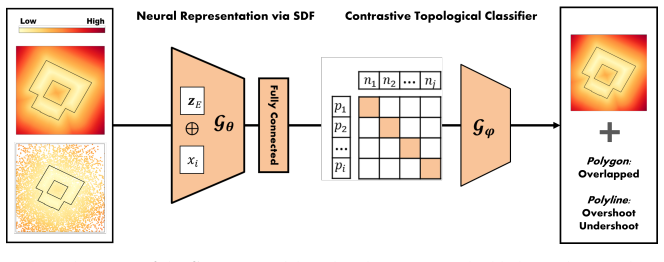

Topo4Vec framework, which pairs topological error simulation with spatial representation learning to produce a latent space separating erroneous from valid vector geometries.
If this is right
- Quality assessment of building footprints and street networks becomes feasible at city scale without per-dataset manual labeling.
- The same simulation-plus-representation pipeline can be applied to additional error types once simulation rules are defined.
- Latent-space separation provides a quantitative signal for ranking data layers by consistency across multiple cities.
- Open release of code and data allows direct replication on new vector datasets from other regions.
Where Pith is reading between the lines
- Integration into live geospatial data pipelines could flag new uploads for review before they enter public maps.
- Extending the simulation rules to three-dimensional or time-varying vector objects would test whether the latent-space isolation generalizes beyond two-dimensional footprints and networks.
Load-bearing premise
Simulated topological errors generate training examples representative enough that the learned representations can separate real errors from valid geometries.
What would settle it
Running the trained model on a fresh collection of vector data containing only unsimulated, human-verified topological errors and finding accuracy substantially below the reported 0.99 and 0.60 levels.
Figures
read the original abstract

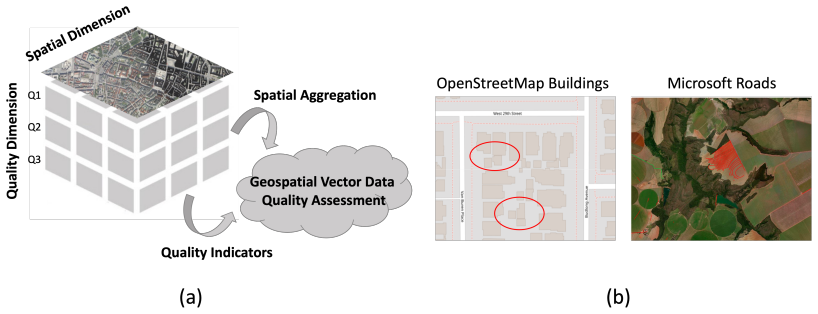

Geospatial vector data quality is a foundational research topic in GIS, yet classic rule-based quality assessment algorithms often struggle with diverse urban morphologies and massive data volumes. Recently, Geospatial Artificial Intelligence (GeoAI) shows promising potential for automating geospatial analysis, while its application to native vector data remains largely underexplored. To fill this research gap, we proposed Topo4Vec, an automated GeoAI framework, designed for scalable vector data quality assessment via advanced Spatial Representation Learning (SRL). Specifically, Topo4Vec relax the labor-intensive manual annotation process via topological error simulation, such as overlapping polygons and street network connectivity errors e.g., overshoots and undershoots. Then, it leverages state-of-the-art SRL approaches to encode complex, native vector geometries (e.g., polylines and polygons) into a latent space where topological errors are isolated from valid ones. A systematic performance evaluation across three study areas (Los Angeles, Munich, and Singapore) demonstrates the effectiveness and robustness of Topo4Vec, achieving a peak accuracy of 0.99 for detecting overlapping building footprints and 0.60 for overshoots and undershoots in street networks. Moreover, lessons learned from Topo4Vec shed a promising light into a scalable and autonomous GeoAI approach for large-scale vector data consistency and quality monitoring within the fast-growing geospatial data ecosystems. The code and data used in the paper are made openly available in https://figshare.com/s/612148eeb4bccadbd715.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes Topo4Vec, a GeoAI framework for automated quality assessment of geospatial vector data. It relaxes manual annotation by simulating topological errors (overlapping polygons; overshoots/undershoots in street networks), applies spatial representation learning (SRL) to embed native vector geometries into a latent space that isolates errors, and reports a systematic evaluation across three study areas (Los Angeles, Munich, Singapore) with peak accuracy 0.99 for building-footprint overlaps and 0.60 for network errors. Code and data are released openly.
Significance. If the simulation procedure produces error distributions statistically indistinguishable from real-world errors, the framework would supply a scalable, annotation-light method for vector-data consistency checking that extends beyond rule-based GIS tools and could support large-scale monitoring in diverse urban morphologies. The open release of code and data is a clear strength for reproducibility.
major comments (2)
- [Abstract] Abstract: the central claim that simulation enables effective SRL-based separation (and thus the reported 0.99 / 0.60 accuracies) is load-bearing, yet no quantitative comparison of geometric/topological feature distributions between simulated and authentic errors in the three study areas is supplied. Without such validation the generalization claim cannot be assessed.
- [Abstract] Abstract: the performance numbers are stated without reference to model architecture, SRL variant, baseline methods, statistical tests, or simulation-parameter settings, preventing evaluation of whether the cross-area robustness result is sound.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive feedback. We address the two major comments point by point below. Where the comments identify gaps in the current manuscript, we propose targeted revisions to strengthen the presentation of the simulation validation and result reporting.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim that simulation enables effective SRL-based separation (and thus the reported 0.99 / 0.60 accuracies) is load-bearing, yet no quantitative comparison of geometric/topological feature distributions between simulated and authentic errors in the three study areas is supplied. Without such validation the generalization claim cannot be assessed.
Authors: We agree that a quantitative comparison of geometric and topological feature distributions between simulated and real-world errors would provide stronger support for the simulation procedure. The manuscript currently justifies the simulation by describing how it replicates documented topological error types (overlaps, overshoots, undershoots) observed in practice, and demonstrates consistent performance across three morphologically distinct cities. However, no direct statistical comparison of feature distributions (e.g., overlap ratios, intersection angles, or connectivity metrics) is included. We will add this analysis in the revised manuscript, using a sample of manually verified real errors from each study area. revision: yes
-
Referee: [Abstract] Abstract: the performance numbers are stated without reference to model architecture, SRL variant, baseline methods, statistical tests, or simulation-parameter settings, preventing evaluation of whether the cross-area robustness result is sound.
Authors: The abstract is intentionally concise. Full details on the SRL architectures (including the specific representation learning models), variants evaluated, baseline comparisons against rule-based GIS methods, statistical tests, and simulation parameter settings are provided in the Methods and Results sections. To address the concern about the abstract, we will expand it to include brief references to the primary SRL approach, the use of cross-validation, and the key simulation parameters while remaining within length limits. revision: partial
Circularity Check
No significant circularity; empirical pipeline is self-contained
full rationale
The paper generates training examples via topological error simulation (overlaps, overshoots/undershoots), applies SRL to embed geometries, and reports accuracies on three independent geographic areas. No equations, parameters, or claims reduce by construction to the simulation rules or to self-citations; the reported metrics (0.99, 0.60) are presented as outcomes of applying the learned model to external data rather than tautological re-statements of the input generation process. The derivation chain therefore contains no self-definitional, fitted-input-renamed-as-prediction, or load-bearing self-citation steps.
Axiom & Free-Parameter Ledger
free parameters (1)
- SRL model hyperparameters and simulation parameters
axioms (1)
- domain assumption Simulated topological errors sufficiently represent real-world errors to enable effective training without manual labels.
invented entities (1)
-
Topo4Vec framework
no independent evidence
