Map-Z: Exposing the Zcash Network in Times of Transition

Erik Daniel , Elias Rohrer , Florian Tschorsch This is my paper

Pith reviewed 2026-05-24 17:47 UTC · model grok-4.3

classification 💻 cs.CR cs.NI
keywords Zcashpeer-to-peer networktopology inferencetiming analysisblockchain measurementcryptocurrency networknetwork centralization
0
0 comments X

The pith

A timing analysis of block arrivals infers direct node connections in the Zcash network at 50% precision and 82% recall.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper conducts the first extended measurement of the Zcash peer-to-peer network to track its size, geographic spread of nodes, and level of centralization. It introduces an inference technique that uses observed differences in block arrival times at multiple vantage points to identify which nodes share a direct connection. The method is tested in both simulated networks and live experiments on the actual Zcash network. If the timing signal reliably reflects topology rather than noise, the work demonstrates that even privacy-oriented blockchains expose structural information through routine propagation behavior. This provides concrete data on a previously unmeasured cryptocurrency network and supplies a reusable technique for similar studies.

Core claim

We present an inference method based on a timing analysis of block arrivals that we use to determine interconnections of nodes. We evaluate and verify our method through simulations and real-world experiments, yielding a precision of 50 % with a recall of 82 % in the real-world scenario. By adjusting the parameters, the topology inference model is adaptable to the conditions found in other cryptocurrencies.

What carries the argument

Timing analysis of block arrivals at multiple observation points to infer direct peer connections.

If this is right

  • Long-term monitoring can produce time series of Zcash network size and node locations.
  • Centralization metrics become measurable and trackable as the network evolves.
  • The same timing-based inference can be tuned for other proof-of-work cryptocurrencies.
  • Topology information can be extracted even when nodes attempt to hide their connections.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If timing leaks persist across privacy coins, network-layer anonymity may require changes to relay protocols rather than just transaction obfuscation.
  • Operators could use the method to monitor whether their node set remains hidden from external observers.
  • The approach opens the possibility of mapping how mining pools or large nodes cluster together over months.

Load-bearing premise

Observed differences in when blocks reach different nodes are caused mainly by whether those nodes are directly connected rather than by unrelated delays or forwarding rules.

What would settle it

A controlled test in which nodes apply random extra delays to block relays while keeping the same set of direct connections; if the inference method still reports the original links at similar precision, the timing signal is not driven by topology.

Figures

Figures reproduced from arXiv: 1907.09755 by Elias Rohrer, Erik Daniel, Florian Tschorsch.

Figure 1

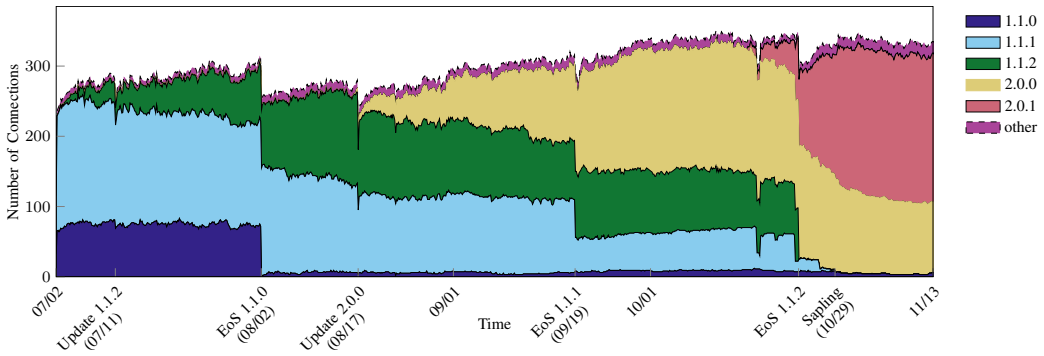

Figure 1. Figure 1: Distribution of announced version strings in the Zcash peer-to-peer network. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Distribution of observed addresses and block origins. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

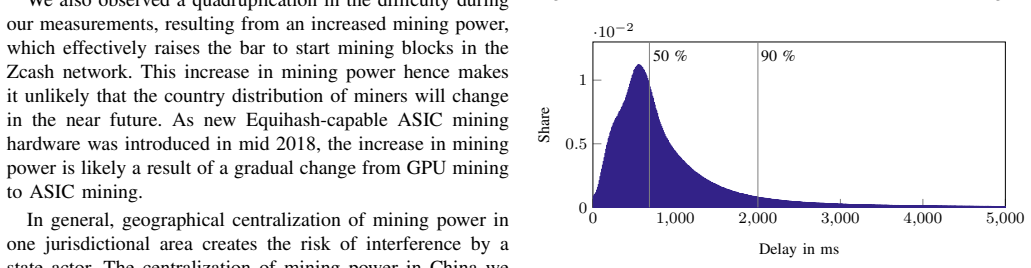

Figure 3. Figure 3: Block inventory arrival time differences. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

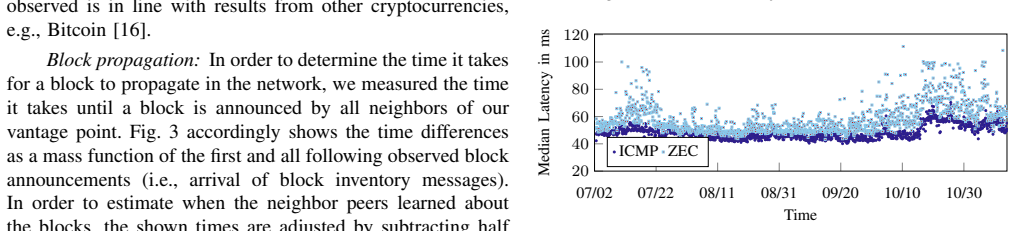

Figure 4. Figure 4: Latencies of the connected clients. Network stability: Lastly, we are interested in the network load and stability [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

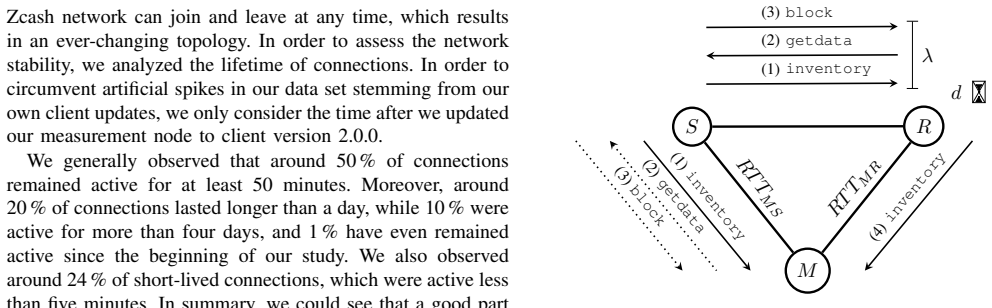

Figure 5. Figure 5: Block propagation with three nodes. connected with a high probability. We take this as the basis for our timing analysis. In the following, we will derive our model in detail. When we assume that the link latency between any two peers follows the same distribution λ and a node’s processing delay can be described as d, then the probability of a time difference t with h edges in between the two reference nod… view at source ↗
Figure 6
Figure 6. Figure 6: Precision and Recall for different block sizes, different [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

Zcash is a privacy-preserving cryptocurrency that provides anonymous monetary transactions. While Zcash's anonymity is part of a rigorous scientific discussion, information on the underlying peer-to-peer network are missing. In this paper, we provide the first long-term measurement study of the Zcash network to capture key metrics such as the network size and node distribution as well as deeper insights on the centralization of the network. Furthermore, we present an inference method based on a timing analysis of block arrivals that we use to determine interconnections of nodes. We evaluate and verify our method through simulations and real-world experiments, yielding a precision of 50 % with a recall of 82 % in the real-world scenario. By adjusting the parameters, the topology inference model is adaptable to the conditions found in other cryptocurrencies and therefore also contributes to the broader discussion of topology hiding in general.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports the first long-term measurement study of the Zcash peer-to-peer network, including metrics on network size, node distribution, and centralization. It introduces an inference method that uses timing analysis of block arrivals to determine node interconnections, evaluated and verified through simulations and real-world experiments that report 50% precision and 82% recall; the method is claimed to be adaptable to other cryptocurrencies via parameter adjustment.

Significance. If the inference method is robust, the work supplies scarce empirical data on the topology and centralization of a privacy-focused cryptocurrency and offers a timing-based technique that could generalize to other P2P networks, thereby contributing to the broader literature on topology inference and hiding.

major comments (2)
  1. [Section 4] Section 4 (inference method): the central premise that observed block-arrival time differences serve as a direct proxy for topology edges after basic filtering is not accompanied by an explicit ablation or control that isolates the contribution of direct peer links from variable inter-node latencies, heterogeneous relay policies, or processing delays; without such isolation the mapping from timing deltas to edges remains under-constrained and directly affects the validity of the reported 50%/82% metrics.
  2. [Section 5] Section 5 (evaluation): the real-world validation yielding 50% precision and 82% recall does not describe how ground-truth edges were established or whether the experimental node set was chosen in a manner that could introduce selection effects; absent these details it is impossible to determine whether the metrics reflect the intended signal or are driven by the confounders noted in the method.
minor comments (1)
  1. [Abstract] The abstract states that parameters can be adjusted for other cryptocurrencies but provides no concrete description of the parameter set or sensitivity analysis, which would aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We address the major comments below and will revise the paper accordingly to improve clarity and address the concerns raised.

read point-by-point responses

  1. Referee: [Section 4] Section 4 (inference method): the central premise that observed block-arrival time differences serve as a direct proxy for topology edges after basic filtering is not accompanied by an explicit ablation or control that isolates the contribution of direct peer links from variable inter-node latencies, heterogeneous relay policies, or processing delays; without such isolation the mapping from timing deltas to edges remains under-constrained and directly affects the validity of the reported 50%/82% metrics.

    Authors: We agree that an explicit ablation study would strengthen the validation of the inference method. Our current evaluation relies on simulations that incorporate variable latencies and processing delays, as well as real-world experiments on the live Zcash network. However, to better isolate the contribution of direct links, we will add an ablation analysis in the revised manuscript by comparing results with and without certain filtering steps and by discussing the impact of potential confounders such as relay policies. This will help demonstrate that the timing deltas primarily reflect direct peer connections under the conditions tested. revision: yes

  2. Referee: [Section 5] Section 5 (evaluation): the real-world validation yielding 50% precision and 82% recall does not describe how ground-truth edges were established or whether the experimental node set was chosen in a manner that could introduce selection effects; absent these details it is impossible to determine whether the metrics reflect the intended signal or are driven by the confounders noted in the method.

    Authors: We apologize for the lack of detail in describing the ground-truth establishment and node selection process in Section 5. The ground-truth edges were determined through direct connections established in our controlled experimental setup on the Zcash testnet and mainnet, where we deployed multiple nodes with known interconnections. The node set was selected to represent a diverse range of network conditions, but we acknowledge potential selection effects. In the revision, we will provide a detailed description of the experimental methodology, including how ground truth was obtained and the criteria for node selection, to allow readers to assess the validity of the metrics. revision: yes

Circularity Check

0 steps flagged

Empirical measurement study with no circular derivations

full rationale

The paper describes a timing-based inference method for node interconnections, evaluated via simulations and real-world experiments reporting precision/recall metrics. No equations, fitted parameters presented as predictions, self-definitional constructs, or load-bearing self-citations appear in the provided text or abstract. The method is presented as an empirical technique adaptable to other networks, with no reduction of outputs to inputs by construction. This is a standard non-circular empirical study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Measurement study relying on empirical observation and timing analysis; no free parameters, invented entities, or non-standard axioms are described in the abstract.

axioms (1)
  • domain assumption Block arrival timing differences can be used to infer direct node interconnections
    Core premise of the inference method presented in the abstract.
